153823, 002-10931-00 and -01, 153798 Elevance® Chair LR Monitor Mount
Model Range153823, |
Accessory Number |
153823-001 |
002-10931-00 and -01 |
| Serial Number | All | All |
| Used with Models | Elevance Chair | Elevance Chair |

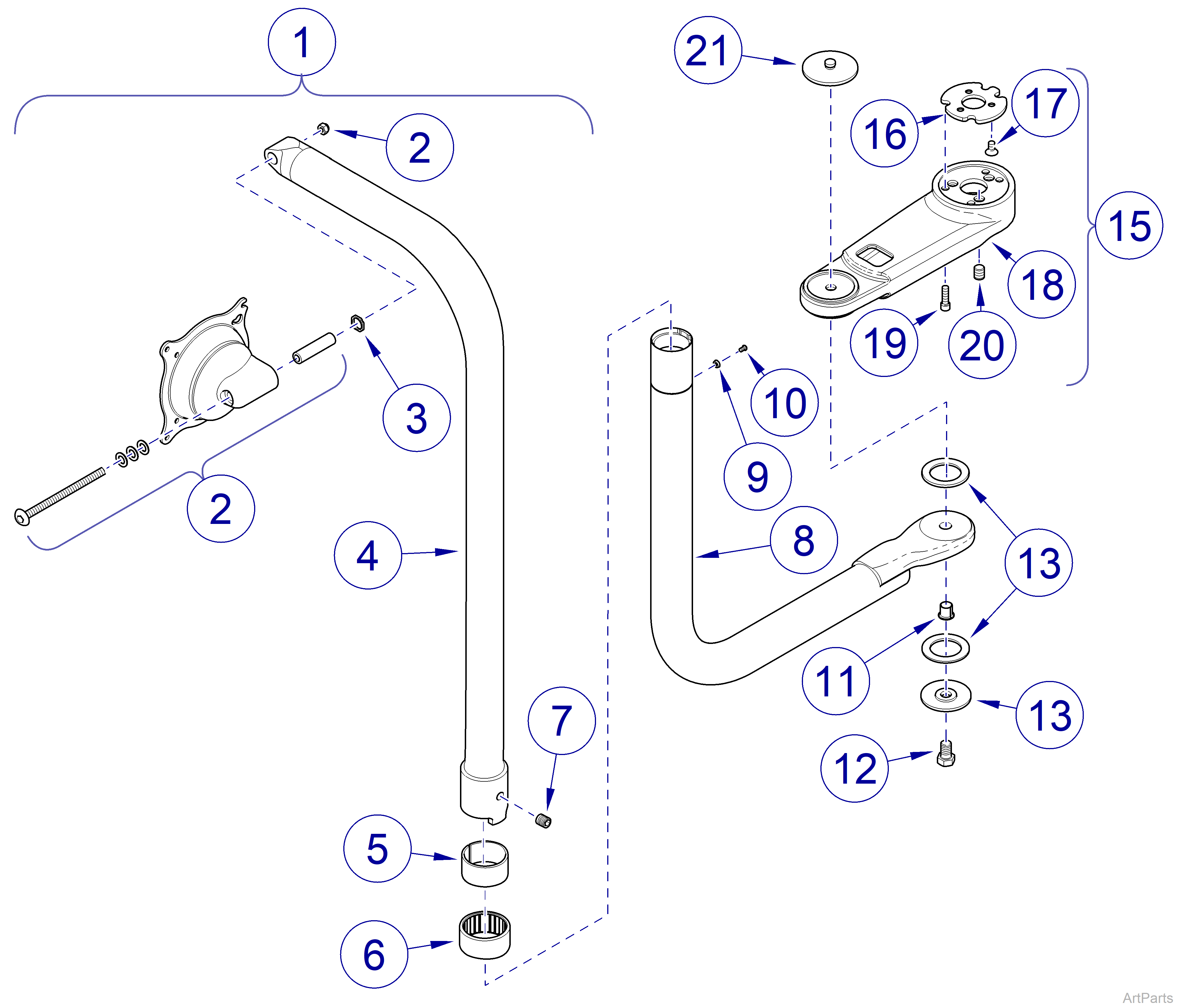

| 153823, 002-10931-00 and -01 Elevance Chair Monitor Mount | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4940-00 | Long Curved Support Arm Assembly - Includes items 2 thru 7 | 1 |
|
2 |
016-1170-00 | Monitor Mount Kit | 1 |
|
3 |
050-7443-00 | Friction Mount Washer | 1 |
|
4 |
030-1882-00-216 | Upper Arm | 1 |
|
5 |
016-0997-00 | DP4 Bearing | 1 |
|
6 |
016-0856-00 | Needle Bearing | 1 |
|
7 |
040-0010-126 | Set Screw | 1 |
|
8 |
029-4983-00 | LR Chair Lower Arm Assembly - Includes items 2 - 4 | 1 |
|
9 |
053-1187-00 | Screw Cover | 1 |
|
10 |
040-0010-109 | Screw #10-24 x 3/8” | 1 |
|
11 |
016-1570-08 | Flange Bearing | 1 |
|
12 |
040-0625-05 | Hex Bolt 5/8” x 1-1/2”, grade 5 | 1 |
|
13 |
057-0971-00-216 | Bearing Cap | 1 |
|
14 |
002-1189-00 | Thrust Bearing Kit - Includes two bearings | 1 |
|
15 |
029-4284-00 | LR Mount Assembly - Includes items 16 - 20, 002-10931-01 Only | 1 |
|
16 |
050-7234-00 | Leveling Plate | 1 |
|
17 |
040-0375-58 | Screw 3/8" - 16 x 1/2" | 3 |
|
18 |
020-0302-00-216 | LR Mount Casting | 1 |
|
19 |
040-0375-47 | Screw 3/8" - 16 x 1-1/4" | 4 |
|
20 |
040-0625-06 | Set Screw | 3 |
|
21 |
057-1043-00-216 | Bearing Cover | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
153798 Lower Arm
Model Range153798
|
Accessory Number |
153798 |
| Serial Number | All |
| Used with Models | Elevance Chair |

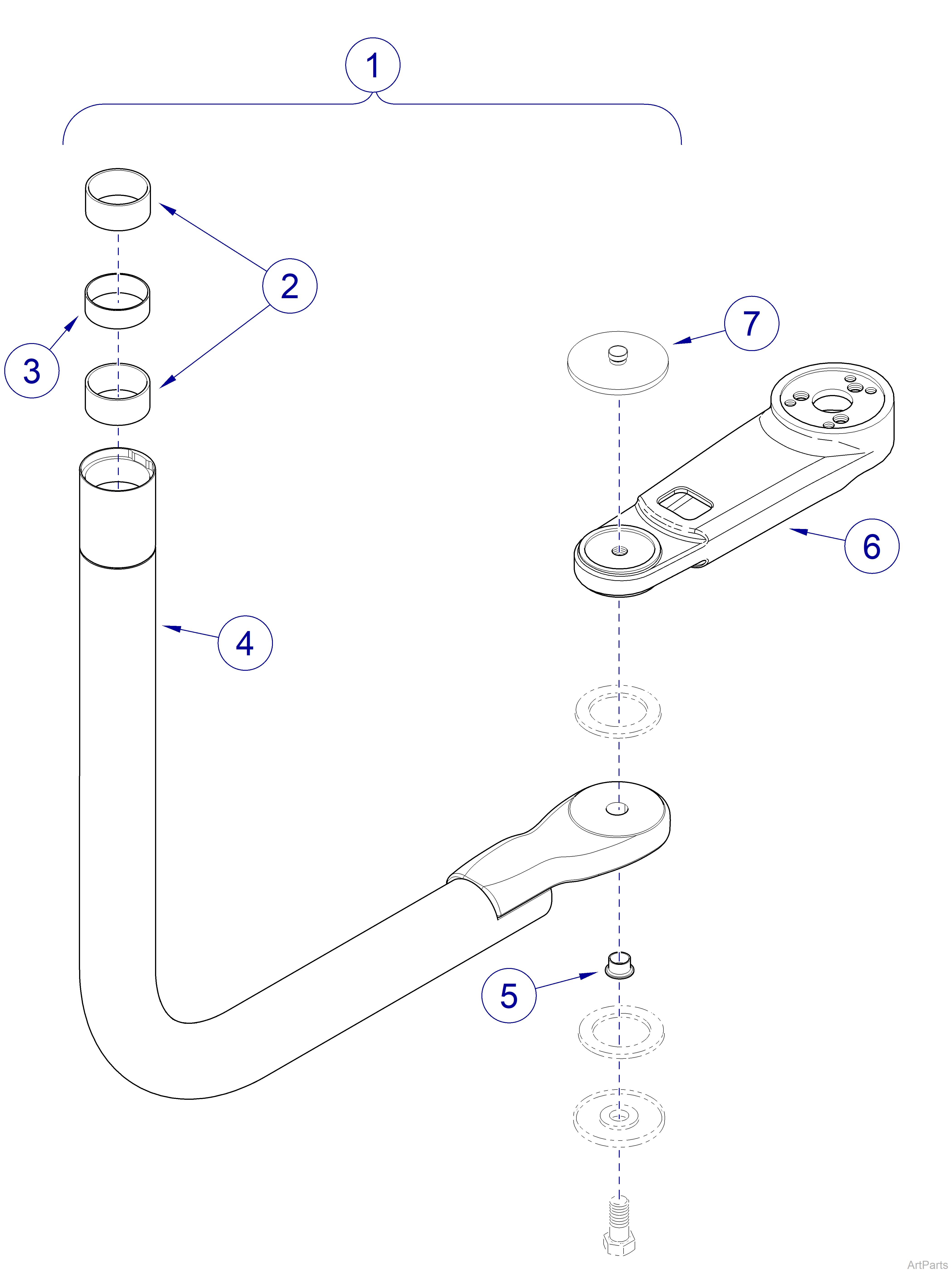

| 153798 Elevance Chair Lower Arm | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4724-00 | LR Lower Arm Assembly - Includes items 2 - 5 | 1 |
|
2 |
016-0149-34 | Bearing | 2 |
|
3 |
052-0688-00 | Spacer | 1 |
|
4 |
030-1841-00-216 | Arm | 1 |
|
5 |
016-1570-08 | Flange Bearing | 1 |
|
6 |
029-4284-00 | Bearing Cover - used only on model 153798-101 | 1 |
|
7 |
057-1043-00-216 | LR Mount Assembly - used only on model 153798-101 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
