153798 Elevance® Chair Upper Monitor Support Arm

Accessory Number

 153798-101
Serial Number All
Used with Models Elevance Chair

153798 Upper Arm

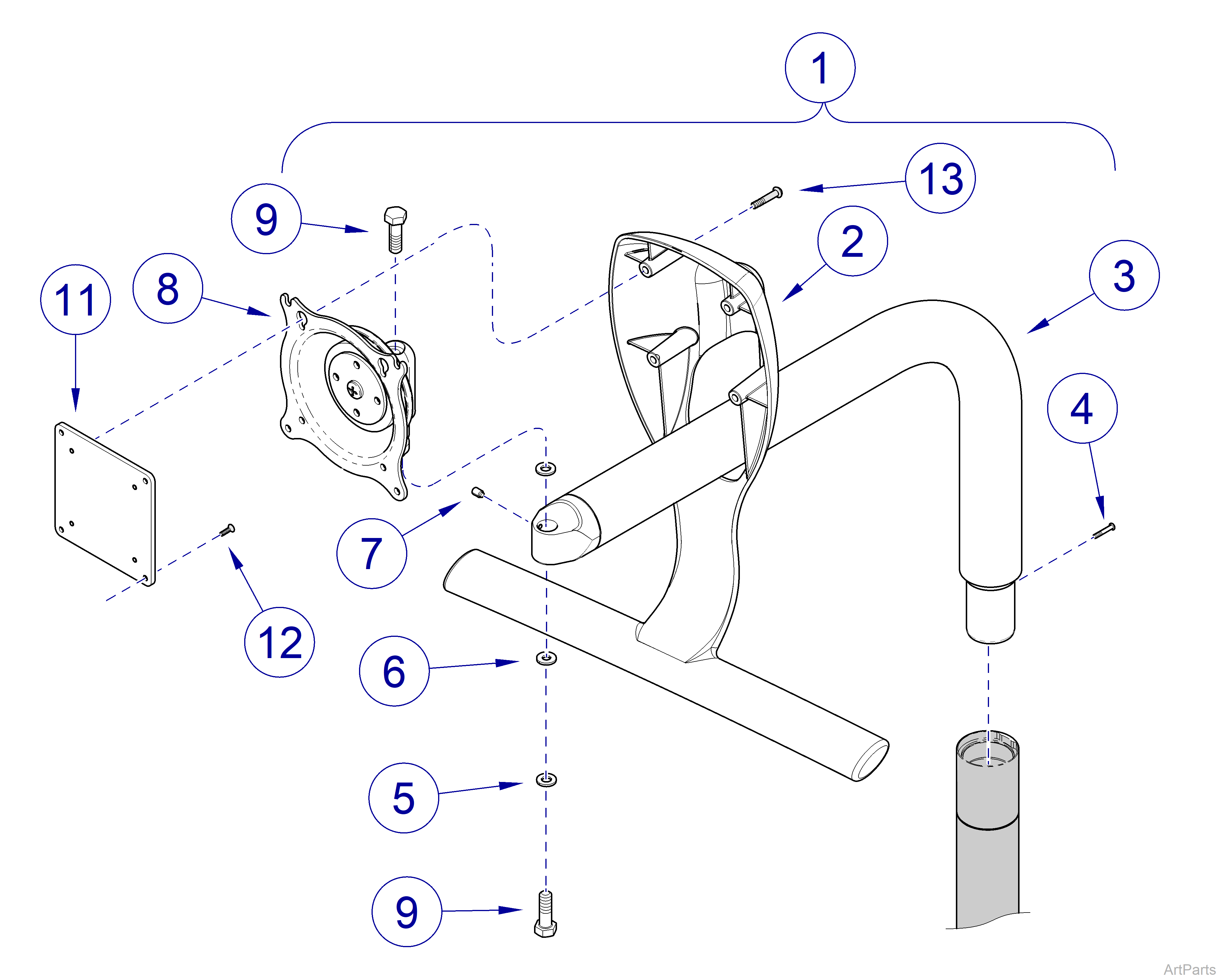

153798 Elevance Chair Upper Monitor Support Arm
Item Part Number Description Qty

1

 029-4726-00 LR Upper Monitor Support Arm Assembly - Includes Items 2 - 9 1

2

 020-0341-00-216 Cover 1

3

 030-1842-00-216 Elbow 1

4

 040-0008-74 Cap Screw 1

5

 045-0001-02 Plain Washer 1

6

 053-0382-03 Nylon Flat Washer 2

7

 121428 Set Screw #10-32 x 1/4" 1

8

 016-1170-00 Monitor Mount - Includes Pivot Sleeve 1

9

 040-0312-04 Hex Head Bolt - Apply Item 10 2

10

 042-0627-00 Thread Locking Adhesive AR

11

 050-8201-00 Mounting Plate 1

12

 042-0112-01 Screw M4 x 16mm, Flat Head 4

13

 042-0112-08 Screw M4 x 12mm, Pan Head 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
