002-1836-00 Post Clamp Mounted Monitor Arm
|
Accessory Number |
002-1836-00 |
| Serial Number | All |
| Used with Models | Elevance Chairs, Ultra Chairs and Knight Chairs |

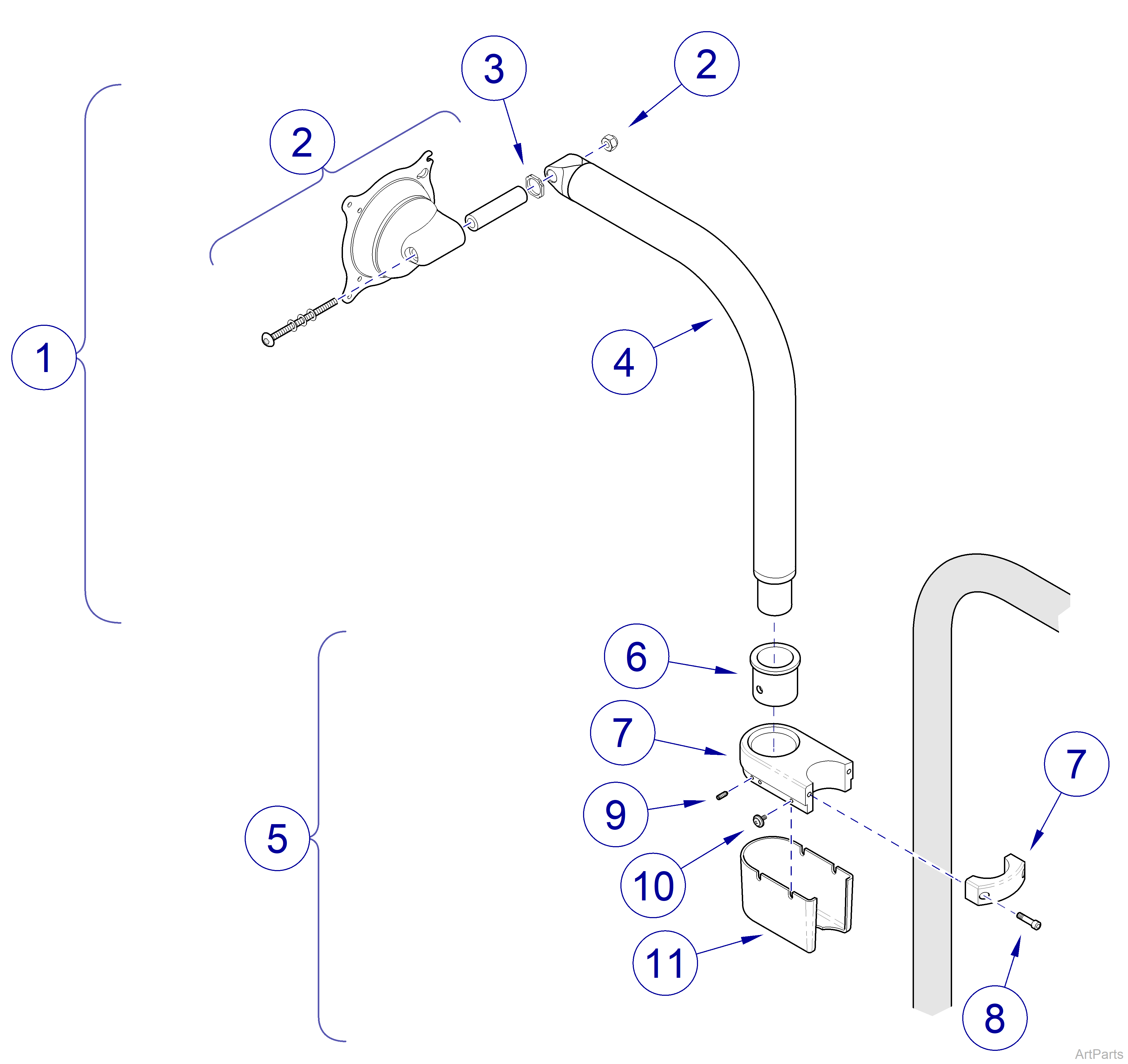

| Post Clamp Mounted Monitor Arm | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3534-00 | Monitor Arm Assembly - Includes Items 2 - 4 | 1 |
|
2 |
016-1170-00 | Monitor Mount Kit | 1 |
|
3 |
050-7443-00 | Friction Washer | 1 |
|
4 |
030-1781-00-216 | Monitor Arm | 1 |
|
5 |
029-3533-00 | Post Clamp Mounting Assembly - Includes Items 6 -11 | 1 |
|
6 |
016-1021-00 | Flange Bearing | 1 |
|
7 |
051-1079-00-216 | Clamp - Includes item 8 | 1 |
|
8 |
102975 | Screw 1/4-20 x 1” | 2 |
|
9 |
121148 | Set Screw #10-32 x 1/2” | 1 |
|
10 |
120233 | Panel Screw #10-32 x 3/8” | 4 |
|
11 |
053-1558-00 | Cover | 1 |
|
12 |
002-1836-00 | Post Clamp Mounted Monitor Arm Assembly - Includes Items 1 and 5 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
