9A408 Wireless Hand and Foot Controls Troubleshooting
When any control button is pressed that controller sounds a single beep. All functions operate.
|
Problem |
Required Action |
|---|---|

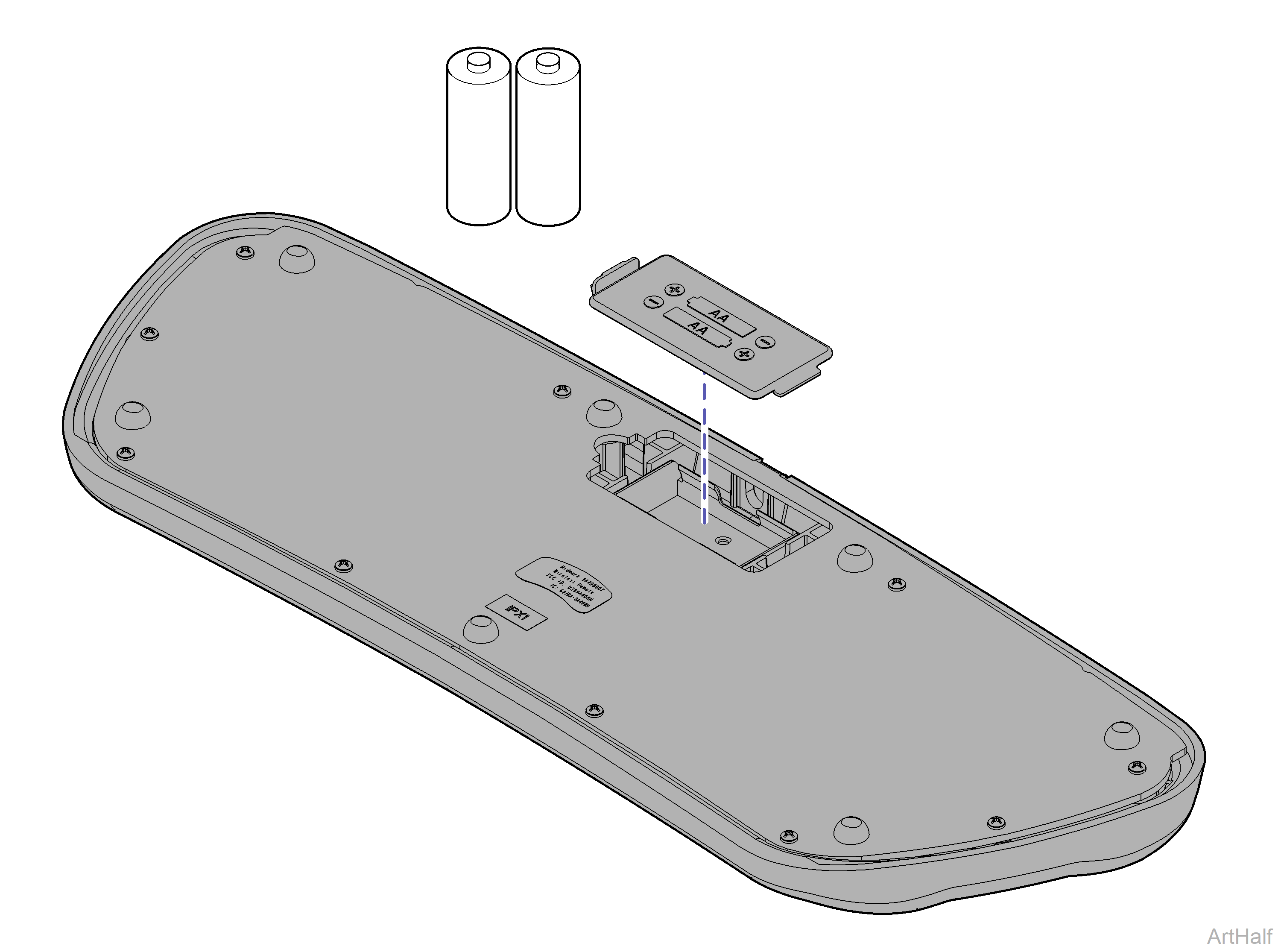

| Low Battery | Replace batteries. Size AA. |
| Faulty PC board in controller | Replace PC board in controller. |
When any control button is pressed, nothing happens;
No beeps, no movement, etc.
Antenna connection is very delicate. Do not kink wire or apply stress to connection.
1.Perform Association Procedure.

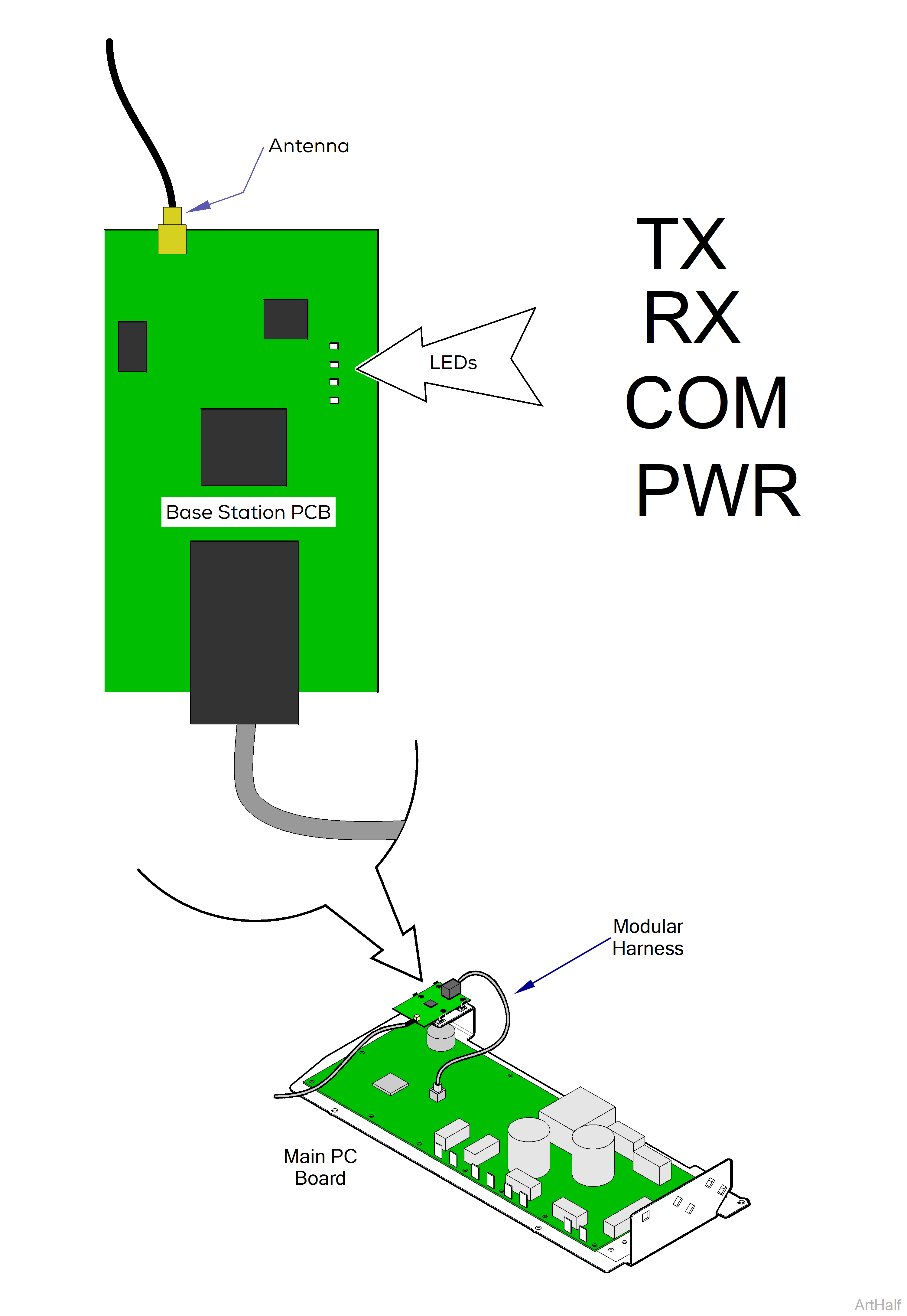

2.LEDs on base station PC board.
| Base Station PC LEDs | |
|---|---|
|
LEDs |
Normal Status |
|
|
TX - OFF, except during an Association Procedure |
|
|
RX - ON, green, except during an Association Procedure |
|
|
COM - ON, green. |
|
|
PWR - ON, green when board has power. |
|
Problem |
Required Action |
|---|---|
| If LEDs on Base Station PC board are normal | Check LEDs on Foot Control PCB. |
| If no LEDs are illuminated on Base Station PC board, check: | Modular Harness for loose connections or damage |
| Power Supply to the chair. | |
| Replace base Station PC board if necessary. |
3.Check LEDs on Foot Control - press each control button on the foot control.

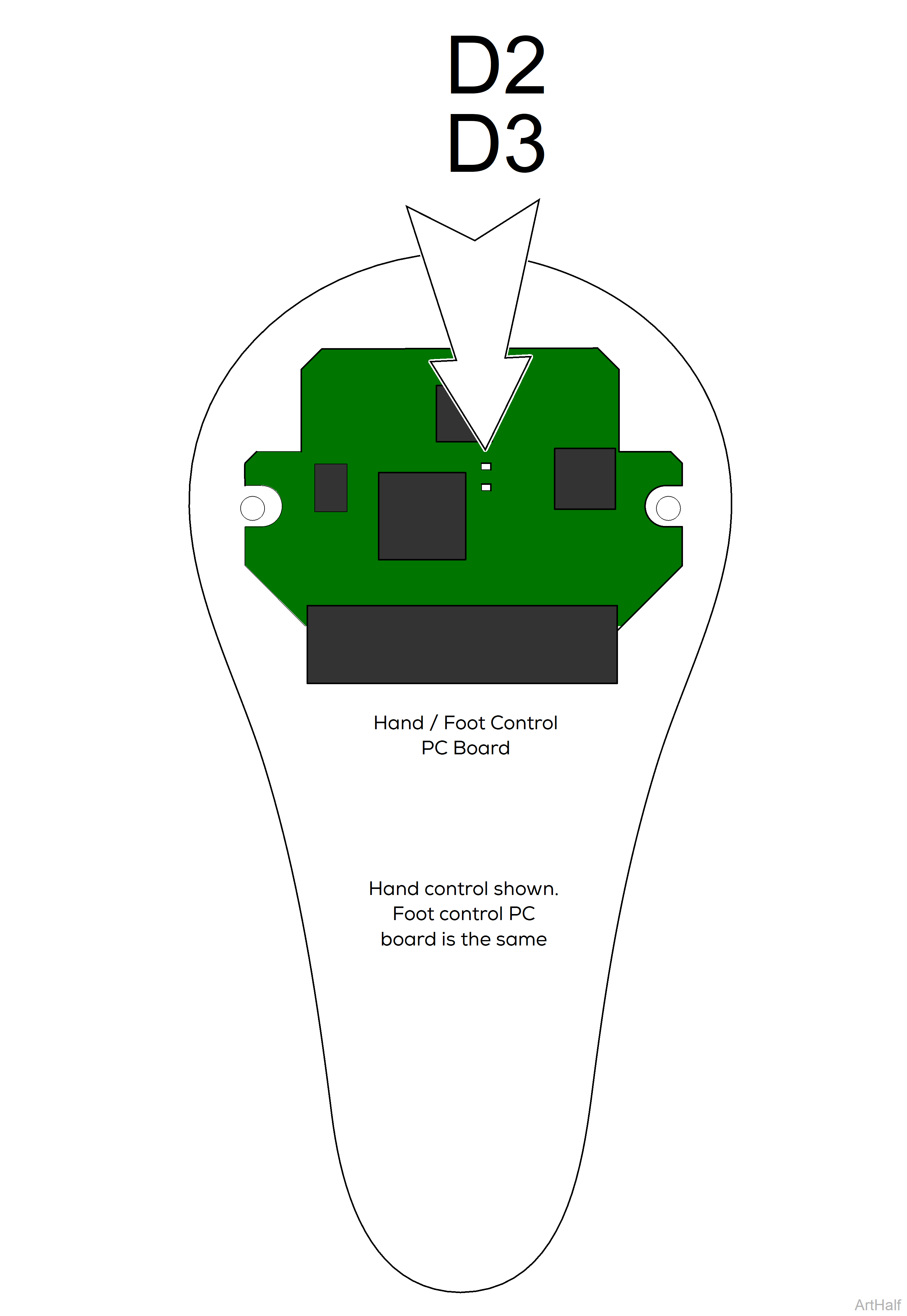

| Foot Control PC Board LEDs | |
|---|---|
|
LEDs |
Normal Status |
|
|
D2 - ON, green, only when a button on that control is pressed |
|
|
D3 - OFF, green, except during an Association Procedure |
|
Problem |
Required Action |
|---|---|
| If LEDs function properly: | Check antenna connection. |
| Replace antenna if necessary. | |
| If LEDs do not function properly: | Replace batteries in controller, Size: AA. |
| Replace foot control touch membrane. | |
| Replace foot control PC board if necessary. |
