152176 Air Quick Connect Kit
|
Accessory Number |
152176 |
| Serial Number | All |
| Used with Models | Asepsis 21 |

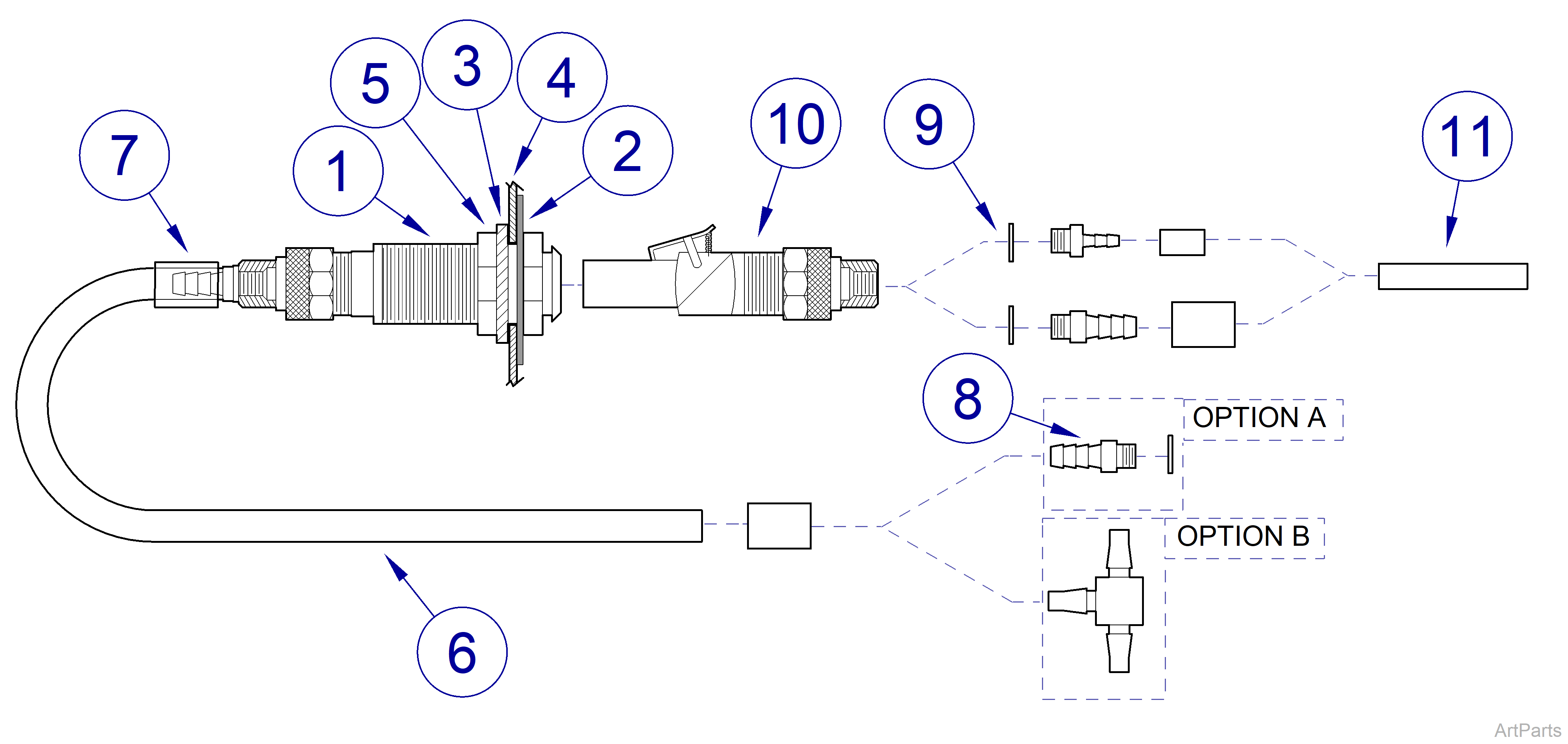

| 152176 Air Quick Connect Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
121107 | Panel Mount Coupler with Shut-Off | 1 |
|
2 |
121112 | Air Quick Connect Label | 1 |
|
3 |
122181 | Washer | 1 |
|
4 |
Reference Only | Control Panel | - |
|
5 |
121108 | Quick Connect Adaptor | 2 |
|
6 |
177533 | 1/4” O.D. Clear Tubing - 9 feet in length | 1 |
|
7 |
Sleeve Clamp Options - use for all #10-32 Connectors | ||
| 117479 | Sleeve Clamp for 1/8” O.D. Tubing | 3 | |
| 117480 | Sleeve Clamp for 1/4” O.D. Tubing | 3 | |
|
8 |
Tubing Connector Options - use the size that fits your equipment | ||
| 109714 | #10-32 Connector to 1/8” O.D. Tubing - Seal to Item 10 with Item 9 | 3 | |
| #10-32 Connector to 1/4” O.D. Tubing - Seal to Item 10 with Item 9 | NLA | ||
| 122743 | 3-Way Barb Tee for 3/16” O.D. Tubing | 1 | |
|
9 |
117660 | Sealing Gasket | 4 |
|
10 |
121129 | Poly Quick Disconnect Insert | 1 |
|
11 |
Reference Only | Tubing present in your equipment | - |
|
12 |
152176 |
Air Quick Connect Kit - Includes Items 1 thru 10 | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
