153763 LR Mounted Short Curved Monitor Mount
|
Accessory Number |
153763-001 | 153763-002 |
| Serial Number | Chairs w/o LR Units | All |
| Used with Models | Ultra Chair | Knight Chair |

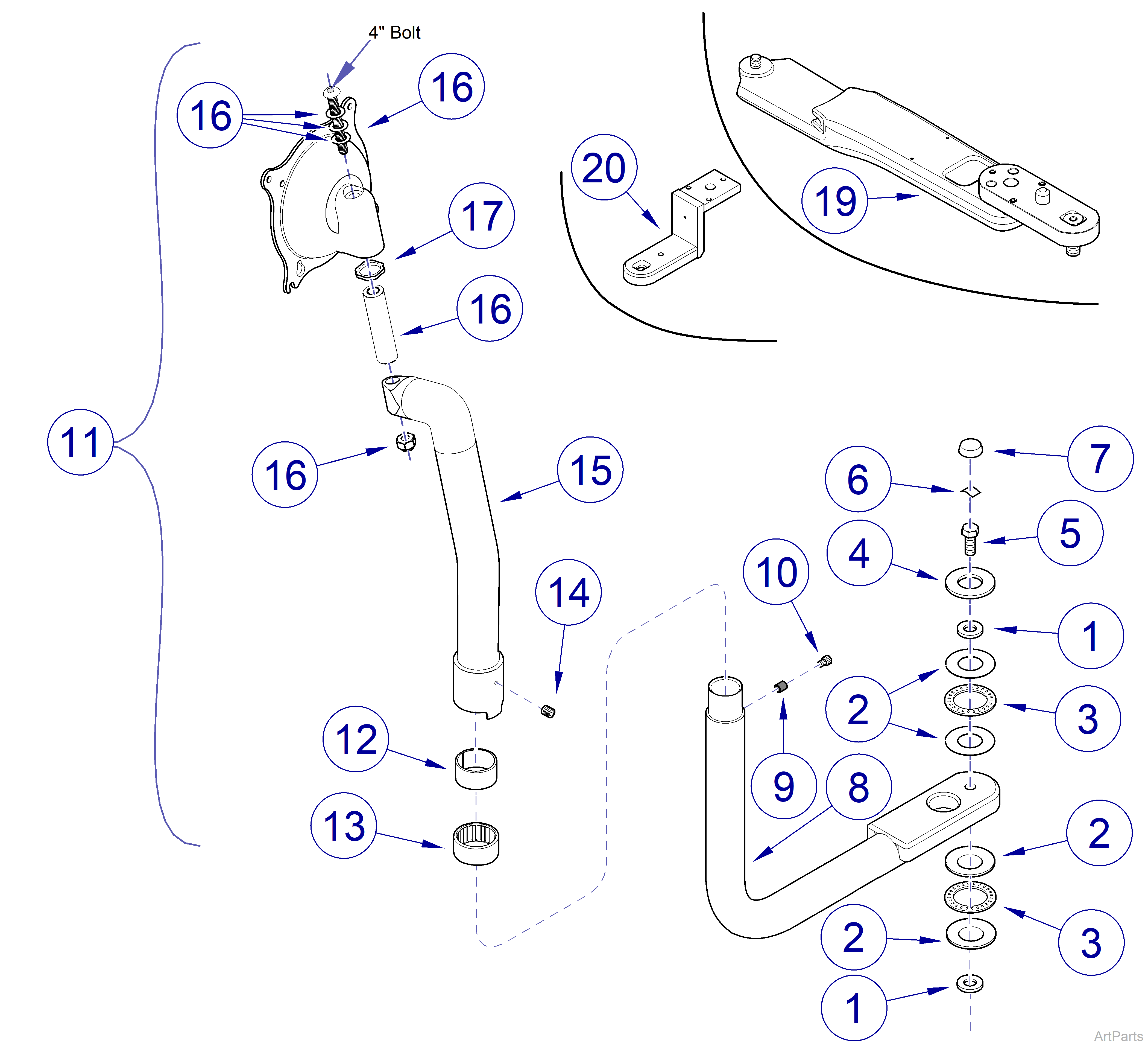

| 153763 LR Mounted Short Curved Monitor Mount Arm | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-5259-01 | Small Bearing Spacer | 2 |
|
2 |
016-0300-03 | Thrust Washer | 4 |
|
3 |
016-0196-04 | Thrust Bearing | 2 |
|
4 |
050-5259-02 | Large Bearing Spacer | 1 |
|
5 |
040-0500-29 | Bolt | 1 |
|
6 |
275184 | Double Sided Tape | AR |
|
7 |
053-1360-00 |
Bolt Cover | NLA |
|
8 |
LR Monitor Support Arm Options | ||
|
|
153698-001 |
Midmark | NLA |
|
|
153698-002 |
Knight | NLA |
|
9 |
053-1187-00 | Neoprene Tubing | 1 |
|
10 |
040-0010-109 | Screw | 1 |
|
11 |
029-3563-00 | Upper Support Assembly - includes items 12 thru 17 | 1 |
|
12 |
016-0997-00 | Bearing | 1 |
|
13 |
016-0149-20 | Needle Bearing | 1 |
|
14 |
040-0010-126 | Set Screw #10-32 x 1/4 | 1 |
|
15 |
030-1783-00-216 | Upper Arm Support | 1 |
|
16 |
016-1170-00 | Monitor Mount Kit | 1 |
|
17 |
050-7443-00 | Friction Washer | 1 |
|
18 |
003-1303-00 |
Installation Guide - not shown | NLA |
|
19 |
029-2696-00 | Ultra-Series Chair Bracket Assembly | 1 |
|
20 |
029-3002-00 | Knight Chair Bracket Assembly | 1 |
|
21 |
153763 | Monitor Support Arm includes - items 1 thru 17 | 1 |
|
22 |
153763-001 | Monitor Support Arm w/Ultra-Series Chair Bracket - includes items 1 thru 19 | 1 |
|
23 |
153763-002 |
Monitor Support Arm w/Knight Chair Bracket - includes items 1 thru 17, and 20 | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
