002-10477-00, 002-10478-00 Elevance Chair Conversion Kit SN: V2188925 to present

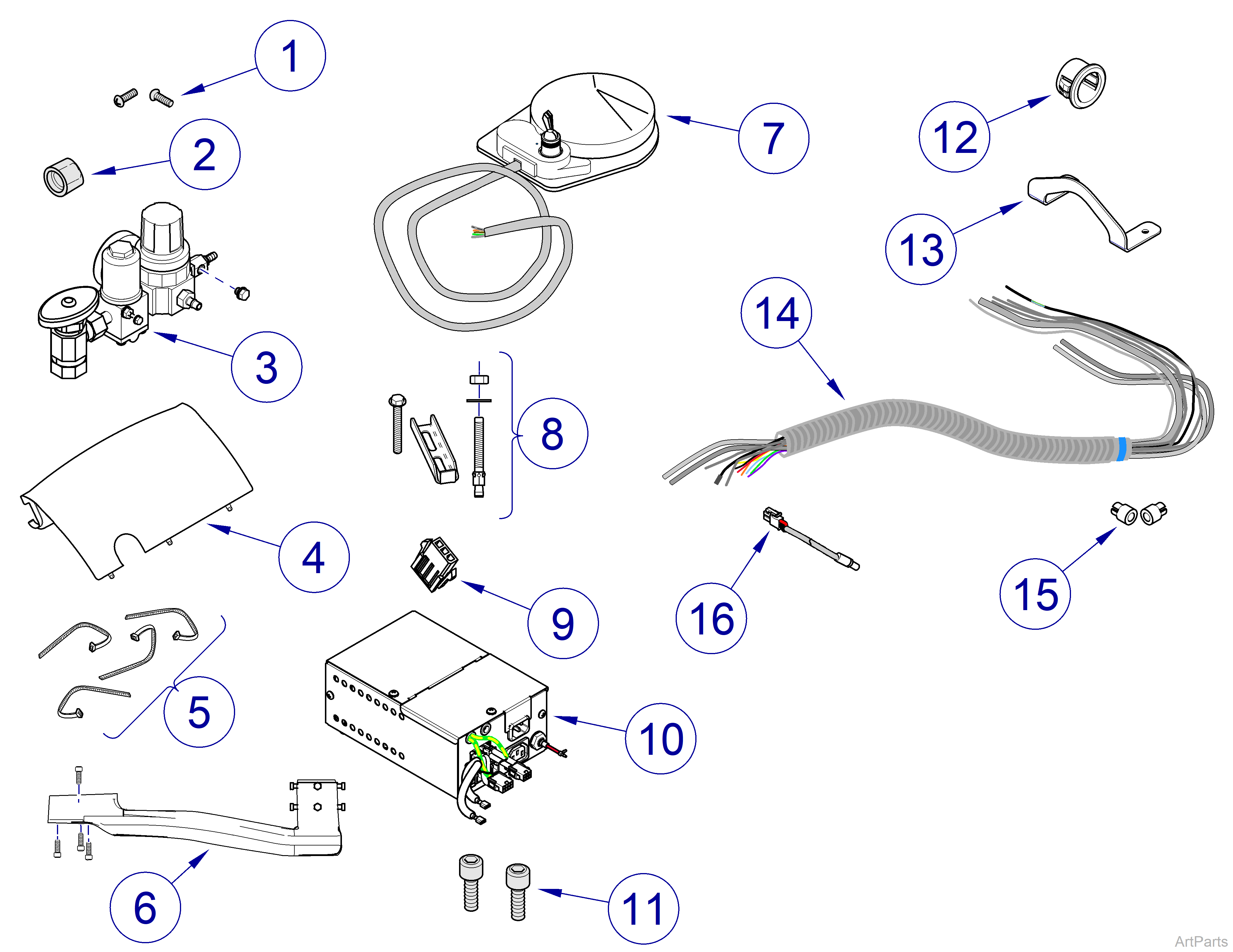

Model Range 002-10478-xx Console Mounted Delivery
|
Accessory Number |
002-10478-xx |
| Serial Number | All |
| Used with Models | Elevance Chair, Console Mounted Delivery |
| 002-1965-xx Elevance Chair to Console Delivery Conversion Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0010-145 | #10-24 X 1/2 screw | 2 |
|
2 |
117480 | 1/4 Clamp sleeve | 1 |
|
3 |
029-2663-03 | Air control assembly w/drive air | 1 |
|
4 |
053-1861-00-XXX | Front cover | 1 |
|
5 |
102308 | Zip ties | 4 |
|
6 |
029-4240-00 | Console mounting arm | 1 |
|
7 |
016-1040-00 | 4 port Foot-control wet-dry | 1 |
|
8 |
002-1431-00 | Chair anchor kit | 1 |
|
9 |
015-0590-02 | Molex plug 3 circuits | 1 |
|
10 |
VAC Power Supply Options - w/USB Hub Power | ||
| 153941-001 | 115 VAC | 1 | |
| 153941-002 | 230 VAC | 1 | |
|
11 |
040-0375-16 | Rotation Stop | 2 |
|
12 |
053-0068-11 | Snap Bushing Sb-875-11 | 1 |
|
13 |
050-7590-XX-XXX | Umbilical Plate | 1 |
|
14 |
029-10751-00 | Console Chair Umbilical 4 Ft. | 1 |
|
15 |
117479 | Uni-Clamp 1/8 Od Tube | 4 |
|
16 |
015-3430-00 | Harness | 1 |
|
17 |
002-1965-xx | Elevance Chair to Console Delivery Conversion Kit - Includes items 1 thru 15 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

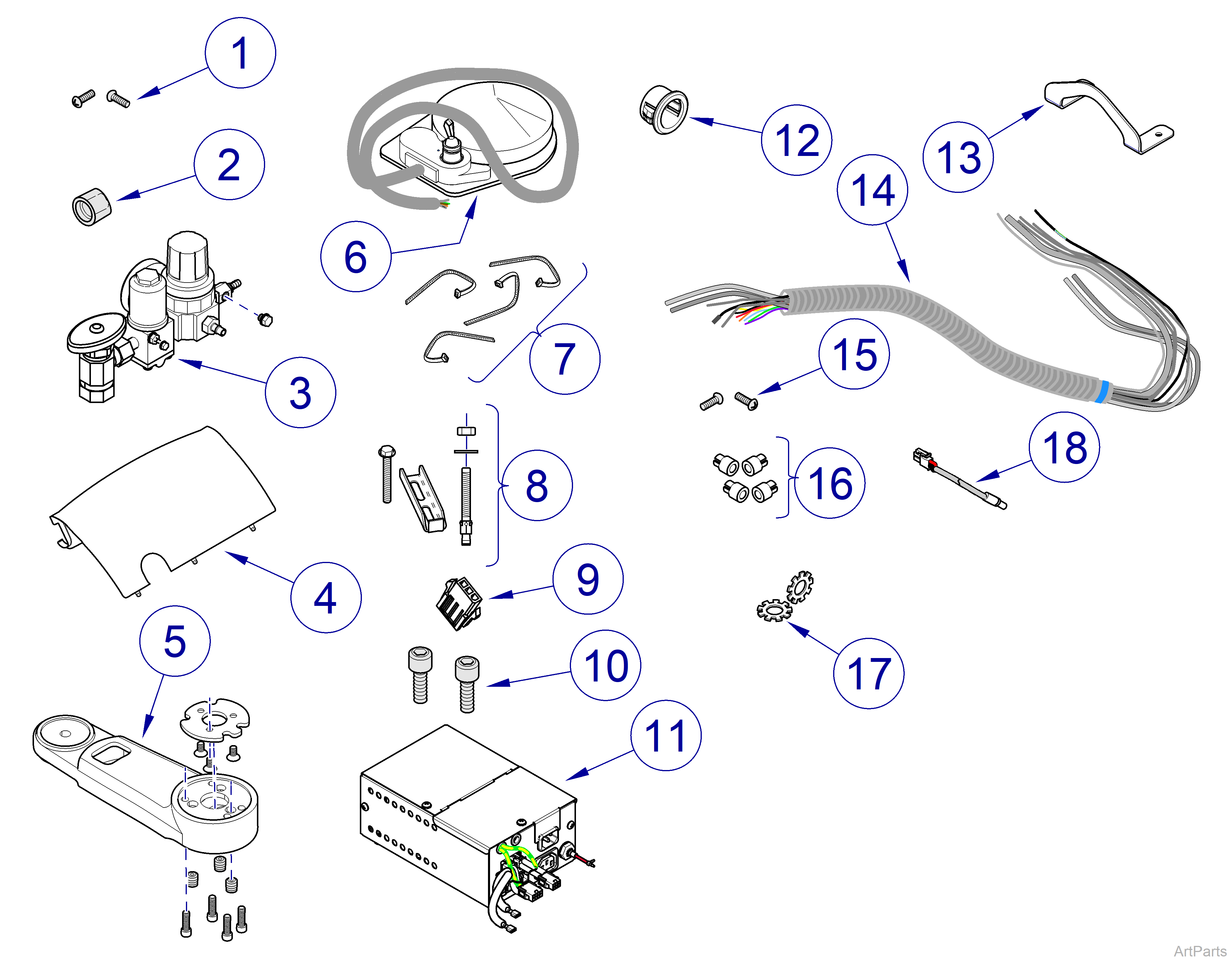

Model Range 002-10477-xx LR Delivery Unit
|
Accessory Number |
002-10477-xx |
| Serial Number | All |
| Used with Models | Elevance Chair, LR Delivery Unit |
| 002-1966-xx Elevance Chair to LR Chair Conversion Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0010-145 | #10-24 X 1/2 screw | 2 |
|
2 |
117480 | 1/4 Clamp sleeve | 1 |
|
3 |
029-2663-03 | Air control assembly w/drive air | 1 |
|
4 |
053-1861-00-XXX | Front cover | 1 |
|
5 |
029-4284-00 | LR mounting arm assembly | 1 |
|
6 |
016-1040-00 | 4 port Foot-control wet-dry | 1 |
|
7 |
102308 | Zip ties | 4 |
|
8 |
002-1431-00 | Chair anchor kit | 1 |
|
9 |
015-0590-02 | Molex plug 3 circuits | 1 |
|
10 |
040-0375-16 | Rotation Stop | 2 |
|
11 |
VAC Power Supply Options - w/USB Hub Power | ||
| 153941-001 | 115 VAC | 1 | |
| 153941-002 | 230 VAC | 1 | |
|
12 |
053-0068-11 | Snap Bushing Sb-875-11 | 1 |
|
13 |
050-7590-XX-XXX | Umbilical Plate | 1 |
|
14 |
029-10750-00 | LR Chair Umbilical 4 Ft. | 1 |
|
15 |
040-0010-109 | #10-24 X 3/8 screw | 2 |
|
16 |
117479 | Uni-Clamp 1/8 Od Tube | 4 |
|
17 |
045-0001-31 | #10 External tooth lock washer | 2 |
|
18 |
015-3430-00 | Harness | 1 |
|
19 |
002-1966-xx | Elevance Chair to LR Chair Conversion Kit - Includes items 1 thru 17 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
