Vacuum Evacuation Filter Assemblies

Accessory Number

 77000037
Serial Number All
Used with Models All

153698 LR Lower Arm

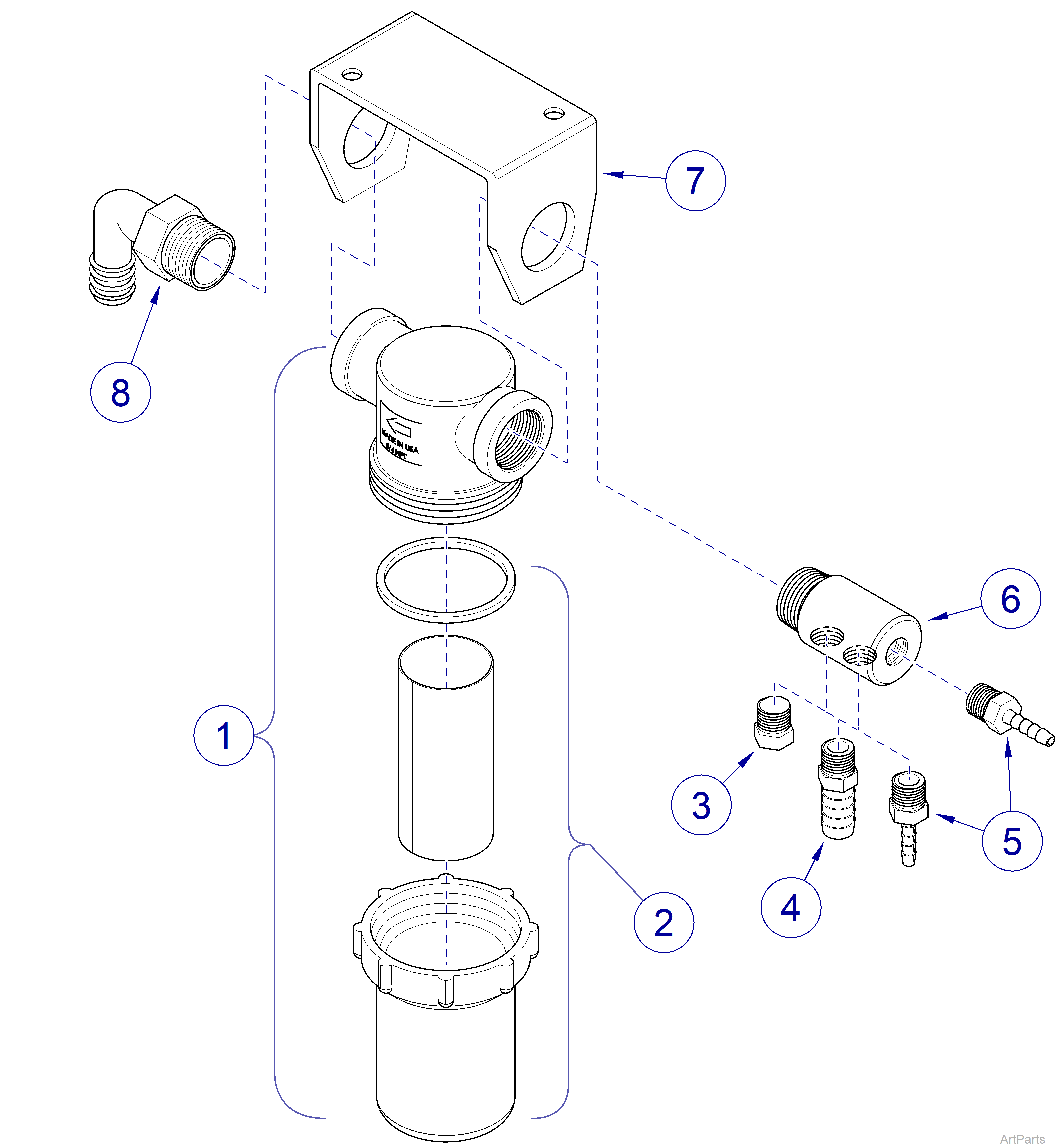

77000037 Under-Counter Evacuation Filter Assembly
Item Part Number Description Qty

1

 62937302 In-line Strainer - 3/4" NPT -includes item 2 1

2

 002-10002-00 Filter Bowl Kit -Includes Strainer and O-ring 1

3

 77004053 Nylon Plug - 1/4" NPT AR

4

 77004051 Nylon Adapter - 1/4" NPT x 1/2" Barb AR

5

 77004052 Nylon Adapter - 1/4" NPT x 3/16" Barb AR

6

 77004054 Nylon Junction Fitting 1

7

 10290000 Mounting Bracket 1

8

 77004140 90° Elbow - 3/4" NPT x 5/8" Barb 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 77000193
Serial Number All
Used with Models All

153698 LR Lower Arm

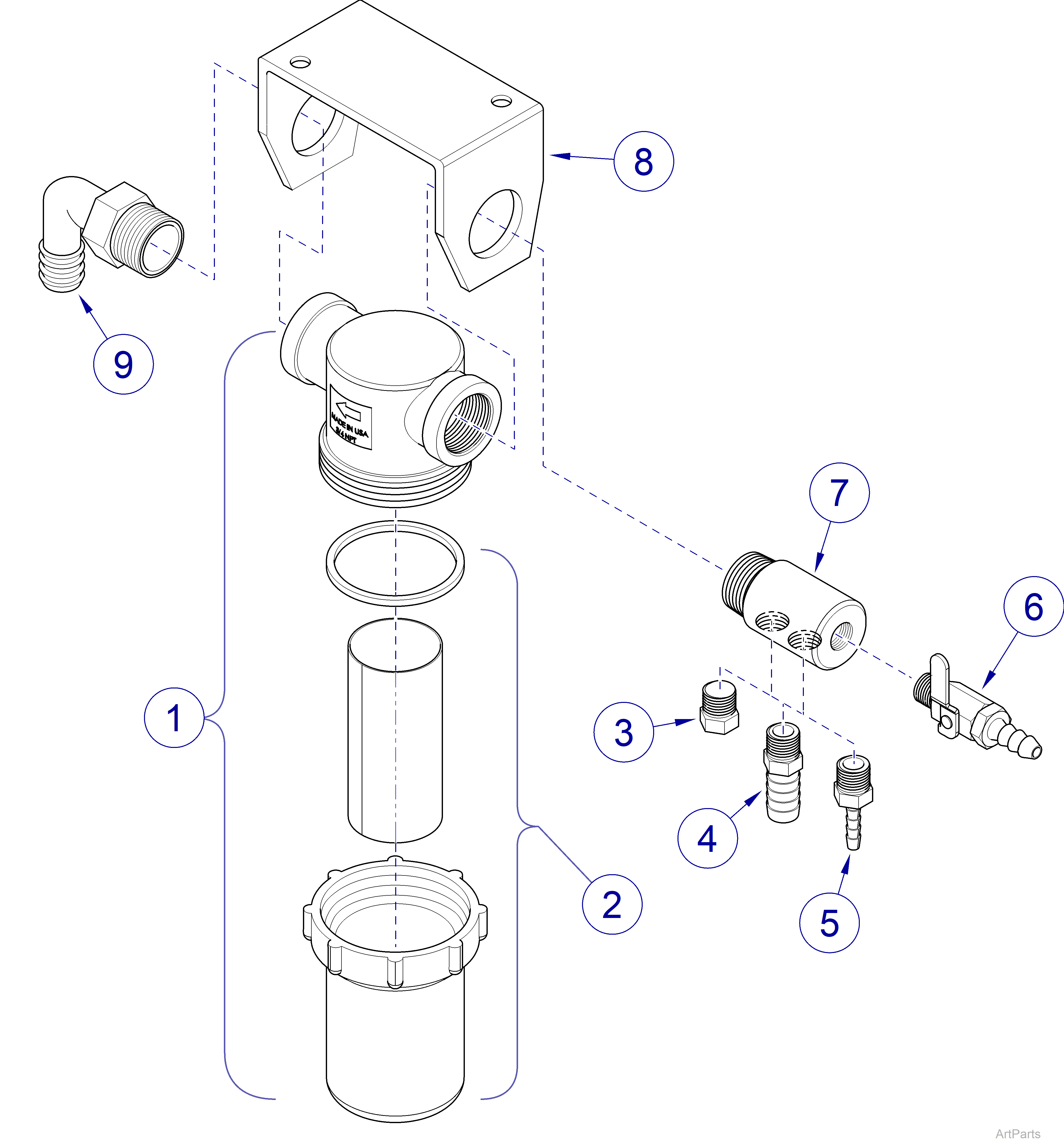

77000193 Under-Counter Evacuation Filter Assembly With Surgical Cut-off Valve
Item Part Number Description Qty

1

 62937302 In-line Strainer - 3/4" NPT -includes item 2 1

2

 002-10002-00 Filter Bowl Kit -Includes Strainer and O-ring 1

3

 77004053 Nylon Plug - 1/4" NPT AR

4

 77004051 Nylon Adapter - 1/4" NPT x 1/2" Barb AR

5

 77004052 Nylon Adapter - 1/4" NPT x 3/16" Barb AR

6

 77002080 Brass Ball Valve - 1/4" NPT X 1/4" Barb 1

7

 77004054 Nylon Junction Fitting 1

8

 10290000 Mounting Bracket 1

9

 77004140 90° Elbow - 3/4" NPT x 5/8" Barb 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 77000038
Serial Number All
Used with Models All

153698 LR Lower Arm

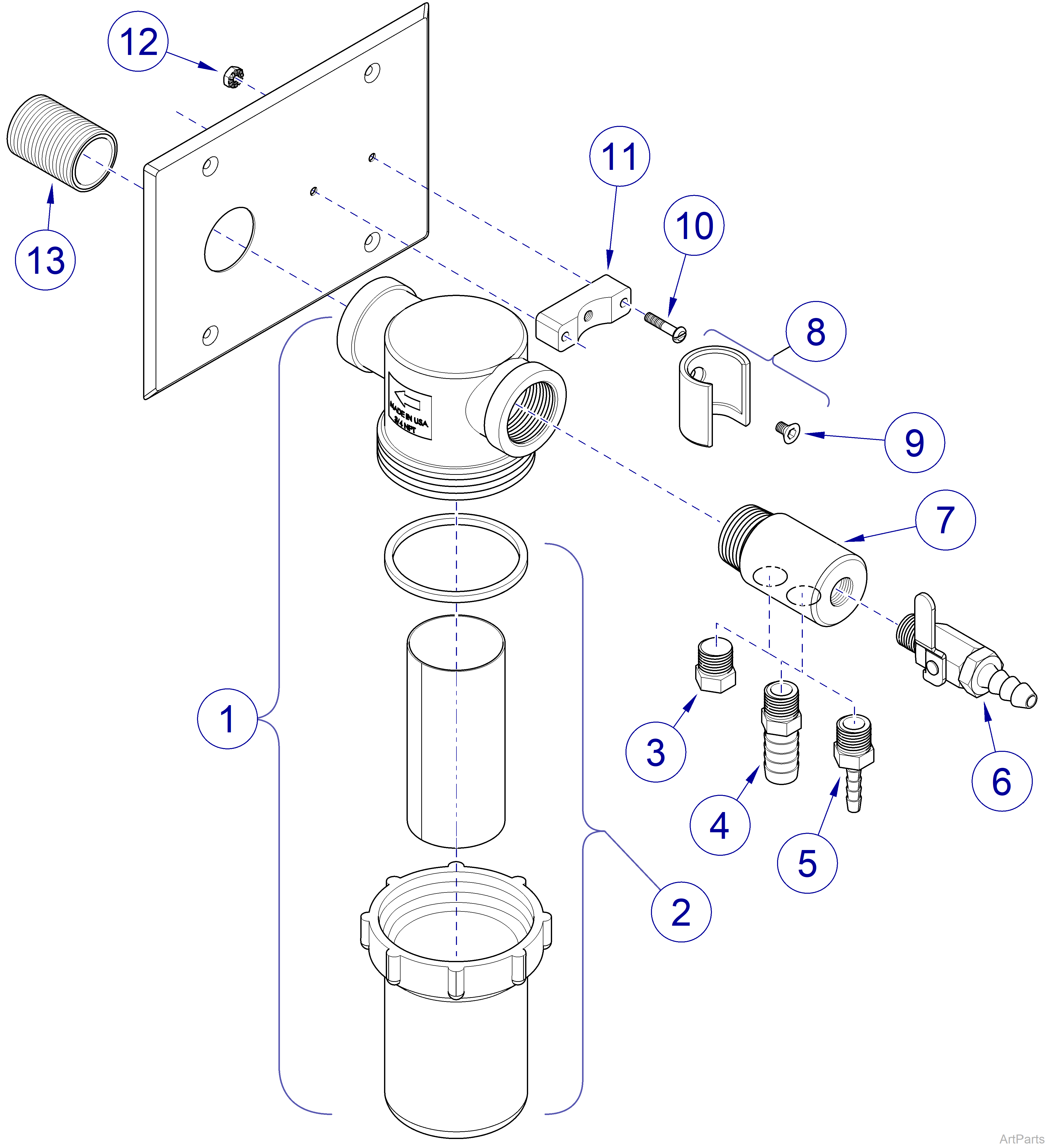

77000038 Wall Mount Evacuation Filter Assembly With 1 large hanger, Surgical Cut-off Valve
Item Part Number Description Qty

1

 62937302 In-line Strainer - 3/4" NPT -includes item 2 1

2

 002-10002-00 Filter Bowl Kit -Includes Strainer and O-ring 1

3

 77004053 Nylon Plug - 1/4" NPT AR

4

 77004051 Nylon Adapter - 1/4" NPT x 1/2" Barb AR

5

 77004052 Nylon Adapter - 1/4" NPT x 3/16" Barb AR

6

 77002080 Brass Ball Valve - 1/4" NPT X 1/4" Barb 1

7

 77004054 Nylon Junction Fitting 1

8

 77005066 Large Hose Hanger - includes item 9 1

9

   Flat Head Screw - 10-32 x 3/8" NSS

10

 62500108 Pan Head Screw - 6-32 x 1" 2

11

 77005067 Bracket Hose Holder 1

12

 61402702 Hex Lock Nut - 6-32 2

13

 62903305 Brass Close Nipple - 3/4" NPT 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 77000338
Serial Number All
Used with Models All

153698 LR Lower Arm

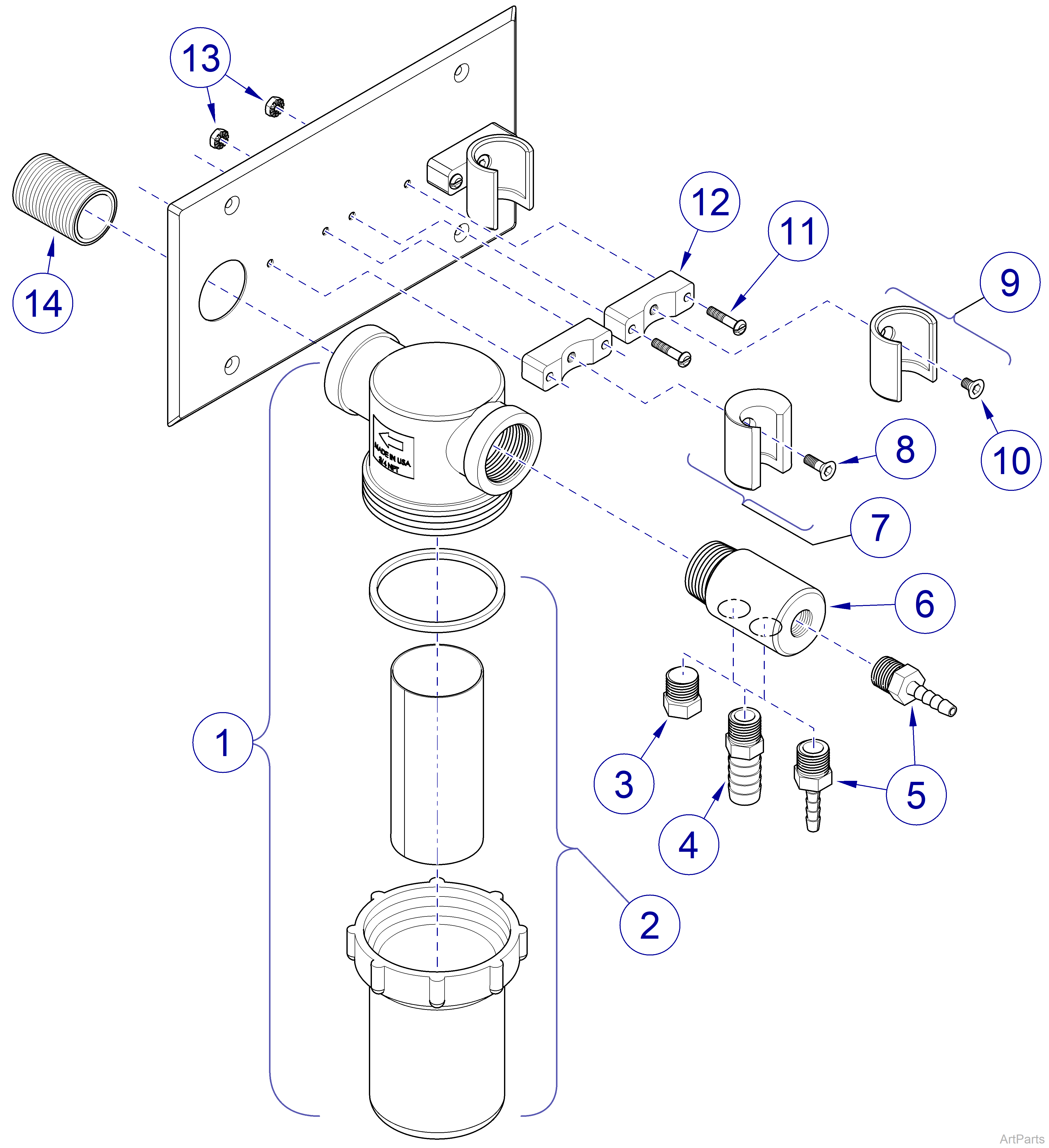

77000338 Wall Mounted Evacuation Filter Assembly With 2 Large / 1 Small Hanger
Item Part Number Description Qty

1

 62937302 In-line Strainer - 3/4" NPT -includes item 2 1

2

 002-10002-00 Filter Bowl Kit -Includes Strainer and O-ring 1

3

 77004053 Nylon Plug - 1/4" NPT AR

4

 77004051 Nylon Adapter - 1/4" NPT x 1/2" Barb AR

5

 77004052 Nylon Adapter - 1/4" NPT x 3/16" Barb AR

6

 77004054 Nylon Junction Fitting 1

7

 77005065 Small Hose Hanger - includes item 8 1

8

   Flat Head Screw - 10-32 x 1/2" NSS

9

 77005066 Large Hose Hanger - includes item 10 1

10

   Flat Head Screw - 10-32 x 3/8" NSS

11

 62500108 Pan Head Screw - 6-32 x 1" 2

12

 77005067 Bracket Hose Holder 3

13

 61402702 Hex Lock Nut - 6-32 2

14

 62903305 Brass Close Nipple - 3/4" NPT 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
