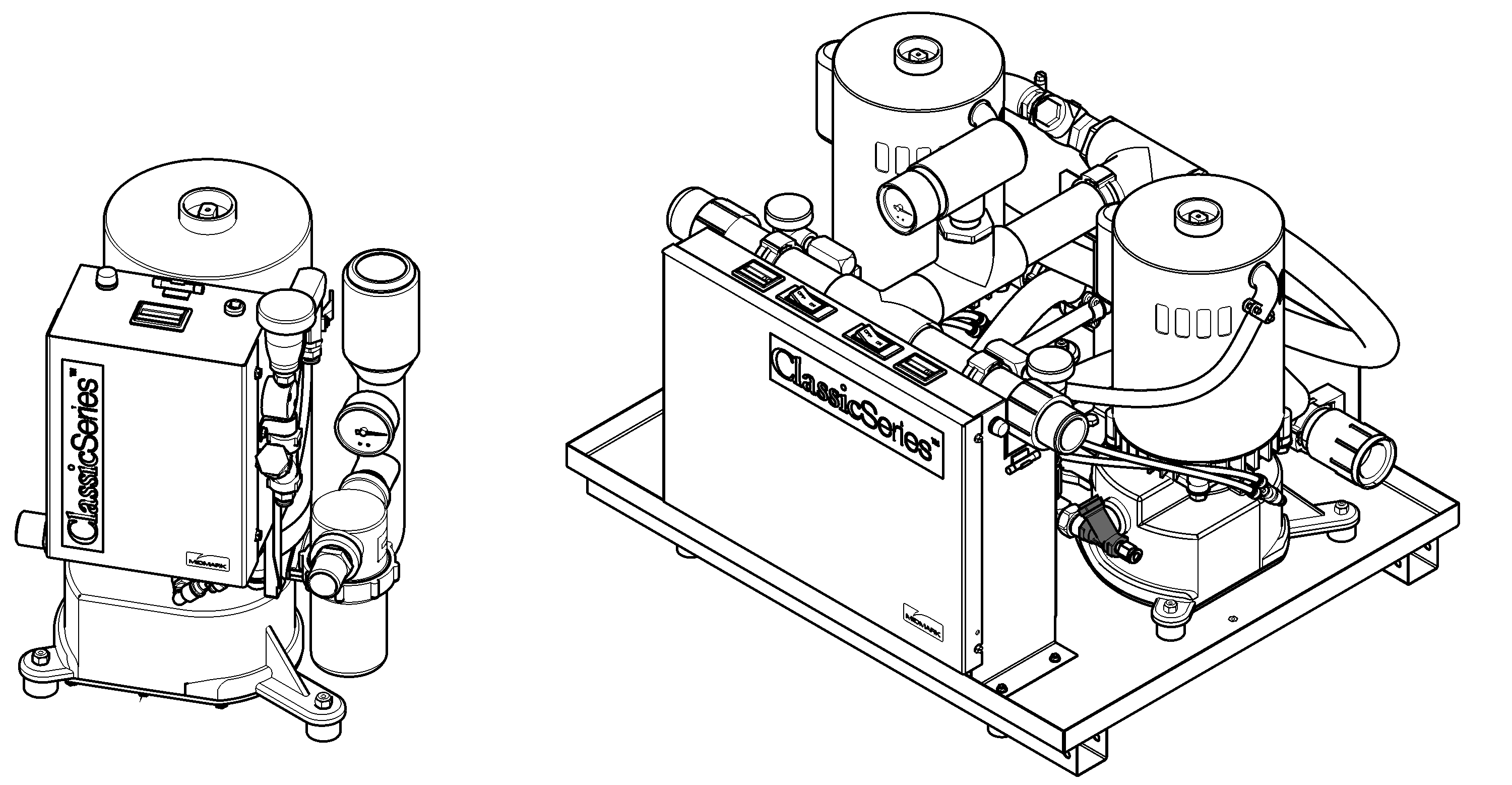

Classic Series Vacuums Weights, Dimensions And Electrical Specifications
| Vacuum Model | Max. Users | Width (IN) | Depth (IN) | Height (IN) | Weight (LBS) | Total HP | Voltage (50/60 Hertz) | Breaker Size per Pump (Amps) | Inlet Connection Size (IN.) | Drain Connection Size (IN.) | Fresh Water Connection Size (FNPT) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CV3 | 3 | 12" | 13" | 15" | 54 | 1 1/4 | 115 / 208-230 | 20 | 1" | 1" | 1/2" |
| CV3R | 3 | 12" | 13" | 15" | 56 | 1 1/4 | 115 / 208-230 | 20 | 1" | 1" | 1/2" |
| CV5 | 5 | 12" | 13" | 17" | 63 | 2 | 208-230 | 20 | 1" | 1" | 1/2" |
| CV5R | 5 | 12" | 13" | 17" | 65 | 2 | 208-230 | 20 | 1" | 1" | 1/2" |
| CV6 | 6 | 25 1/2" | 20" | 18 1/2" | 134 | 2 1/2 | 115 / 208-230 | 20 | 1 1/4" | 1 1/4" | 1/2" |
| CV6R | 6 | 25 1/2" | 20" | 18 1/2" | 134 | 2 1/2 | 115 / 208-230 | 20 | 1 1/4" | 1 1/4" | 1/2" |
| CV10 | 10 | 25 1/2" | 20" | 18 1/2" | 154 | 4 | 208-230 | 20 | 1 1/4" | 1 1/4" | 1/2" |
| CV10R | 10 | 25 1/2" | 20" | 18 1/2" | 154 | 4 | 208-230 | 20 | 1 1/4" | 1 1/4" | 1/2" |
