Classic Series Vacuums Single Vacuum Installation Kit
|
Model |
CV3 | CV3R | CV5 | CV5R | All |
| Serial Number | 0705CV30001 thru Present | 0705CV3R0001 thru Present | 0705CV50001 thru Present | 0705CV5R0001 thru Present | V785000 thru Present |

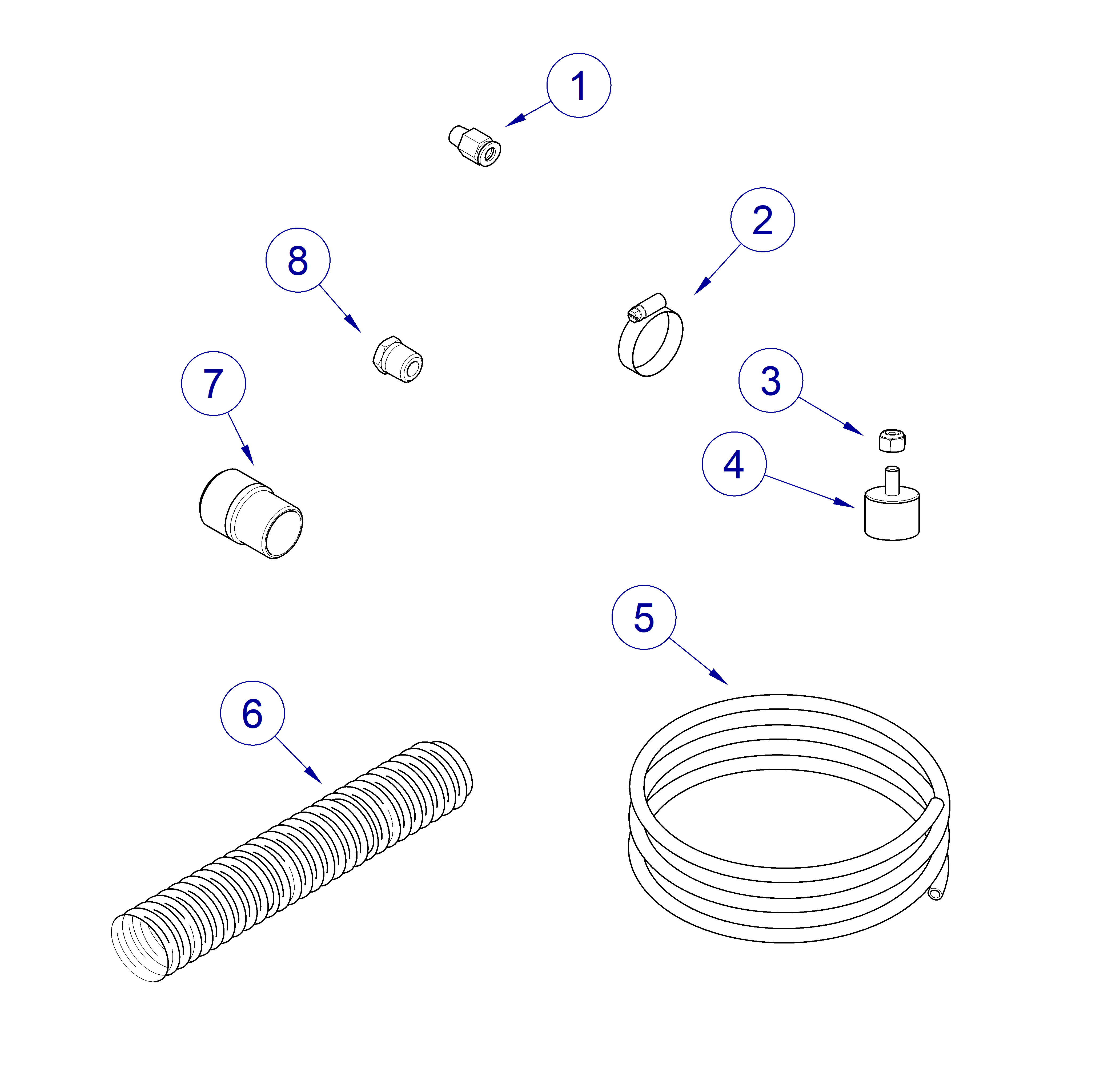

| Classic Series Vacuums Single Vacuum Installation Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62982202 | Quick Connect Fitting 1/4"QC x 1/4" | 1 |
|
2 |
77009133 | Clamp 1" | 4 |
|
3 |
62400706 | Lock Nut | 3 |
|
4 |
77007026 | Rubber Feet | 3 |
|
5 |
77000092 | Poly Tube 1/4" OD x 6' | 1 |
|
6 |
002-1863-00 | Exhaust Hose 1" ID x 8' | 1 |
|
7 |
Barbed Nipple Options | ||
| 10527501 | Single 3/4" NPT | 2 | |
| 002-10444-01 | 2 Piece 3/4" NPT Kit - Enough for All Intake and Exhaust Connections | 1 | |
|
8 |
62903606 | Bushing 1/2"M x 1/4F | 1 |
|
9 |
77000145 | Single Vacuum Installation Kit - includes items 1 thru 8 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
