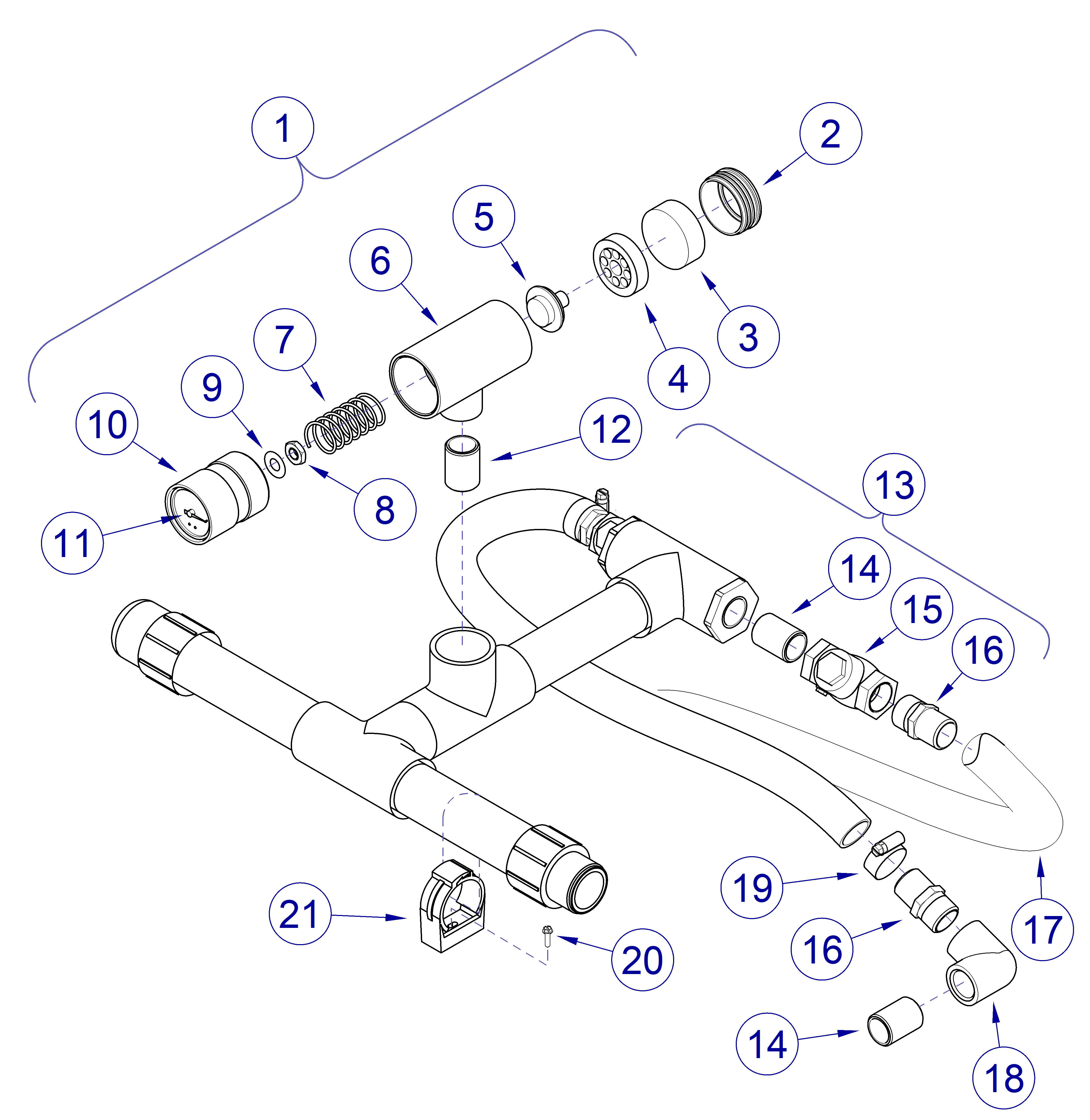

Classic Series Vacuums Twin Intake Manifold Assembly

Model

 CV6 CV6R CV10 CV10R
Serial Number 0705CV60001 thru 0902CV60228 0705CV6R0001 thru 0903CVR0777 0705CV10001 thru 0902CV100109 0705CV10R0001 thru 0902CV10R0401

Classic Series Vacuums Twin Intake Manifold Assembly

Classic Series Vacuums Twin Intake Manifold Assembly
Item Part Number Description Qty

1

 002-10071-00 VRV Assembly- includes Items 1 thru 11 1

2

 053-1640-00 Cap, Plug 1

3

 62935601 Foam Filter 1

4

 20176200 Seat 1

5

 10261700 Float 1

6

 20176101 Body 1

7

 61105400 Compression Spring 1

8

 62400704 Lock Nut 1/8" NPT 1

9

 045-0001-49 Shim .875 OD x .406 ID x .010 THK 1

10

 20176300 Knob 1

11

 62947800 Gauge 0 - 30"Hg 1

12

 62903303 Nipple 3/4" 1

13

002-10554-00

Intake Manifold Assembly - includes items 14 thru 16

1

14

 62903305 Nipple 3/4" AR

15

 77002003 Check Valve 2

16

 Barbed Nipple Options
  10527501 Single 3/4" NPT 4
  002-10444-00 8 Piece 3/4" NPT Kit - Enough for All Intake and Exhaust Connections 1

17

 77008002 PVC Hose 1" ID x 26" - sold by the inch 2

18

 62906106 90 Degree Elbow 2

19

 77009133 Hose Clamp 4

20

 62503802 Screw #8-32 x 5/8" 3

21

 62988001 Pipe Hanger 3

22

   Cap 1 1/4" NPT NSS

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 CV6 CV6R CV10 CV10R All
Serial Number 0903CV60229 thru Present 0903CVR0785 thru Present 0902CV100111 thru Present 0902CV10R0404 thru Present V785000 thru V2251966

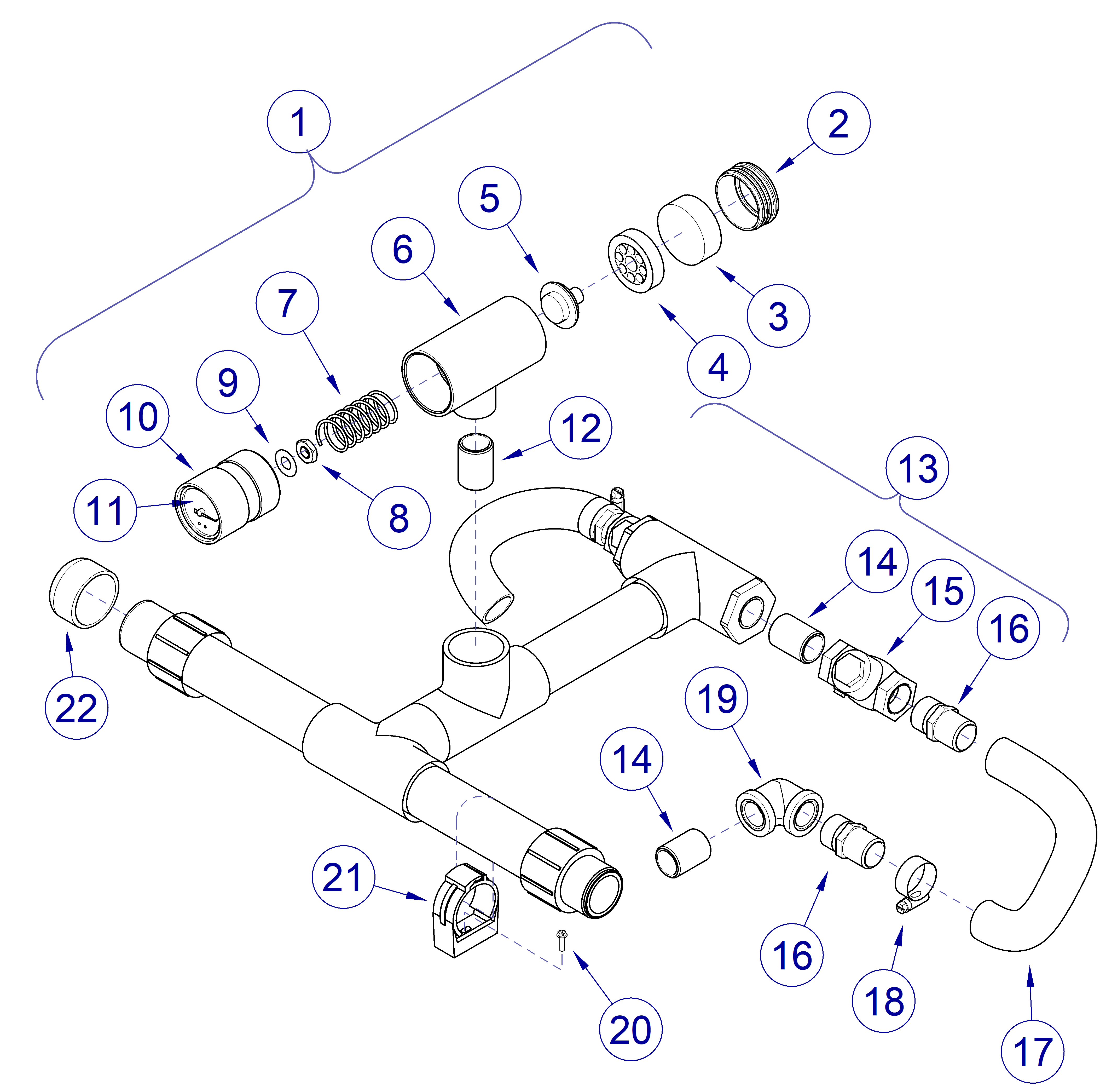

Classic Series Vacuums Twin Intake Manifold Assembly

Classic Series Vacuums Twin Intake Manifold Assembly
Item Part Number Description Qty

1

 002-10071-00 VRV Assembly- includes Items 1 thru 11 1

2

 053-1640-00 Cap, Plug 1

3

 62935601 Foam Filter 1

4

 20176200 Seat 1

5

 10261700 Float 1

6

 20176101 Body 1

7

 61105400 Compression Spring 1

8

 62400704 Lock Nut 1/8" NPT 1

9

 045-0001-49 Shim .875 OD x .406 ID x .010 THK 1

10

 20176300 Knob 1

11

 62947800 Gauge 0 - 30"Hg 2

12

 62903303 Nipple 3/4" 1

13

002-10554-00

Intake Manifold Assembly - includes items 14 thru 16

1

14

 62903305 Nipple 3/4" AR

15

 77002003 Check Valve 2

16

 Barbed Nipple Options
  10527501 Single 3/4" NPT 4
  002-10444-00 8 Piece 3/4" NPT Kit - Enough for All Intake and Exhaust Connections 1

17

 002-10405-00 PVC Hose 1" ID - Includes two 17" hoses and 4 clamps 1

18

 77009133 Hose Clamp 4

19

 62906106 90 Degree Brass Elbow 2

20

 62503802 Screw #8-32 x 5/8" 3

21

 62988001 Pipe Hanger 3

22

   Cap 1 1/4" NPT NSS

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 CV6 CV6R CV10 CV10R All
Serial Number 0903CV60229 thru Present 0903CVR0785 thru Present 0902CV100111 thru Present 0902CV10R0404 thru Present V2251967 thru Present

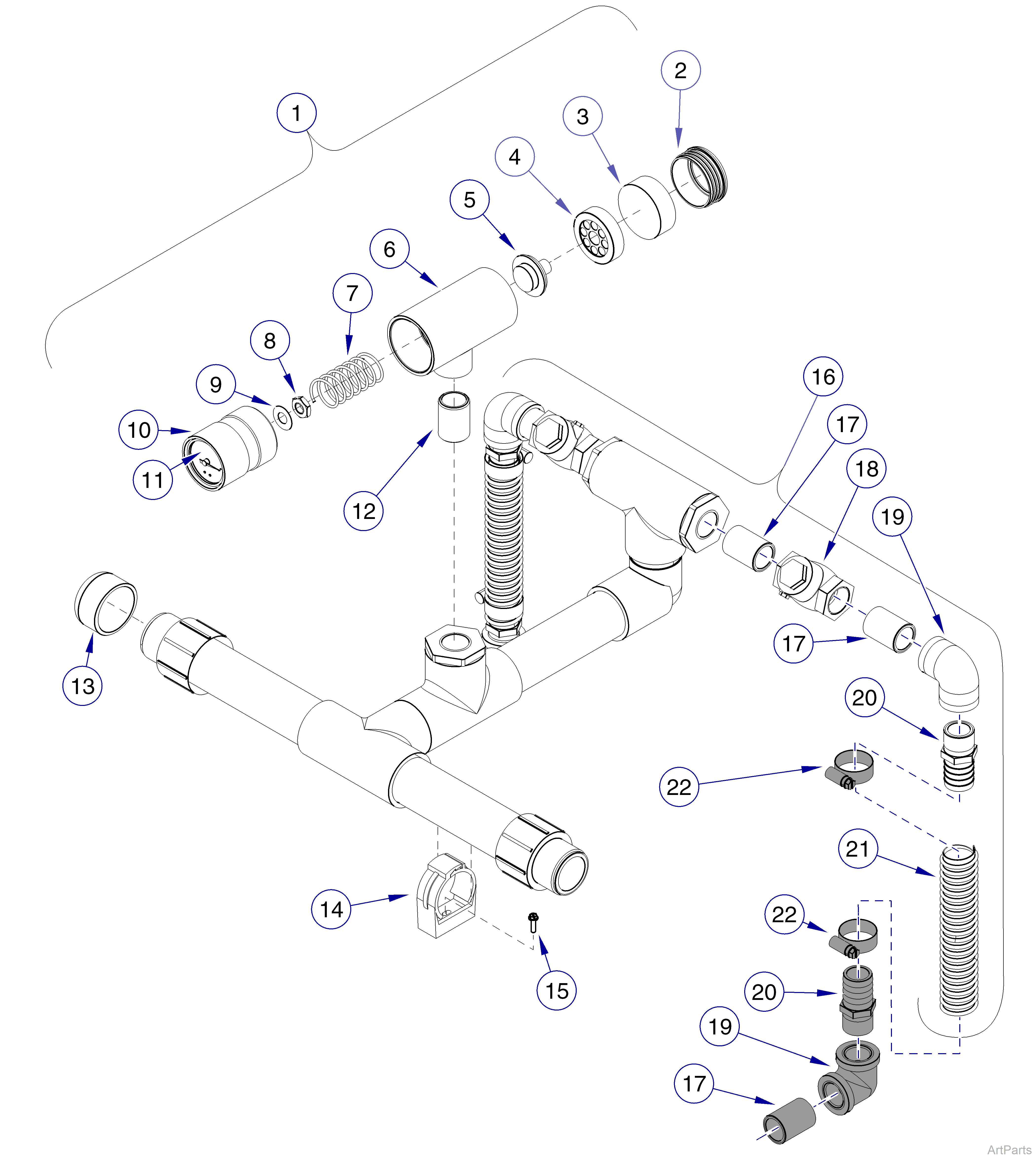

Classic Series Vacuums Twin Intake Manifold Assembly

Classic Series Vacuums Twin Intake Manifold Assembly
Item Part Number Description Qty

1

 002-10071-00 VRV Assembly- includes Items 1 thru 11 1

2

 053-1640-00 Cap, Plug 1

3

 62935601 Foam Filter 1

4

 20176200 Seat 1

5

 10261700 Float 1

6

 20176101 Body 1

7

 61105400 Compression Spring 1

8

 62400704 Lock Nut 1/8" NPT 1

9

 045-0001-49 Shim .875 OD x .406 ID x .010 THK 1

10

 20176300 Knob 1

11

 62947800 Gauge 0 - 30"Hg 2

12

 62903303 Nipple 3/4" 1

13

   Cap 1 1/4" NPT NSS

14

 62988001 Pipe Hanger 3

15

 62503802 Screw #8-32 x 5/8" 3

16

002-10554-00

Intake Manifold Assembly - includes items 17 thru 21

1

17

 62903305 Nipple 3/4" AR

18

 77002003 Check Valve 2

19

 62906106 90 Degree Brass Elbow 2

20

 Barbed Nipple Options
  10527501 Single 3/4" NPT 4
  002-10444-00 8 Piece 3/4" NPT Kit - Enough for All Intake and Exhaust Connections 1

21

 002-10405-00 PVC Hose 1" ID - Includes two 17" hoses and 4 clamps 1

22

 77009133 Hose Clamp 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
