Classic Series Vacuums Twin Exhaust Manifold Assembly

Model

 CV6 CV6R CV10 CV10R
Serial Number 0705CV60001 thru 0808CV60180 0705CV6R0001 0808CV6R0594 0705CV10001 thru 0808CV100080 0705CV10R0001 thru 0808CV10R0308

Classic Series Vacuums Twin Exhaust Manifold Assembly

Classic Series Vacuums Twin Exhaust Manifold Assembly
Item Part Number Description Qty

1

 20207000 Exhaust Manifold 1

2

 Refer to: Pipe Plug -

3

 62503802 Screw #8-32 x 5/8" 2

4

 62988001 Pipe Hanger 2

5

 62936402 Rubber Foot 4

6

 64933400 Platform 1

7

 77008002 PVC Hose 1" ID - sold by the inch AR

8

 62906106 90 Degree Elbow 2

9

 62906106 Nipple 3/4" 2

10

 Barbed Nipple Options
  10527501 Single 3/4" NPT 4
  002-10444-00 8 Piece 3/4" NPT Kit - Enough for All Intake and Exhaust Connections 1

11

 77009133 Clamp 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 CV6 CV6R CV10 CV10R
Serial Number 0808CV60181 thru 0902CV60228 0809CV6R0595 thru 0903CV6R0777 0808CV100081 thru 0902CV100109 0808CV10R0308 thru 0902CV10R0401

Classic Series Vacuums Twin Exhaust Manifold Assembly

Classic Series Vacuums Twin Exhaust Manifold Assembly

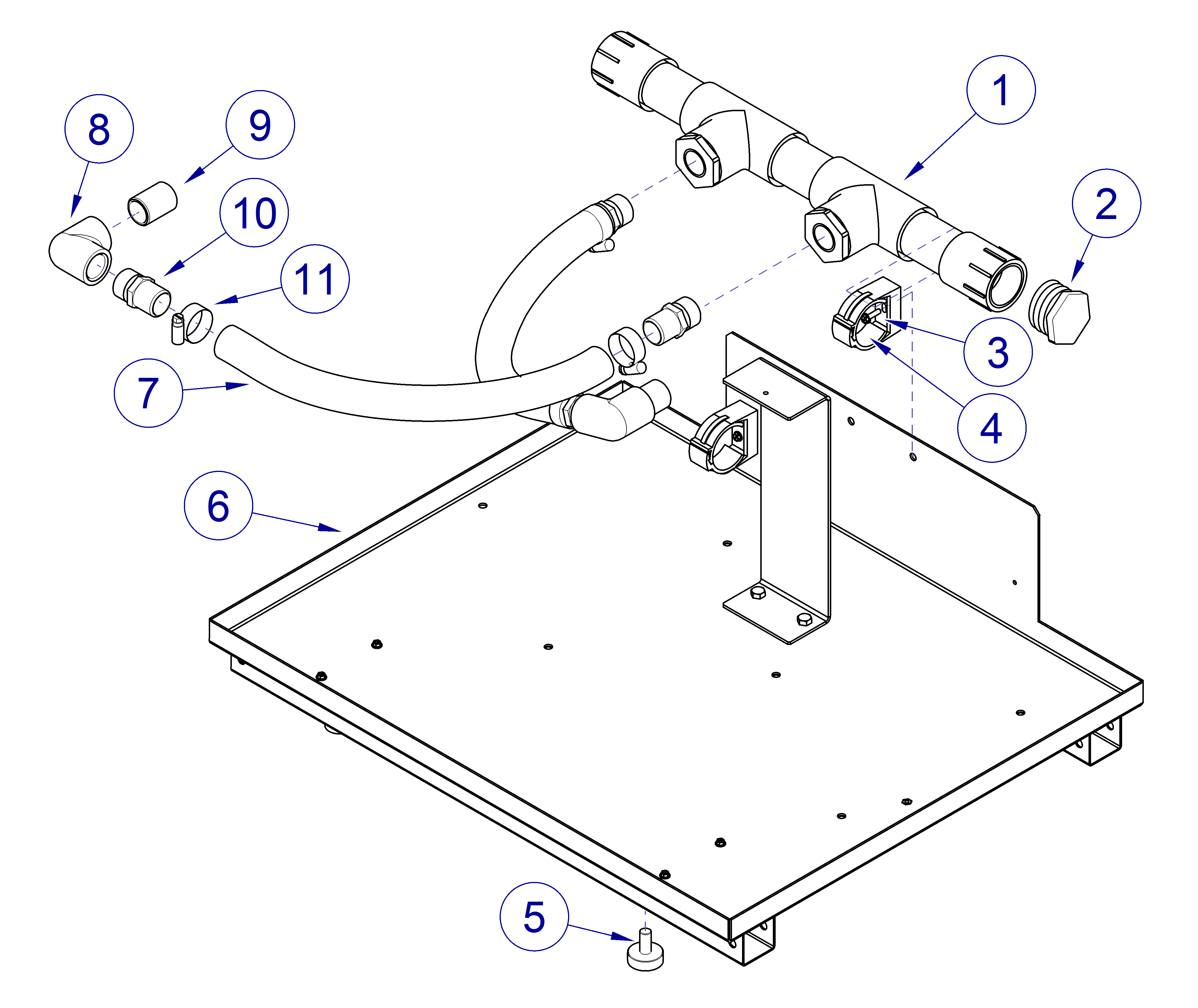

Item Part Number Description Qty

1

 77008002 PVC Hose 1" ID - sold by the inch AR

2

 77009133 Clamp

4

3

 Barbed Nipple Options
  10527501 Single 3/4" NPT 4
  002-10444-00 8 Piece 3/4" NPT Kit - Enough for All Intake and Exhaust Connections 1

4

 20207000 Exhaust Manifold 1

5

 62503802 Screw 2

6

 62988001 Pipe Hanger 2

7

 62936402 Rubber Foot 4

8

 64933400 Platform 1

9

 62906106 Nipple 3/4" 2

10

002-10405-01

Hose Kit – Includes items 1 and 2 2

11

 Refer to: Pipe Plug -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 CV6 CV6R CV10 CV10R All
Serial Number 0903CV60229 thru V2085747 0903CV6R0785 thru V2085747 0902CV100111 thru V2085747 0902CV10R0404 thru V2085747 V785000 thru V2085747

Classic Series Vacuums Twin Exhaust Manifold Assembly

Classic Series Vacuums Twin Exhaust Manifold Assembly

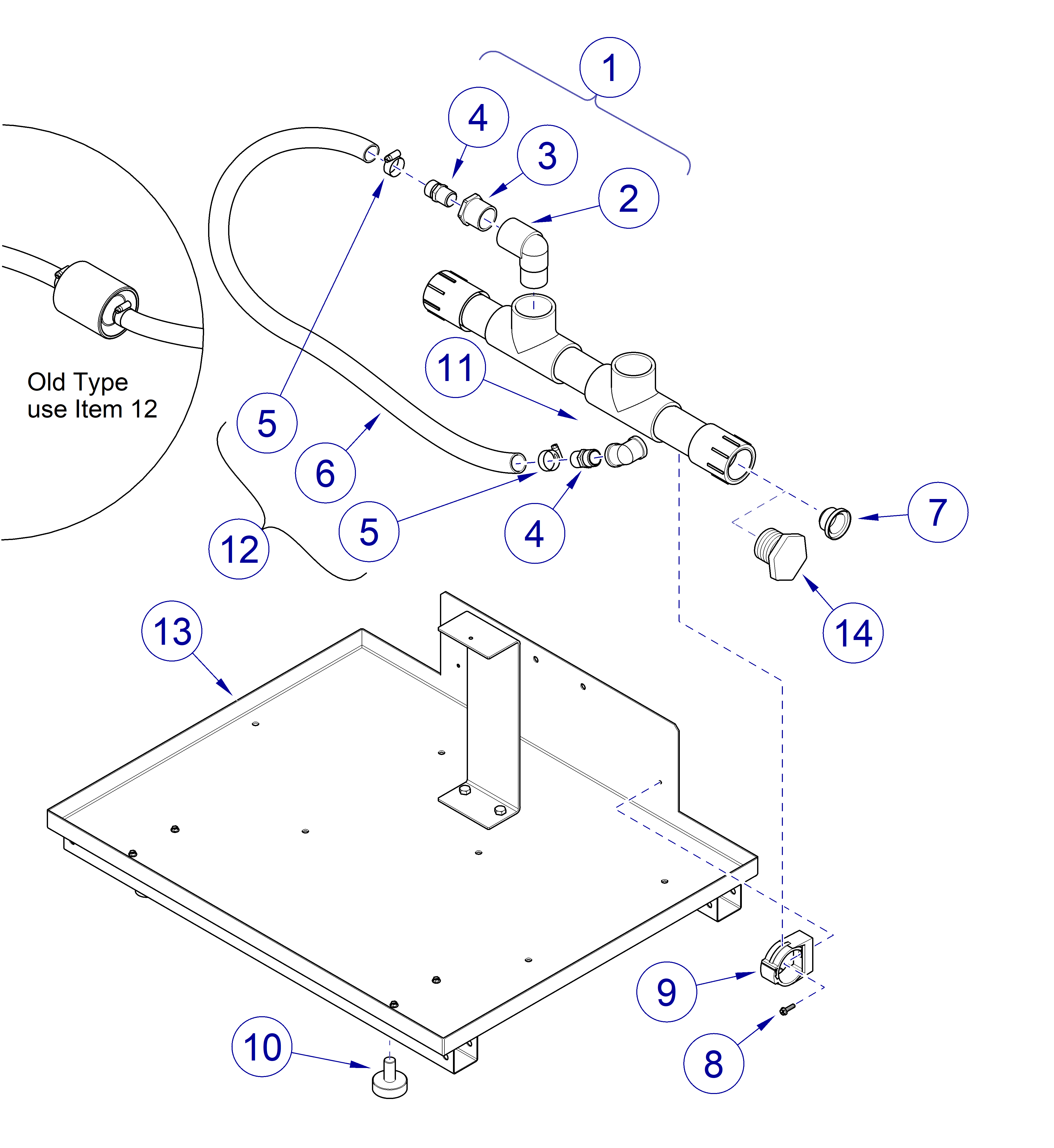

Item Part Number Description Qty

1

 20207001 Exhaust Manifold - Includes items 2 thru 4 1

2

 62962704 Elbow 2

3

 62935501 Reducer 2

4

 Barbed Nipple Options
  10527501 Single 3/4" NPT 4
  002-10444-00 8 Piece 3/4" NPT Kit - Enough for All Intake and Exhaust Connections 1

5

 77009133 Clamp

4

6

 77008002 PVC Hose 1" ID - sold by the inch, long- 24" (x2), Short- 3" (x2) AR

7

   Shipping Cap used on early units - Plug thrown away during installation -

8

 62503802 Pipe Hanger 2

9

 62988001 Screw 2

10

 62936402 Rubber Foot 4

11

 62906106 Elbow 2

12

002-10405-01

Hose Kit – Includes items 5 and 6 2

13

 64933400 Platform 1

14

 Refer to: Pipe Plug -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 CV6 CV6R CV10 CV10R All
Serial Number V2085748 thru Present V2085748 thru Present V2085748 thru Present V2085748 thru Present V2085748 thru Present

Classic Series Vacuums Twin Exhaust Manifold Assembly

Classic Series Vacuums Twin Exhaust Manifold Assembly

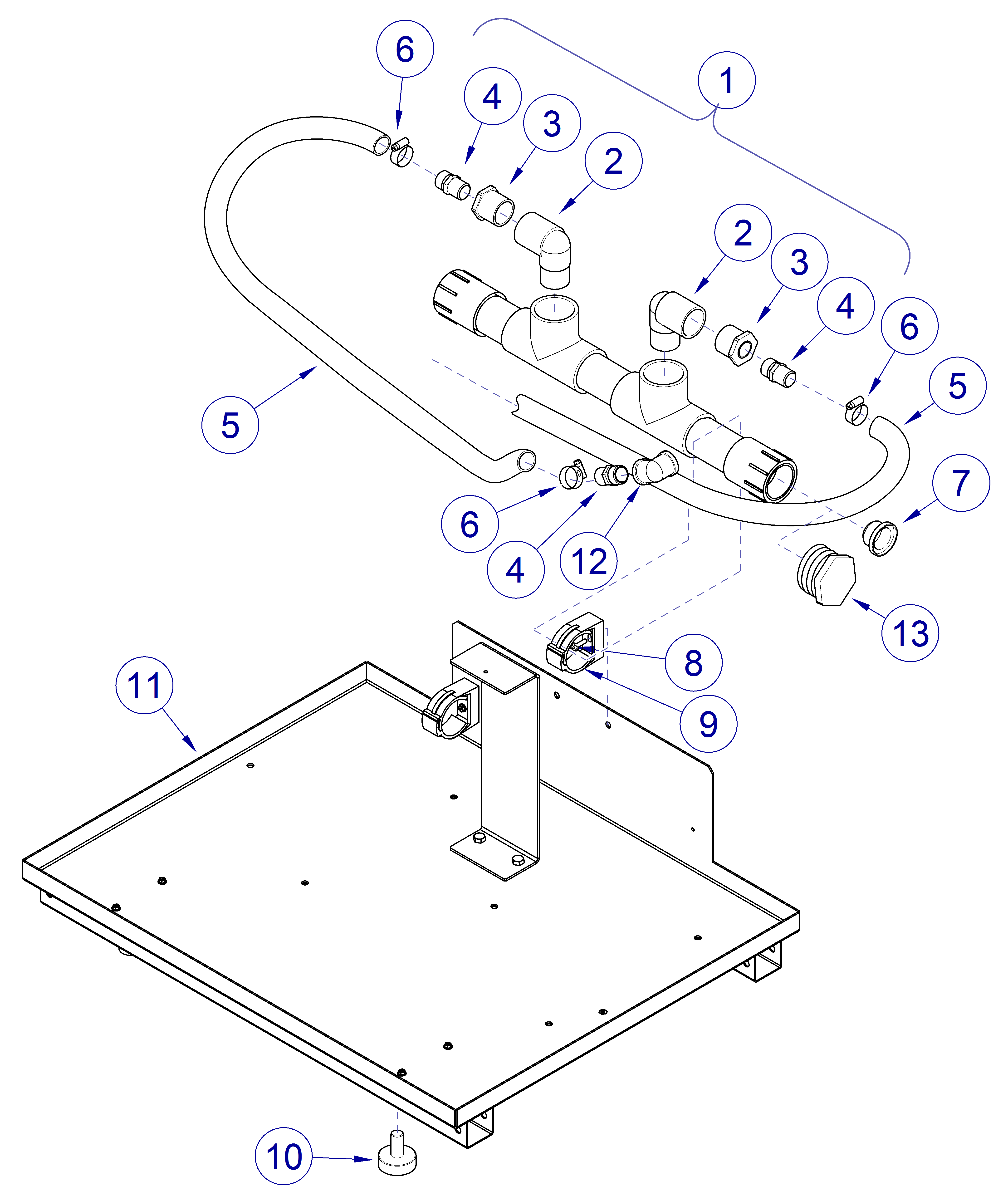

Item Part Number Description Qty

1

 20207001 Exhaust Manifold - Includes items 2 thru 4 1

2

 62962704 Elbow 2

3

 62935501 Reducer 2

4

 Barbed Nipple Options
  10527501 Single 3/4" NPT 4
  002-10444-00 8 Piece 3/4" NPT Kit - Enough for All Intake and Exhaust Connections 1

5

 002-10405-01 PVC Hose 1" ID - Includes two 31" hoses and 4 clamps 1

6

 77009133 Clamp 4

7

   Shipping Cap used on early units - Plug thrown away during installation -

8

 62503802 Pipe Hanger 2

9

 62988001 Screw 2

10

 62936402 Rubber Foot 4

11

 64933400 Platform 2

12

 62906106 Elbow 1

13

 Refer to: Pipe Plug -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
