Classic Series Vacuums Label Locations

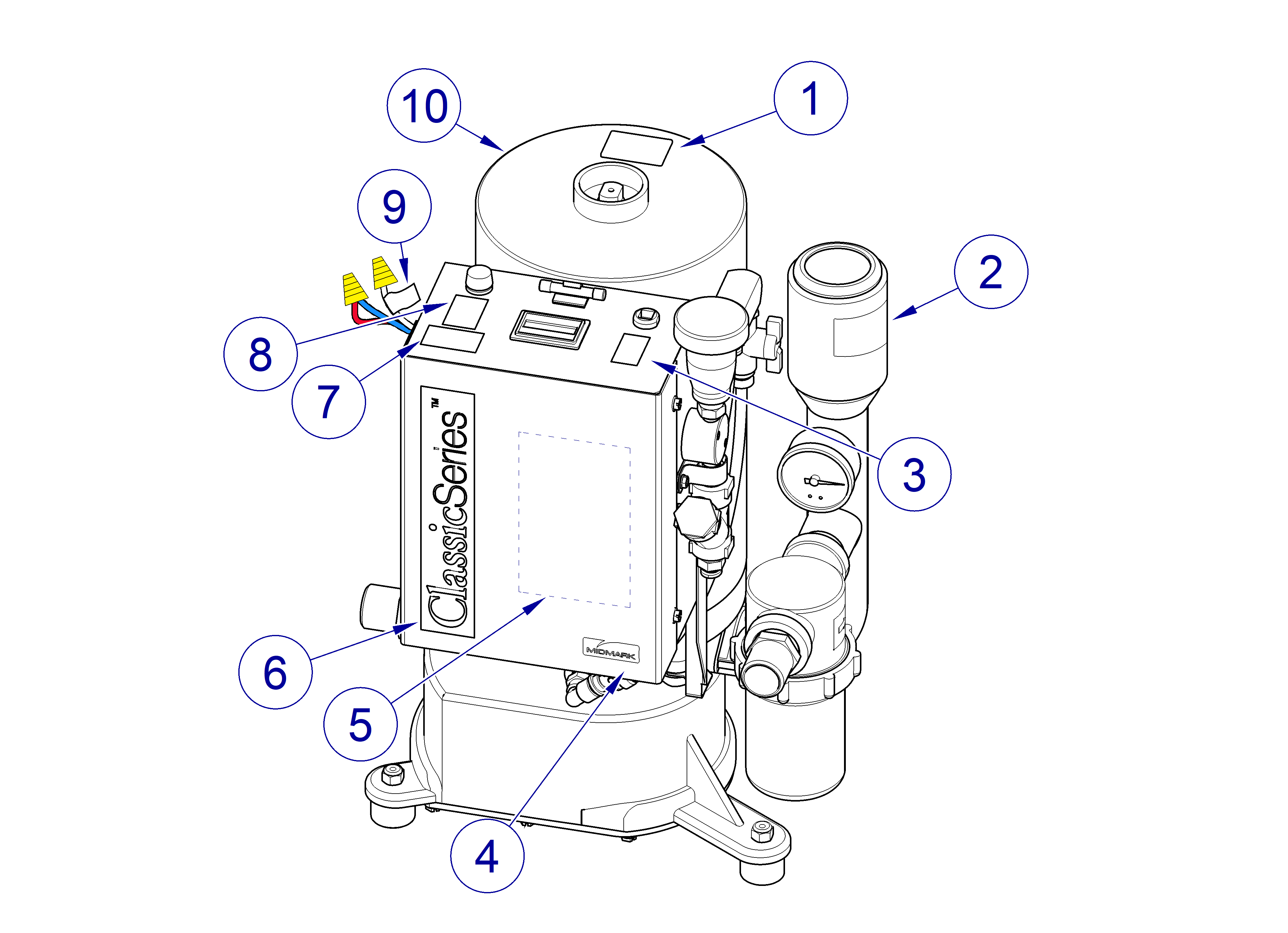

Single Model Label Locations Serial Number Range: 0705CV30001
thru Present, 0705CV3R0001
thru Present, 0705CV50001
thru Present, 0705CV5R0001
thru Present, and V785000
thru Present
|
Model |
CV3 | CV3R | CV5 | CV5R | All |
| Serial Number | 0705CV30001 thru Present | 0705CV3R0001 thru Present | 0705CV50001 thru Present | 0705CV5R0001 thru Present | V785000 thru Present |
| Classic Series Vacuums Single Model Label Locations | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Decal Options | ||
|
65901000 |
1 HP Decal | NLA | |
|
65901100 |
2 HP Decal | NLA | |
|
2 |
62968700 | VRV, Factory Set Label | 1 |
|
3 |
65900800 |
Low Voltage |
NLA |
|
4 |
63947100 | Midmark Logo | 1 |
|
5 |
Electrical Diagram - Inside Cover | ||
| 62990600 | CV3 and CV3R | 1 | |
| 62991100 | CV5 and CV5R | 1 | |
|
6 |
62988200 | ClassicSeries® Label | 1 |
|
7 |
65900700 |
Caution, Shock Label | NLA |
|
8 |
65975100 | Fuse Replacement Lab | 1 |
|
9 |
24V Light Label | 1 | |
|
10 |
63948900 |
Serial Number Label | NLA |
|
11 |
77009180 | Caution Tag - Not Shown | 1 |
|
12 |
77009306 | 220VAC Con, Tag - Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

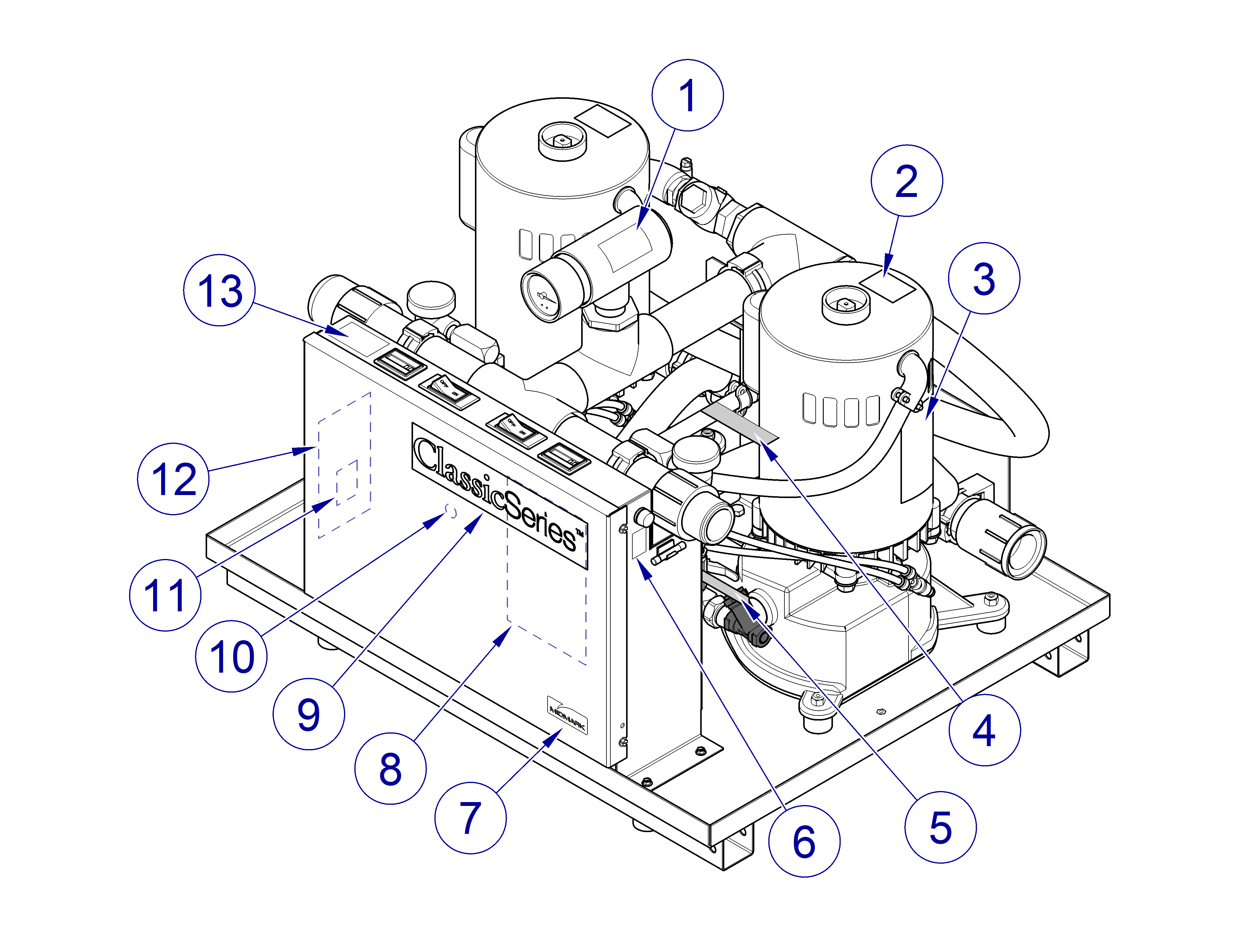

Twin Model Label Locations Serial Number Range: 0705CV60001
thru Present, 0705CV6R0001
thru Present, 0705CV10001
thru Present, 0705CV10R0001
thru Present, and V785000
thru Present
|
Model |
CV6 | CV6R | CV10 | CV10R | All |
| Serial Number | 0705CV60001 thru Present | 0705CV6R0001 thru Present | 0705CV10001 thru Present | 0705CV10R0001 thru Present | V785000 thru Present |
| Classic Series Vacuums Twin Model Label Locations | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62968700 | VRV Factory Set Label | 1 |
|
2 |
Decal Options | ||
|
65901000 |
1 HP Decal | NLA | |
|
65901100 |
2 HP Decal | NLA | |
|
3 |
63948900 |
Serial Number Label |
NLA |
|
4 |
62990800 |
Electrical Hookup Label | 1 |
|
5 |
77009180 | Caution, Shock Label | 1 |
|
6 |
65975100 | Fuse Replacement Lab | 1 |
|
7 |
63947100 | Midmark Logo | 1 |
|
8 |
Electrical Diagram - Inside Cover | ||
| 62990700 | CV6 and CV6R | 1 | |
| 62991200 | CV10 and CV10R | 1 | |
|
9 |
63946900 | ClassicSeries® Label | 1 |
|
10 |
65969700 | Earth Ground Label | 1 |
|
11 |
65900800 |
Low Voltage |
NLA |
|
12 |
63948900 |
Platform Serial Label | NLA |
|
13 |
62988500 | Platform Warning Label | 1 |
|
14 |
65976800 | Hot Neutral Wire - Not shown | 15 |
|
15 |
MPM60658 | 24V Light Label - Not shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
