PowerAir Compressor Heads Test and Repair

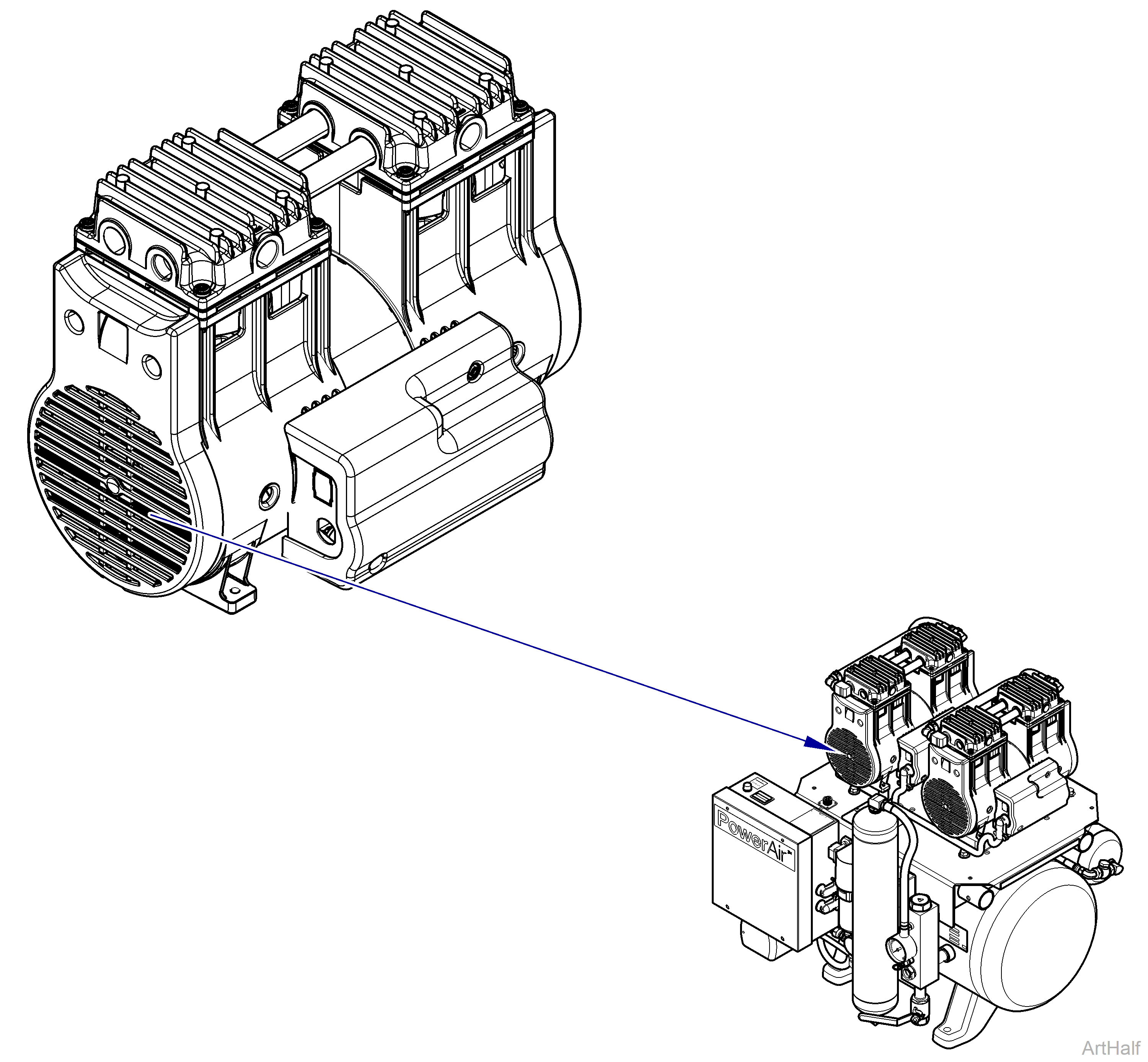

Atmospheric air is drawn in through intake filters to the compressor head(s) where air is compressed and exhausted to the reservoir (tank). Heat is generated from the compression process.
For Model Range P52, P72
To reset compressor head
1.Allow motor to cool.

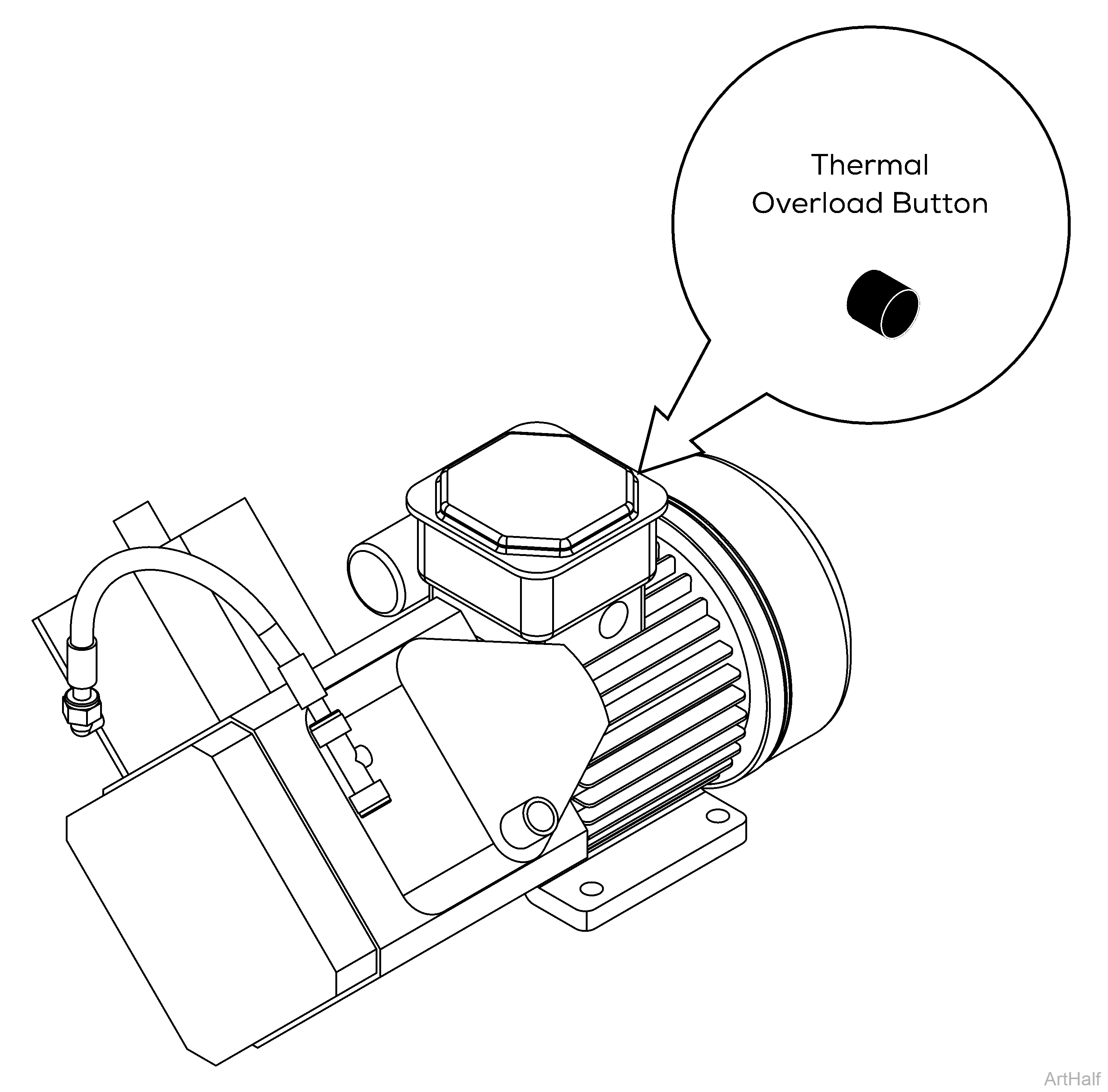

2.Press thermal overload reset button. If motor does not start, replace compressor heads.
