PowerAir Intake Filters Test and Repair

Atmospheric air is drawn in through intake filters before flowing to the compressor heads. Intake filter protect the heads from dust and debris and should be changed annually.

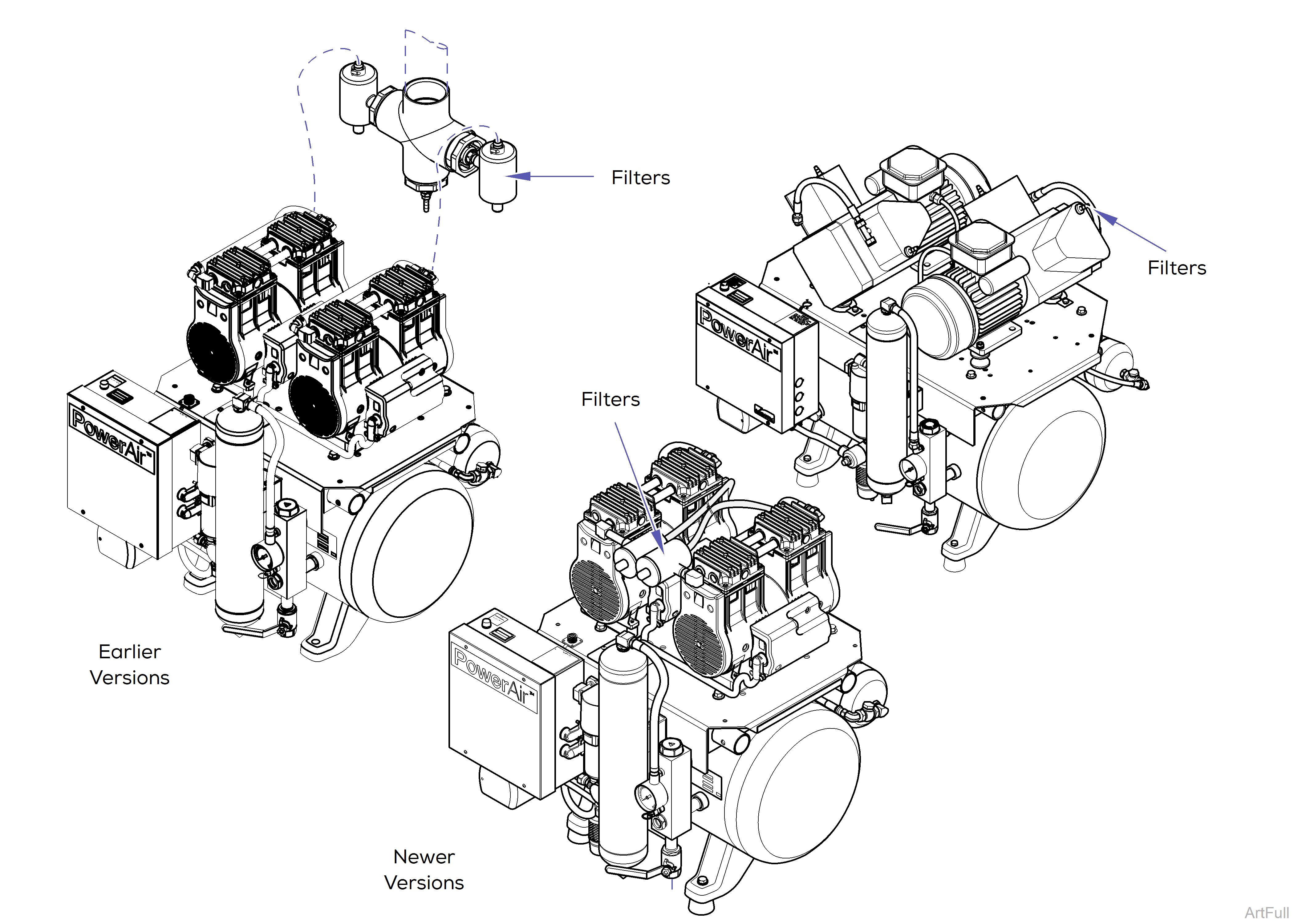

PowerAir Intake Filters

Clean Thomas and Lubricated Heads Intake Filter

Model	P21	P22	P32
Serial Number	All	All	All

PowerAir Intake Filters

1.Remove exhaust hose from filter housing. Unscrew intake filter from intake manifold assembly or compressor head.

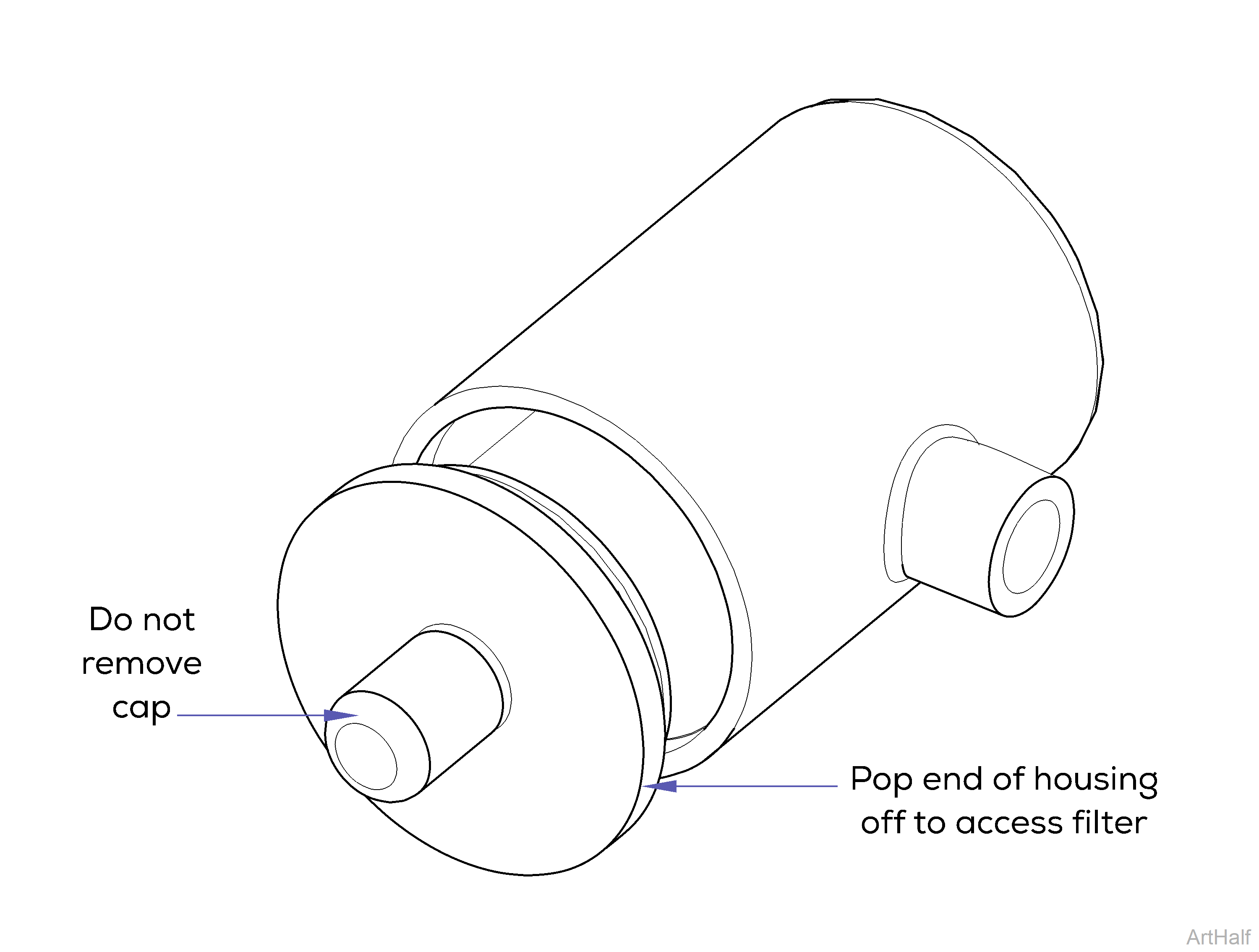

2.Pop off one side of filter housing.

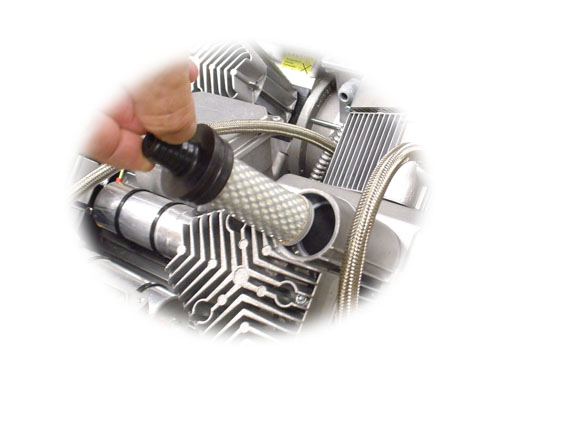

3.Remove filter and clean with a nonflammable solvent. Wipe out housing and allow filter and housing to dry.

4.Install filter back into housing. Assemble housing.

5.Screw onto intake manifold assembly. Install exhaust hose onto filter housing.
