PowerAir Replacement Parts for Sound Cover Accessory
|
Model |
P21 | P22 | P32 | P52 | P72 |
| Serial Number | 0703SC1001 thru Present | 0703SC2001 thru Present | 0703SC3001 thru Present | 0703SC3001 thru Present | 0703SC4001 thru Present |

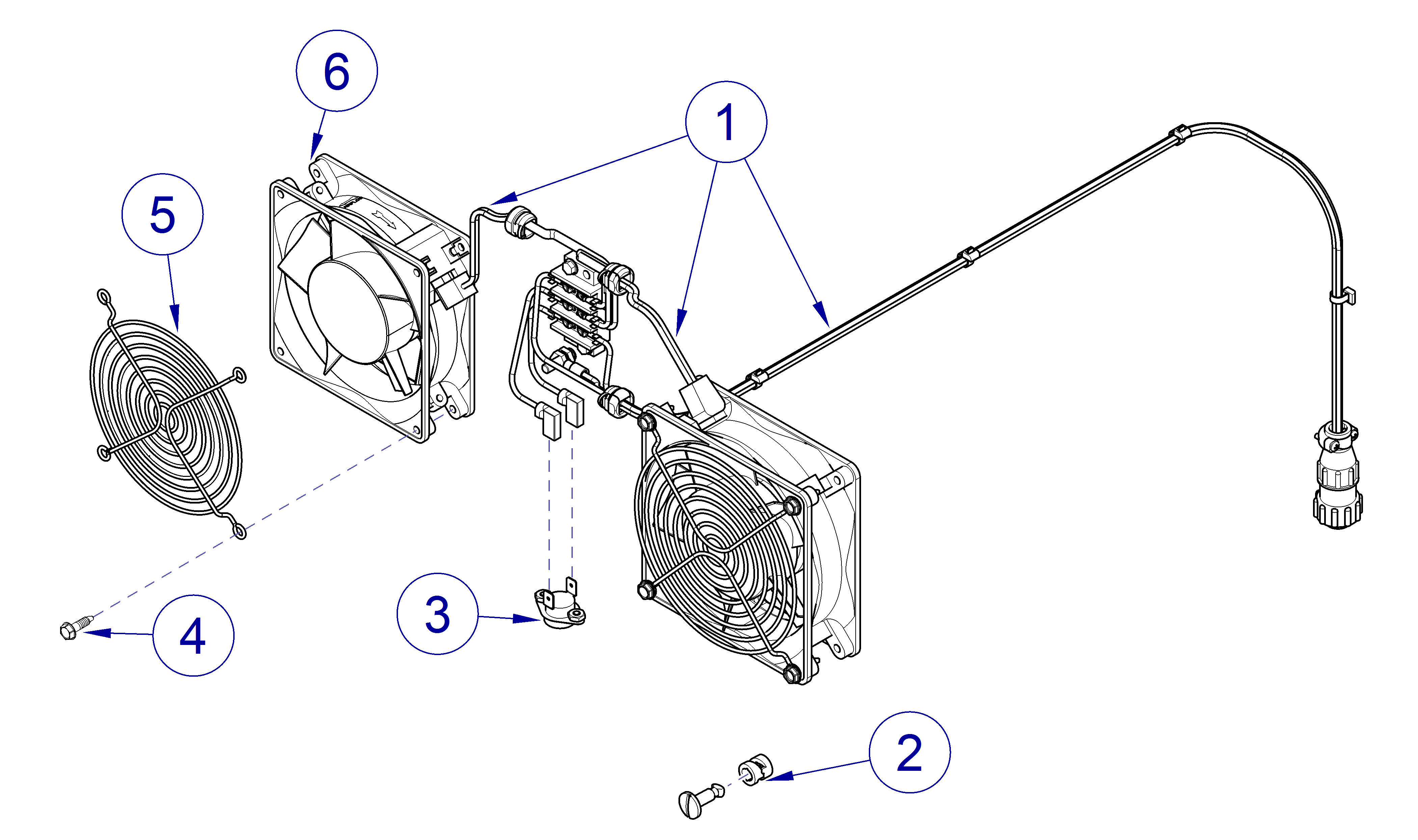

| PowerAir Replacement Parts for Sound Cover Accessory | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: | Fan Wiring | - |
|
2 |
62977901 | 1/4 Turn Fastener Straight Slot | 4 |
|
3 |
65972500 | Thermal Switch | 1 |
|
4 |
040-0008-79 | Screw, Hex Head 10-16 x 3/4" | 4 |
|
5 |
MMS70200 | Fan Guard | 2 |
|
6 |
Fan Options - includes item 4 | ||
| 65995000 | P21 -115V | 2 | |
| 002-10126-00 | P22, P32, P52, P72 - 230V | 2 | |
|
7 |
Sound Cover Options - Not Shown | ||
| 77001603 | P21 | 1 | |
| 77001604 | P22 | 1 | |
| 77001605 | P32 and P52 | 1 | |
| 77001606 | P72 | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
