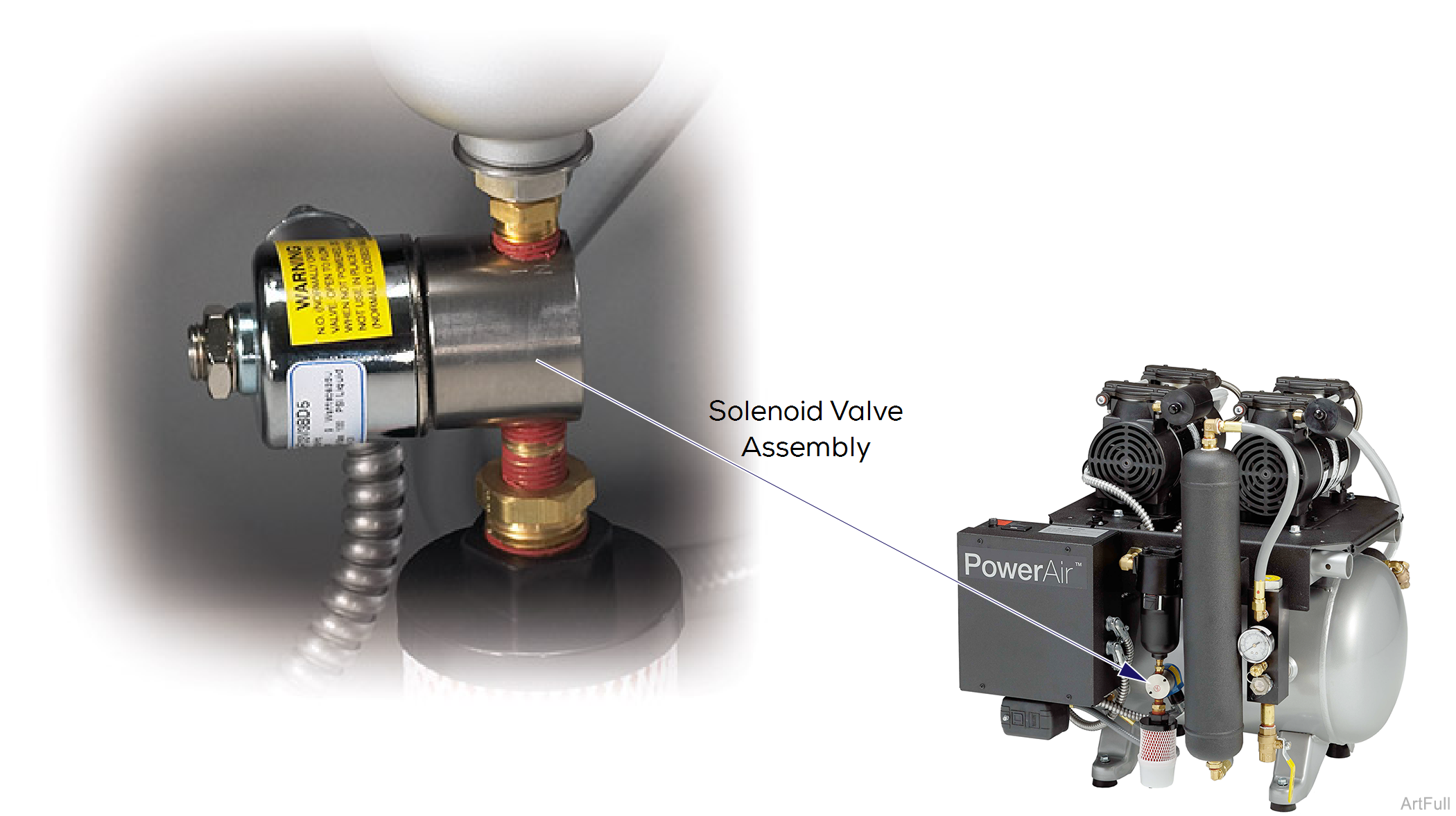

PowerAir Solenoid Test and Repair
During the compression cycle
The normally open Solenoid Valve, closes, preventing the compressed air from being discharged to the drain.
During the purge cycle
Power is removed from the Normally Open Solenoid Valve, Opening the valve, allowing pressure to be released from the top of the compressor head to the drain. It also allows the Purge Tank to release its pressure thru the Desiccant Tank to the drain, regenerating the desiccant drying system.
Serial Number Range: 0703P210001
thru 0903P210361, 0703P220001
thru 0903P221139, 0703P210001
thru 0903P321137, 0703P210001
thru 0902P520467, 0703P210001
thru 0903P720190
|
Model |
P21 | P22 | P32 | P52 | P72 |
| Serial Number | 0703P210001 thru 0903P210361 | 0703P220001 thru 0903P221139 | 0703P210001 thru 0903P321137 | 0703P210001 thru 0902P520467 | 0703P210001 thru 0903P720190 |
When testing components with power on, use care to prevent electrical shock.
1.Remove electrical box cover. Refer to: Electrical Box Cover

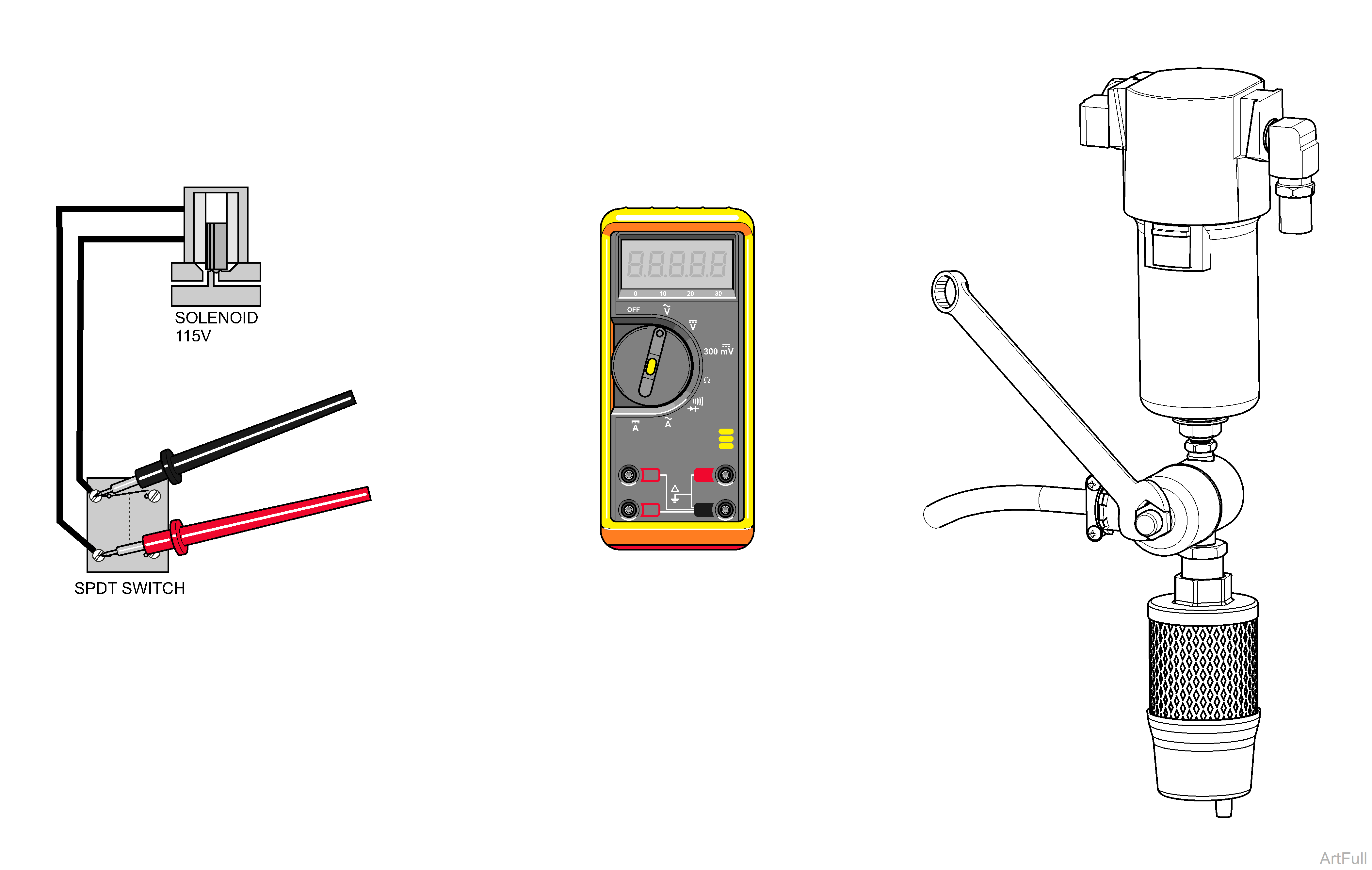

2.Set meter to V.
3.Place meter probes on contactor solenoid wire connections.
4.Clean solenoid.
a.Loosen nut on top of solenoid and lift top off.
b.Wipe stem off with a clean rag.
c.Using a spanner wrench to remove stem from valve body. If spanner wrench is not available, use standard wrench very carefully.
d.Clean internal valve plunger, ports and seat.
e.Reassemble.
|
Meter Reading |
Status |
Required Action |
|---|---|---|
|
Less than 230 Volts on 230 Volt units. |
|
Replace Solenoid |
|
230 Volt Reading on 230 Volt units. |
|
Solenoid OK |
Serial Number Range: 0904P210365
thru Present, 0904P221146
thru Present, 0904P321145
thru Present, 0904P520474
thru Present, 0903P720191 thru Present
|
Model |
P21 | P22 | P32 | P52 | P72 |
| Serial Number | 0904P210365 thru Present | 0904P221146 thru Present | 0904P321145 thru Present | 0904P520474 thru Present | 0903P720191 thru Present |
1.Remove electrical box cover. Refer to: Electrical Box Cover
2.Set meter to V.
3.Check if line voltage is present at solenoid wires (115 or 230 VAC).
a.If you have voltage, then shut power off and clean solenoid.
b.If solenoid doesn’t work after cleaning, replace.
4.Clean solenoid.
a.Loosen nut on top of solenoid and lift top off.
b.Wipe stem off with a clean rag.
c.Using a spanner wrench to remove stem from valve body. If spanner wrench is not available, use standard wrench very carefully.
d.Clean internal valve plunger, ports and seat.
e.Reassemble.
