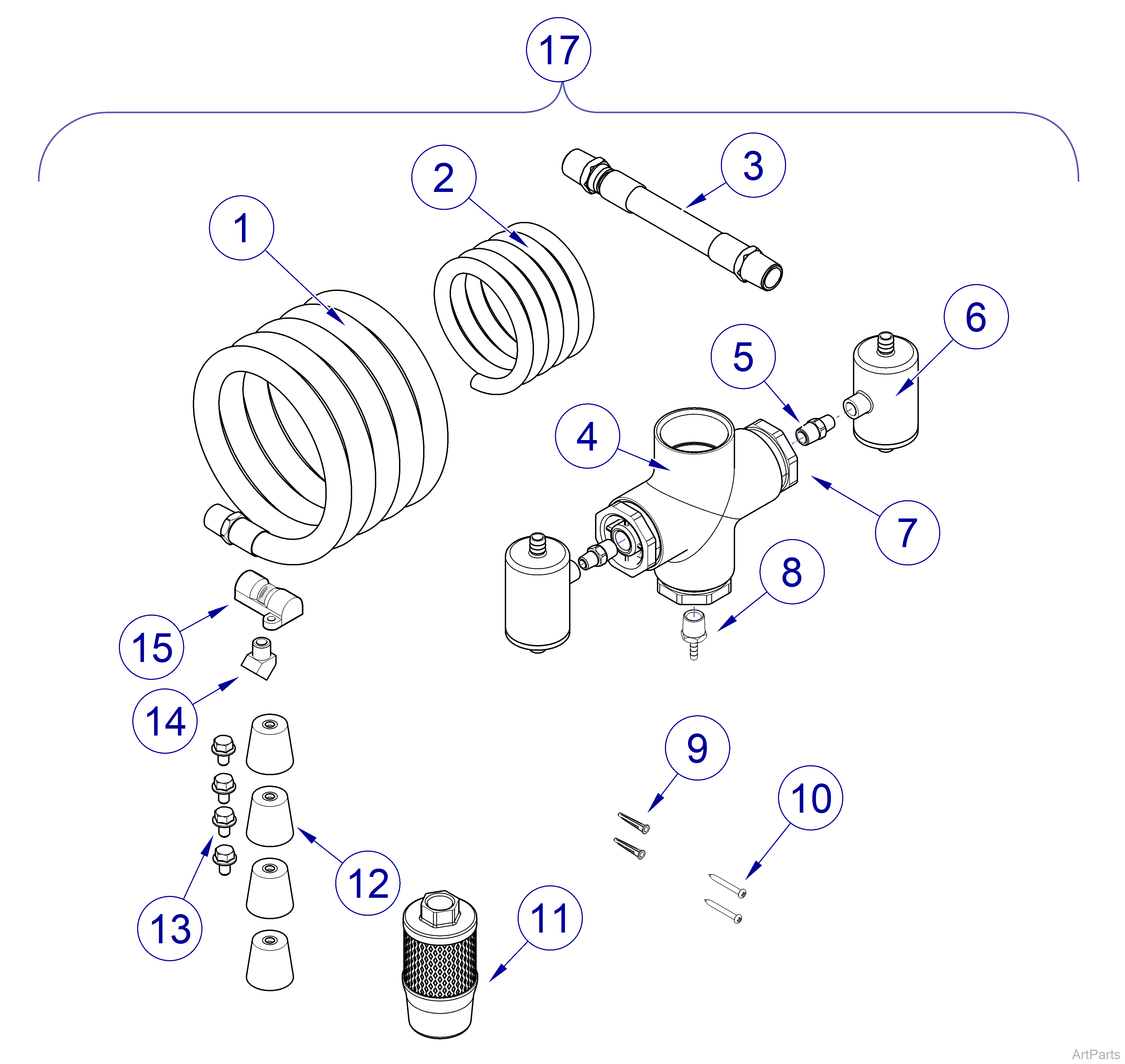

PowerAir Installation Kit
P21, P22, and P32
Date Range: Up to July 2008
|
Model |
P21 | P22 | P32 |
| Date | Up to July 2008 | Up to July 2008 | Up to July 2008 |
Item 14 was not present on early units.
Items 4, 5, 7, 8, 9, and 10 are only available through Midmark for compressors under warranty. If compressor is out of warranty, these items are available at your local hardware store, if needed for service.
| PowerAir Installation Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-13 |
Fresh Air Intake Hose 1/2" - No fittings |
NLA |
|
2 |
Drain Hose Options - PVC Flex Tubing | ||
| 20218500 | 1/4" ID. per inch | AR | |
| 20218500-1 | 1/4" ID x 96" | 1 | |
|
3 |
Operatory High Pressure Hose Assembly | 1 | |
|
4 |
PVC50720 | SL PVC Cross, 2" | 1 |
|
5 |
65977700 | Nipple 1/2" MNPT x 1/4" NPT | 2 |
|
6 |
002-1804-00 | Filter Assembly Kit | 2 |
|
7 |
PVC51123 | PVC Bushing 2" x 1/2" | 3 |
|
8 |
65977600 | Brass Hose, Barb 1/2' MPT x 1/4" | 1 |
|
9 |
BMS20900 | Wall Anchor 3/16" x 1-1/4" | 2 |
|
10 |
BSW20472 | Screw 8 x 1 1/2" | 2 |
|
11 |
62983300 | Exhaust Silencer | 1 |
|
12 |
MRP70967 | Rubber Foot | 4 |
|
13 |
040-0312-00 | Bolt 5/16-18" x 1/2" | 4 |
|
14 |
62900106 | Elbow, 45 Deg Street 1/2" NPT | 1 |
|
15 |
77002134 | Indicator with O-Rings | 1 |
|
16 |
62988004 |
Pipe Hanger, 2" - Not Shown |
NLA |
|
17 |
20199600 | Installation Kit - includes items 1 thru 16 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

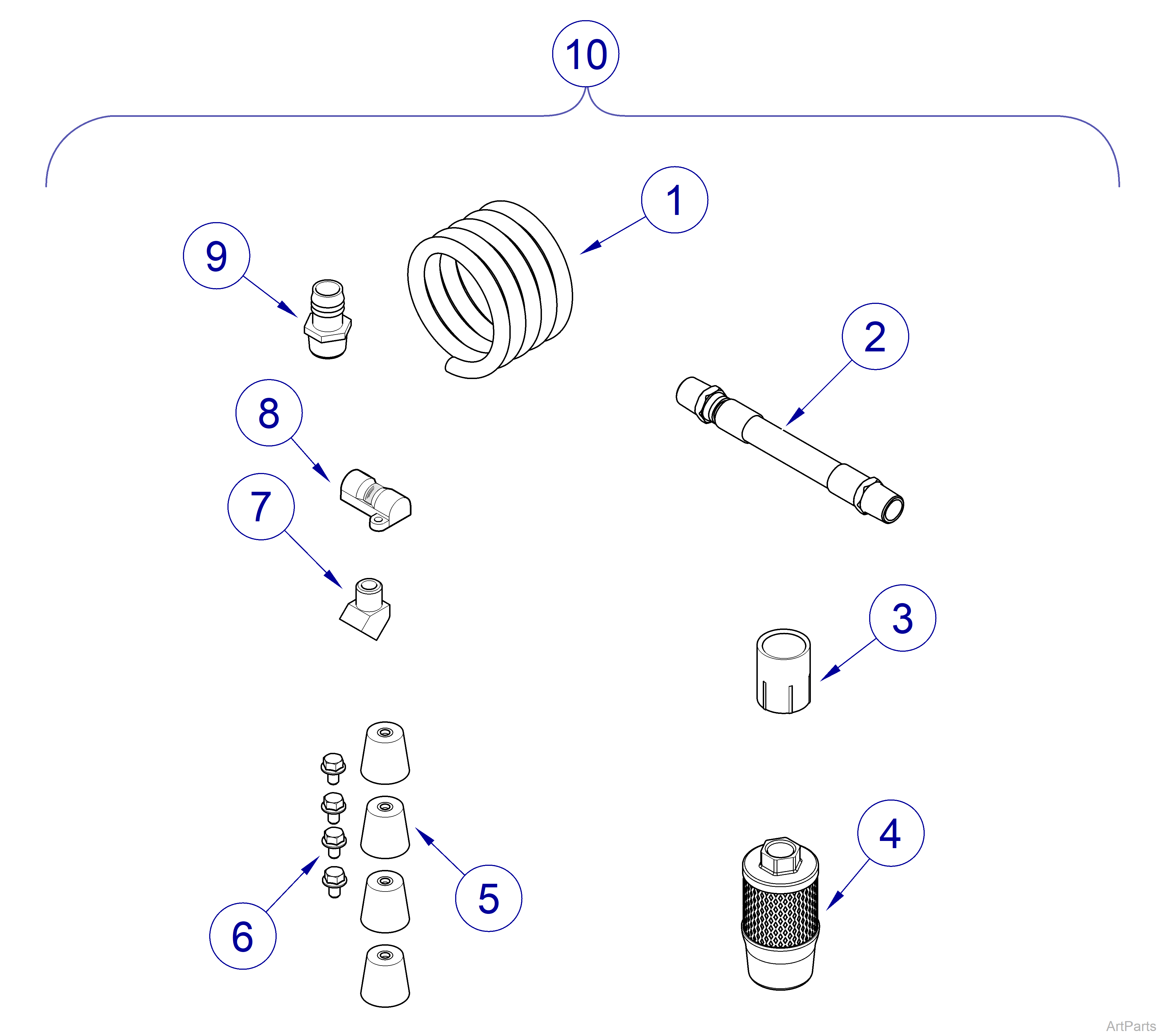

Date Range: Built August 2008
thru Present
|
Model |
P21 | P22 | P32 |
| Date | Built August 2008 thru Present | Built August 2008 thru Present | Built August 2008 thru Present |
| PowerAir Installation Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Flexible PVC Hose Options | ||
| 62963203 | 3/4" diameter per inch | AR | |
| 62963203-2 | 3/4" diameter x 120" | 1 | |
|
2 |
Operatory High Pressure Hose Assembly | 1 | |
|
3 |
62945400 | Female Adapter 1" ID x 1" NPT | 1 |
|
4 |
62983300 | Exhaust Silencer | 1 |
|
5 |
MRP70967 | Rubber Foot | 4 |
|
6 |
040-0312-00 | Bolt 5/16-18" x 1/2" | 4 |
|
7 |
62900106 | Elbow, 45 Deg Street 1/2" NPT | 1 |
|
8 |
77002134 | Indicator with O-Rings | 1 |
|
9 |
61900912 | Connector 3/4" Hose x 1" MPT | 1 |
|
10 |
Installation Kit - includes items 1 thru 9 | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

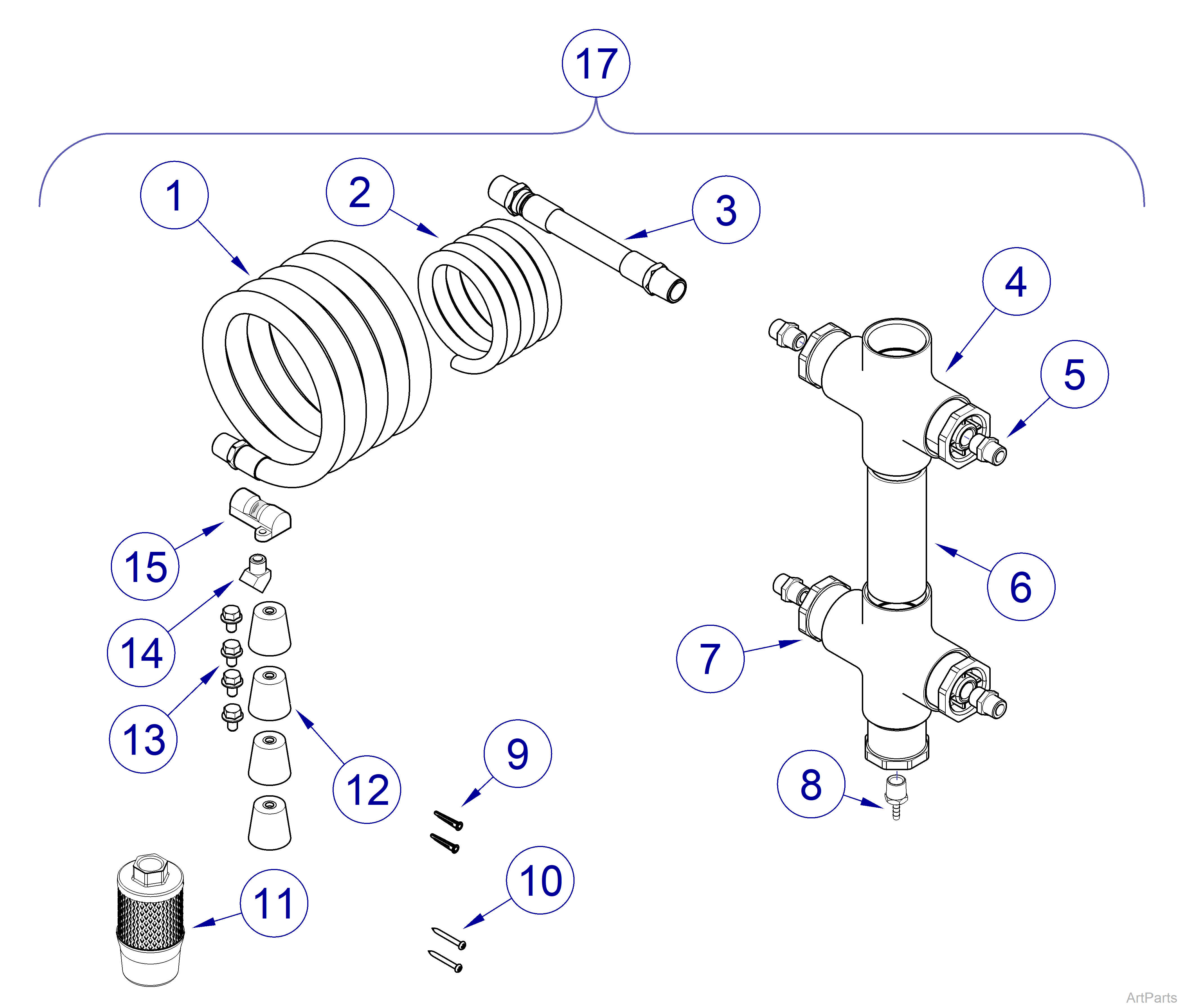

P52 and P72
Date Range: Up to July 2008 Model Range P52
|
Model |
P52 |
| Date | Up to July 2008 |
Item 14 was not present on early units.
Items 4, 5, 7, 8, 9, and 10 are only available though Midmark for compressors under warranty. If compressor is out of warranty, these items are available at your local hardware store, if needed for service.
| PowerAir Installation Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Fresh Air Intake Hose Options - Corrugated | ||
| 65962201 | 3/4" ID. per inch | AR | |
| 65962201-6 | 3/4" ID x 72" | 1 | |
|
2 |
Drain Hose PVC Flex Tubing Options | ||
| 20218500 | 1/4" ID. per inch | AR | |
| 20218500-1 | 1/4" ID x 96" | 1 | |
|
3 |
Operatory High Pressure Hose Assembly | 1 | |
|
4 |
PVC50720 | SL PVC Cross, 2" | 2 |
|
5 |
62900505 | Hex Nipple 1/2" NPT x 1/2" NPT | 4 |
|
6 |
STK10500 | PVC Pipe 2", SCH 40, 6" L | 1 |
|
7 |
PVC51123 | PVC Bushing 2" x 1/2" X FPT | 5 |
|
8 |
65977600 | Brass Hose, Barb 1/2" MPT x 1/4" | 1 |
|
9 |
BMS20900 | Wall Anchor 3/16" x 1-1/4" | 2 |
|
10 |
BSW20472 | Screw 8 x 1 1/2" | 2 |
|
11 |
62983300 | Exhaust Silencer | 1 |
|
12 |
MRP70967 | Rubber Foot | 4 |
|
13 |
040-0312-00 | Bolt 5/16-18" x 1/2" | 4 |
|
14 |
62900106 | Elbow, 45 Deg Street 1/2" NPT | 1 |
|
15 |
77002134 | Indicator with O-Rings | 1 |
|
16 |
62988004 |
Pipe Hanger, 2" - Not Shown |
NLA |
|
17 |
20199300 | Installation Kit - includes items 1 thru 16 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

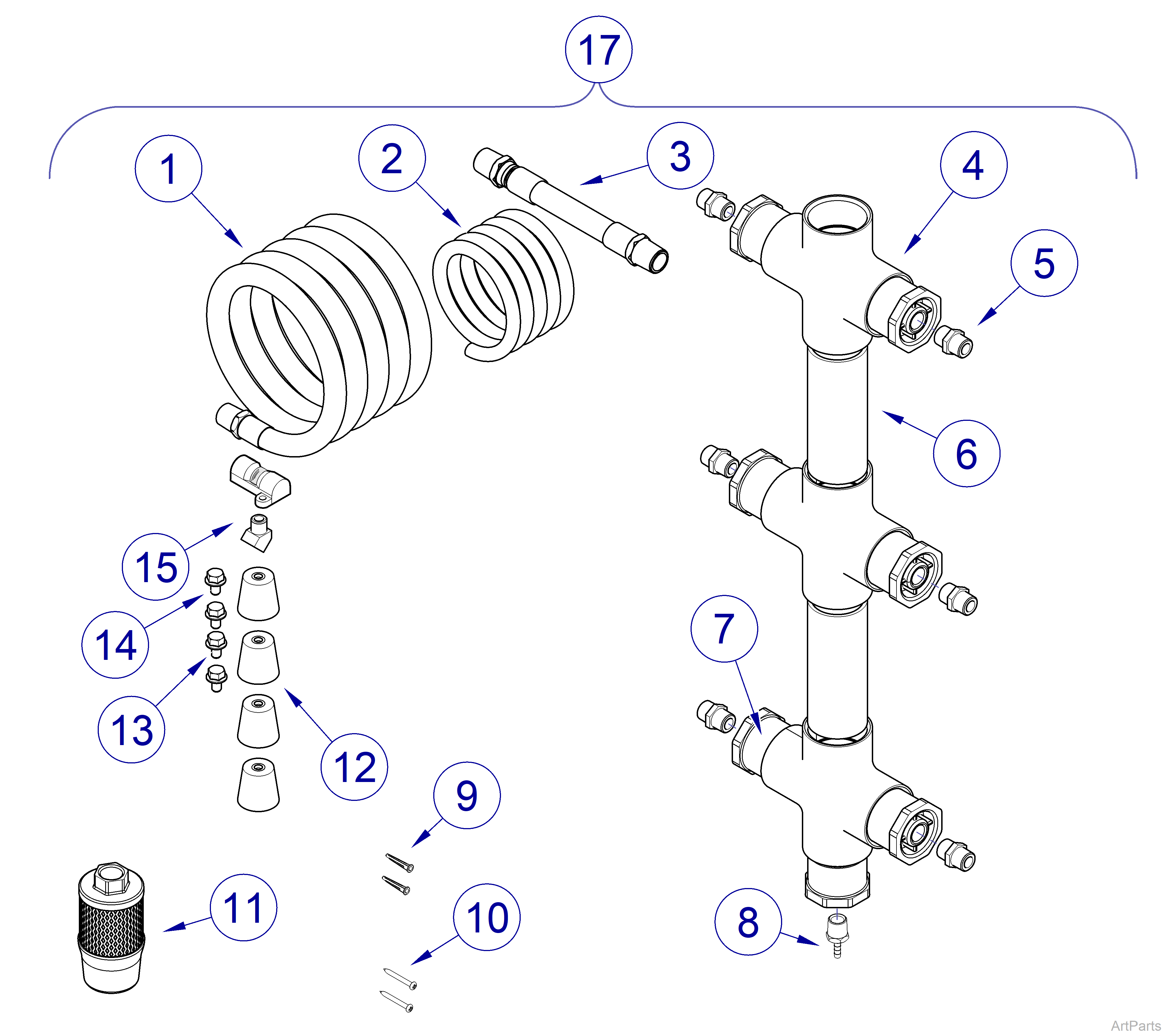

Date Range: Up to July 2008 Model Range P72
|
Model |
P72 |
| Date | Up to July 2008 |
Item 14 was not present on early units.
Items 4, 5, 7, 8, 9, and 10 are only available though Midmark for compressors under warranty. If compressor is out of warranty, these items are available at your local hardware store, if needed for service.
| PowerAir Installation Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Fresh Air Intake Hose Options - Corrugated | ||
| 65962201 | 3/4" ID. per inch | AR | |
| 65962201-6 | 3/4" ID x 72" | 2 | |
|
2 |
Drain Hose PVC Flex Tubing Options | ||
| 20218500 | 1/4" ID. per inch | AR | |
| 20218500-2 | 1/4" ID x 192" | 1 | |
|
3 |
Operatory High Pressure Hose Assembly | 1 | |
|
4 |
PVC50720 | SL PVC Cross, 2" | 3 |
|
5 |
62900505 | Hex Nipple 1/2" NPT x 1/2" NPT | 6 |
|
6 |
STK10500 | PVC Pipe 2", SCH 40, 6" L | 2 |
|
7 |
PVC51123 | PVC Bushing 2" x 1/2" X FPT | 7 |
|
8 |
65977600 | Brass Hose, Barb 1/2" MPT x 1/4" | 1 |
|
9 |
BMS20900 | Wall Anchor 3/16" x 1-1/4" | 2 |
|
10 |
BSW20472 | Screw 8 x 1 1/2" | 2 |
|
11 |
62983300 | Exhaust Silencer | 1 |
|
12 |
MRP70967 | Rubber Foot | 4 |
|
13 |
040-0312-00 | Bolt 5/16-18" x 1/2" | 4 |
|
14 |
62900106 | Elbow, 45 Deg Street 1/2" NPT | 1 |
|
15 |
77002134 | Indicator with O-Rings | 1 |
|
16 |
62988004 |
Pipe Hanger, 2" - Not Shown |
NLA |
|
17 |
20199400 |
Installation Kit - includes items 1 thru 16 |
NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

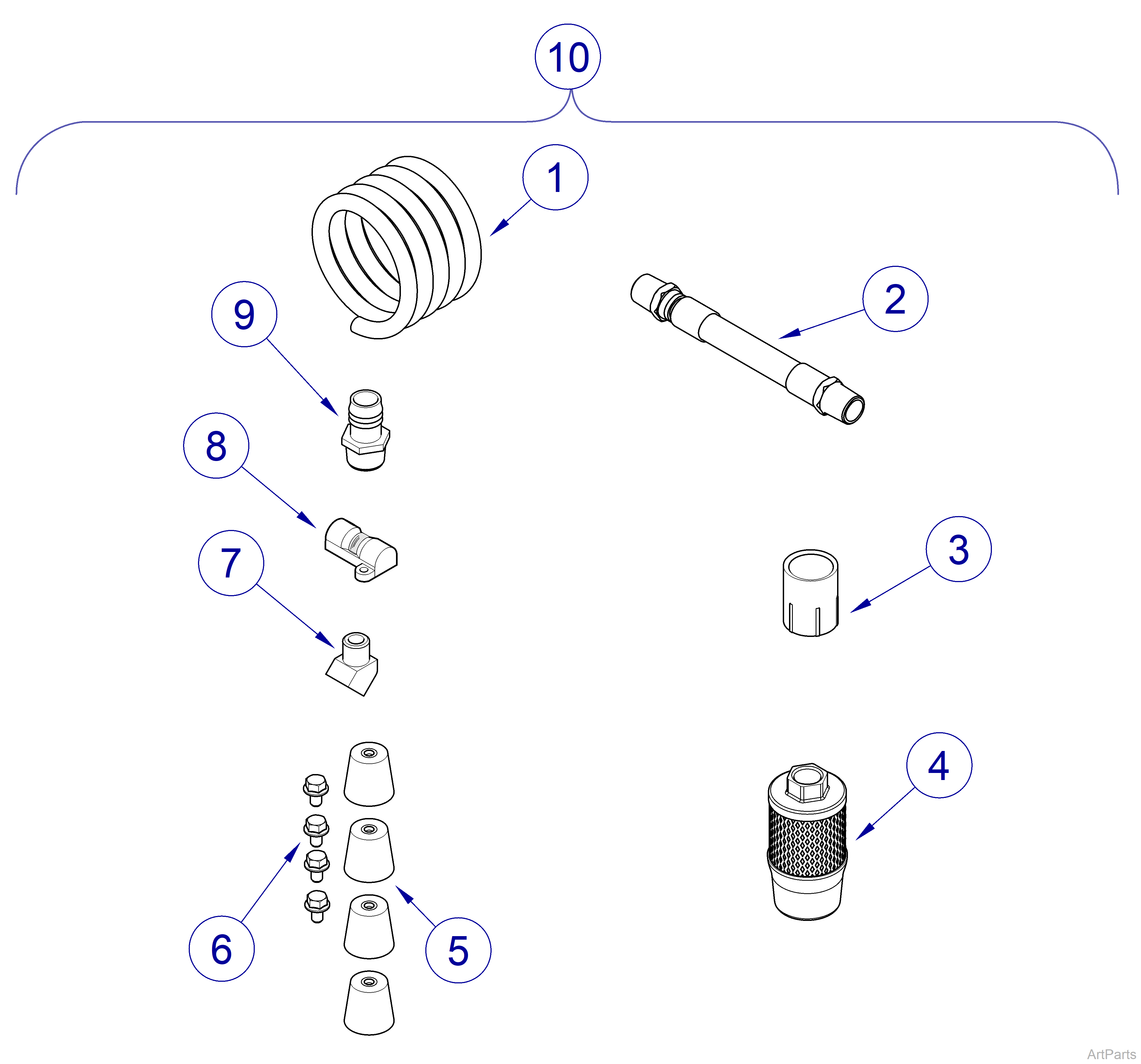

Date Range: Built August 2008
thru Present
|
Model |
P52 | P72 |
| Date | Built August 2008 thru Present | Built August 2008 thru Present |
| PowerAir Installation Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Flexible PVC Hose Options | ||
| 62963202 | 1" diameter per inch | AR | |
| 62963202-1 | 1" diameter x 120" | 1 | |
|
2 |
Operatory High Pressure Hose Assembly | 1 | |
|
3 |
62945400 | Female Adapter 1" ID x 1" NPT | 1 |
|
4 |
62983300 | Exhaust Silencer | 1 |
|
5 |
MRP70967 | Rubber Foot | 4 |
|
6 |
040-0312-00 | Bolt 5/16-18" x 1/2" | 4 |
|
7 |
62900106 | Elbow, 45 Deg Street 1/2" NPT | 1 |
|
8 |
77002134 | Indicator with O-Rings | 1 |
|
9 |
62945200 | Male Adapter 1" Hose x 1" NPT | 1 |
|
10 |
Installation Kit - includes items 1 thru 9 | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
