PowerAir Electrical Control Box

Model

 P21 P22 P32 P52 P72
Serial Number 0703P210001 thru 0903P210361 0703P220001 thru 0903P221139 0703P210001 thru 0903P321137 0703P210001 thru 0902P520467 0703P210001 thru 0903P720190

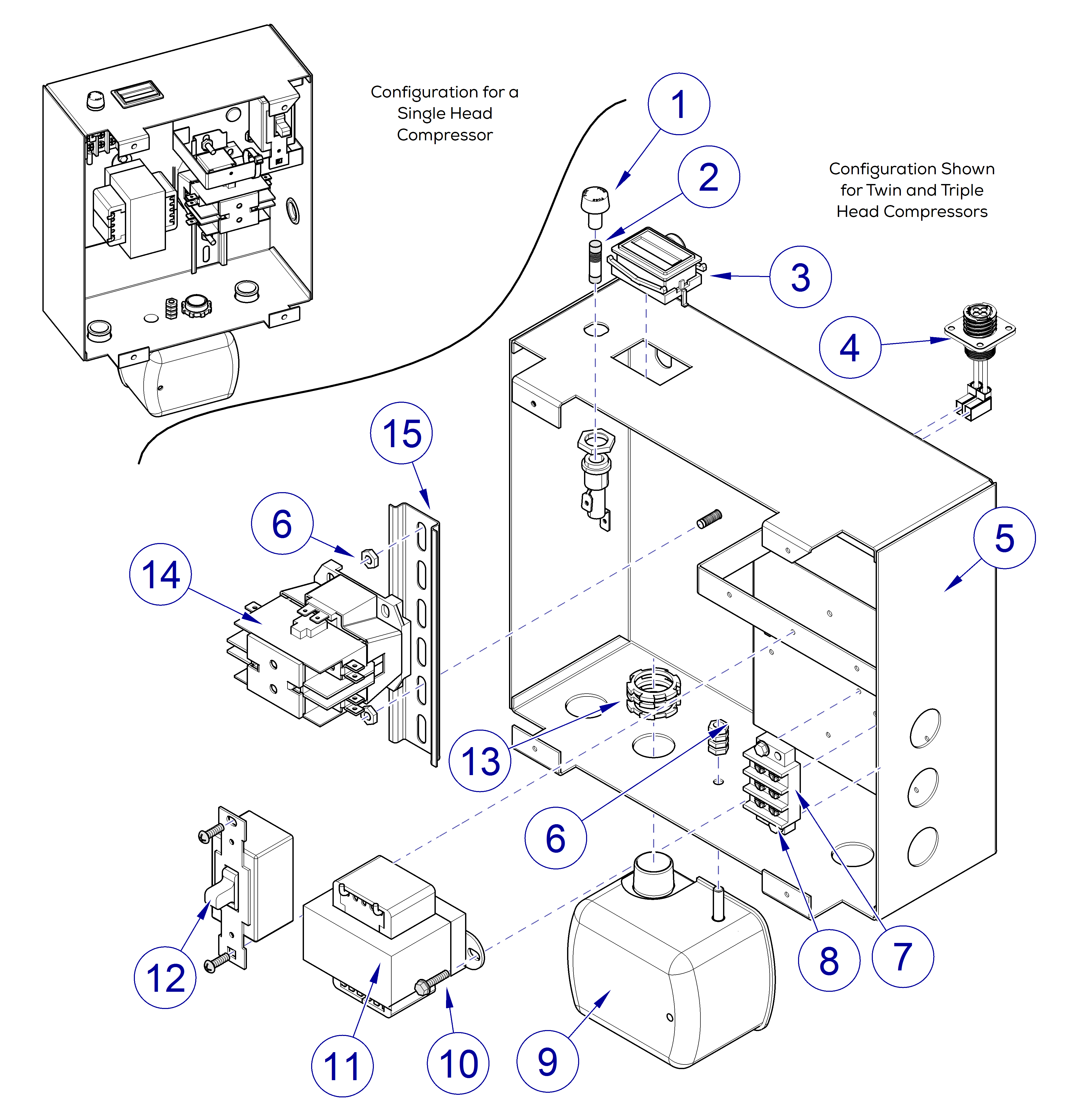

PowerAir Electrical Control Box

PowerAir Electrical Control Box
Item Part Number Description Qty

1

 65927500 Fuse Holder 1

2

 63882538 Fuse 1/3 amp 1

3

 20235600 Hour Meter 1

4

 62984000 Socket with Wire Harness 1

5

 Control Box Options
  64997600 10 Gal. Tank Models 1
  64997700 20 and 30 Gal. Tank Models 1

6

 122357 Nut Keps 10/32 6

7

62970706

Terminal Block 1

8

 62503802 Screw, Hex Head 8 x 5/8" 2

9

 20233301 Pressure Switch 1

10

 62503801 Screw 8-32 x 5/16" 2

11

002-11129-00

002-11129-01

Transformer - 115V

Transformer - 230V

 1

12

 77001130 On/Off Switch 1

13

 77001094 Locknut 1/2" 1

14

 002-10390-00 Contactor Relay 1

15

 62964303 Din-3 Rail 5.8"L 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 P21 P22 P32 P52 P72
Serial Number 0904P210365 thru V2105626 0904P221146 thru V2105626 0904P321145 thru V2105626 0904P520474 thru V2105626 0903P720191 thru V2105626

PowerAir Electrical Control Box

PowerAir Electrical Control Box
Item Part Number Description Qty

1

 65927500 Fuse Holder 1

2

 63882538 Fuse 1/3 amp 1

3

 20235600 Hour Meter 1

4

 62984000 Socket with Wire Harness 1

5

 Control Box Options
  64997600 10 Gal. Tank Models 1
  64997700 20 and 30 Gal. Tank Models 1

6

 122357 Nut Keps 10/32 6

7

 62970705 Terminal Block 1

8

 62503802 Screw, Hex Head 8 x 5/8" 2

9

 Pressure Switch Options
  77005143 P21, P22, P32, P52 1
  77005144 P72 1

10

 62503801 Screw 8-32 x 5/16" 2

11

002-11129-00

002-11129-01

Transformer - 115V

Transformer - 230V

 1

12

 77001130 On/Off Switch 1

13

 77001094 Locknut 1/2" 1

14

 002-10390-00 Contactor Relay 1

15

 62964303 Din-3 Rail 5.8"L 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 P21 P22 P32 P52 P72
Serial Number V2105627 thru V2703755 V2105627 thru V2703755 V2105627 thru V2703755 V2105627 thru V2703755 V2105627 thru V2703755

PowerAir Electrical Control Box

PowerAir Electrical Control Box
Item Part Number Description Qty

1

 65927500 Fuse Holder 1

2

 63882538 Fuse 1/3 amp 1

3

 20235600 Hour Meter 1

4

 62984000 Socket with Wire Harness 1

5

 Control Box Options
  64997600 10 Gal. Tank Models 1
  64997700 20 and 30 Gal. Tank Models 1

6

 62970705 Terminal Block 1

7

 62503802 Screw, Hex Head 8 x 5/8" 1

8

 122357 Nut Keps 10/32 2

9

 Pressure Switch Options
  77005143 P21, P22, P32,P52 1
  77005144 P72 1

10

 62503801 Screw 8-32 x 5/16" 6

11

002-11129-00

002-11129-01

Transformer - 115V

Transformer - 230V

 1

12

 77001130 On/Off Switch AR

13

 77001094 Locknut 1/2" 1

14

 002-10497-00 Contactor Relay 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 P21 P22 P32 P52 P72
Serial Number V2703756 thru Present V2703756 thru Present V2703756 thru Present V2703756 thru Present V2703756 thru Present

PowerAir Electrical Control Box

PowerAir Electrical Control Box
Item Part Number Description Qty

1

 65927500 Fuse Holder 1

2

 63882538 Fuse 1/3 amp 1

3

 20235600 Hour Meter 1

4

 62984000 Socket with Wire Harness 1

5

 Control Box Options
  64997600 10 Gal. Tank Models 1
  64997700 20 and 30 Gal. Tank Models 1

6

 62970705 Terminal Block 1

7

 62503802 Screw, Hex Head 8 x 5/8" 1

8

 122357 Nut Keps 10/32 2

9

 Pressure Switch Options
  77005143 P21, P22, P32,P52 1
  77005144 P72 1

10

 62503801 Screw 8-32 x 5/16" 6

11

 015-2703-00 Transformer 1

12

 77001130 On/Off Switch AR

13

 77001094 Locknut 1/2" 1

14

 002-10497-00 Contactor Relay 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
