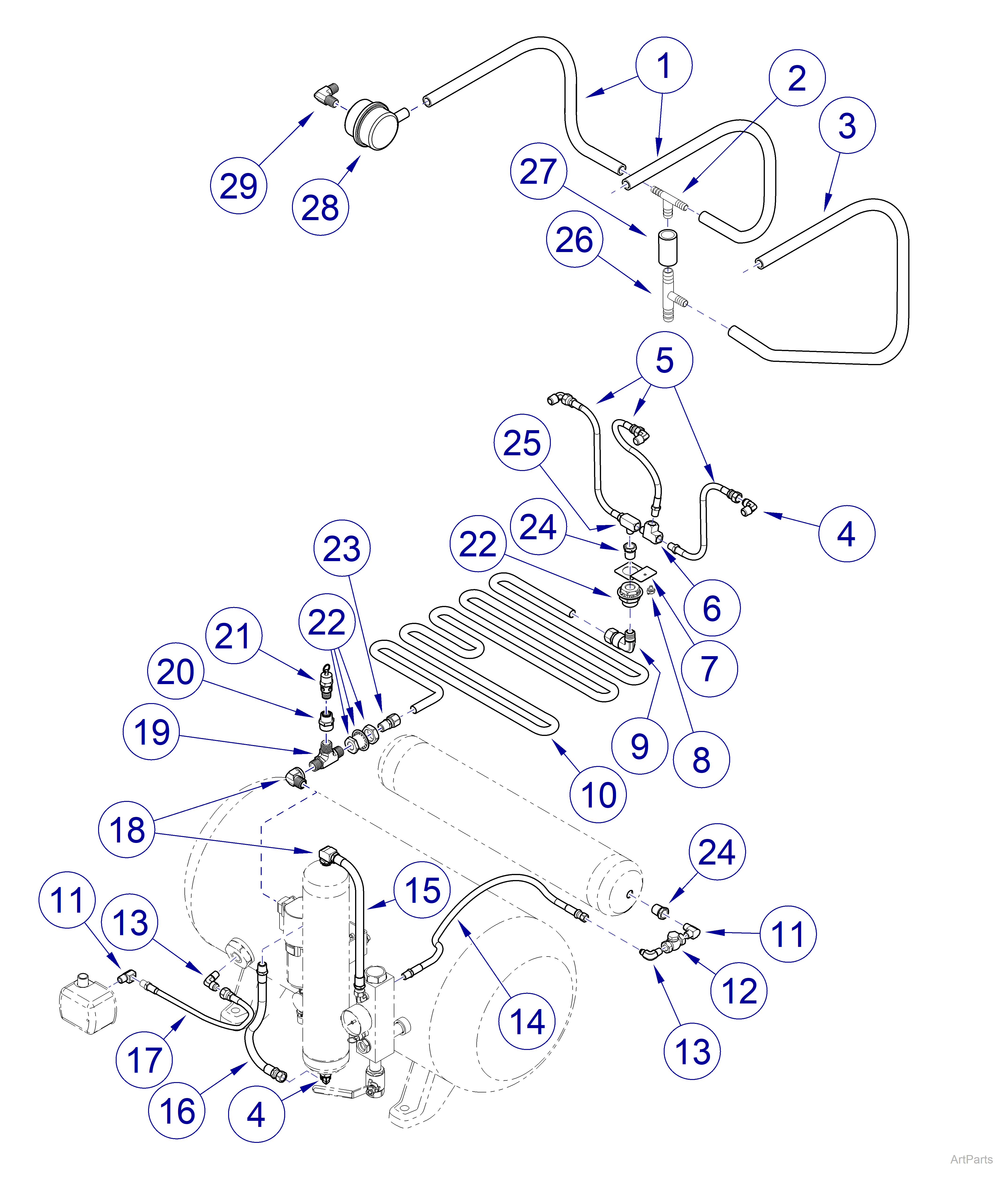

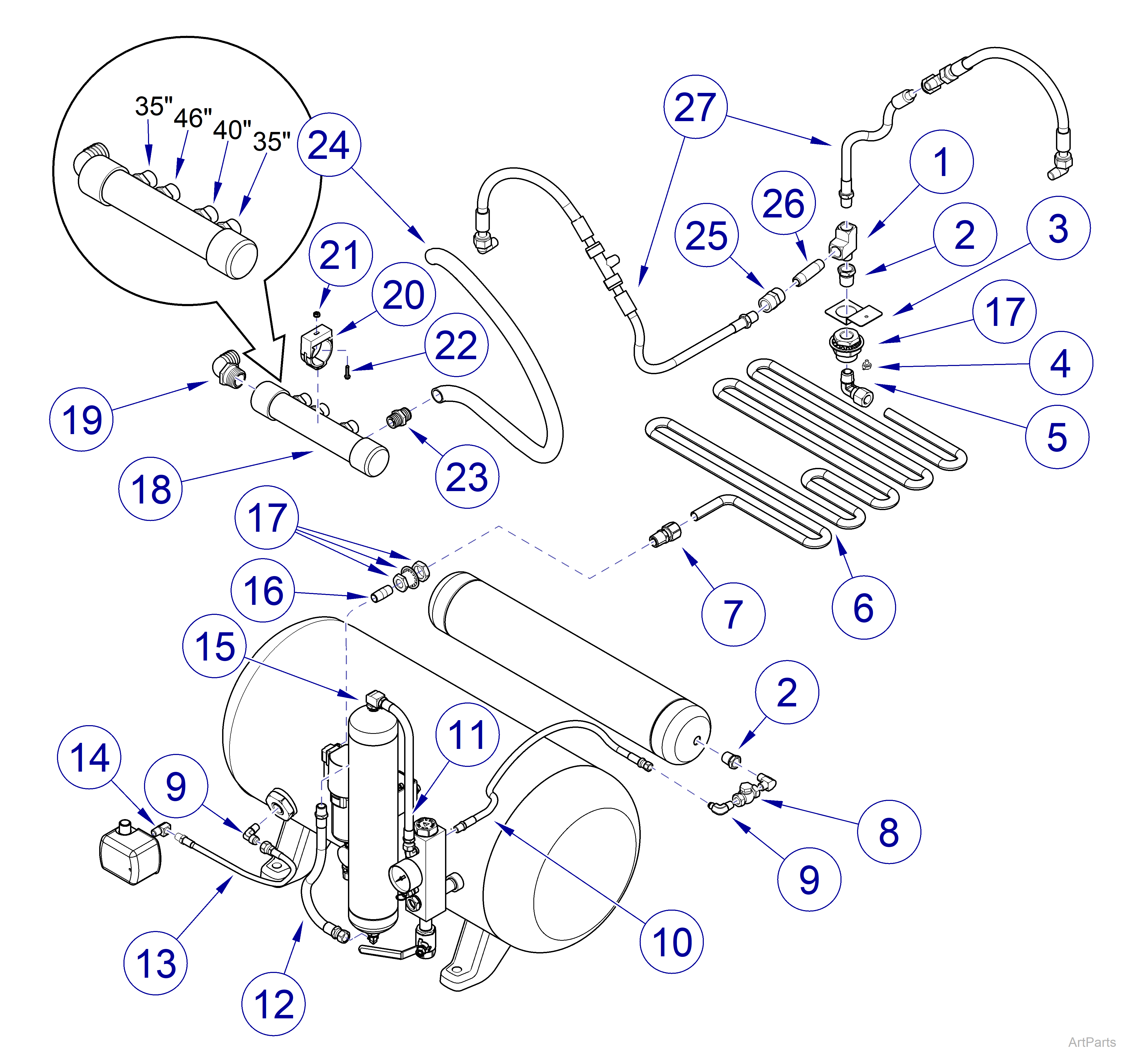

PowerAir Pneumatic Tubes and Hoses
P21 and P22
Serial Number Range: 0703P210001
thru July 2008, 0703P220001
thru July 2008
|
Model |
P21 | P22 |
| Serial Number | 0703P210001 thru July 2008 | 0703P220001 thru July 2008 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
PMS50920 | Hose Connector 1/2" | 2 |
|
3 |
PCT80450-00 | Hose 1/2" x 9 3/4" L | 1 |
|
4 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 1 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 1 | |
|
5 |
PCH50207 | Air Hose | 2 |
|
6 |
65970300 | Thermal Switch Bracket | 1 |
|
7 |
65961601 | Thermal Switch | 1 |
|
8 |
30187400 | Pre-Cooler | 1 |
|
9 |
BRV10100 |
Pop Rivet .150 x .860 | 1 |
|
10 |
BCL10907 |
Manifold Clamp | NLA |
|
11 |
77005032 | Purge Valve | 1 |
|
12 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
13 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
14 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
15 |
PCB50640 | Street Elbow 3/8" | 1 |
|
16 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
17 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
18 |
PCB50615 | Bushing 1/2"MNPT x 1/4"FNPT with Seal | 1 |
|
19 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
20 |
PCB50605 | Anchor Bulkhead 1/4" | 1 |
|
21 |
PCB50437 | MPT ST 1/2" CA x 3/8" | 1 |
|
22 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 1 |
|
23 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
24 |
PCB50647 | Tee Run 1/4" | 1 |
|
25 |
Street Elbow | ||
| PCB50640 | Thomas Heads 3/8" | 1 | |
| 10589800 | Gast Heads 1/4" | 1 | |
|
26 |
PMS50916 |
Elbow 1/2"CON x 3/8" MPT | NLA |
|
27 |
65970702 | Hose Assembly 3/8"NPT, 16" L | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

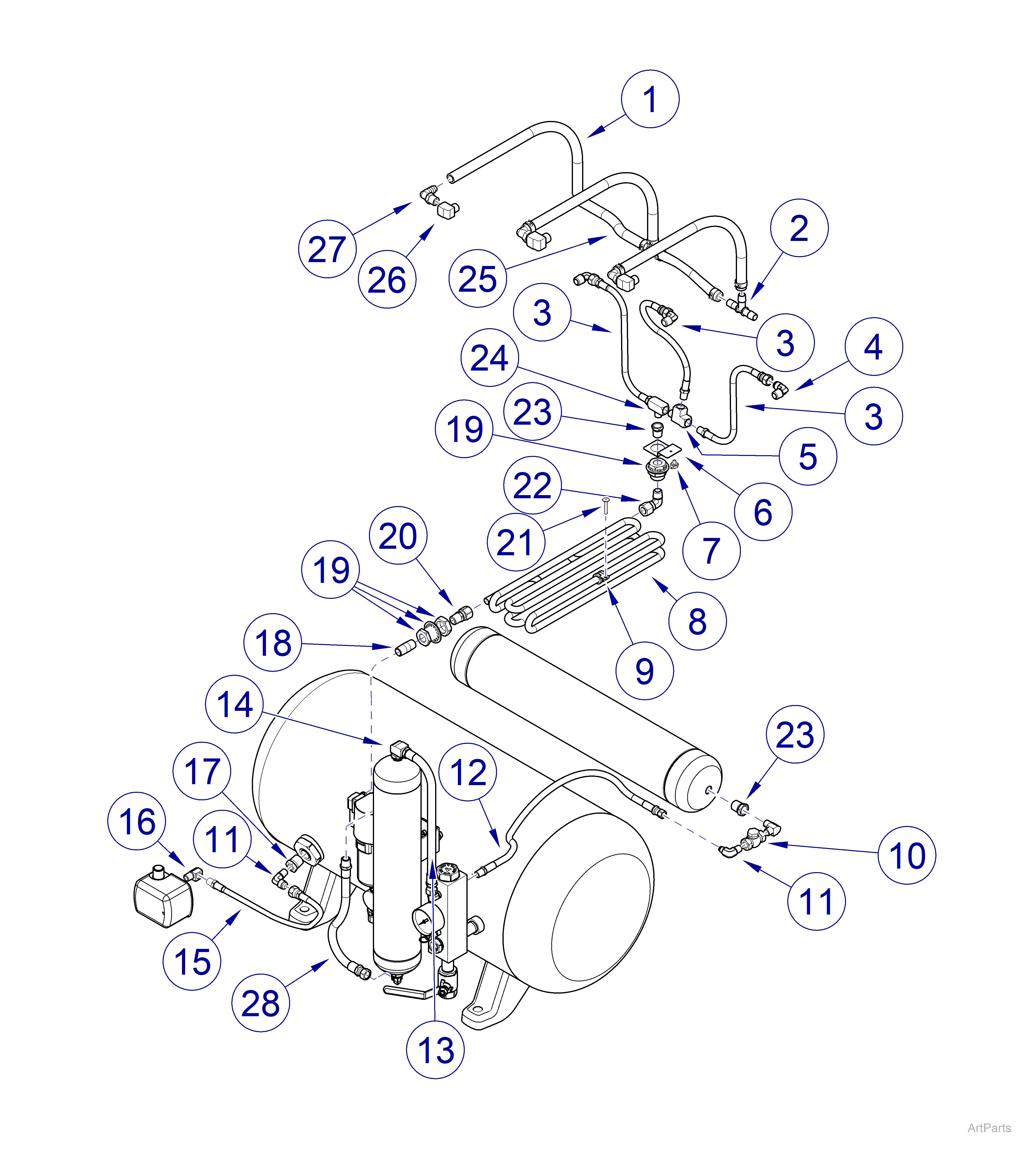

Serial Number Range: Aug 2008
thru V1700964, Aug 2008
thru V1701031
|
Model |
P21 | P22 |
| Serial Number | Aug 2008 thru V1700964 | Aug 2008 thru V1701031 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
20218601 | Hose Connector 1/2"x1/2"x3/4" | 1 |
|
3 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 3 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 3 | |
|
4 |
PCH50207 | Air Hose | 2 |
|
5 |
65970300 | Thermal Switch Bracket | 1 |
|
6 |
65961601 | Thermal Switch | 1 |
|
7 |
30187400 | Pre-Cooler | 1 |
|
8 |
77005032 | Purge Valve | 1 |
|
9 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
10 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
11 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
12 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
13 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
14 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
15 |
PCB50615 | Bushing 1/2"MNPT x 1/4"FNPT with Seal | 1 |
|
16 |
PCB50640 | Street Elbow 3/8" | 1 |
|
17 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
18 |
PCB50605 | Anchor Bulkhead 1/4" | 2 |
|
19 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 2 |
|
20 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
21 |
PCB50647 | Tee Run 1/4" | 1 |
|
22 |
Street Elbow | ||
| PCB50640 | Thomas Heads 3/8" | 2 | |
| 10589800 | Gast Heads 1/4" | 2 | |
|
23 |
014-10229-00 | Filter Assembly New Style | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

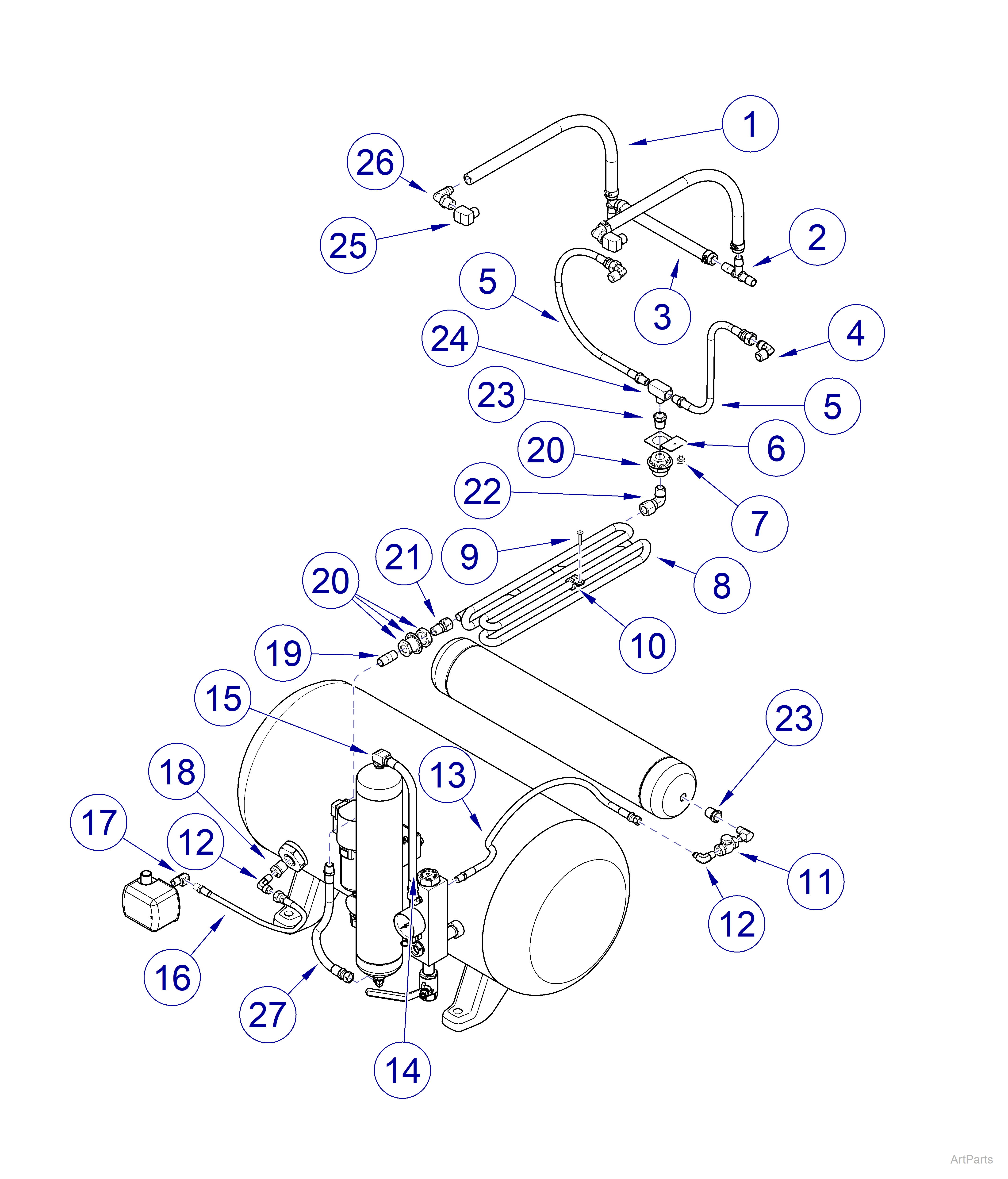

Serial Number Range: V1700965
thru V2437236, V1701032
thru V2437236
|
Model |
P21 | P22 |
| Serial Number | V1700965 thru V2437236 | V1701032 thru V2437236 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
20218601 | Hose Connector 1/2"x1/2"x3/4" | 1 |
|
3 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 3 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 3 | |
|
4 |
PCH50207 | Air Hose | 2 |
|
5 |
65970300 | Thermal Switch Bracket | 1 |
|
6 |
65961601 | Thermal Switch | 1 |
|
7 |
30187400 | Pre-Cooler | 1 |
|
8 |
77005032 | Purge Valve | 1 |
|
9 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
10 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
11 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
12 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
13 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
14 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
15 |
PCB50640 | Street Elbow 3/8" | 1 |
|
16 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
17 |
PCB50605 | Anchor Bulkhead 1/4" | 2 |
|
18 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 2 |
|
19 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
20 |
PCB50647 | Tee Run 1/4" | 1 |
|
21 |
Street Elbow | ||
| PCB50640 | Thomas Heads 3/8" | 2 | |
| 10589800 | Gast Heads 1/4" | 2 | |
|
22 |
014-10229-00 | Filter Assembly New Style | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

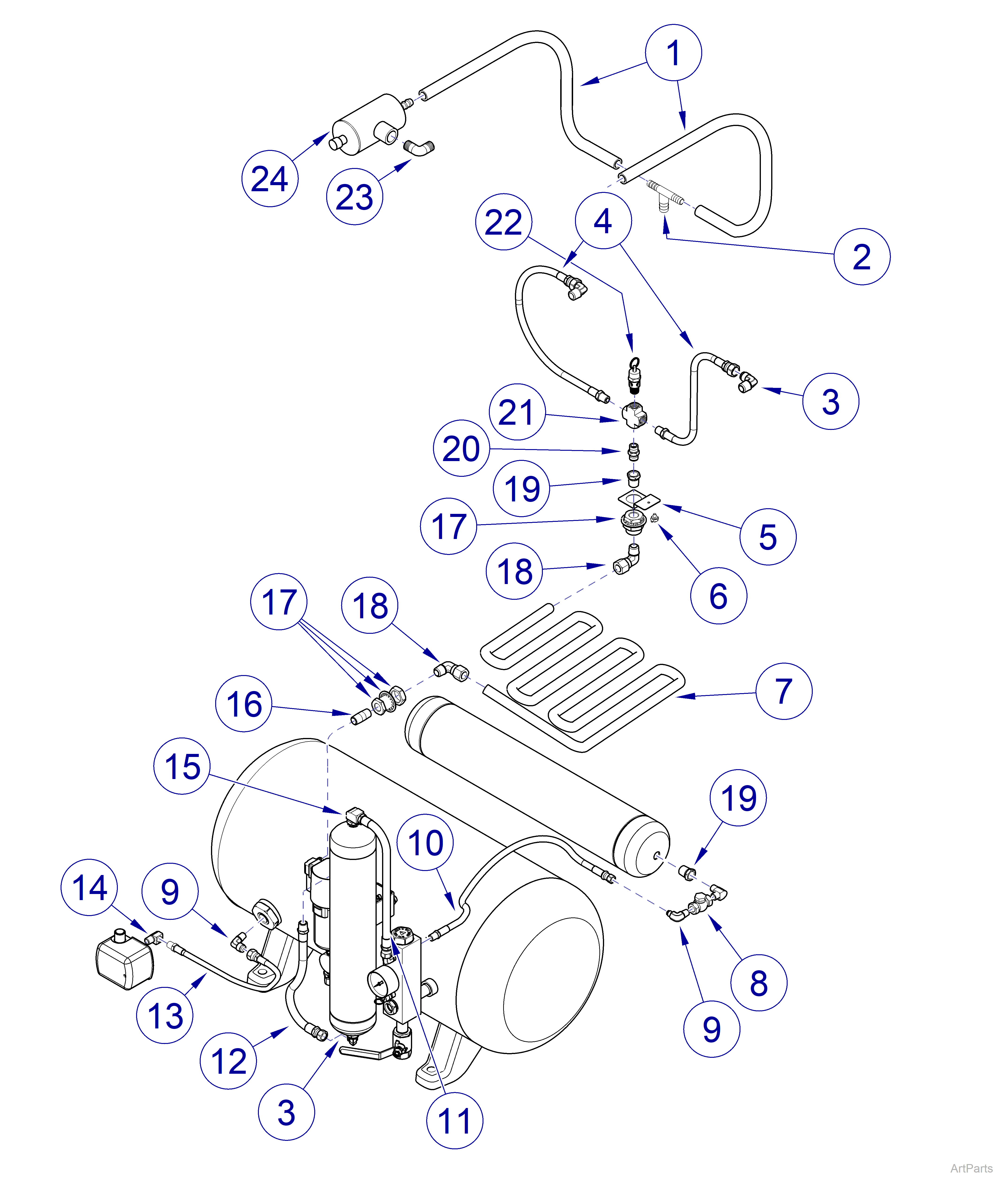

Serial Number Range: V2437237
thru V2453157, V2437237
thru V2453157
|
Model |
P21 | P22 |
| Serial Number | V2437237 thru V2453157 | V2437237 thru V2453157 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
20218601 | Hose Connector 1/2"x1/2"x3/4" | 1 |
|
3 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 3 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 3 | |
|
4 |
PCH50207 | Air Hose | 2 |
|
5 |
65970300 | Thermal Switch Bracket | 1 |
|
6 |
65961601 | Thermal Switch | 1 |
|
7 |
30187400 | Pre-Cooler | 1 |
|
8 |
77005032 | Purge Valve | 1 |
|
9 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
10 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
11 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
12 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
13 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
14 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
15 |
PCB50640 | Street Elbow 3/8" | 1 |
|
16 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
17 |
PCB50605 | Anchor Bulkhead 1/4" | 2 |
|
18 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 2 |
|
19 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
20 |
PCB50300 | Closed Nipple 1/4" | 1 |
|
21 |
014-10197-00 | Cross Fitting 1/4" NPT | 1 |
|
22 |
014-10199-00 | Pressure Relief Valve 1/4" NPT, 115 PSI | 1 |
|
23 |
10589800 | Street Elbow 1/4" | 2 |
|
24 |
014-10229-00 | Filter Assembly New Style | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

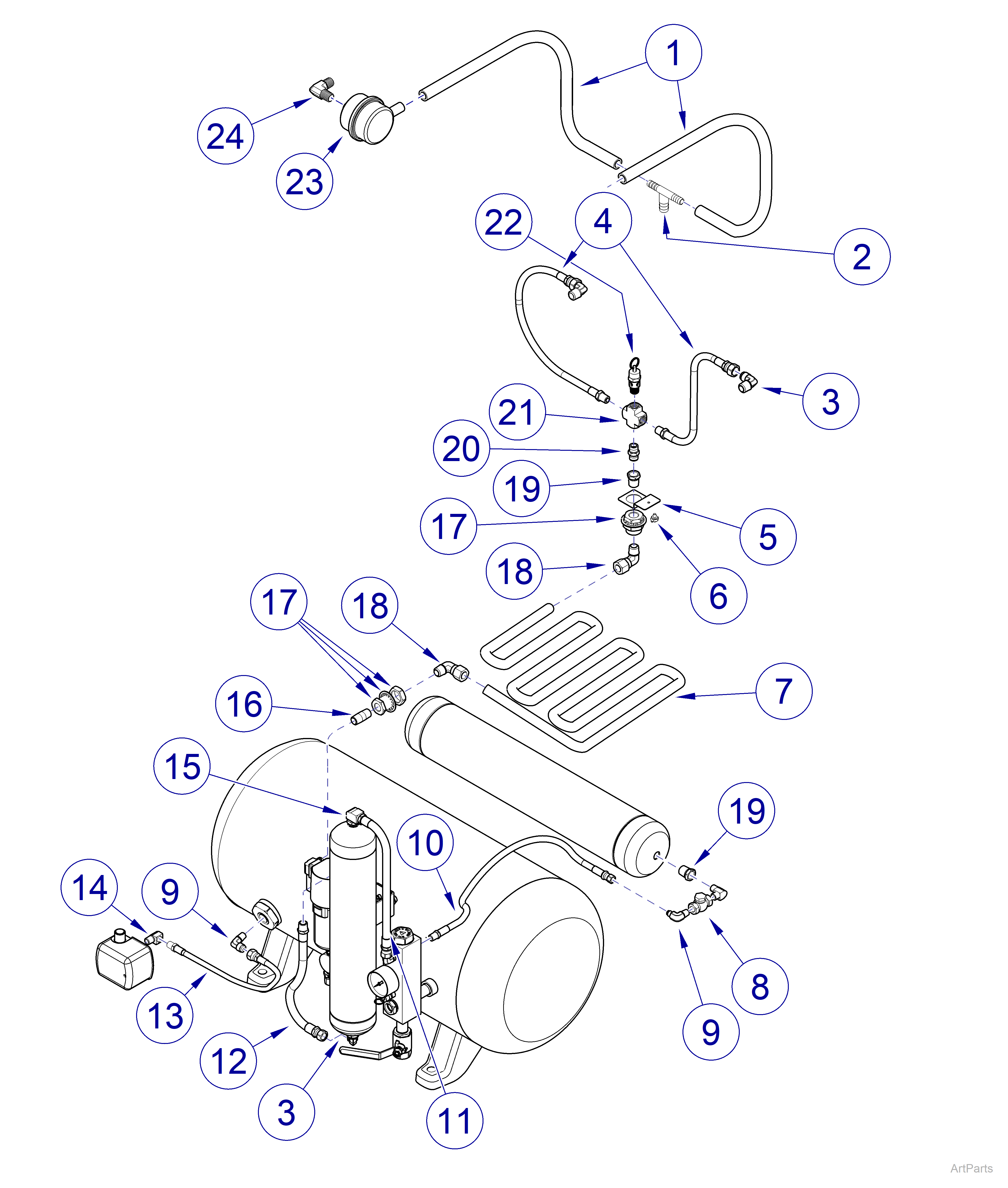

Serial Number Range: V2453158
thru V2579366
|
Model |
P21 | P22 |
| Serial Number | V2453158 thru V2579366 | V2453158 thru V2579366 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
20218601 | Hose Connector 1/2"x1/2"x3/4" | 1 |
|
3 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 3 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 3 | |
|
4 |
PCH50207 | Air Hose | 2 |
|
5 |
65970300 | Thermal Switch Bracket | 1 |
|
6 |
65961601 | Thermal Switch | 1 |
|
7 |
30187400 | Pre-Cooler | 1 |
|
8 |
77005032 | Purge Valve | 1 |
|
9 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
10 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
11 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
12 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
13 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
14 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
15 |
PCB50640 | Street Elbow 3/8" | 1 |
|
16 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
17 |
PCB50605 | Anchor Bulkhead 1/4" | 2 |
|
18 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 2 |
|
19 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
20 |
PCB50300 | Closed Nipple 1/4" | 1 |
|
21 |
014-10197-00 | Cross Fitting 1/4" NPT | 1 |
|
22 |
014-10199-00 | Pressure Relief Valve 1/4" NPT, 115 PSI | 1 |
|
23 |
014-10229-00 | Filter Assembly | 2 |
|
24 |
10589800 | Street Elbow 1/4" | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

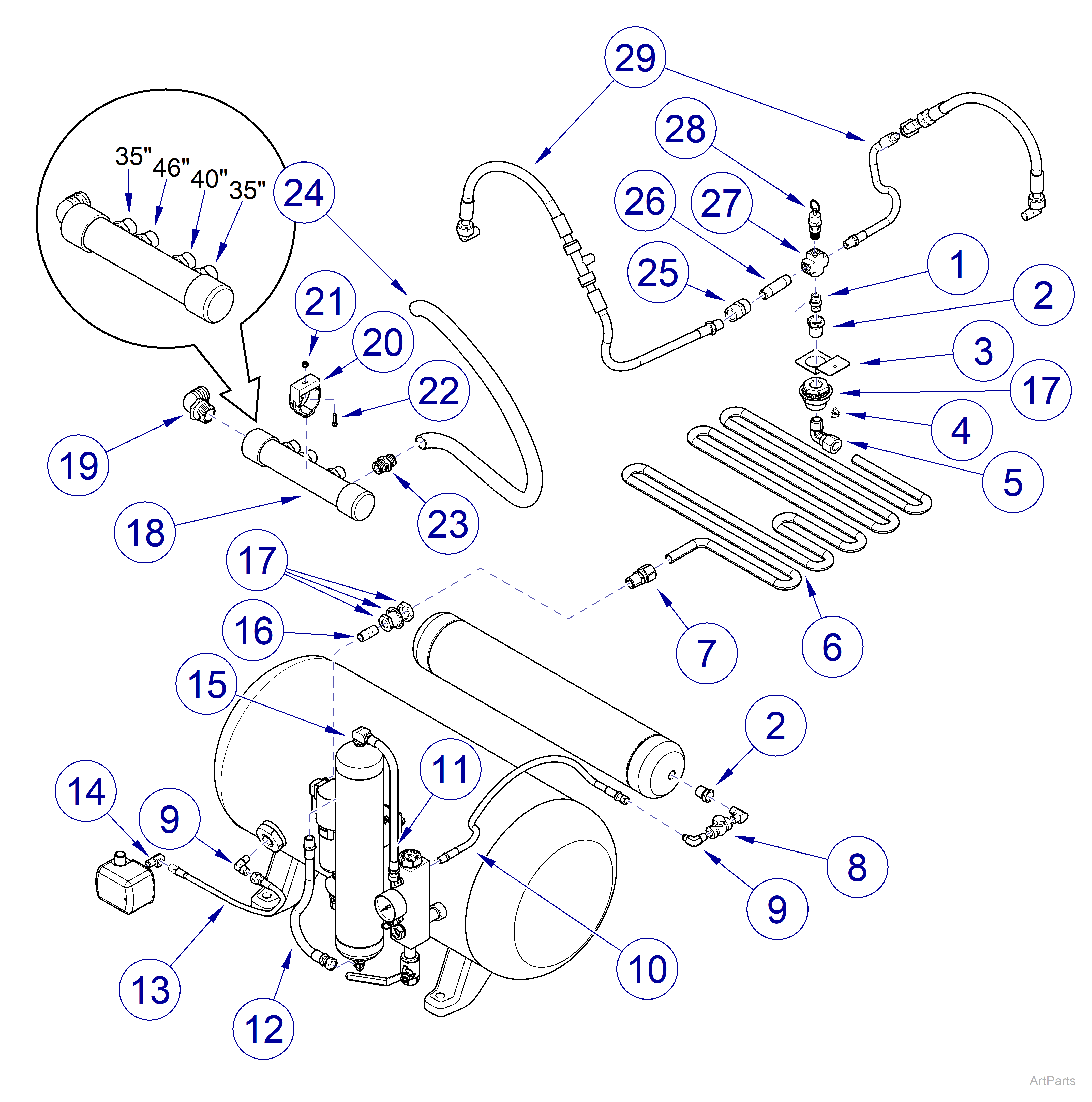

Serial Number Range: V2579367
thru Present
|
Model |
P21 | P22 |
| Serial Number | V2579367 thru Present | V2579367 thru Present |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
20218601 | Hose Connector 1/2"x1/2"x3/4" | 1 |
|
3 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 3 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 3 | |
|
4 |
PCH50207 | Air Hose | 2 |
|
5 |
65970300 | Thermal Switch Bracket | 1 |
|
6 |
65961601 | Thermal Switch | 1 |
|
7 |
30187400 | Pre-Cooler | 1 |
|
8 |
62900712 | Street Elbow 1/4" NPT with Sealant | 2 |
|
9 |
77005032 | Purge Valve | 1 |
|
10 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
11 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
12 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
13 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
14 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
15 |
PCB50640 | Street Elbow 3/8" | 1 |
|
16 |
014-10246-00 | Tee 3/8" | 1 |
|
17 |
016-1324-00 | Reducer 3/8" FPT x 1/4" FPT | 1 |
|
18 |
77005020 | Pressure Relief Valve 1/4" NPT, 125 PSI | |
|
19 |
PCB50605 | Anchor Bulkhead 1/4" | 2 |
|
20 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 2 |
|
21 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
22 |
PCB50647 | Tee run 1/4" | 1 |
|
23 |
014-10229-00 | Filter Assembly | 2 |
|
24 |
10589800 | Street Elbow 1/4" | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

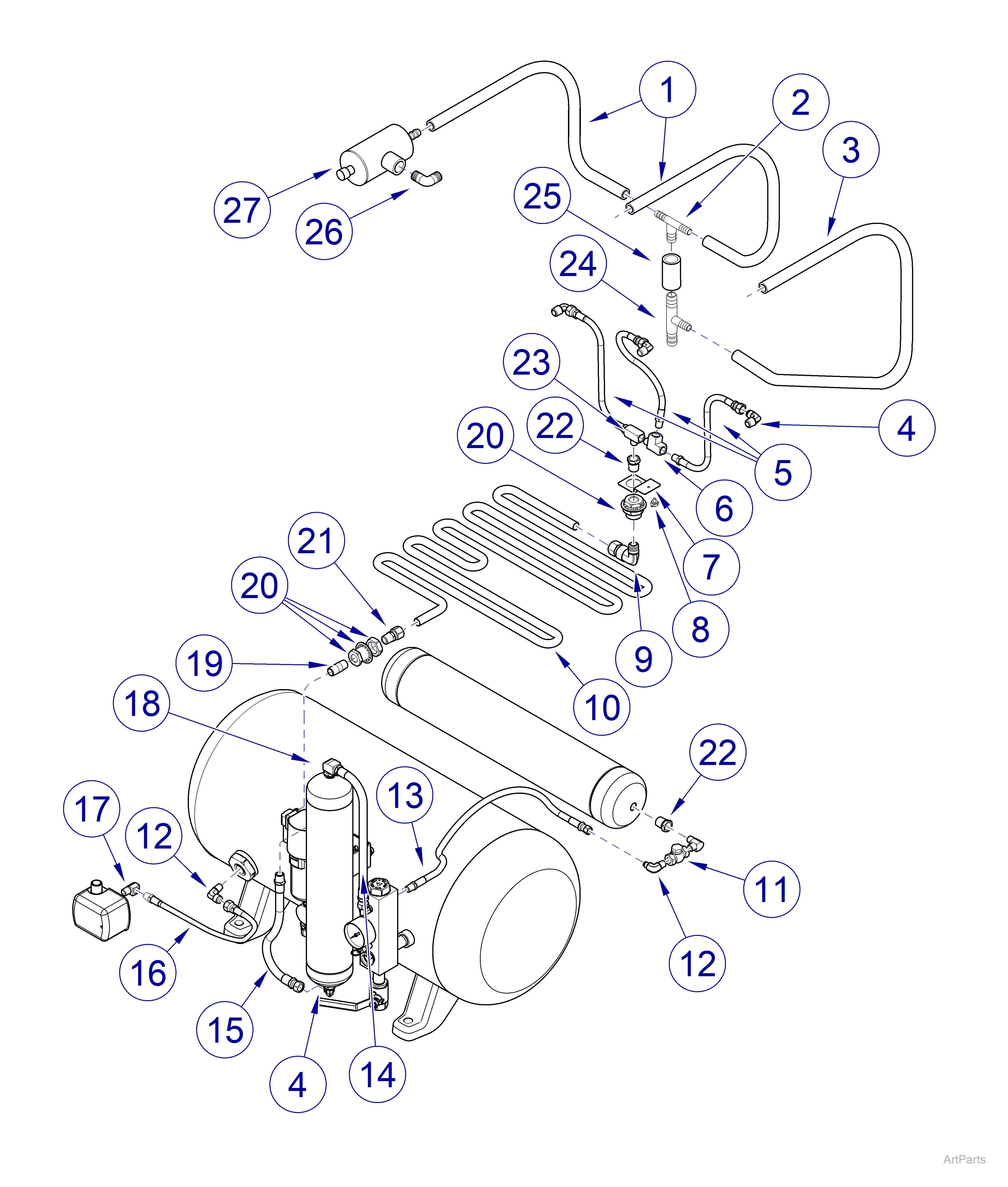

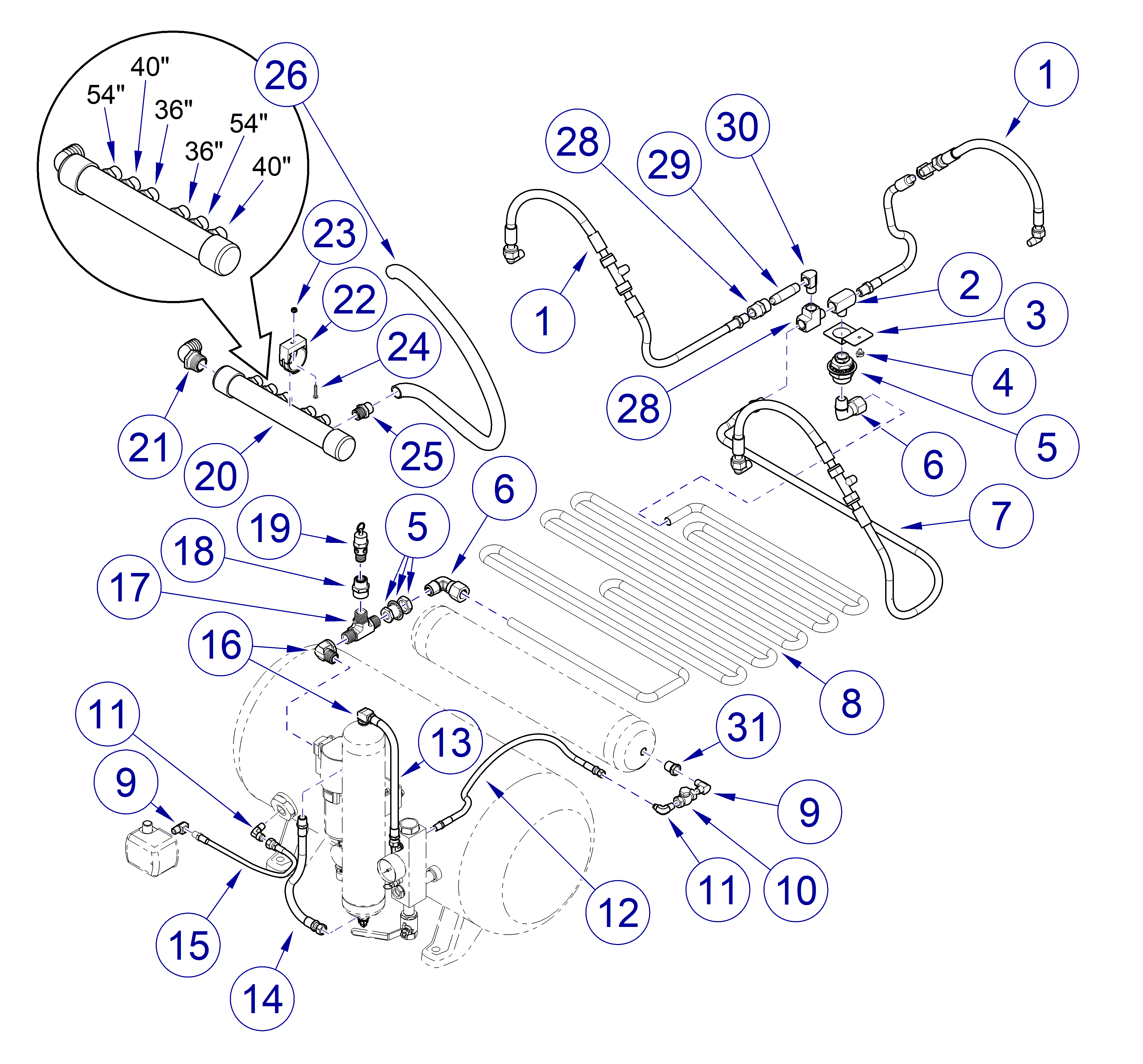

P32
Serial Number Range: 0703P320001
thru July 2008, V785000
thru July 2008
|
Model |
P32 |
| Serial Number | 0703P320001 thru July 2008, V785000 thru July 2008 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-11 |
Hose 1/2" x 26" L |
NLA |
|
2 |
PMS50920 | Hose Connector 1/2" | 3 |
|
3 |
PCH50207 | Hose 1/2" x 9 3/4" L | 3 |
|
4 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 1 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 1 | |
|
5 |
62900905 | Pipe Tee 1/4"M x 1/4F x 1/4F | 1 |
|
6 |
65970300 | Thermal Switch Bracket | 1 |
|
7 |
65961601 | Thermal Switch | 1 |
|
8 |
40156900 | Pre-Cooler | 1 |
|
9 |
BCL10907 |
Manifold Clamp | NLA |
|
10 |
77005032 | Purge Valve | 1 |
|
11 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
12 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
13 |
65970702 | Hose Assembly 3/8"NPT, 16"L | 1 |
|
14 |
PCB50640 | Street Elbow 3/8" | 1 |
|
15 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
16 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
17 |
PCB50615 | Bushing 1/2"x 3/8" | 1 |
|
18 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
19 |
PCB50605 | Anchor Bulkhead | 2 |
|
20 |
PCB50437 | MPT ST 1/2" CA x 3/8" | 1 |
|
21 |
BRV10100 |
Pop Rivet .150 x .860 |
NLA |
|
22 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 1 |
|
23 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
24 |
PCB50647 | Tee Run 1/4" | 1 |
|
25 |
PCT80450-04 |
Hose 1/2", 9 3/7 L |
NLA |
|
26 |
Street Elbow | ||
| PCB50640 | Thomas Heads 3/8" | 1 | |
| 10589800 | Gast Heads 1/4" | 1 | |
|
27 |
PMS50916 |
Elbow 1/2"CON x 3/8" MPT |
NLA |
|
28 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: Aug 2008
thru V1703514
|
Model |
P32 |
| Serial Number | Aug 2008 thru V1703514 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
20218601 | Hose Connector 1/2"x1/2"x3/4" | 1 |
|
3 |
PCT80450-00 | Hose 1/2" x 31" L | 3 |
|
4 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 4 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 4 | |
|
5 |
PCH50207 | Hose 1/2" x 9 3/4" | 1 |
|
6 |
62900905 | Pipe Tee 1/4"M x 1/4F x 1/4F | 1 |
|
7 |
65970300 | Thermal Switch Bracket | 1 |
|
8 |
65961601 | Thermal Switch | 1 |
|
9 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 1 |
|
10 |
40156900 | Pre-Cooler | 1 |
|
11 |
77005032 | Purge Valve | 1 |
|
12 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
13 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
14 |
65970702 | Hose Assembly 3/8"NPT, 16"L | 1 |
|
15 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
16 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
17 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
18 |
PCB50640 | Street Elbow 3/8" | 1 |
|
19 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
20 |
PCB50605 | Anchor Bulkhead | 2 |
|
21 |
PCB50437 | MPT ST 1/2" CA x 3/8" | 1 |
|
22 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
23 |
PCB50647 | Tee Run 1/4" | 1 |
|
24 |
20218602 | Hose Connector 1/2" x 3/4" x 3/4" | 1 |
|
25 |
Flexible PVC Hose | ||
| 62963203 | 3/4" diameter per inch | AR | |
| 62963203-1 | 3/4" diameter x 2.5" | 1 | |
|
26 |
Street Elbow | ||
| PCB50640 | Thomas Heads 3/8" | 3 | |
| 10589800 | Gast Heads 1/4" | 3 | |
|
27 |
014-10229-00 | Filter Assembly New Style | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1703515
thru V2437236
|
Model |
P32 |
| Serial Number | V1703515 thru V2437236 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
20218601 | Hose Connector 1/2"x1/2"x3/4" | 1 |
|
3 |
PCT80450-00 | Hose 1/2" x 31" L | 3 |
|
4 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 4 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 4 | |
|
5 |
PCH50207 | Hose 1/2" x 9 3/4" | 1 |
|
6 |
62900905 | Pipe Tee 1/4"M x 1/4F x 1/4F | 1 |
|
7 |
65970300 | Thermal Switch Bracket | 1 |
|
8 |
65961601 | Thermal Switch | 1 |
|
9 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 1 |
|
10 |
40156900 | Pre-Cooler | 1 |
|
11 |
77005032 | Purge Valve | 1 |
|
12 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
13 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
14 |
65970702 | Hose Assembly 3/8"NPT, 16"L | 1 |
|
15 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
16 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
17 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
18 |
PCB50640 | Street Elbow 3/8" | 1 |
|
19 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
20 |
PCB50605 | Anchor Bulkhead | 2 |
|
21 |
PCB50437 | MPT ST 1/2" CA x 3/8" | 1 |
|
22 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
23 |
PCB50647 | Tee Run 1/4" | 1 |
|
24 |
20218602 | Hose Connector 1/2" x 3/4" x 3/4" | 1 |
|
25 |
Flexible PVC Hose | ||
| 62963203 | 3/4" diameter per inch | AR | |
| 62963203-1 | 3/4" diameter x 2.5" | 1 | |
|
26 |
Street Elbow | ||
| PCB50640 | Thomas Heads 3/8" | 3 | |
| 10589800 | Gast Heads 1/4" | 3 | |
|
27 |
014-10229-00 | Filter Assembly New Style | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2437237
thru V2453157
|
Model |
P32 |
| Serial Number | V2437237 thru V2453157 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
20218601 | Hose Connector 1/2"x1/2"x3/4" | 1 |
|
3 |
PCT80450-00 | Hose 1/2" x 31" L | 3 |
|
4 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 4 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 4 | |
|
5 |
PCH50207 | Hose 1/2" x 9 3/4" | 3 |
|
6 |
62900905 | Pipe Tee 1/4"M x 1/4F x 1/4F | 1 |
|
7 |
65970300 | Thermal Switch Bracket | 1 |
|
8 |
65961601 | Thermal Switch | 1 |
|
9 |
PCB50435 | MPT Elbow 1/2" CA x 3/8" | 1 |
|
10 |
40156900 | Pre-Cooler | 1 |
|
11 |
77005032 | Purge Valve | 1 |
|
12 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
13 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
14 |
65970702 | Hose Assembly 3/8"NPT, 16"L | 1 |
|
15 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
16 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
17 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
18 |
PCB50640 | Street Elbow 3/8" | 1 |
|
19 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
20 |
PCB50605 | Anchor Bulkhead | 2 |
|
21 |
PCB50437 | MPT ST 1/2" CA x 3/8" | 1 |
|
22 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
23 |
PCB50300 | Closed Nipple 1/4" | 1 |
|
24 |
014-10197-00 | Cross Fitting 1/4" NPT | 1 |
|
25 |
014-10199-00 | Pressure Relief Valve 1/4" NPT, 115 PSI | 1 |
|
26 |
20218602 | Hose Connector 1/2" x 3/4" x 3/4" | 1 |
|
27 |
Flexible PVC Hose | ||
| 62963203 | 3/4" diameter per inch | AR | |
| 62963203-1 | 3/4" diameter x 2.5" | 1 | |
|
28 |
10589800 | Street Elbow 1/4" | 3 |
|
29 |
014-10229-00 | Filter Assembly | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2453158
thru V2579366
|
Model |
P32 |
| Serial Number | V2453158 thru V2579366 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
20218601 | Hose Connector 1/2"x1/2"x3/4" | 1 |
|
3 |
PCT80450-00 | Hose 1/2" x 31" L | 3 |
|
4 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 4 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 4 | |
|
5 |
PCH50207 | Hose 1/2" x 9 3/4" | 1 |
|
6 |
62900905 | Pipe Tee 1/4"M x 1/4F x 1/4F | 1 |
|
7 |
65970300 | Thermal Switch Bracket | 1 |
|
8 |
65961601 | Thermal Switch | 1 |
|
9 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 1 |
|
10 |
40156900 | Pre-Cooler | 1 |
|
11 |
77005032 | Purge Valve | 1 |
|
12 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
13 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
14 |
65970702 | Hose Assembly 3/8"NPT, 16"L | 1 |
|
15 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
16 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
17 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
18 |
PCB50640 | Street Elbow 3/8" | 1 |
|
19 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
20 |
PCB50605 | Anchor Bulkhead | 2 |
|
21 |
PCB50437 | MPT ST 1/2" CA x 3/8" | 1 |
|
22 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
23 |
PCB50300 | Closed Nipple 1/4" | 1 |
|
24 |
014-10197-00 | Cross Fitting 1/4" NPT | 1 |
|
25 |
014-10199-00 | Pressure Relief Valve 1/4" NPT, 115 PSI | 1 |
|
26 |
20218602 | Hose Connector 1/2" x 3/4" x 3/4" | 1 |
|
27 |
Flexible PVC Hose | ||
| 62963203 | 3/4" diameter per inch | AR | |
| 62963203-1 | 3/4" diameter x 2.5" | 1 | |
|
28 |
014-10229-00 | Filter Assembly | 3 |
|
29 |
10589800 | Street Elbow 1/4" | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2579367
thru Present
|
Model |
P32 |
| Serial Number | V2579367 thru Present |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCT80450-00 | Hose 1/2" x 26" L | 2 |
|
2 |
20218601 | Hose Connector 1/2"x1/2"x3/4" | 1 |
|
3 |
PCT80450-00 | Hose 1/2" x 31" L | 3 |
|
4 |
Elbow Options | ||
| PCB50126 | Thomas Heads 5/8"-18 x 3/8"MPT | 4 | |
| PCB50125 | Gast Heads 5/8"-18 x 1/4"MPT | 4 | |
|
5 |
PCH50207 | Hose 1/2" x 9 3/4" | 1 |
|
6 |
62900905 | Pipe Tee 1/4"M x 1/4F x 1/4F | 1 |
|
7 |
65970300 | Thermal Switch Bracket | 1 |
|
8 |
65961601 | Thermal Switch | 1 |
|
9 |
PCB50435 | MPT EL 1/2" CA x 3/8" | 1 |
|
10 |
40156900 | Pre-Cooler | 1 |
|
11 |
62900712 | Street Elbow 1/4" NPT with Sealant | 2 |
|
12 |
77005032 | Purge Valve | 1 |
|
13 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
14 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
15 |
65970702 | Hose Assembly 3/8"NPT, 16"L | 1 |
|
16 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
17 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
18 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
19 |
014-10246-00 | Tee 3/8" | 1 |
|
20 |
016-1324-00 | Reducer 3/8" FPT x 1/4" FPT | 1 |
|
21 |
77005020 | Pressure Relief Valve 1/4" NPT, 125 PSI | |
|
22 |
PCB50605 | Anchor Bulkhead | 2 |
|
23 |
PCB50437 | MPT ST 1/2" CA x 3/8" | 1 |
|
24 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
25 |
PCB50647 | Tee Run 1/4" NPT | 1 |
|
26 |
20218602 | Hose Connector 1/2" x 3/4" x 3/4" | 1 |
|
27 |
Flexible PVC Hose | ||
| 62963203 | 3/4" diameter per inch | AR | |
| 62963203-1 | 3/4" diameter x 2.5" | 1 | |
|
28 |
014-10229-00 | Filter Assembly | 3 |
|
29 |
10589800 | Street Elbow 1/4" | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
P52
Serial Number Range: 0701P520001
thru July 2008, V785000
thru July 2008
|

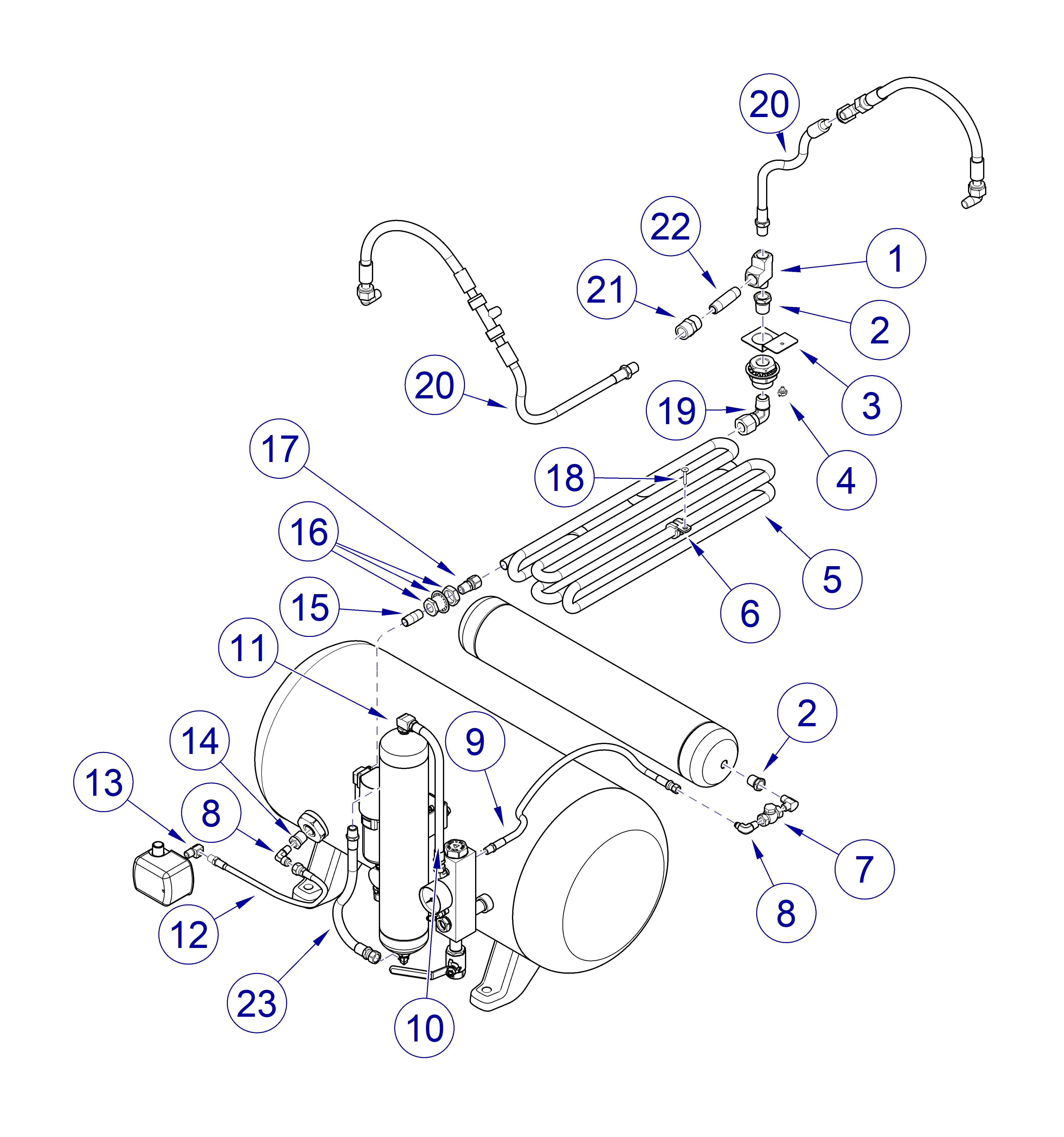

Model |
P52 |
| Serial Number | 0701P520001 thru July 2008, V785000 thru July 2008 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62900905 | Pipe Tee 1/4"M x 1/4F | 1 |
|
2 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
3 |
65970300 | Thermal Switch Bracket | 1 |
|
4 |
65961601 | Thermal Switch | 1 |
|
5 |
40156900 | Pre-Cooler | 1 |
|
6 |
BCL10907 |
Manifold Clamp | NLA |
|
7 |
77005032 | Purge Valve | 1 |
|
8 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
9 |
65970506 | Hose Assembly 1/4" NPT, 21"L | 1 |
|
10 |
65970702 | Hose Assembly 3/8" NPT, 16"L | 1 |
|
11 |
PCB50640 | Street Elbow 3/8" | 1 |
|
12 |
65970505 | Hose Assembly 1/4"NPT, 16"L | 1 |
|
13 |
62900712 | Street Elbow 1/4" NPT with Sealant | 1 |
|
14 |
PCB50615 | Bushing 1/2"x 3/8" | 1 |
|
15 |
65970200 | Nipple 3/8" NPT x 1 1/2" Brass | 1 |
|
16 |
PCB50605 | Anchor Bulkhead | 2 |
|
17 |
PCB50437 | MPT ST 1/2" CA x 3/8" | 1 |
|
18 |
BRV10100 |
Pop Rivet .150 x .860 |
NLA |
|
19 |
PCB50435 | MPT Elbow 1/2" CA x 3/8" | 1 |
|
20 |
002-1735-00 | Hose Assembly 3/8"T x 1/4"MNPT, 15"L | 2 |
|
21 |
PCB50655 | Coupling 1/4" | 1 |
|
22 |
PCB50325 | Nipple 1/4" x 20 | 1 |
|
23 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: Aug 2008
thru V1703321
|
Model |
P52 |
| Serial Number | Aug 2008 thru V1703321 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|

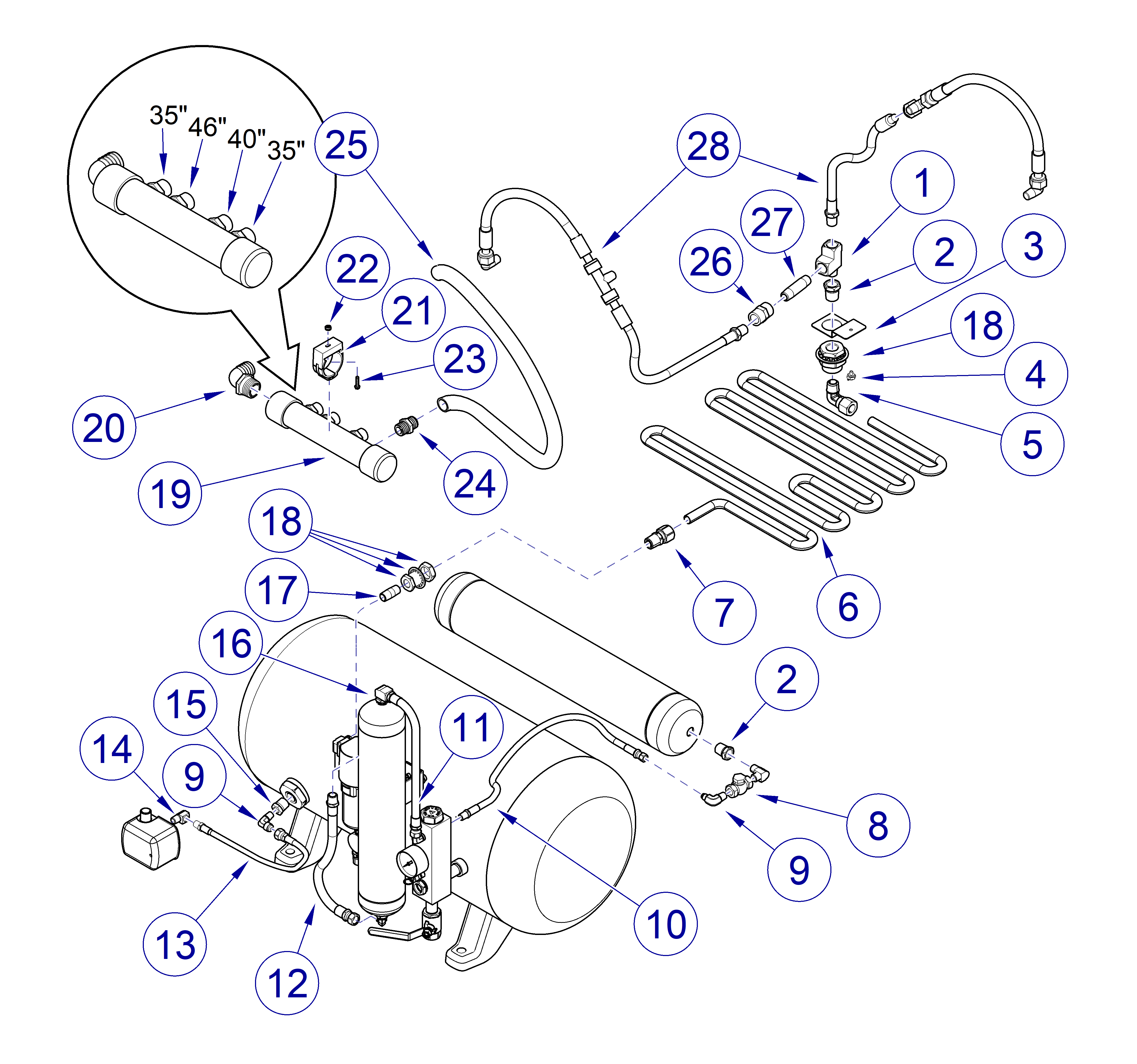

| Item | Part Number | Description | Qty |
|
1 |
62900905 | Pipe Tee 1/4M x 1/4F | 1 |
|
2 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
3 |
65970300 | Thermal Switch Bracket | 1 |
|
4 |
65961601 | Thermal Switch | 1 |
|
5 |
PCB50435 | MPT Elbow 1/2"CA x 3/8" | 1 |
|
6 |
40156900 | Pre-Cooler | 1 |
|
7 |
PCB50437 | MPT ST 1/2"CA x 3/8" | 1 |
|
8 |
77005032 | Purge Valve | 1 |
|
9 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
10 |
65970506 | Hose Assembly 1/4" NPT, 21" L | 1 |
|
11 |
65970702 | Hose Assembly 3/8"NPT, 16" L | 1 |
|
12 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
13 |
65970505 | Hose Assembly 1/4"NPT, 16" L | 1 |
|
14 |
62900712 | Street Elbow 1/4"NPT with Sealant | 1 |
|
15 |
PCB50615 | Bushing 1/2" x 3/8" | 1 |
|
16 |
PCB50640 | Street Elbow 3/8" | 1 |
|
17 |
65970200 | Nipple 3/8" x 1 1/2" | 1 |
|
18 |
PCB50605 | Anchor Bulkhead | 2 |
|
19 |
002-2087-00 | Fresh Air Intake Manifold Kit - Includes items 20 thru 24 | 1 |
|
20 |
62945100 | Elbow Male 1" hose X 1" NPT | 1 |
|
21 |
62988001 | Pipe Clamp 1 1/4" locking | 1 |
|
22 |
77009189 | Lock Nut | 1 |
|
23 |
62503802 | Screw Hex Washer 8-32 x 5/8 | 1 |
|
24 |
62900505 | Hex Nipple 1/2" NPT X 1/2" NPT | 1 |
|
25 |
Corrugated Tubing 3/4" | ||
| 65962201 | 3/4" diameter per inch | AR | |
| 65962201-1 | 3/4" diameter x 35" | 2 | |
| 65962201-3 | 3/4" diameter x 40" | 1 | |
| 65962201-4 | 3/4" diameter x 46" | 1 | |
|
26 |
PCB50655 | Coupling 1/4" | 1 |
|
27 |
PCB50325 | Nipple 1/4" x 20 | 1 |
|
28 |
002-1735-00 | Hose Assembly 3/8"T x 1/4"MNPT, 15"L | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1703322
thru V2437236
|
Model |
P52 |
| Serial Number | V1703322 thru V2437236 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62900905 | Pipe Tee 1/4M x 1/4F | 1 |
|
2 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
3 |
65970300 | Thermal Switch Bracket | 1 |
|
4 |
65961601 | Thermal Switch | 1 |
|
5 |
PCB50435 | MPT Elbow 1/2"CA x 3/8" | 1 |
|
6 |
40156900 | Pre-Cooler | 1 |
|
7 |
PCB50437 | MPT ST 1/2"CA x 3/8" | 1 |
|
8 |
77005032 | Purge Valve | 1 |
|
9 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
10 |
65970506 | Hose Assembly 1/4" NPT, 21" L | 1 |
|
11 |
65970702 | Hose Assembly 3/8"NPT, 16" L | 1 |
|
12 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
13 |
65970505 | Hose Assembly 1/4"NPT, 16" L | 1 |
|
14 |
62900712 | Street Elbow 1/4"NPT with Sealant | 1 |
|
15 |
PCB50640 | Street Elbow 3/8" | 1 |
|
16 |
65970200 | Nipple 3/8" x 1 1/2" | 1 |
|
17 |
PCB50605 | Anchor Bulkhead | 2 |
|
18 |
002-2087-00 | Fresh Air Intake Manifold Kit - Includes items 19 thru 23 | 1 |
|
19 |
62945100 | Elbow Male 1" hose X 1" NPT | 1 |
|
20 |
62988001 | Pipe Clamp 1 1/4" locking | 1 |
|
21 |
77009189 | Lock Nut | 1 |
|
22 |
62503802 | Screw Hex Washer 8-32 x 5/8 | 1 |
|
23 |
62900505 | Hex Nipple 1/2" NPT X 1/2" NPT | 1 |
|
24 |
Corrugated Tubing 3/4" | ||
| 65962201 | 3/4" diameter per inch | AR | |
| 65962201-1 | 3/4" diameter x 35" | 2 | |
| 65962201-3 | 3/4" diameter x 40" | 1 | |
| 65962201-4 | 3/4" diameter x 46" | 1 | |
|
25 |
PCB50655 | Coupling 1/4" | 1 |
|
26 |
PCB50325 | Nipple 1/4" x 20 | 1 |
|
27 |
002-1735-00 | Hose Assembly 3/8"T x 1/4"MNPT, 15"L | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2437237
thru v2579366
|
Model |
P52 |
| Serial Number | V2437237 thru V2579366 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PCB50300 | Closed Nipple 1/4" | 1 |
|
2 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
3 |
65970300 | Thermal Switch Bracket | 1 |
|
4 |
65961601 | Thermal Switch | 1 |
|
5 |
PCB50435 | MPT Elbow 1/2"CA x 3/8" | 1 |
|
6 |
40156900 | Pre-Cooler | 1 |
|
7 |
PCB50437 | MPT ST 1/2"CA x 3/8" | 1 |
|
8 |
77005032 | Purge Valve | 1 |
|
9 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
10 |
65970506 | Hose Assembly 1/4" NPT, 21" L | 1 |
|
11 |
65970702 | Hose Assembly 3/8"NPT, 16" L | 1 |
|
12 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
13 |
65970505 | Hose Assembly 1/4"NPT, 16" L | 1 |
|
14 |
62900712 | Street Elbow 1/4"NPT with Sealant | 1 |
|
15 |
PCB50640 | Street Elbow 3/8" | 1 |
|
16 |
65970200 | Nipple 3/8" x 1 1/2" | 1 |
|
17 |
PCB50605 | Anchor Bulkhead | 2 |
|
18 |
002-2087-00 | Fresh Air Intake Manifold Kit - Includes items 19 thru 23 | 1 |
|
19 |
62945100 | Elbow Male 1" hose X 1" NPT | 1 |
|
20 |
62988001 | Pipe Clamp 1 1/4" locking | 1 |
|
21 |
77009189 | Lock Nut | 1 |
|
22 |
62503802 | Screw Hex Washer 8-32 x 5/8 | 1 |
|
23 |
62900505 | Hex Nipple 1/2" NPT X 1/2" NPT | 1 |
|
24 |
Corrugated Tubing 3/4" | ||
| 65962201 | 3/4" diameter per inch | AR | |
| 65962201-1 | 3/4" diameter x 35" | 2 | |
| 65962201-3 | 3/4" diameter x 40" | 1 | |
| 65962201-4 | 3/4" diameter x 46" | 1 | |
|
25 |
PCB50655 | Coupling 1/4" | 1 |
|
26 |
PCB50325 | Nipple 1/4" x 20 | 1 |
|
27 |
014-10197-00 | Cross Fitting 1/4" NPT | 1 |
|
28 |
014-10199-00 | Pressure Relief Valve 1/4" NPT, 115 PSI | 1 |
|
29 |
002-1735-00 | Hose Assembly 3/8"T x 1/4"MNPT, 15"L | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

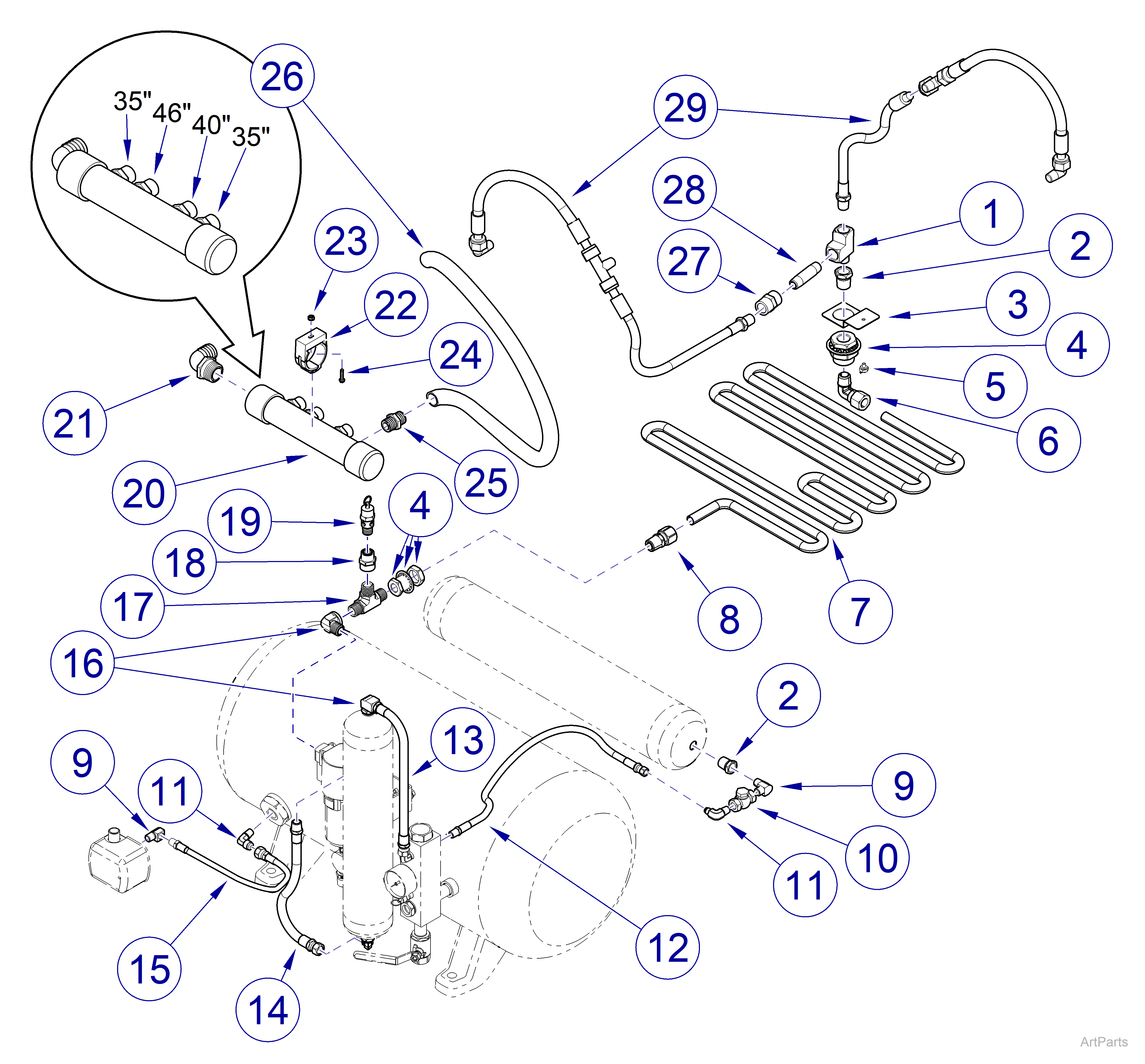

Serial Number Range: V2579367
thru Present
|
Model |
P52 |
| Serial Number | V2579367 thru Present |

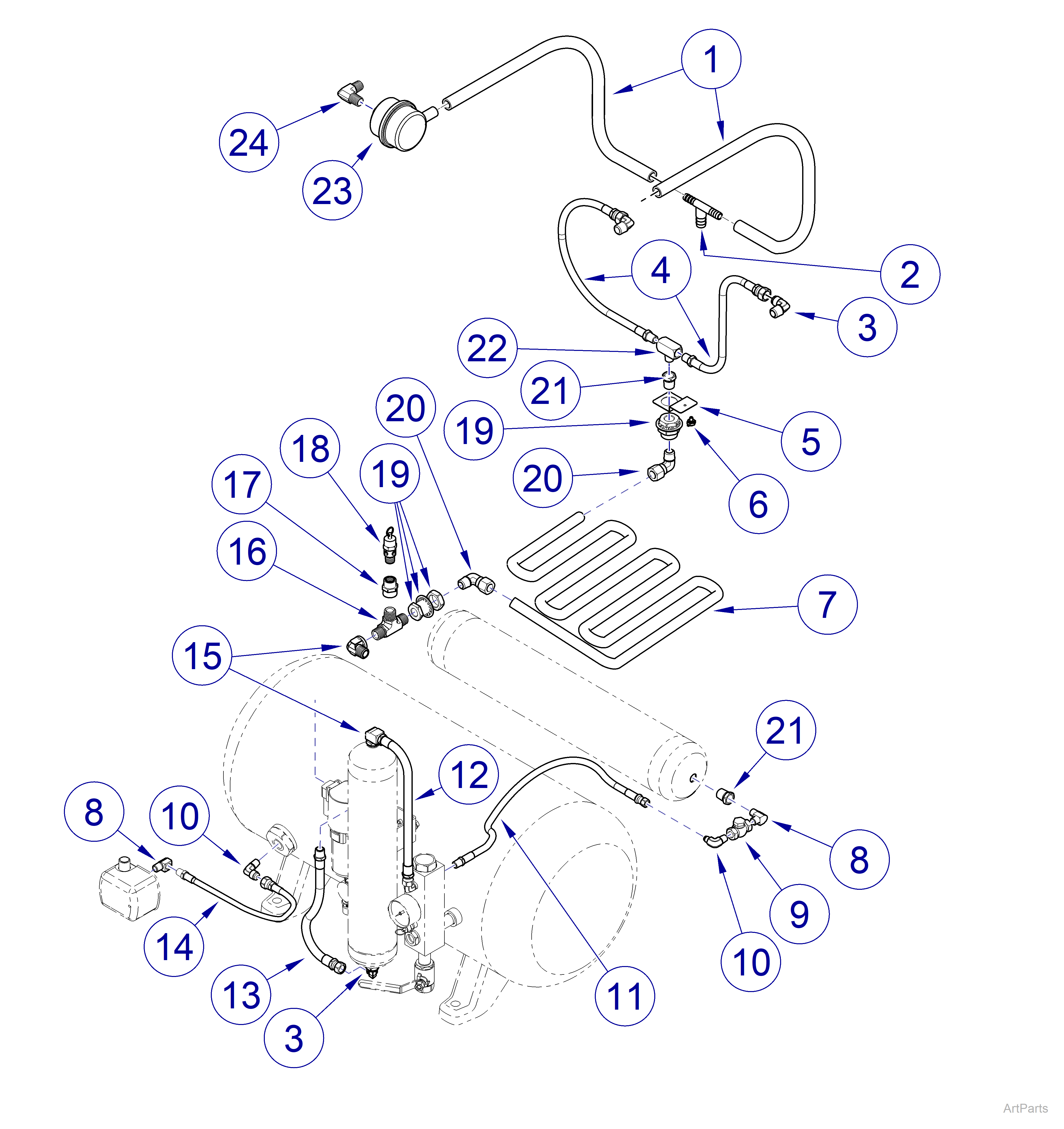

| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62900905 | Pipe Tee 1/4" M x 1/4"F | 1 |
|
2 |
PCB50620 | Bushing 3/8" x 1/4" |
2 |
|
3 |
65970300 | Thermal Switch Bracket | 1 |
|
4 |
PCB50605 | Anchor Bulkhead | 2 |
|
5 |
65961601 | Thermal Switch | 1 |
|
6 |
PCB50435 | MPT Elbow 1/2"CA x 3/8" | 1 |
|
7 |
40156900 | Pre-Cooler | 1 |
|
8 |
PCB50437 | MPT ST 1/2"CA x 3/8" | 1 |
|
9 |
62900712 | Street Elbow 1/4"NPT with Sealant | 2 |
|
10 |
77005032 | Purge Valve | 1 |
|
11 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
12 |
65970506 | Hose Assembly 1/4" NPT, 21" L | 1 |
|
13 |
65970702 | Hose Assembly 3/8"NPT, 16" L | 1 |
|
14 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
15 |
65970505 | Hose Assembly 1/4"NPT, 16" L | 1 |
|
16 |
PCB50640 | Street Elbow 3/8" | 1 |
|
17 |
014-10246-00 | Tee 3/8" | 1 |
|
18 |
016-1324-00 | Reducer 3/8" FPT x 1/4" FPT | 1 |
|
19 |
014-10199-00 | Pressure Relief Valve 1/4" NPT, 135 PSI | 1 |
|
20 |
002-2087-00 | Fresh Air Intake Manifold Kit - Includes items 19 thru 23 | 1 |
|
21 |
62945100 | Elbow Male 1" hose X 1" NPT | 1 |
|
22 |
62988001 | Pipe Clamp 1 1/4" locking | 1 |
|
23 |
77009189 | Lock Nut | 1 |
|
24 |
62503802 | Screw Hex Washer 8-32 x 5/8 | 1 |
|
25 |
62900505 | Hex Nipple 1/2" NPT X 1/2" NPT | 1 |
|
26 |
Corrugated Tubing 3/4" | ||
| 65962201 | 3/4" diameter per inch | AR | |
| 65962201-1 | 3/4" diameter x 35" | 2 | |
| 65962201-3 | 3/4" diameter x 40" | 1 | |
| 65962201-4 | 3/4" diameter x 46" | 1 | |
|
27 |
PCB50655 | Coupling 1/4" | 1 |
|
28 |
PCB50325 | Nipple 1/4" x 20 | 1 |
|
29 |
002-1735-00 | Hose Assembly 3/8"T x 1/4"MNPT, 15"L | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

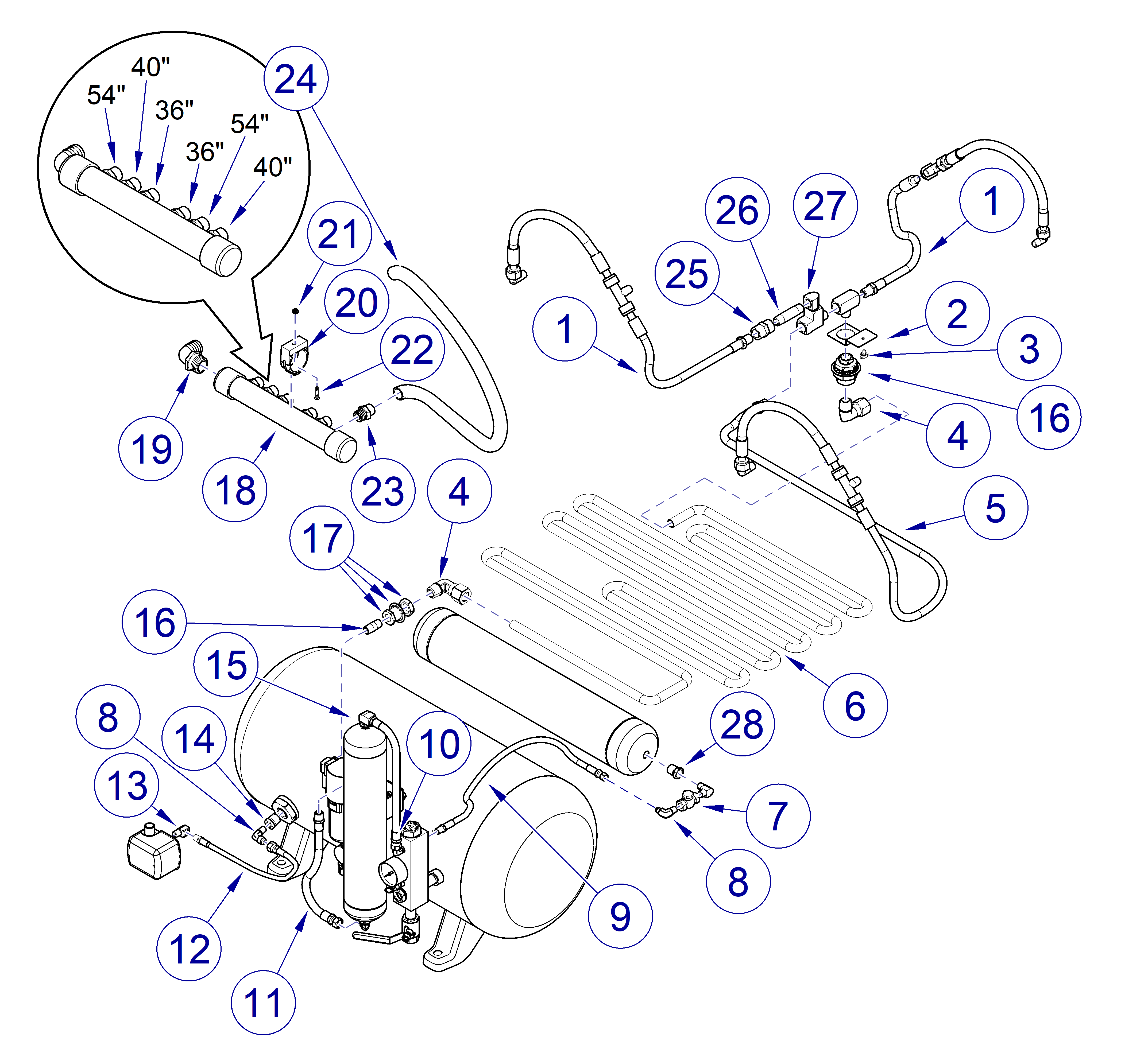

P72
Serial Number Range: 0701P720001
thru July 2008, V785000
thru July 2008
|
Model |
P72 |
| Serial Number | 0701P720001 thru July 2008, V785000 thru July 2008 |

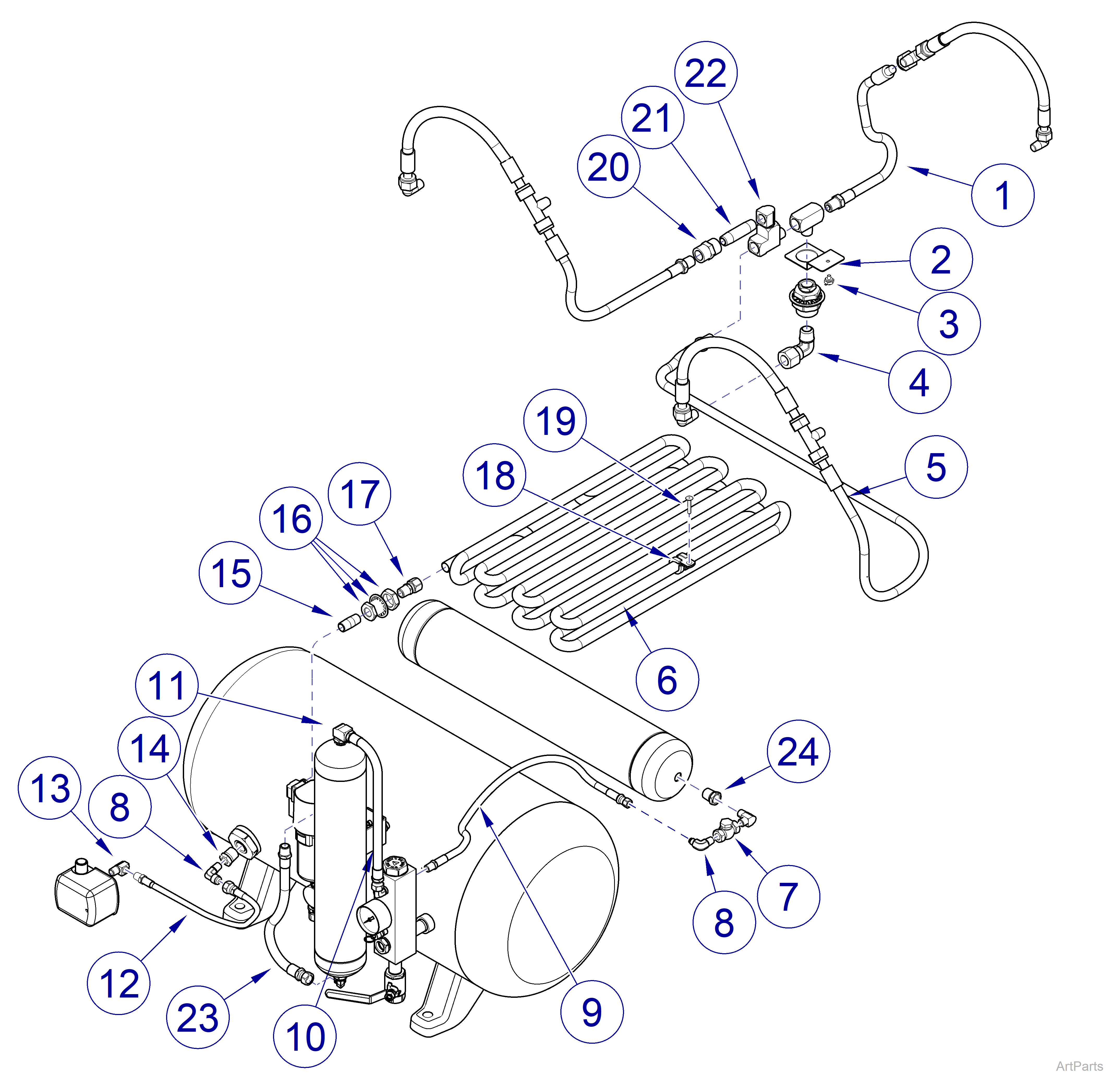

| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1735-00 | Hose Assembly 3/8" x 1/4"MNPT, 15"L |
1 |
|
2 |
65970300 | Thermal Switch Bracket | 1 |
|
3 |
65961601 | Thermal Switch | 1 |
|
4 |
PCB50435 | MPT Elbow 1/2"CA x 3/8" | 1 |
|
5 |
002-1735-01 | Hose Assembly 3/8"T x 1/4"MNPT, 36"L | 1 |
|
6 |
40157000 | Pre-Cooler | 1 |
|
7 |
77005032 | Purge Valve | 1 |
|
8 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
9 |
65970501 | Hose 1/4"NPT, 5/16"-18, 26"L | 1 |
|
10 |
65970702 | Hose Assembly 3/8"NPT, 16" L | 1 |
|
11 |
PCB50640 | Street Elbow 3/8" | 1 |
|
12 |
65970505 | Hose Assembly 1/4"NPT, 16" L | 1 |
|
13 |
62900712 | Street Elbow 1/4"NPT with Sealant | 1 |
|
14 |
PCB50615 | Bushing 1/2" x 3/8" | 1 |
|
15 |
65970200 | Nipple 3/8" x 1 1/2" | 1 |
|
16 |
PCB50605 | Anchor Bulkhead | 2 |
|
17 |
PCB50437 | MPT ST 1/2"CA x 3/8" | 1 |
|
18 |
BCL10907 |
Manifold Clamp | NLA |
|
19 |
BRV10100 |
Pop Rivet .150 x .860 |
NLA |
|
20 |
PCB50655 | Coupling 1/4" | 1 |
|
21 |
PCB50325 | Nipple 1/4" x 20 | 1 |
|
22 |
PCB50635 |
Street Elbow 1/4" Short |
NLA |
|
23 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
24 |
PCB50620 | Bushing 3/8" x 1/4" |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

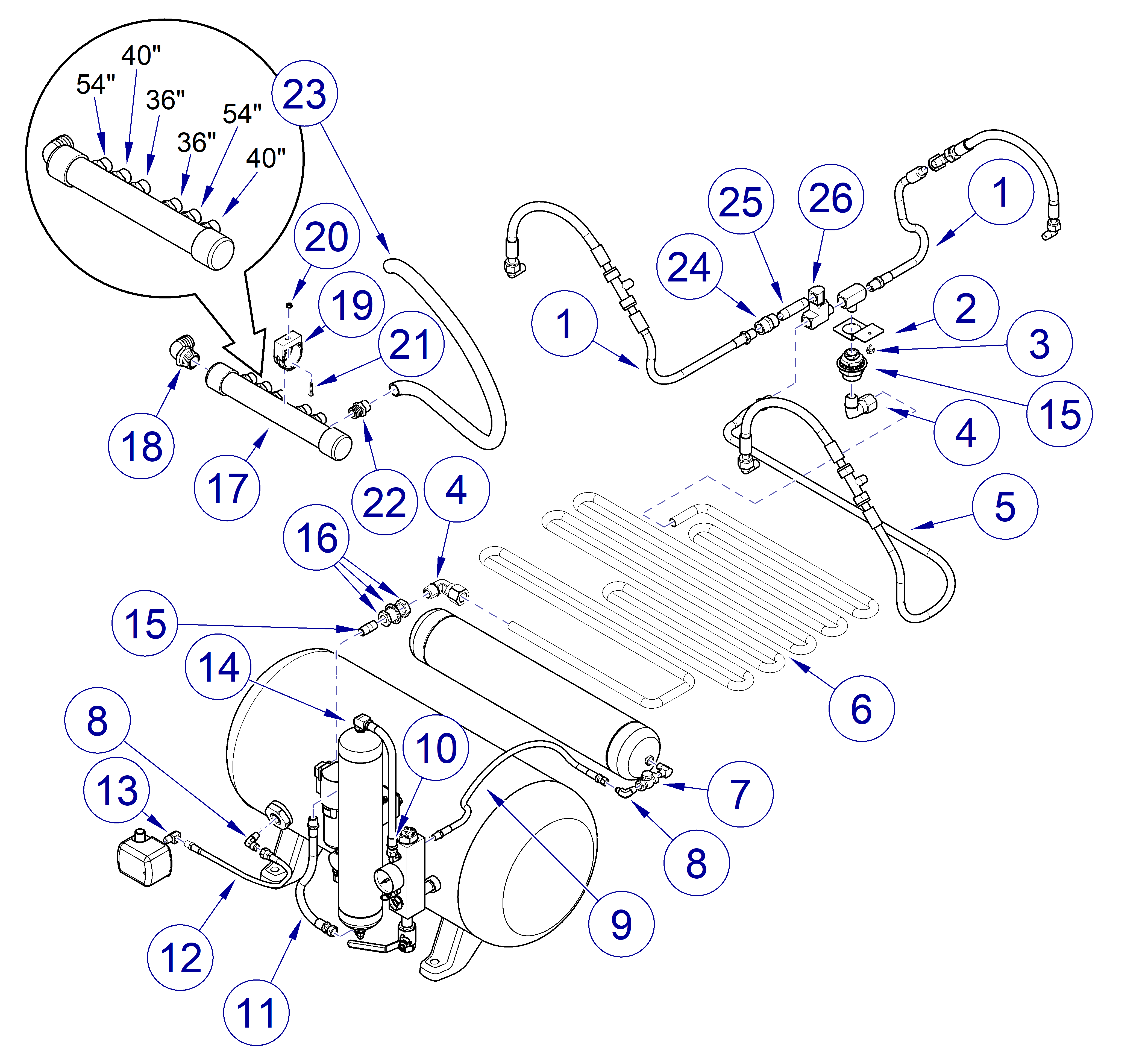

Serial Number Range: August 2008
thru V1702886
|
Model |
P72 |
| Serial Number | August 2008 thru V1702886 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1735-00 | Hose Assembly 3/8" x 1/4"MNPT, 15"L | 1 |
|
2 |
65970300 | Thermal Switch Bracket | 1 |
|
3 |
65961601 | Thermal Switch | 1 |
|
4 |
PCB50435 | MPT Elbow 1/2"CA x 3/8" | 2 |
|
5 |
002-1735-01 | Hose Assembly 3/8"T x 1/4"MNPT, 36"L | 1 |
|
6 |
40157000 | Pre-Cooler | 1 |
|
7 |
77005032 | Purge Valve | 1 |
|
8 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
9 |
65970501 | Hose 1/4"NPT, 5/16"-18, 26"L | 1 |
|
10 |
65970702 | Hose Assembly 3/8"NPT, 16" L | 1 |
|
11 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
12 |
65970505 | Hose Assembly 1/4"NPT, 16" L | 1 |
|
13 |
62900712 | Street Elbow 1/4"NPT with Sealant | 1 |
|
14 |
PCB50615 | Bushing 1/2" x 3/8" | 1 |
|
15 |
PCB50640 | Street Elbow 3/8" | 1 |
|
16 |
65970200 | Anchor Bulkhead | 2 |
|
17 |
PCB50605 | MPT ST 1/2"CA x 3/8" | 1 |
|
18 |
002-2088-00 | Fresh Air Intake Manifold Kit - Includes items 19 thru 22 | 1 |
|
19 |
62945100 | Elbow Male 1" hose X 1" NPT | 1 |
|
20 |
62988001 | Pipe Clamp 1 1/4" locking | 1 |
|
21 |
77009189 | Lock nut | 1 |
|
22 |
62503802 | Screw Hex Washer 8-32 x 5/8 | 1 |
|
23 |
62900505 | Hex Nipple 1/2" NPT X 1/2" NPT | 1 |
|
24 |
Corrugated Tubing 3/4" | ||
| 65962201 | 3/4" diameter per inch | AR | |
| 65962201-2 | 3/4" diameter x 36" | 2 | |
| 65962201-3 | 3/4" diameter x 40" | 2 | |
| 65962201-5 | 3/4" diameter x 54" | 2 | |
|
25 |
PCB50655 | Coupling 1/4" | 1 |
|
26 |
PCB50325 | Nipple 1/4" x 20 | 1 |
|
27 |
PCB50635 |
Street Elbow 1/4" Short |
NLA |
|
28 |
PCB50620 | Bushing 3/8" x 1/4" |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1702887
thru V2437236
|
Model |
P72 |
| Serial Number | V1702887 thru V2437236 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1735-00 | Hose Assembly 3/8" x 1/4"MNPT, 15"L | 1 |
|
2 |
65970300 | Thermal Switch Bracket | 1 |
|
3 |
65961601 | Thermal Switch | 1 |
|
4 |
PCB50435 | MPT Elbow 1/2"CA x 3/8" | 2 |
|
5 |
002-1735-01 | Hose Assembly 3/8"T x 1/4"MNPT, 36"L | 1 |
|
6 |
40157000 | Pre-Cooler | 1 |
|
7 |
77005032 | Purge Valve | 1 |
|
8 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
9 |
65970501 | Hose 1/4"NPT, 5/16"-18, 26"L | 1 |
|
10 |
65970702 | Hose Assembly 3/8"NPT, 16" L | 1 |
|
11 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
12 |
65970505 | Hose Assembly 1/4"NPT, 16" L | 1 |
|
13 |
62900712 | Street Elbow 1/4"NPT with Sealant | 1 |
|
14 |
PCB50640 | Street Elbow 3/8" | 1 |
|
15 |
65970200 | Anchor Bulkhead | 2 |
|
16 |
PCB50605 | MPT ST 1/2"CA x 3/8" | 1 |
|
17 |
002-2088-00 | Fresh Air Intake Manifold Kit - Includes items 19 thru 22 | 1 |
|
18 |
62945100 | Elbow Male 1" hose X 1" NPT | 1 |
|
19 |
62988001 | Pipe Clamp 1 1/4" locking | 1 |
|
20 |
77009189 | Lock nut | 1 |
|
21 |
62503802 | Screw Hex Washer 8-32 x 5/8 | 1 |
|
22 |
62900505 | Hex Nipple 1/2" NPT X 1/2" NPT | 1 |
|
23 |
Corrugated Tubing 3/4" | ||
| 65962201 | 3/4" diameter per inch | AR | |
| 65962201-2 | 3/4" diameter x 36" | 2 | |
| 65962201-3 | 3/4" diameter x 40" | 2 | |
| 65962201-5 | 3/4" diameter x 54" | 2 | |
|
24 |
PCB50655 | Coupling 1/4" | 1 |
|
25 |
PCB50325 | Nipple 1/4" x 20 | 1 |
|
26 |
PCB50635 |
Street Elbow 1/4" Short |
NLA |
|
27 |
PCB50620 | Bushing 3/8" x 1/4" |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2437237
thru V2579366
|
Model |
P72 |
| Serial Number | V2437237 thru V2579366 |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1735-00 | Hose Assembly 3/8" x 1/4"MNPT, 15"L | 1 |
|
2 |
PCB50300 | Closed Nipple 1/4" | 1 |
|
3 |
65970300 | Thermal Switch Bracket | 1 |
|
4 |
65961601 | Thermal Switch | 1 |
|
5 |
PCB50605 | MPT ST 1/2"CA x 3/8" | 2 |
|
6 |
PCB50435 | MPT Elbow 1/2"CA x 3/8" | 2 |
|
7 |
002-1735-01 | Hose Assembly 3/8"T x 1/4"MNPT, 36"L | 1 |
|
8 |
40157000 | Pre-Cooler | 1 |
|
9 |
77005032 | Purge Valve | 1 |
|
10 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
11 |
65970501 | Hose 1/4"NPT, 5/16"-18, 26"L | 1 |
|
12 |
65970702 | Hose Assembly 3/8"NPT, 16" L | 1 |
|
13 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
14 |
65970505 | Hose Assembly 1/4"NPT, 16" L | 1 |
|
15 |
62900712 | Street Elbow 1/4"NPT with Sealant | 1 |
|
16 |
PCB50640 | Street Elbow 3/8" | 1 |
|
17 |
65970200 | Anchor Bulkhead | 1 |
|
18 |
002-2088-00 | Fresh Air Intake Manifold Kit - Includes items 19 thru 22 | 1 |
|
19 |
62945100 | Elbow Male 1" hose X 1" NPT | 1 |
|
20 |
62988001 | Pipe Clamp 1 1/4" locking | 1 |
|
21 |
77009189 | Lock nut | 1 |
|
22 |
62503802 | Screw Hex Washer 8-32 x 5/8 | 1 |
|
23 |
62900505 | Hex Nipple 1/2" NPT X 1/2" NPT | 1 |
|
24 |
Corrugated Tubing 3/4" | ||
| 65962201 | 3/4" diameter per inch | AR | |
| 65962201-2 | 3/4" diameter x 36" | 2 | |
| 65962201-3 | 3/4" diameter x 40" | 2 | |
| 65962201-5 | 3/4" diameter x 54" | 2 | |
|
25 |
62900905 | Pipe Tee 1/4"M x 1/4F x 1/4F | 1 |
|
26 |
PCB50655 | Coupling 1/4" | 1 |
|
27 |
PCB50325 | Nipple 1/4" x 20 | 1 |
|
28 |
62900712 | Street Elbow 1/4" |
1 |
|
29 |
014-10197-00 | Cross Fitting 1/4" NPT | 1 |
|
30 |
014-10199-00 | Pressure Relief Valve 1/4" NPT, 115 PSI | 1 |
|
31 |
PCB50620 | Bushing 3/8" x 1/4" |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2579367
thru Present
|

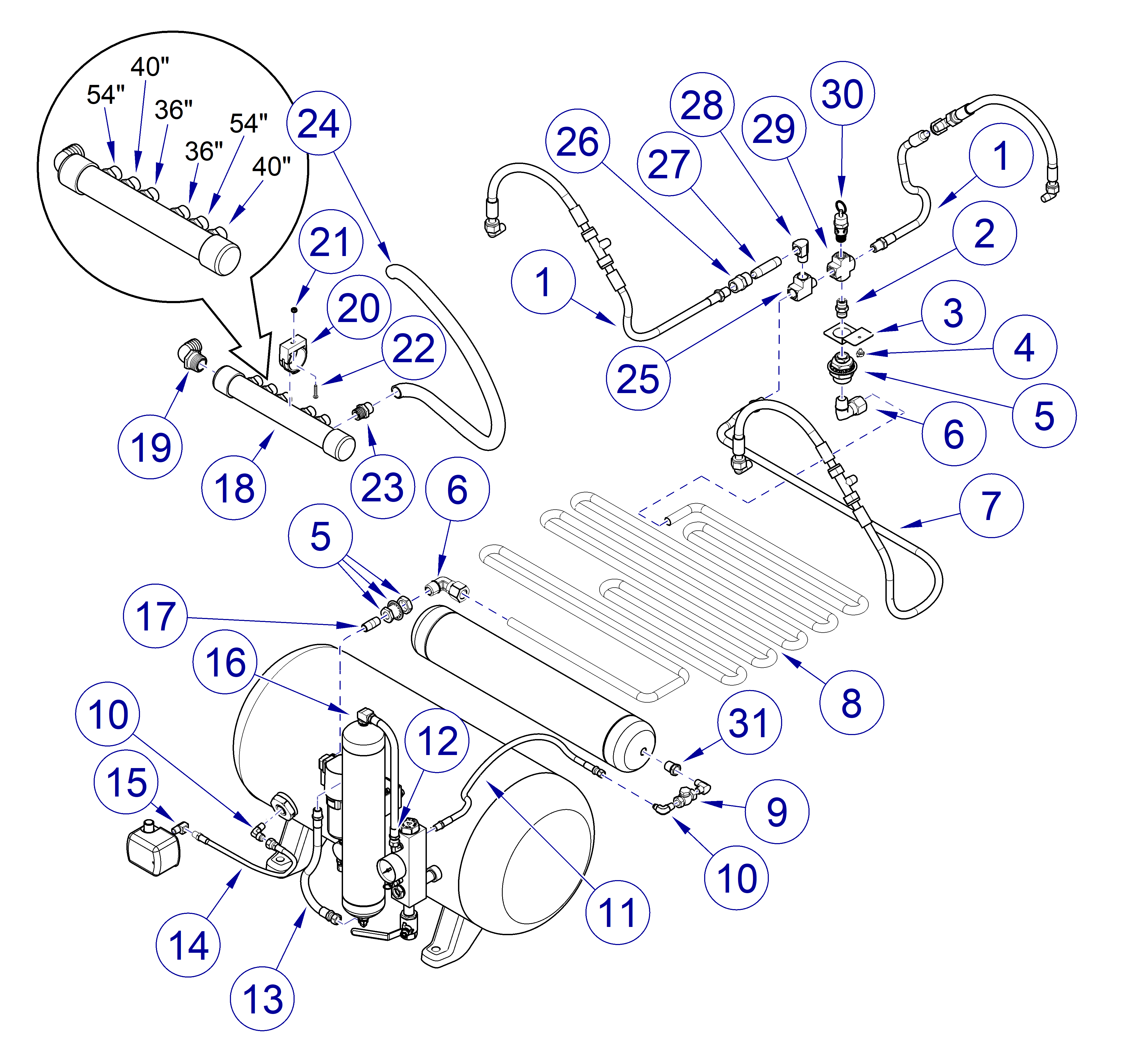

Model |
P72 |
| Serial Number | V2579367 thru Present |
| PowerAir Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1735-00 | Hose Assembly 3/8" x 1/4"MNPT, 15"L | 1 |
|
2 |
PCB50647 | Tee Run 1/4" | 1 |
|
3 |
65970300 | Thermal Switch Bracket | 1 |
|
4 |
65961601 | Thermal Switch | 1 |
|
5 |
PCB50605 | MPT ST 1/2"CA x 3/8" | 2 |
|
6 |
PCB50435 | MPT Elbow 1/2"CA x 3/8" | 2 |
|
7 |
002-1735-01 | Hose Assembly 3/8"T x 1/4"MNPT, 36"L | 1 |
|
8 |
40157000 | Pre-Cooler | 1 |
|
9 |
62900712 | Street Elbow 1/4"NPT with Sealant | 1 |
|
10 |
77005032 | Purge Valve | 1 |
|
11 |
65971300 | Elbow 7/16"-20 x 1/4" MPT | 2 |
|
12 |
65970501 | Hose 1/4"NPT, 5/16"-18, 26"L | 1 |
|
13 |
65970702 | Hose Assembly 3/8"NPT, 16" L | 1 |
|
14 |
65970702 | Hose Assembly 3/8" NPT, 16" L | 1 |
|
15 |
65970505 | Hose Assembly 1/4"NPT, 16" L | 1 |
|
16 |
PCB50640 | Street Elbow 3/8" | 1 |
|
17 |
014-10246-00 | Tee 3/8" | 1 |
|
18 |
016-1324-00 | Reducer 3/8" FPT x 1/4" FPT | 1 |
|
19 |
014-10199-00 | Pressure Relief Valve 1/4" NPT, 135 PSI | 1 |
|
20 |
002-2088-00 | Fresh Air Intake Manifold Kit - Includes items 19 thru 22 | 1 |
|
21 |
62945100 | Elbow Male 1" hose X 1" NPT | 1 |
|
22 |
62988001 | Pipe Clamp 1 1/4" locking | 1 |
|
23 |
77009189 | Lock nut | 1 |
|
24 |
62503802 | Screw Hex Washer 8-32 x 5/8 | 1 |
|
25 |
62900505 | Hex Nipple 1/2" NPT X 1/2" NPT | 1 |
|
26 |
Corrugated Tubing 3/4" | ||
| 65962201 | 3/4" diameter per inch | AR | |
| 65962201-2 | 3/4" diameter x 36" | 2 | |
| 65962201-3 | 3/4" diameter x 40" | 2 | |
| 65962201-5 | 3/4" diameter x 54" | 2 | |
|
27 |
62900905 | Pipe Tee 1/4"M x 1/4F x 1/4F | 1 |
|
28 |
PCB50655 | Coupling 1/4" | 1 |
|
29 |
PCB50325 | Nipple 1/4" x 20 | 1 |
|
30 |
62900712 | Street Elbow 1/4" |
1 |
|
31 |
PCB50620 | Bushing 3/8" x 1/4" |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
