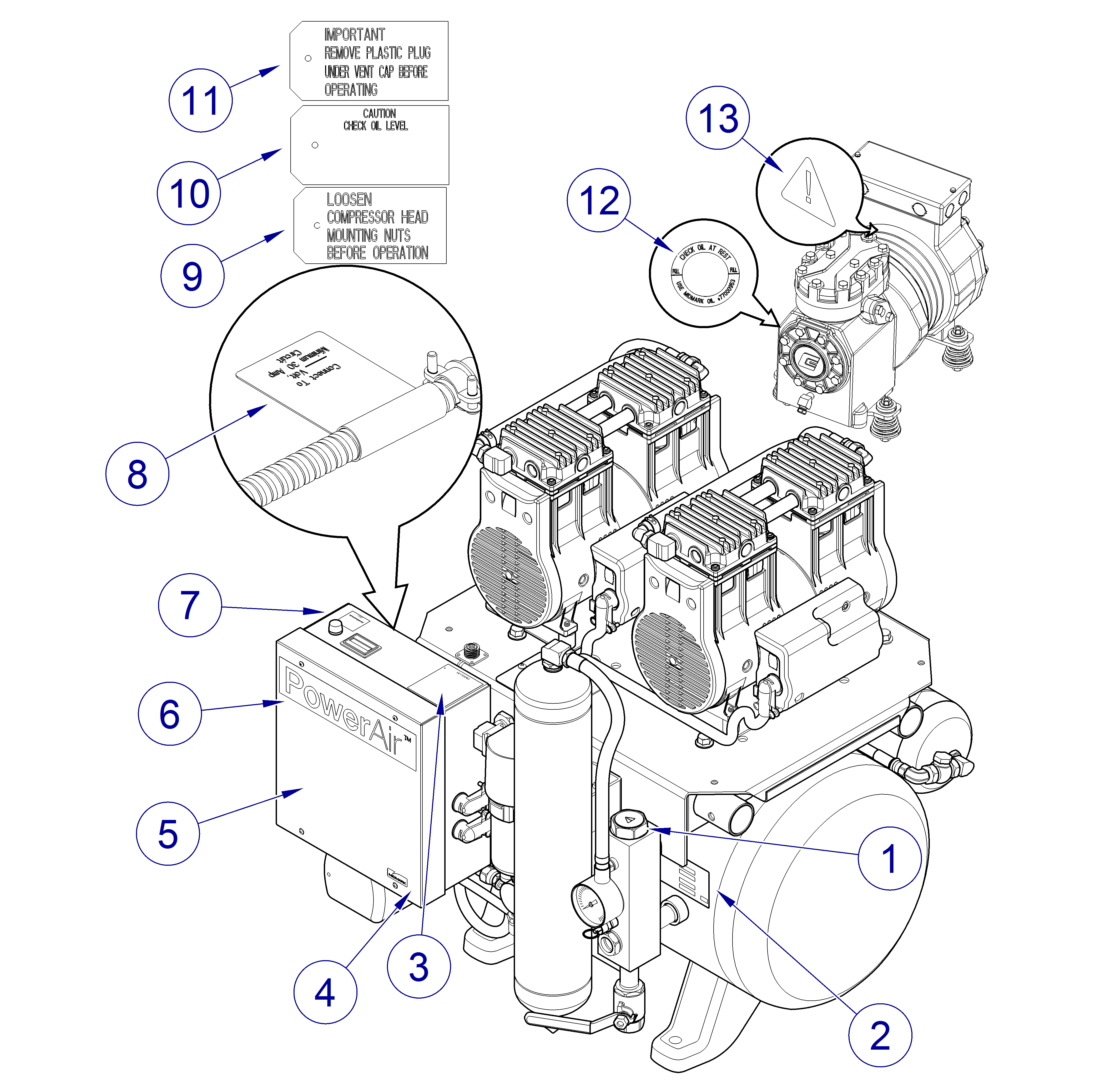

PowerAir Label Locations
|
Model |
P21 | P22 | P32 | P52 | P72 |
| Serial Number | 0703P210001 thru Present | 0703P220001 thru Present | 0703P210001 thru Present | 0703P210001 thru Present | 0703P210001 thru Present |
| PowerAir Label Locations | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
65970600 | Check Valve Location Label | 1 |
|
2 |
62985400 |
Serial Number Label | |
|
3 |
62985500 |
Warning Label |
NLA |
|
4 |
63947100 | Midmark Label | 1 |
|
5 |
Schematic Labels Options | ||
| 20229300 | P21 | 1 | |
| 20229400 | P22 | 1 | |
| 20229500 | P32 | 1 | |
| 20229600 | P52 | 1 | |
| 20229700 | P72 | 1 | |
|
6 |
63947000 | Brand Label | 1 |
|
7 |
65975100 | Fuse Replacement Label | 1 |
|
8 |
Voltage Label Options | ||
| 62970501 | 115V | 1 | |
|
|
62970502 | 230V | 1 |
|
9 |
65919000 |
Mounting Nut Tag | NLA |
|
10 |
77009181 |
Oil Check Tag |
NLA |
|
11 |
10475800 |
Remove Plug Tag | |
|
12 |
65972700 | Oil Level Label | 1 |
|
13 |
65969900 | Warning Label | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
