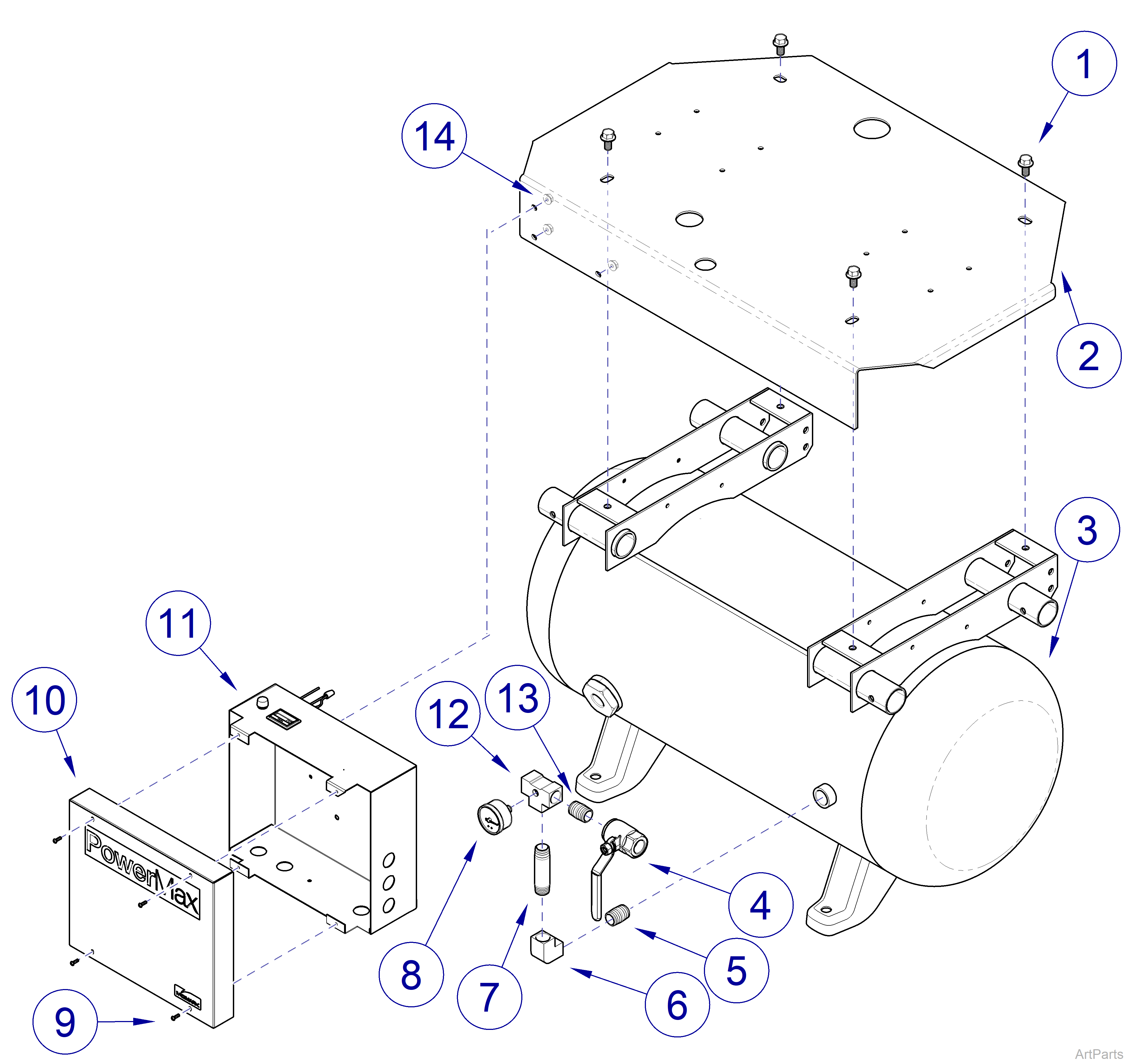

PowerMax Tank and Main Components
|
Model |
PM-1 | PM-3 | PM-4 |
| Serial Number | 0708PM10001 thru Present | 0708PM30001 thru Present | 0708PM40001 thru Present |
| PowerMax Tank and Main Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0375-00 | Hex Flange Screw 3/8"-16 x 3/4" | 1 |
|
2 |
Gallon Saddle Options | ||
| 64934600 | 20 Gallon Saddle - PM-1 and PM-3 Models | 1 | |
| 64997500 | 32 Gallon Saddle - PM-4 Model | 1 | |
|
3 |
Gallon Tank Options | ||
| 64997100 | 20 Gallon Tank - PM-1 and PM-3 Models | 1 | |
| 64997200 | 32 Gallon Tank - PM-4 Model | 1 | |
|
4 |
10378600 | Ball Valve 1/2" NPT | 1 |
|
5 |
62903310 | Nipple, Close, Steel 1/2" NPT | 1 |
|
6 |
62906105 | Elbow 90 degree 1/2" NPT | 1 |
|
7 |
62903216 | Nipple, L, 1/2" NPT x 3" LG | 1 |
|
8 |
62947800 | Gauge 0-30 IN HG / 0-76 CM HG | 1 |
|
9 |
77009108 | Phillips Screw #6-32 | 1 |
|
10 |
64997900 | Control Box Cover | 1 |
|
11 |
64997700 | Control Box | 1 |
|
12 |
10532200 |
Tee 5/16"-18 x 1-1/4" | 1 |
|
13 |
62903308 |
Nipple, Close 1/2" NPT | 1 |
|
14 |
041-0250-13 |
Flange Head 1/4"-20 | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
