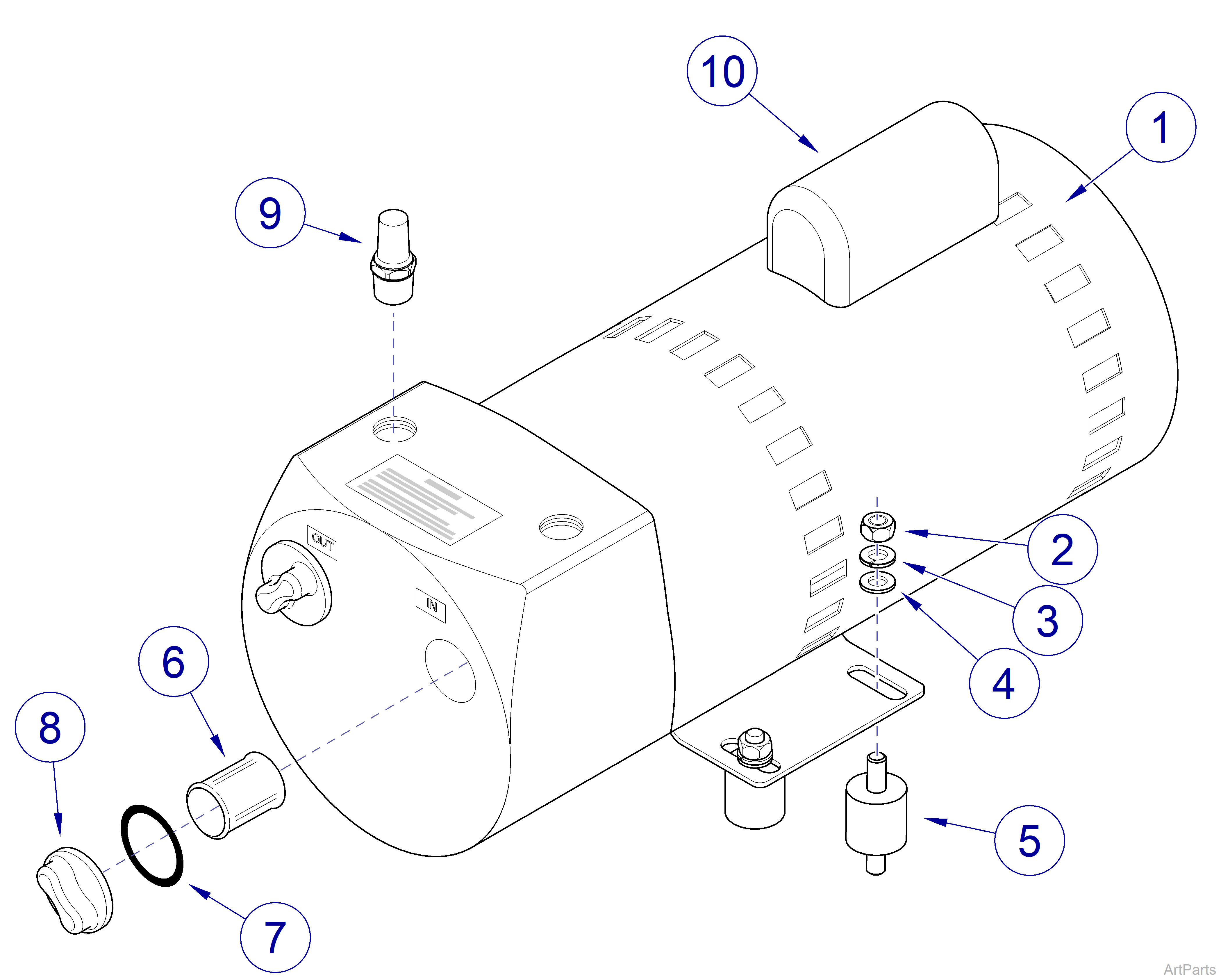

PowerMax Pump / Motor
|
Model |
PM-1 | PM-3 | PM-4 |
| Serial Number | 0708PM10001 thru Present | 0708PM30001 thru Present | 0708PM40001 thru Present |
| PowerMax Pump / Motor | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
20169300 | Replacement Vacuum Pump | 1 |
|
2 |
77009194 | Hex Nut 5/16"-18 | 4 |
|
3 |
62600207 | Lock Washer 5/16" | 4 |
|
4 |
62600117 | Flat Washer 5/16" | 4 |
|
5 |
77007029 | Vibration Mount Isolator | 4 |
|
6 |
77000796 | Replacement Filters, Inlet and Exhaust | 2 |
|
7 |
77000789 | O-Ring | 2 |
|
8 |
77000788 | Knob | 2 |
|
9 |
77007063 | Replacement Exhaust Silencer | 1 |
|
10 |
61894900 | Capacitor | 1 |
|
11 |
77000699 | Flushing Solvent - Not shown | 1 |
|
12 |
77000540 | Vane Rebuild Kit - Not shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
