PowerVac G Separator Lid Assembly
Serial Number Range: V998996 to V2324944
|
Model |
All |
| Serial Number | V998996 to V2324944 |
Earlier production units had three reed switch floats. The middle float was not used and is not installed in current production units.
Single models require one separator assembly. Twin models require two separator assemblies.
| PowerVac G Separator Lid Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1448-00 | Float Assembly | 1 |
|
2 |
029-3862-00 | Bulkhead Assembly w/ 45 | 1 |
|
3 |
050-7984-00 | Bracket | 1 |
|
4 |
Separator Lid - not for service | NSS | |
|
5 |
029-5196-00 | Wash Down Fitting Assembly | 1 |
|
6 |
040-0006-93 | Screw 0.138-32 x 0.625 TT | 4 |
|
7 |
053-2187-00-312 | Pressure Transducer Cover | 2 |
|
8 |
002-1436-00 | Pressure Sensor w/ Harness - Harness only 015-2787-00 | 1 |
|
9 |
014-0699-00 | Reducer 1/2” x 1/4” NPT | 2 |
|
10 |
014-0704-00 | Tee 1/2” NPT | 1 |
|
11 |
014-0550-00 | Gauge Vac 2” x 1/4” NPT | 1 |
|
12 |
014-0515-00 | Elbow 90, 1-1/2” NPT | 2 |
|
13 |
014-0512-00 | Nipple 1 1/2” | 3 |
|
14 |
014-0514-00 | Bushing 1-1/2” x 1” | 1 |
|
15 |
014-0516-00 | Nipple 1” | 1 |
|
16 |
014-0501-00 | Bulkhead Fitting 1 1/2” | 1 |
|
17 |
014-0705-00 | Nipple 1/2” | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2324945 thru V2618920
|
Model |
All |
| Serial Number |
V2324945 thru V2618920 |
Earlier production units had three reed switch floats. The middle float was not used and is not installed in current production units.
Single models require one separator assembly. Twin models require two separator assemblies.
| PowerVac G Separator Lid Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1448-00 | Float Assembly | 1 |
|
2 |
029-3862-00 | Bulkhead Assembly w/ 45 | 1 |
|
3 |
050-7984-00 | Bracket | 1 |
|
4 |
Separator Lid - not for service | NSS | |
|
5 |
029-5196-00 | Wash Down Fitting Assembly | 1 |
|
6 |
040-0006-93 | Screw 0.138-32 x 0.625 TT | 4 |
|
7 |
053-2187-00-312 | Pressure Transducer Cover | 2 |
|
8 |
002-1436-00 | Pressure Sensor w/ Harness - Harness only 015-2787-00 | 1 |
|
9 |
014-0530-00 | Garden Hose Adapter | 1 |
|
10 |
014-0704-00 | Tee 1/2” NPT | 1 |
|
11 |
016-10239-00 | Garden Hose Adapter Plug | 1 |
|
12 |
014-0515-00 | Elbow 90, 1-1/2” NPT | 2 |
|
13 |
014-0512-00 | Nipple 1 1/2” | 3 |
|
14 |
014-0514-00 | Bushing 1-1/2” x 1” | 1 |
|
15 |
014-0516-00 | Nipple 1” | 1 |
|
16 |
014-0501-00 | Bulkhead Fitting 1 1/2” | 1 |
|
17 |
014-0705-00 | Nipple 1/2” | 1 |
|
18 |
014-0699-00 | Reducer 1/2” x 1/4” NPT | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

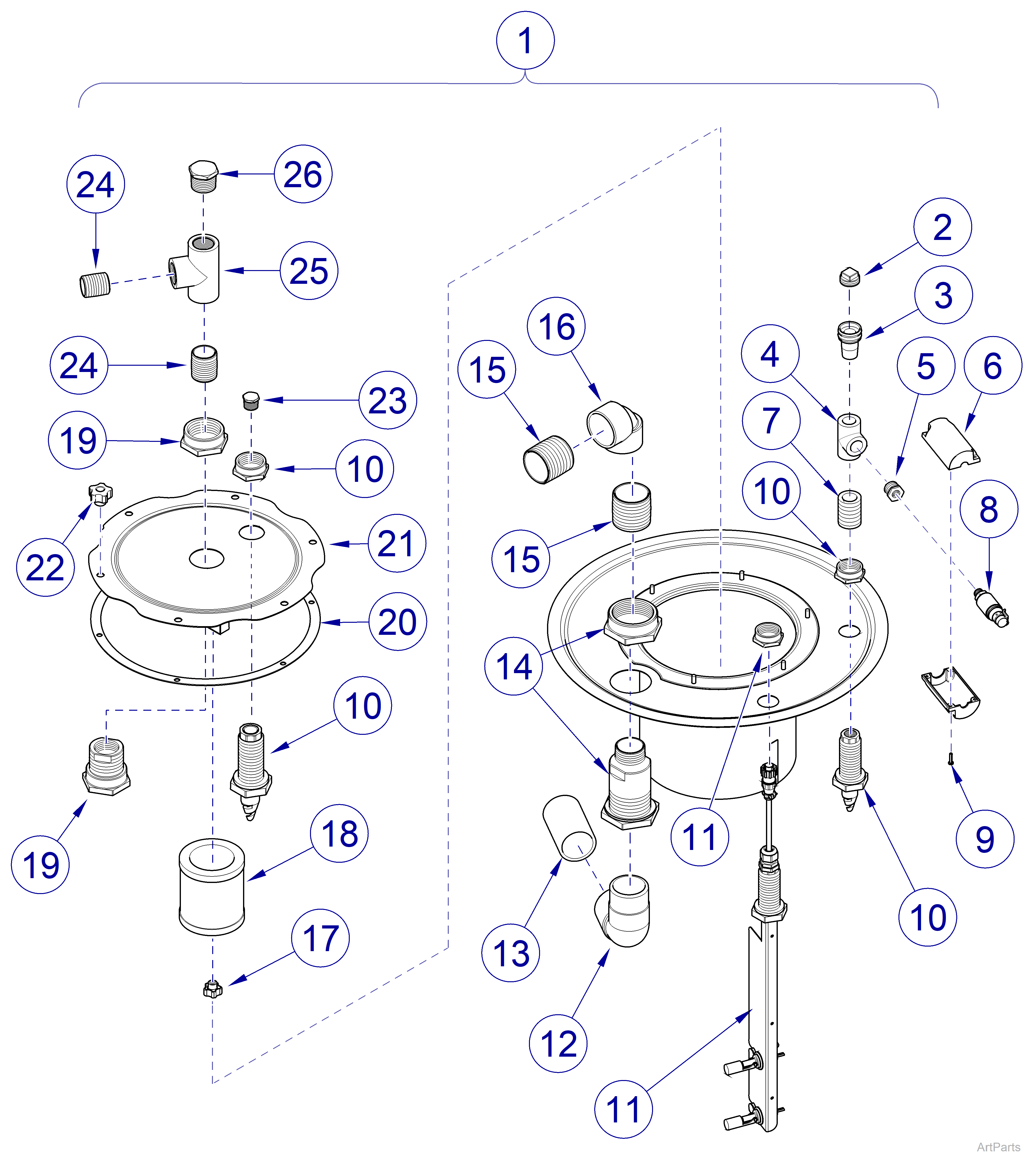

Serial Number Range: V2618921 thru Present
|
Model |
All |
| Serial Number |
V2618921 thru Present |
Single models require one separator assembly. Twin models require two separator assemblies.
| PowerVac G Separator Lid Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Separator Lid Kit - includes items 2 thru 6, 8, 10 thru 27 |
1 | |
|
2 |
014-10253-00 | Demister | 1 |
|
3 |
016-10239-00 | Plug, 3/4 GHT Brass | 1 |
|
4 |
014-0530-00 | Garden Hose Adapter | 1 |
|
5 |
014-0704-00 | Tee, 1/2" NPT | 1 |
|
6 |
014-0699-00 | Reducer, 1/2" x 1/4" NPT, PVC | 1 |
|
7 |
053-2187-00-312 | Cover | 2 |
|
8 |
014-0705-00 | Nipple, 1/2" NPT, PVC | 1 |
|
9 |
002-1436-00 | Harness Pressure Sensor - Harness only 015-2787-00 | 1 |
|
10 |
040-0006-93 | Screw, 6-32 x 5/8" PAN HD PHL | 4 |
|
11 |
029-5196-00 | Wash Down Fitting Assembly | 2 |
|
12 |
002-1448-00 | Float Assembly | 1 |
|
13 |
014-0724-00 | Elbow, 1.5", PVC, SCH40, SCKW | 1 |
|
14 |
STK10403 | PVC Pipe, 1-1/2" SCH 40, 3 L | 1 |
|
15 |
014-0501-00 | Bulkhead Fitting 1-1/2" | 1 |
|
16 |
014-0512-00 | Nipple, Close, PVC, SCH80, 1 1/2” NPT | 2 |
|
17 |
014-0515-00 | Elbow 90, 1-1/2" NPT, Plastic | 1 |
|
18 |
016-10445-00 | Knob, Threaded Stud 1/4-20 MNPT | 1 |
| 19 | 002-10972-00 | Filter | 1 |
| 20 | 014-10254-00 | Bulkhead Fitting, PVC, 1" | 1 |
| 21 | 053-10639-00 | Gasket, Separator Filter Lid | 1 |
| 22 | 030-10473-00 | Filter Lid | 1 |
| 23 | 016-10437-00 | Knob, 1/4-20 FNPT Through Hole | 6 |
| 24 | 014-10277-00 | 1/2" Plug, PVC | 1 |
| 25 | 014-0516-00 | Nipple, Close, PVC, SCH80, 1" NPT | 2 |
| 26 | 014-10255-00 | Tee, PVC, SCH80, 1" NPT | 1 |
| 27 | 014-10278-00 | 1" Plug, PVC | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
