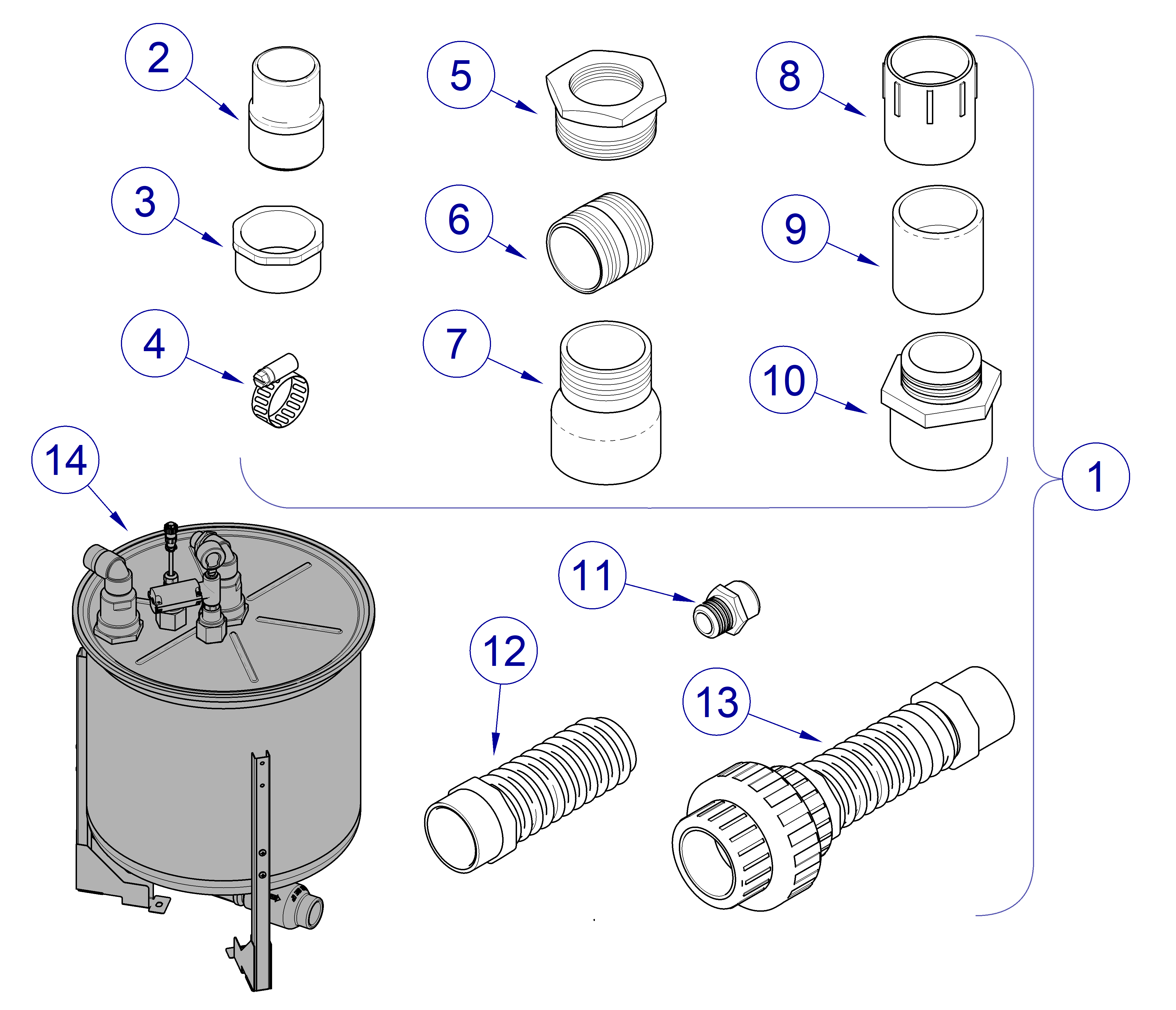

PowerVac G Separator Loose Parts
Serial Number Range: V998996 to V2324944
|
Model |
All |
| Serial Number | V998996 to V2324944 |
Top section includes extra fittings for exhaust and intake connections to existing pipes from separator.
| PowerVac G Separator Loose Parts | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1441-00 | Separator Loose Parts Assembly - includes items 2 thru 14 | 1 |
|
2 |
77004080 | Nipple 1 1/4” | 1 |
|
3 |
20173805 | Bushing 1 1/2” NPM x 1 1/4” NPT | 1 |
|
4 |
77009131 | Clamp, Worm Gear 2” | 1 |
|
5 |
014-0535-00 | Bushing 2” NPT x 1.5” FPT | 1 |
|
6 |
014-0512-00 | Nipple 1 1/2” NPT, Plastic | 1 |
|
7 |
014-0570-00 | Reducer 2” x 1” | 1 |
|
8 |
014-0569-00 | Adapter 1 1/2” NPT x Socket | 1 |
|
9 |
PVC51035 | Coupler 1 1/2” SOC 2” x 1” | 1 |
|
10 |
62962402 | Adapter 1 1/2” NPT x Socket | 1 |
|
11 |
014-0530-00 | Garden Hose Adapter | 1 |
|
12 |
029-3773-01 | Drain Hose Assembly 1 1/2” I.D. | 1 |
|
13 |
002-1854-00 | Intake Hose Assembly 1 1/2” I.D. | 1 |
|
14 |
Refer to: | Separator | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

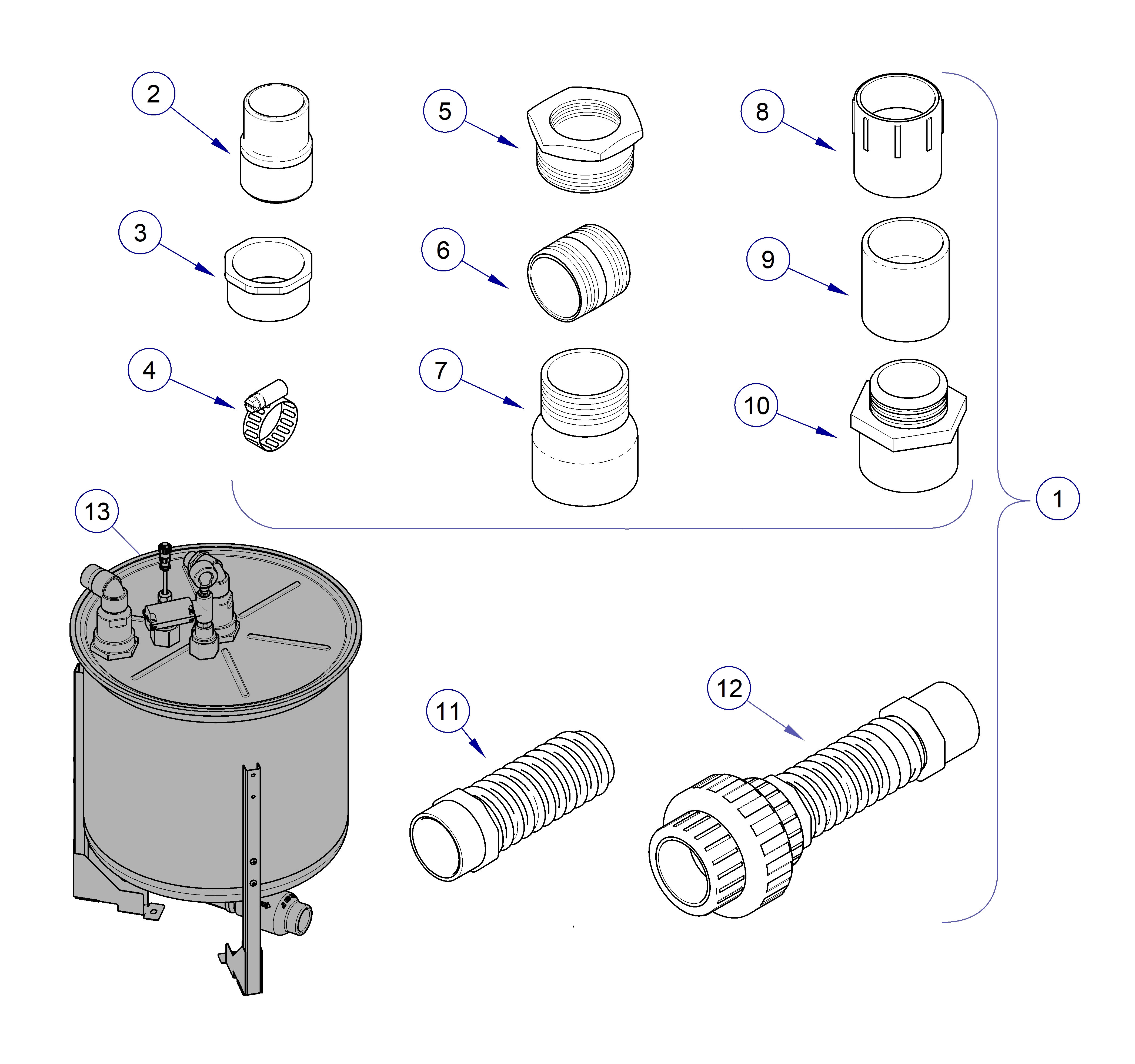

Serial Number Range: V2324945 thru Present
|
Model |
All |
| Serial Number | V2324945 thru Present |
Top section includes extra fittings for exhaust and intake connections to existing pipes from separator.
| PowerVac G Separator Loose Parts | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1441-00 | Separator Loose Parts Assembly - includes items 2 thru 14 | 1 |
|
2 |
77004080 | Nipple 1 1/4” | 1 |
|
3 |
20173805 | Bushing 1 1/2” NPM x 1 1/4” NPT | 1 |
|
4 |
77009131 | Clamp, Worm Gear 2” | 1 |
|
5 |
014-0535-00 | Bushing 2” NPT x 1.5” FPT | 1 |
|
6 |
014-0512-00 | Nipple 1 1/2” NPT, Plastic | 1 |
|
7 |
014-0570-00 | Reducer 2” x 1” | 1 |
|
8 |
014-0569-00 | Adapter 1 1/2” NPT x Socket | 1 |
|
9 |
PVC51035 | Coupler 1 1/2” SOC 2” x 1” | 1 |
|
10 |
62962402 | Adapter 1 1/2” NPT x Socket | 1 |
|
11 |
029-3773-01 | Drain Hose Assembly 1 1/2” I.D. | 1 |
|
12 |
002-1854-00 | Intake Hose Assembly 1 1/2” I.D. | 1 |
|
13 |
Refer to: | Separator | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
