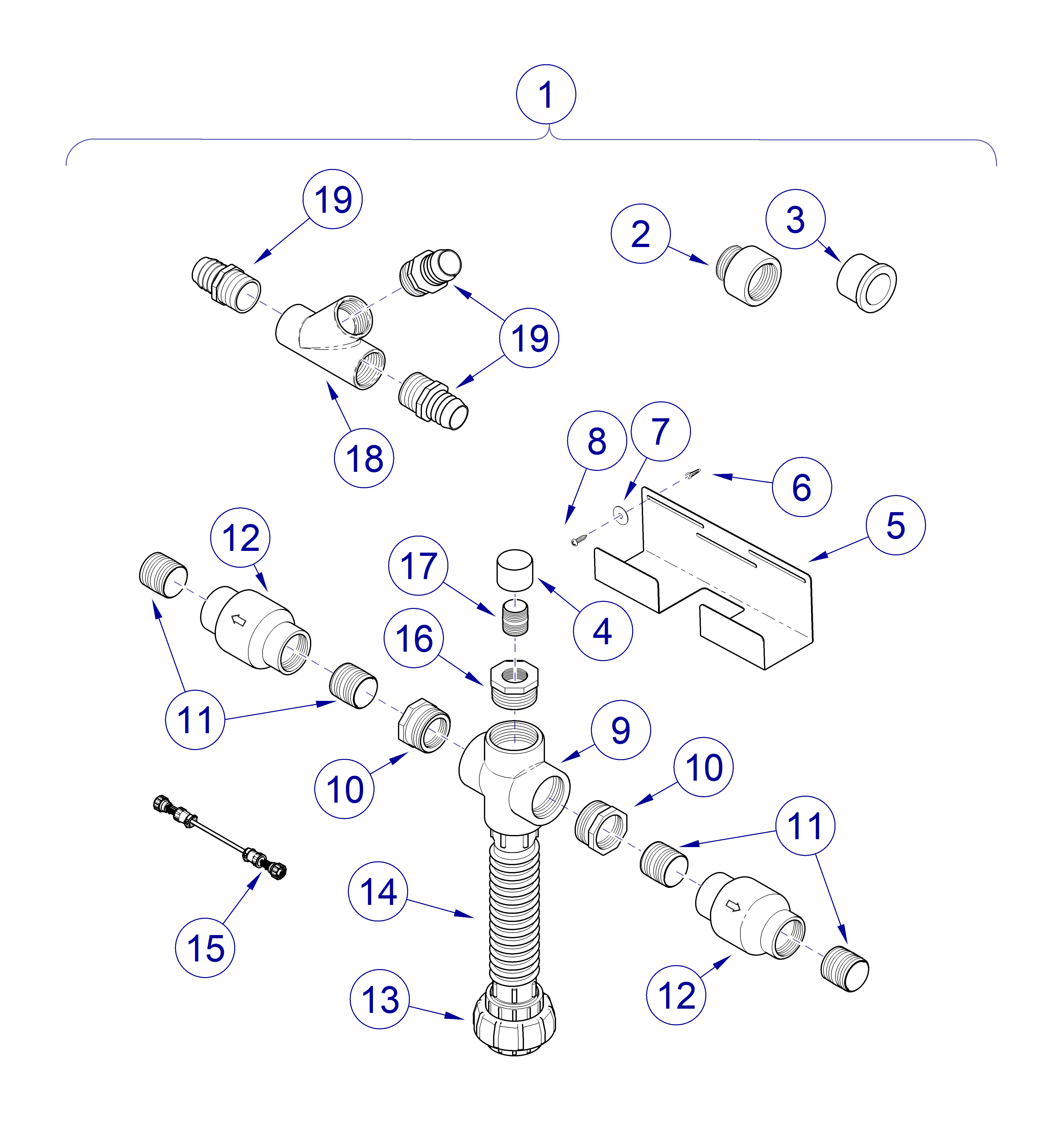

PowerVac G Tee Assembly
|
Model |
All |
| Serial Number | All |

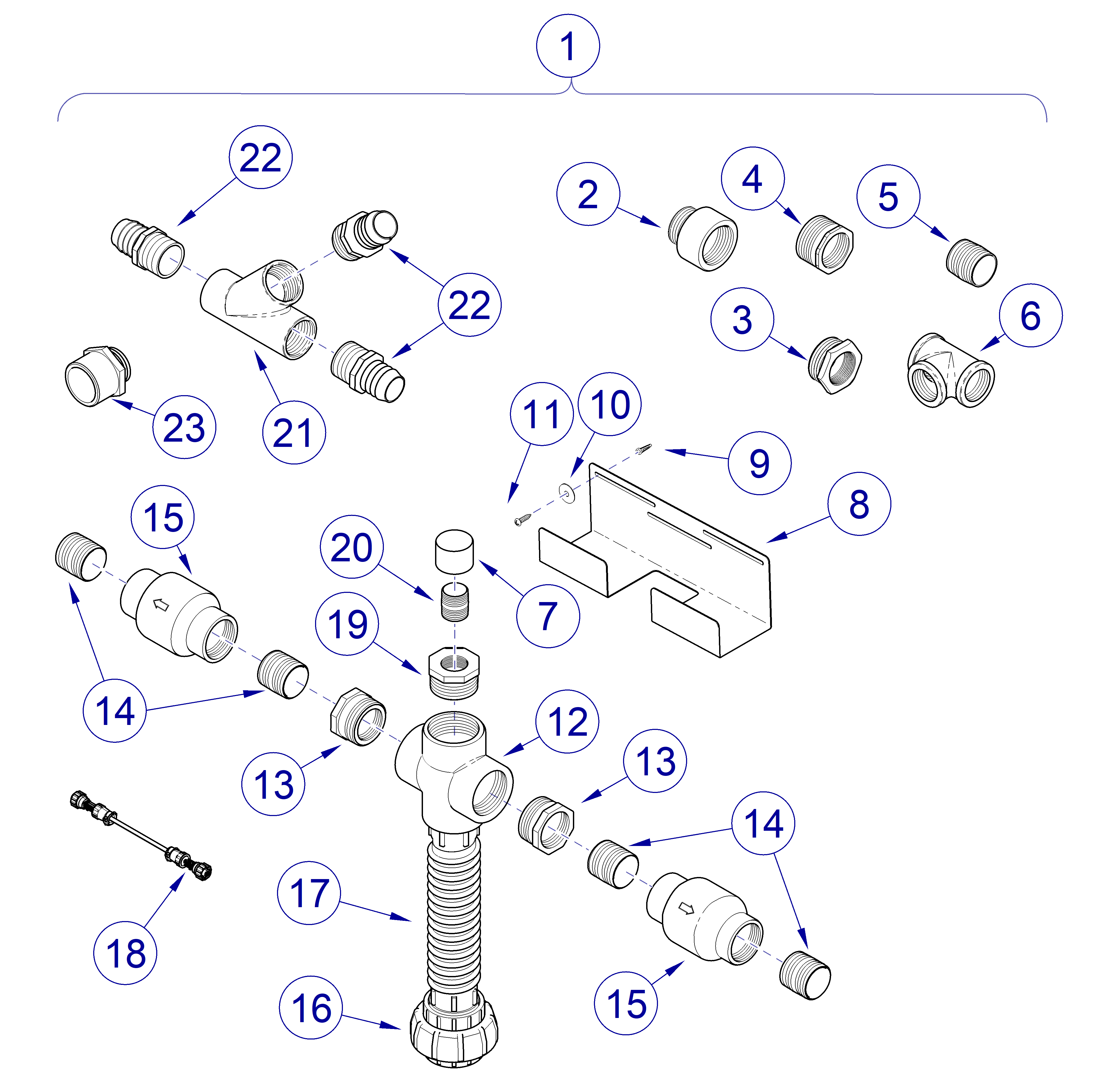

| PowerVac G Tee Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1371-00 |
Tee Assembly single to twin kit - includes items 2 thru 22 | 1 |
|
2 |
014-0561-00 | Adapter 2” MPT x SOC | 1 |
|
3 |
014-0534-00 | Bushing 1 1/2” x 2” | 1 |
|
4 |
77004008 | Bushing 2” x 1 1/2” | 1 |
|
5 |
77002010 | Nipple 1 1/2” NPT | 1 |
|
6 |
014-0518-00 | Tee 1 1/2” FPT Brass | 1 |
|
7 |
014-0540-00 | Cap | 1 |
|
8 |
050-6782-00-312 | Bracket | 1 |
|
9 |
BMS20900 | Wall Anchor 3/16” x 1 1/4” | 5 |
|
10 |
045-0026-00 | Washer Fender 1/4 Bolt x 1” O.D. | 5 |
|
11 |
BSW20472 | Screw #8 x 1 1/2” Pan | 5 |
|
12 |
014-0556-00 | Cross | 1 |
|
13 |
014-0557-00 |
Reducer Bushing 2” x 1 1/2” | NSS |
|
14 |
014-0512-00 | Pipe Nipple 1 1/2” NPT | 4 |
|
15 |
014-0551-00 | Check Valve | 2 |
|
16 |
014-0559-00 | Union 2” NPT x 2” NPT | 1 |
|
17 |
029-3911-00 | Hose Assembly 2” | 1 |
|
18 |
015-2750-00 | Paralleling Harness | 1 |
|
19 |
014-0558-00 | Reducer Bushing 2” x 1” | 1 |
|
20 |
014-0516-00 | Nipple 1” NPT | 1 |
|
21 |
014-0564-00 | Fitting 1 1/2” Y Female | 1 |
|
22 |
014-0565-00 | Adapter 1 1/2” Hose | 3 |
|
23 |
014-0727-00 | Adapter PVC 1/2” | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
