PowerVac G Vacuum Base Unit
Single models require one vacuum assembly. Twin models require two vacuum assemblies.

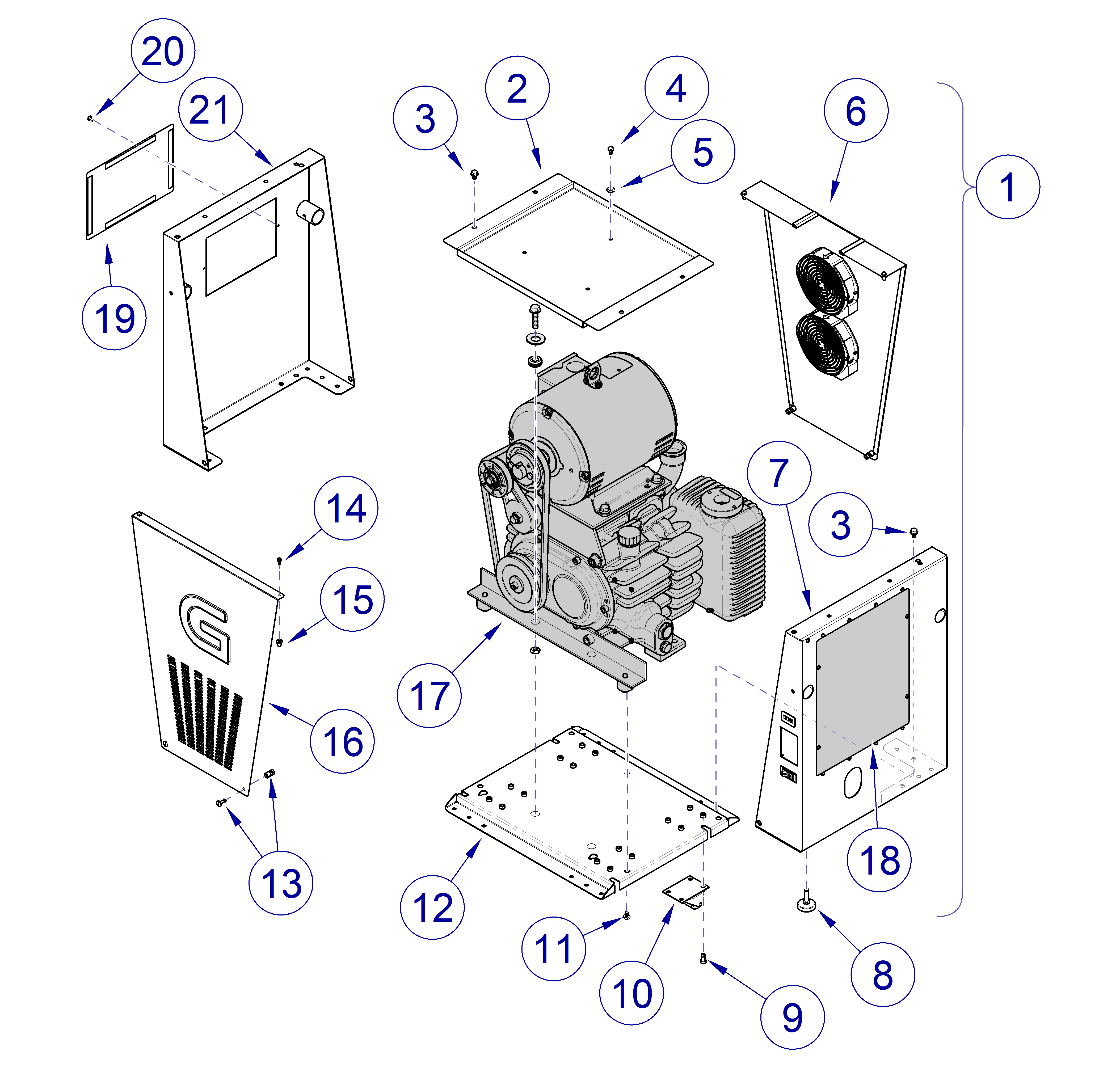

Serial Number Range: V998996 thru V2162467
|
Model |
All |
| Serial Number | V998996 thru V2162467 |
| PowerVac G Vacuum Base Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Base Unit Assembly Options - includes items 2 thru 17 | ||
| 029-5135-00 | G3, G6 | 1 | |
| 029-5135-01 | G5, G10 | 1 | |
| 029-5135-02 | G7, G14 | 1 | |
|
2 |
029-5134-00 | Top Plate Assembly | 1 |
|
3 |
040-0312-00 | Bolt 5/16”-18 x 1/2” Hex Head | 12 |
|
4 |
62700113 | Bolt 1/4”-20 Hex Head | 3 |
|
5 |
BWR20390 | Flatwasher 1/4” | 3 |
|
6 |
002-1439-00 | Rear Cover Assembly - includes a fan kit | 1 |
|
7 |
030-1914-00-366 |
Right Panel | NSS |
|
8 |
MMS72090 | Non-Skid Glide | 4 |
|
9 |
BBT20106 | Bolt 5/16”-18 x 3/4” Hex Head | 16 |
|
10 |
016-1059-00 | Caster | 4 |
|
11 |
042-0626-00 | Bolt M8 x 10 mm Hex Head | 3 |
|
12 |
029-5105-00 | Base Plate Assembly | 1 |
|
13 |
62977901 | Fastener 1/4 turn | 2 |
|
14 |
65959902 | Hex washer head screw #10 x 1/2” | 2 |
|
15 |
65963800 | Tapered Pin | 2 |
|
16 |
002-1438-00 | Front Cover | 1 |
|
17 |
Refer to: | Vacuum Base Unit Pump Assembly/Motor | - |
|
18 |
Refer to: | Right Panel Cover and Screws Electrical Box Covers |
- |
|
19 |
029-3802-00 | Electrical Cover Assembly | 1 |
|
20 |
040-0010-109 | Pan head Phillips Screws #10 x 3/8” | 2 |
|
21 |
030-1913-00-366 | Left Panel | 1 |
|
22 |
016-1064-00 | Belt Tension Checker Tool - Not Shown | AR |
|
23 |
067-0053-02-366 | Touch Up Paint - Brush-On - Not Shown | AR |
|
24 |
002-10101-00 | Touch Up-Paint Aerosol - Not Shown | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

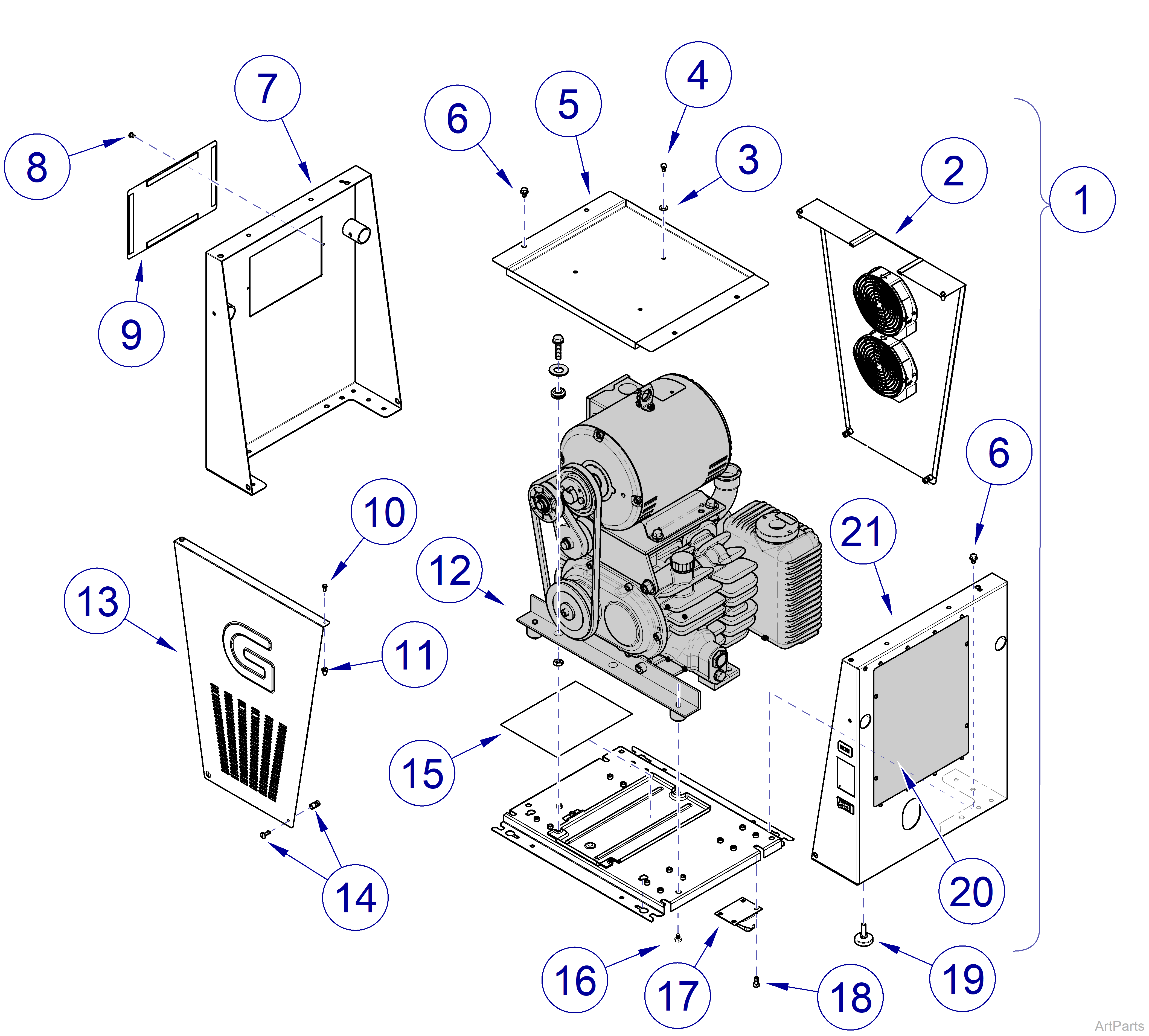

Serial Number Range: V2162468 to Present
|
Model |
All |
| Serial Number | V2162468 to Present |
| PowerVac G Vacuum Base Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Base Unit Assembly Options - includes items 2 thru 17 | ||
| 029-5135-00 | G3, G6 | 1 | |
| 029-5135-01 | G5, G10 | 1 | |
| 029-5135-02 | G7, G14 | 1 | |
|
2 |
002-1439-00 | Rear Cover Assembly - includes a fan kit | 1 |
|
3 |
BWR20390 | Flatwasher 1/4” | 3 |
|
4 |
62700113 | Bolt 1/4”-20 Hex Head | 3 |
|
5 |
029-5134-00 | Top Plate Assembly | 1 |
|
6 |
040-0312-00 | Bolt 5/16”-18 x 1/2” Hex Head | 12 |
|
7 |
030-1913-00-366 | Left Panel | 1 |
|
8 |
040-0010-109 | Pan head Phillips Screws #10 x 3/8” | 2 |
|
9 |
029-3802-00 | Electrical Cover Assembly | 1 |
|
10 |
65959902 | Hex washer head screw #10 x 1/2” | 2 |
|
11 |
65963800 | Tapered Pin | 2 |
|
12 |
Refer to: | Vacuum Base Unit Pump Assembly/Motor | - |
|
13 |
002-1438-00 | Front Cover | 1 |
|
14 |
62977901 | Fastener 1/4 turn | 2 |
|
15 |
054-10049-00 | Absorbent Pad | 1 |
|
16 |
042-0626-00 | Bolt M8 x 10 mm Hex Head | 3 |
|
17 |
016-1059-00 | Caster | 4 |
|
18 |
BBT20106 | Bolt 5/16”-18 x 3/4” Hex Head | 16 |
|
19 |
MMS72090 | Non-Skid Glide | 4 |
|
20 |
Refer to: |
Right Panel Cover and Screws |
- |
|
21 |
030-1914-00-366 |
Right Panel | NSS |
|
22 |
016-1064-00 | Belt Tension Checker Tool - Not Shown | AR |
|
23 |
067-0053-02-366 | Touch Up Paint - Brush-On - Not Shown | AR |
|
24 |
002-10101-00 | Touch Up-Paint Aerosol - Not Shown | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
