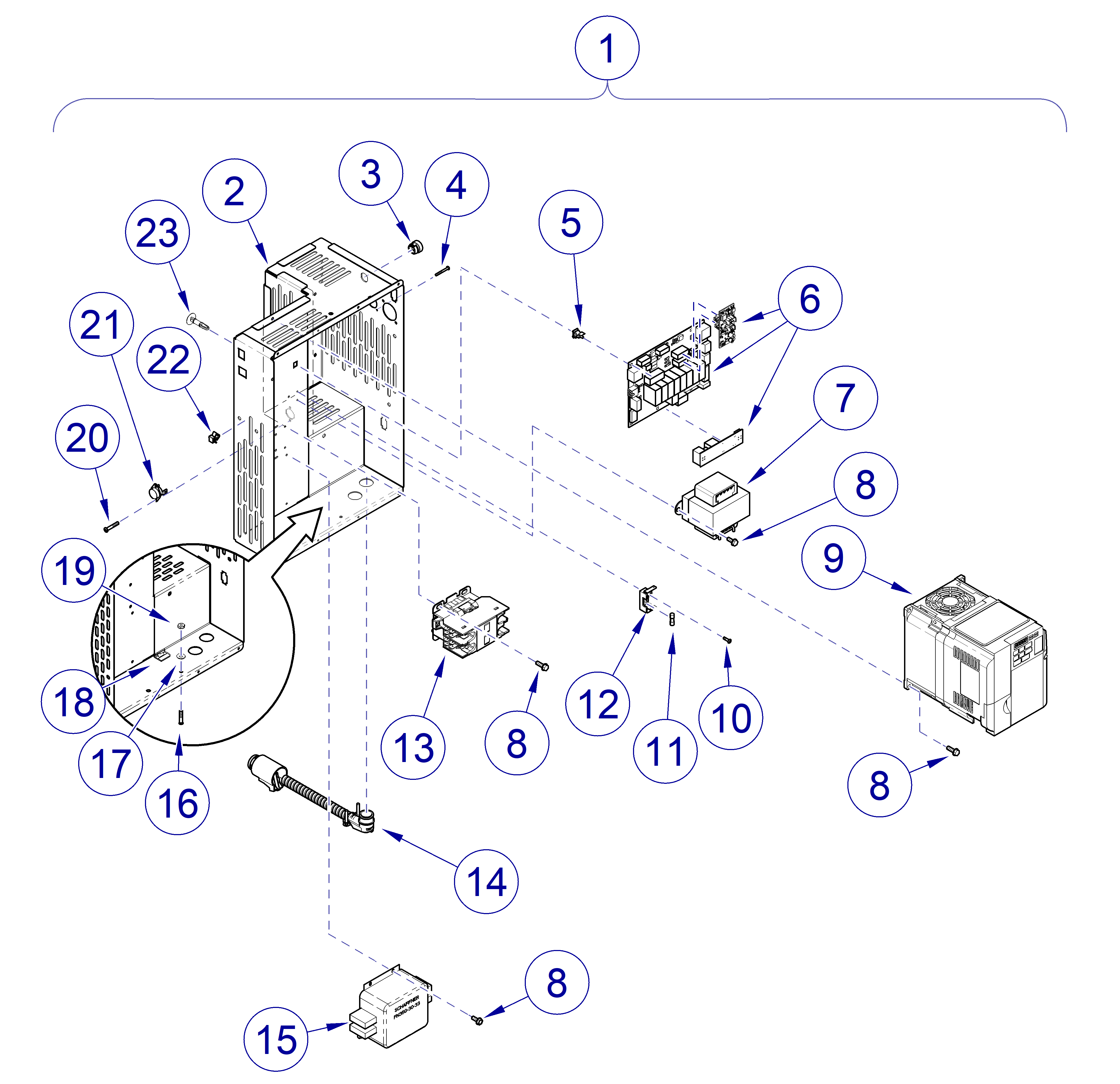

PowerVac G Electrical Box
Single models require one vacuum assembly. Twin models require two vacuum assemblies. Item #24 was added to the design after production started for factory test purposes. It is an insulator to the EMC/RFI line filter and can be installed on earlier units, but not needed.
Serial Number Range: V998996 thru V1035120
|
Model |
All |
| Serial Number | V998996 thru V1035120 |
| PowerVac G Electrical Box | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5125-00 |
Electrical Box Assembly - includes items 2 thru 24 |
NLA |
|
2 |
029-5108-00 |
Electrical Box | NSS |
|
3 |
015-0002-06 | Bushing | 1 |
|
4 |
040-0004-22 | Screw #4-40 x 5/16" Pan Head | 6 |
|
5 |
053-1664-00-000 | Standoff | 5 |
|
6 |
002-1445-00 | PCB Assembly and Power Supply - PC Board and Daughter Card | 1 |
|
7 |
24 VAC Harness - Transformer | 1 | |
|
8 |
BSW20455 | Screw #8-32 x 1/2" | 18 |
|
9 |
002-1447-00 | Variable Frequency Drive Kit - Version 5.04 Software | 1 |
|
10 |
62502416 | Screw #6-32 x 1/2" Pan Head Phillips | 1 |
|
11 |
015-0346-36 | Fuse 1/8 A, 250 V | 2 |
|
12 |
015-1534-00 | Fuseblock 1/4" x 1 1/4" | 1 |
|
13 |
015-2817-00 | Contactor | 1 |
|
14 |
002-1446-00 | Conduit - 6 ft | 1 |
|
15 |
002-1434-00 | EMC/RFI Line Filter | 1 |
|
16 |
122010 | Pem Stud #10-32 x 7/8" | 1 |
|
17 |
045-0001-31 | Lock Washer | 1 |
|
18 |
62947602 | Cord Clip | 1 |
|
19 |
122357 | Nut Keps #10-32 | 3 |
|
20 |
040-0008-79 | Screw #8-32 x 1/2” Pan Head | 2 |
|
21 |
65972500 | Fan Thermal Switch | 1 |
|
22 |
053-2060-00 | Push Mount Cable Tie | 7 |
|
23 |
053-1858-01 | Standoff | 1 |
|
24 |
053-2274-00 | Spacer, VFD Filter | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1035121 thru V1648734
|
Model |
All |
| Serial Number | V1035121 thru V1648734 |
| PowerVac G Electrical Box | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5125-00 |
Electrical Box Assembly - includes items 2 thru 24 |
NLA |
|
2 |
029-5108-00 |
Electrical Box | NSS |
|
3 |
015-0002-06 | Bushing | 1 |
|
4 |
040-0004-22 | Screw #4-40 x 5/16" Pan Head | 6 |
|
5 |
053-1664-00-000 | Standoff | 5 |
|
6 |
PCB Assembly and Power Supply - PC Board and Daughter Card | 1 | |
|
7 |
24 VAC Harness - Transformer | 1 | |
|
8 |
BSW20455 | Screw #8-32 x 1/2" | 18 |
|
9 |
002-1447-00 | Variable Frequency Drive Kit - Version 5.05 Software | 1 |
|
10 |
62502416 | Screw #6-32 x 1/2” Pan Head Phillips | 1 |
|
11 |
015-0346-36 | Fuse 1/8 A, 250 V | 2 |
|
12 |
015-1534-00 | Fuseblock 1/4" x 1 1/4" | 1 |
|
13 |
015-2817-00 | Contactor | 1 |
|
14 |
002-1446-00 | Conduit - 6 ft | 1 |
|
15 |
002-1434-00 | EMC/RFI Line Filter | 1 |
|
16 |
122010 | Pem Stud #10-32 x 7/8" | 1 |
|
17 |
045-0001-31 | Lock Washer | 1 |
|
18 |
62947602 | Cord Clip | 1 |
|
19 |
122357 | Nut Keps #10-32 | 3 |
|
20 |
040-0008-79 | Screw #8-32 x 1/2" Pan Head | 2 |
|
21 |
65972500 | Fan Thermal Switch | 1 |
|
22 |
053-2060-00 | Push Mount Cable Tie | 7 |
|
23 |
053-1858-01 | Standoff | 1 |
|
24 |
053-2274-00 | Spacer, VFD Filter | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1648735 thru V2726346
|
Model |
All |
| Serial Number | V1648735 thru V2726346 |
| PowerVac G Electrical Box | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5125-00 |
Electrical Box Assembly - includes items 2 thru 24 |
NLA |
|
2 |
029-5108-00 |
Electrical Box | NSS |
|
3 |
015-0002-06 | Bushing | 1 |
|
4 |
040-0004-22 | Screw #4-40 x 5/16" Pan Head | 6 |
|
5 |
053-1664-00-000 | Standoff | 5 |
|
6 |
002-1445-00 | PCB Assembly and Power Supply - PC Board and Daughter Card | 1 |
|
7 |
24 VAC Harness - Transformer | 1 | |
|
8 |
BSW20455 | Screw #8-32 x 1/2" | 14 |
|
9 |
002-1447-00 | Variable Frequency Drive Kit - Version 5.05 Software | 1 |
|
10 |
62502416 | Screw #6-32 x 1/2" Pan Head Phillips | 1 |
|
11 |
015-0346-36 | Fuse 1/8 A, 250 V | 2 |
|
12 |
015-1534-00 | Fuseblock 1/4” x 1 1/4” | 1 |
|
13 |
015-2817-00 | Contactor | 1 |
|
14 |
002-1446-00 | Conduit - 6 ft | 1 |
|
15 |
002-1434-00 | EMC/RFI Line Filter | 1 |
|
16 |
122010 | Pem Stud #10-32 x 7/8" | 1 |
|
17 |
045-0001-31 | Lock Washer | 1 |
|
18 |
62947602 | Cord Clip | 1 |
|
19 |
122357 | Nut Keps #10-32 | 3 |
|
20 |
040-0008-79 | Screw #8-32 x 1/2" Pan Head | 2 |
|
21 |
65972500 | Fan Thermal Switch | 1 |
|
22 |
053-2060-00 | Push Mount Cable Tie | 7 |
|
23 |
053-1858-01 | Standoff | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2726347 thru Present
|
Model |
All |
| Serial Number | V2726347 thru Present |
| PowerVac G Electrical Box | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5125-00 |
Electrical Box Assembly - includes items 2 thru 24 |
NLA |
|
2 |
029-5108-00 |
Electrical Box | NSS |
|
3 |
015-0002-06 | Bushing | 1 |
|
4 |
040-0004-22 | Screw #4-40 x 5/16" Pan Head | 6 |
|
5 |
053-1664-00-000 | Standoff | 5 |
|
6 |
002-1445-00 | PCB Assembly and Power Supply - PC Board and Daughter Card | 1 |
|
7 |
015-10531-00 | 24 VAC Harness - Transformer | 1 |
|
8 |
BSW20455 | Screw #8-32 x 1/2" | 14 |
|
9 |
002-1447-00 | Variable Frequency Drive Kit - Version 5.05 Software | 1 |
|
10 |
62502416 | Screw #6-32 x 1/2” Pan Head Phillips | 1 |
|
11 |
015-0346-36 | Fuse 1/8 A, 250 V | 2 |
|
12 |
015-1534-00 | Fuseblock 1/4" x 1 1/4" | 1 |
|
13 |
015-2817-00 | Contactor | 1 |
|
14 |
002-1446-00 | Conduit - 6 ft | 1 |
|
15 |
002-1434-00 | EMC/RFI Line Filter | 1 |
|
16 |
122010 | Pem Stud #10-32 x 7/8" | 1 |
|
17 |
045-0001-31 | Lock Washer | 1 |
|
18 |
62947602 | Cord Clip | 1 |
|
19 |
122357 | Nut Keps #10-32 | 3 |
|
20 |
040-0008-79 | Screw #8-32 x 1/2" Pan Head | 2 |
|
21 |
65972500 | Fan Thermal Switch | 1 |
|
22 |
053-2060-00 | Push Mount Cable Tie | 7 |
|
23 |
053-1858-01 | Standoff | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
