PowerVac® P Separator Loose Parts
Serial Number Range: All up to production date 5/3/2006
|
Model |
All |
| Serial Number | Up to production date 5/3/2006 |
| PowerVac® P Separator Loose Parts | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Separator Kit - includes items 1 thru 8 |
1 |
|
|
2 |
014-0535-00 | Bushing 2" MPT x 1 1/2" FPT - Exhaust | 1 |
|
3 |
PVC50975 |
Adapter 1 1/2" - PVC |
NLA |
|
4 |
014-0492-00 |
Swivel Connector |
NLA |
|
5 |
014-0494-01 | Intake Hose 1 1/2" x 6' | 1 |
|
6 |
029-3773-01 | Drain Hose 1" x 6' | 1 |
|
7 |
014-0530-00 | Garden Hose Adapter | 1 |
|
8 |
Pipe Nipple - Threaded, Plastic | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V785000 thru Present, 0611P3P0000 thru Present, 0611P5P0000 thru Present, and 0611P7P0000 thru Present
|
Model |
P3 | P5 | P7 | All |
| Serial Number | 0611P3P0000 thru Present | 0611P5P0000 thru Present | 0611P7P0000 thru Present | V785000 thru Present |
Top Section are Extra Fittings for Intake and VRV Hose Connections to Existing Pipes from Separator.
This loose parts kit is only for separator components only.

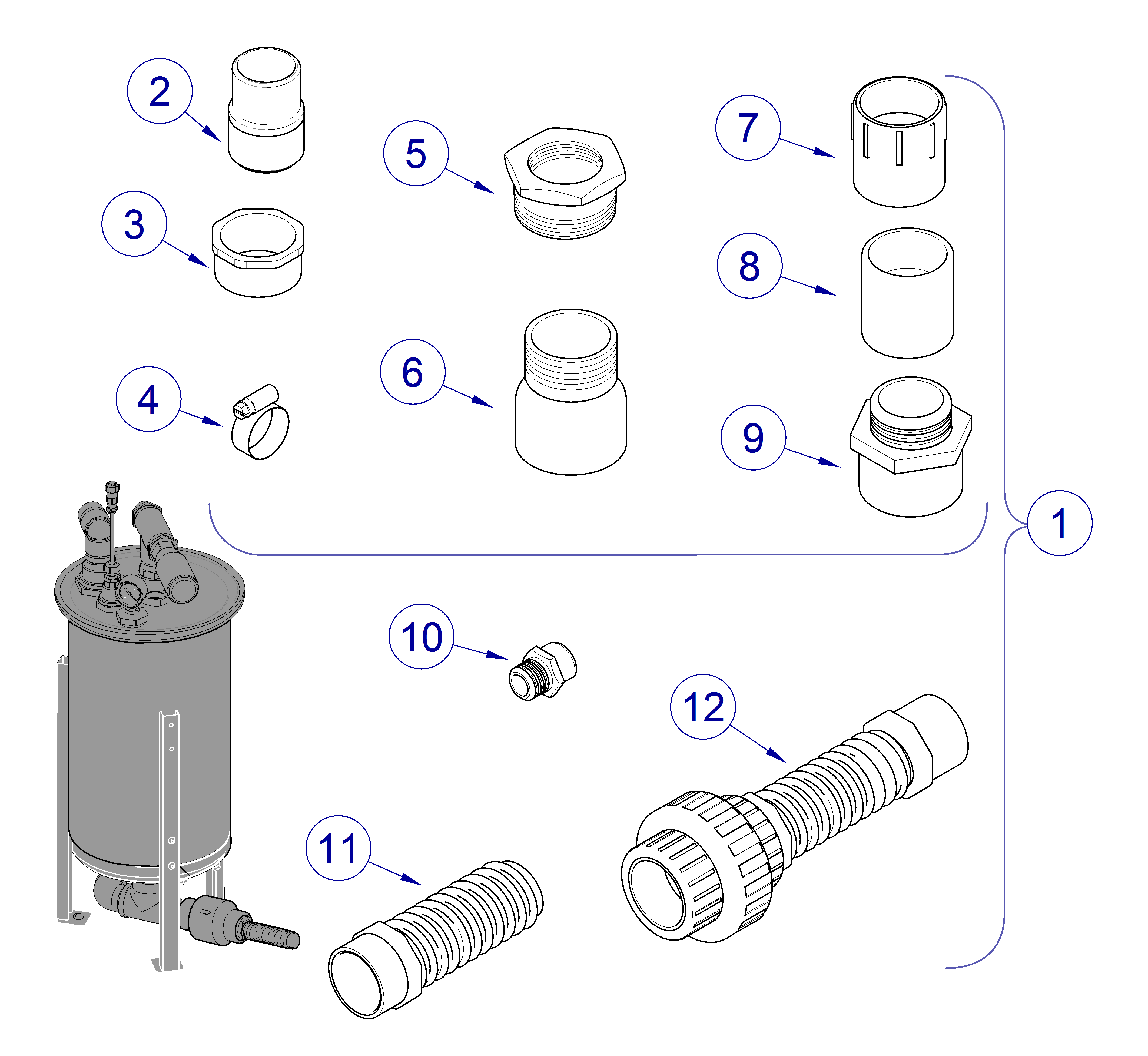

| PowerVac® P Separator Loose Parts | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1441-01 | Separator Loose Parts - includes items 2 thru 12 | 1 |
|
2 |
77004080 | Nipple, PVC, 1 1/4" | 1 |
|
3 |
20173805 | Busing, PVC, 1 1/2" NPM x 1 1/4" NPT | 1 |
|
4 |
77009131 | Clamp, Worm Gear, 2" | 1 |
|
5 |
014-0535-00 | Bushing 2" NPT x 1.5" FPT - PVC | 1 |
|
6 |
014-0570-00 | Coupling Reducer SOC 2" x 1" | 1 |
|
7 |
014-0569-00 | Adapter, 1 1/2" NPT x Socket - PVC | 1 |
|
8 |
PVC51035 | Coupler 1 1/2" SOC 2" x 1" - PVC | 1 |
|
9 |
62962402 | Adapter, 1 1/2" NPT x Socket - PVC | 1 |
|
10 |
014-0530-00 | Garden Hose Adapter | 1 |
|
11 |
029-3773-01 | Drain Hose Assembly, 1 1/2" I.D. | 1 |
|
12 |
002-1854-00 | Intake Hose Assembly, 1 1/2" I.D. | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
