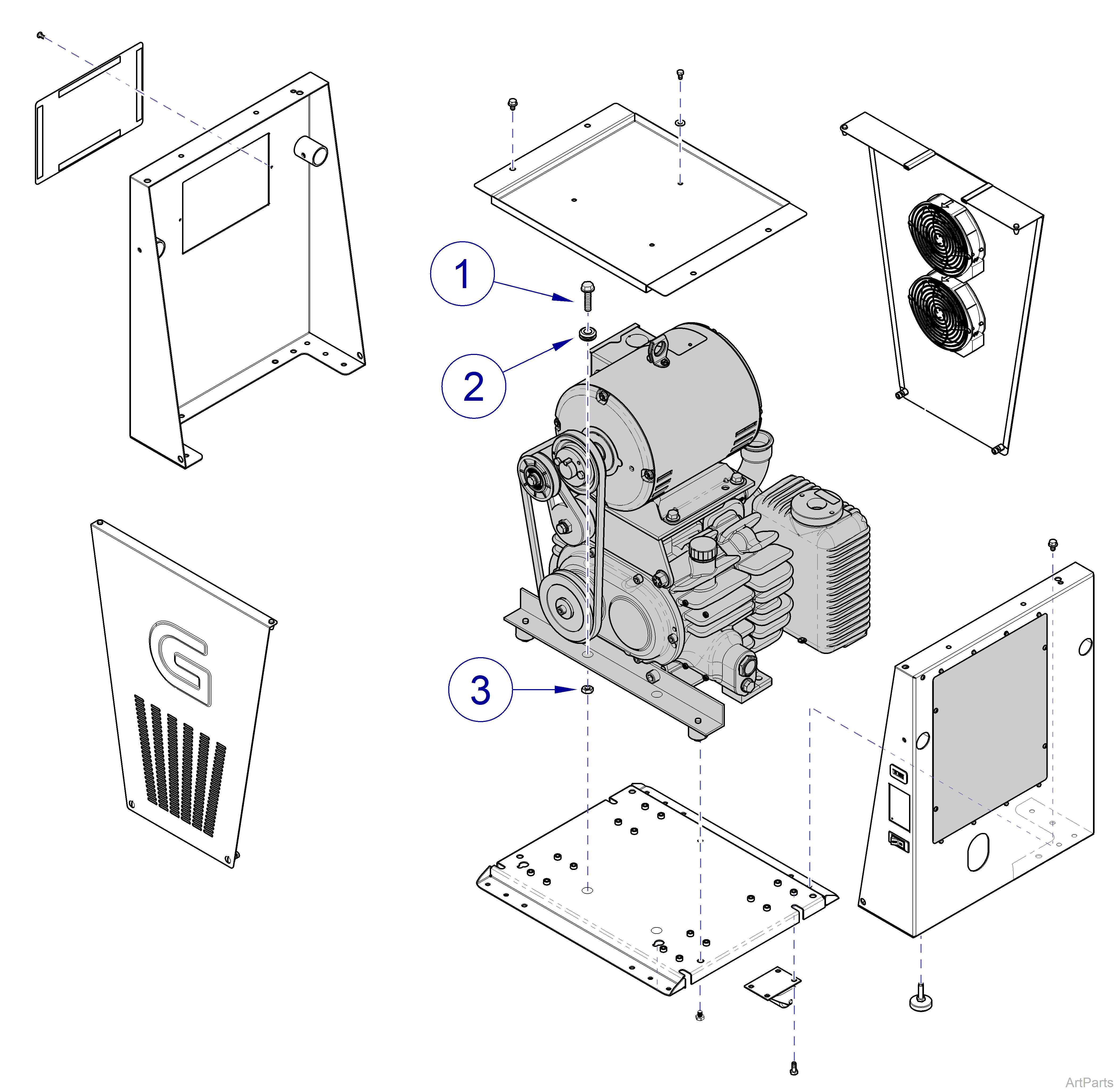

PowerVac® P Shipping Bolt Assembly
Serial Number Range: V1149063 thru V1291721
|
Model |
All | ||
| Serial Number | V1149063 thru V1291721 | ||
| PowerVac® P Shipping Bolt Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0312-96 | Screw .312-18 x 1/2" | 2 |
|
2 |
053-2309-00 | Grommet 1/2", 3/16" | 2 |
|
3 |
041-0312-06 |
Hex Jam Nut .312-18 |
NSS |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1291722 thru Present
|
Model |
All | ||
| Serial Number | V1291722 thru Present | ||
| PowerVac® P Shipping Bolt Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0312-96 | Screw .312-18 x 1/2" | 2 |
|
2 |
62600117 | Washer, Flat 5/16" | 2 |
|
3 |
053-2309-00 | Grommet 1/2", 3/16" | 2 |
|
4 |
041-0312-06 |
Hex Jam Nut .312-18 |
NSS |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
