PowerVac® P Top Cover Access Procedures
Caution
The On/Off switch controls only the secondary circuit power. The main power source must be turned off to remove all power in the control box.

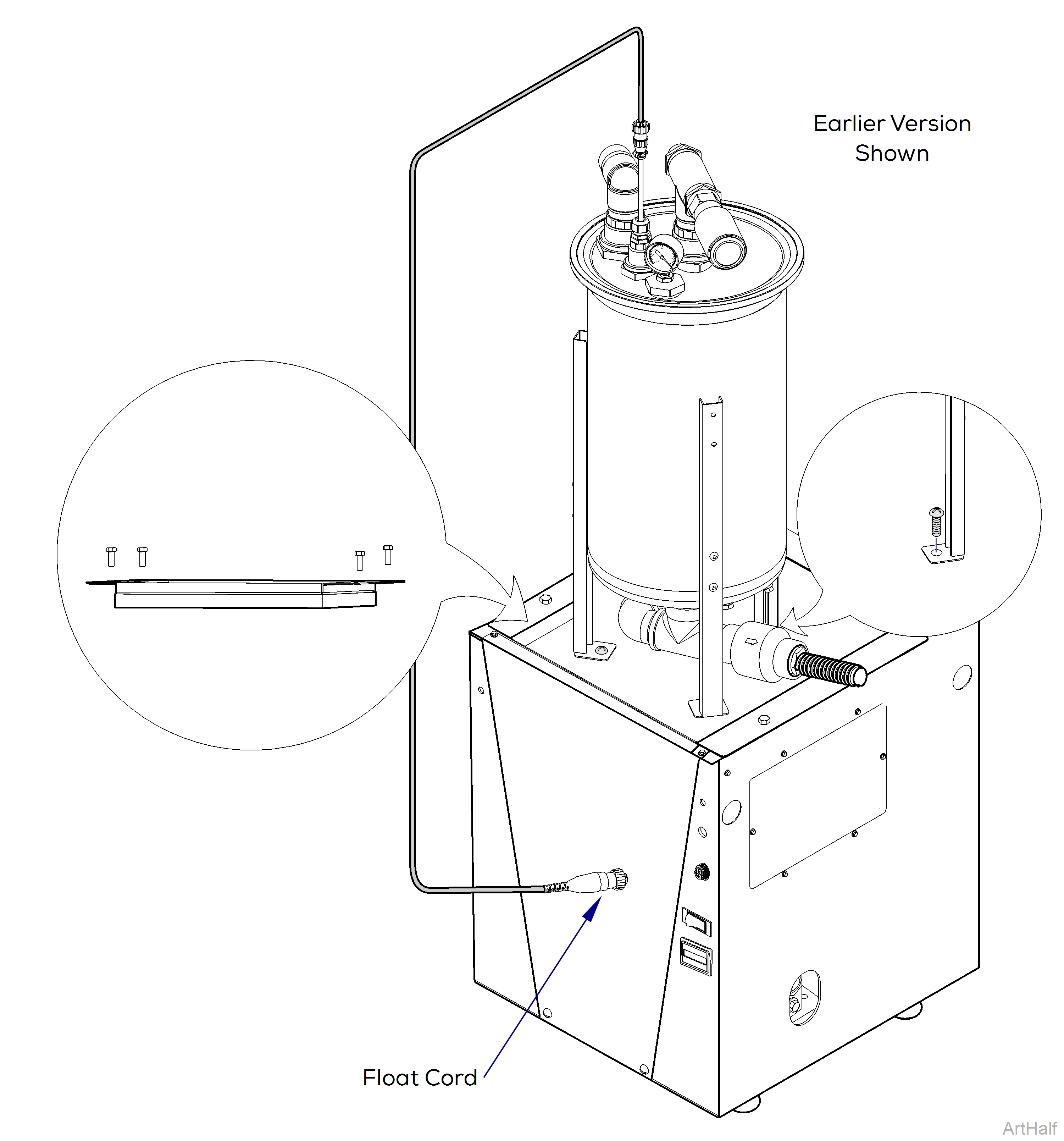

Removal
1.Disconnect power.
2.Unplug float cord.
3.Unbolt and remover separator from vacuum base unit if applicable.
4.Remove front cover. Refer to: Front Cover.
5.Unbolt and remove top cover.
Installation
1.Install top cover.
2.Install front cover.
3.Install separator on top of vacuum base unit if applicable.
4.Plug in float cord.
5.Connect power.
