PowerVac® P Drain Assembly

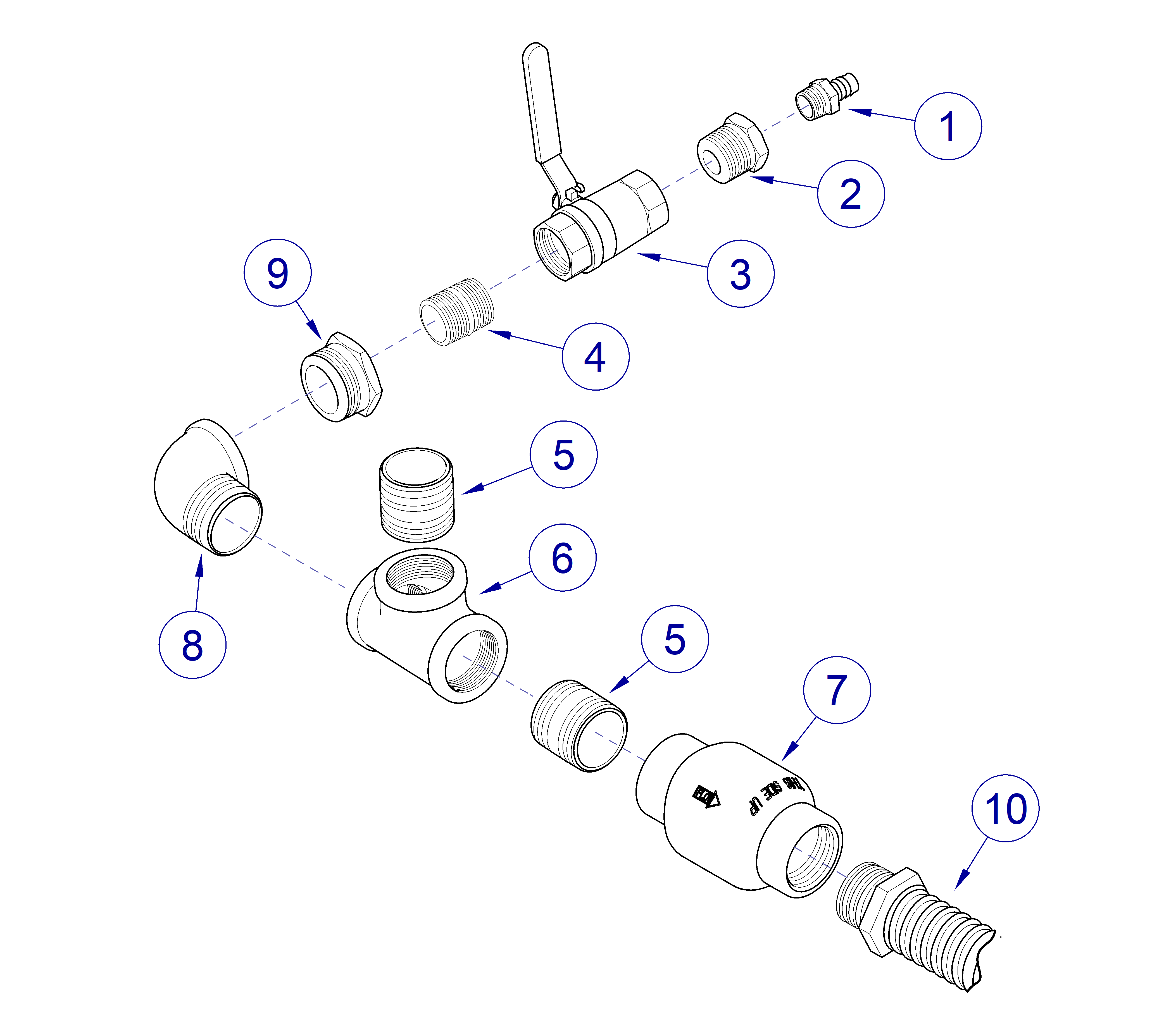

Serial Number Range: V245092 to V317654, V245092 to V317641, and V245092 to V317634
|
Model |
P3 | P5 | P7 |
| Serial Number | V245092 to V317654 | V245092 to V317641 | V245092 to V317634 |
| PowerVac® P Drain Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PMS50911 |
Barb Connector 1/2 MPT | NLA |
|
2 |
014-0532-00 |
Bushing 1 x 1/2 NPT | NLA |
|
3 |
014-0531-00 |
Ball Valve | NLA |
|
4 |
PCB50476 |
Nipple 1" |
NLA |
|
5 |
77002010 | Nipple 1 1/2" | 2 |
|
6 |
014-0518-00 | Tee 1 1/2" FPT | 1 |
|
7 |
014-0551-00 | Check Valve 1 1/2" | 1 |
|
8 |
014-0510-00 |
Elbow, ST, 1 1/2" NPT | NLA |
|
9 |
62903609 | Reducer 1 1/2 NPT x 1" NPT | 1 |
|
10 |
029-3773-01 | Drain Hose | 1 |
|
11 |
10566800 |
Loctite 542 Sealant - Not Shown |
NLA |
|
12 |
029-3839-00 | Drain Assembly - includes items 1 thru 10 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

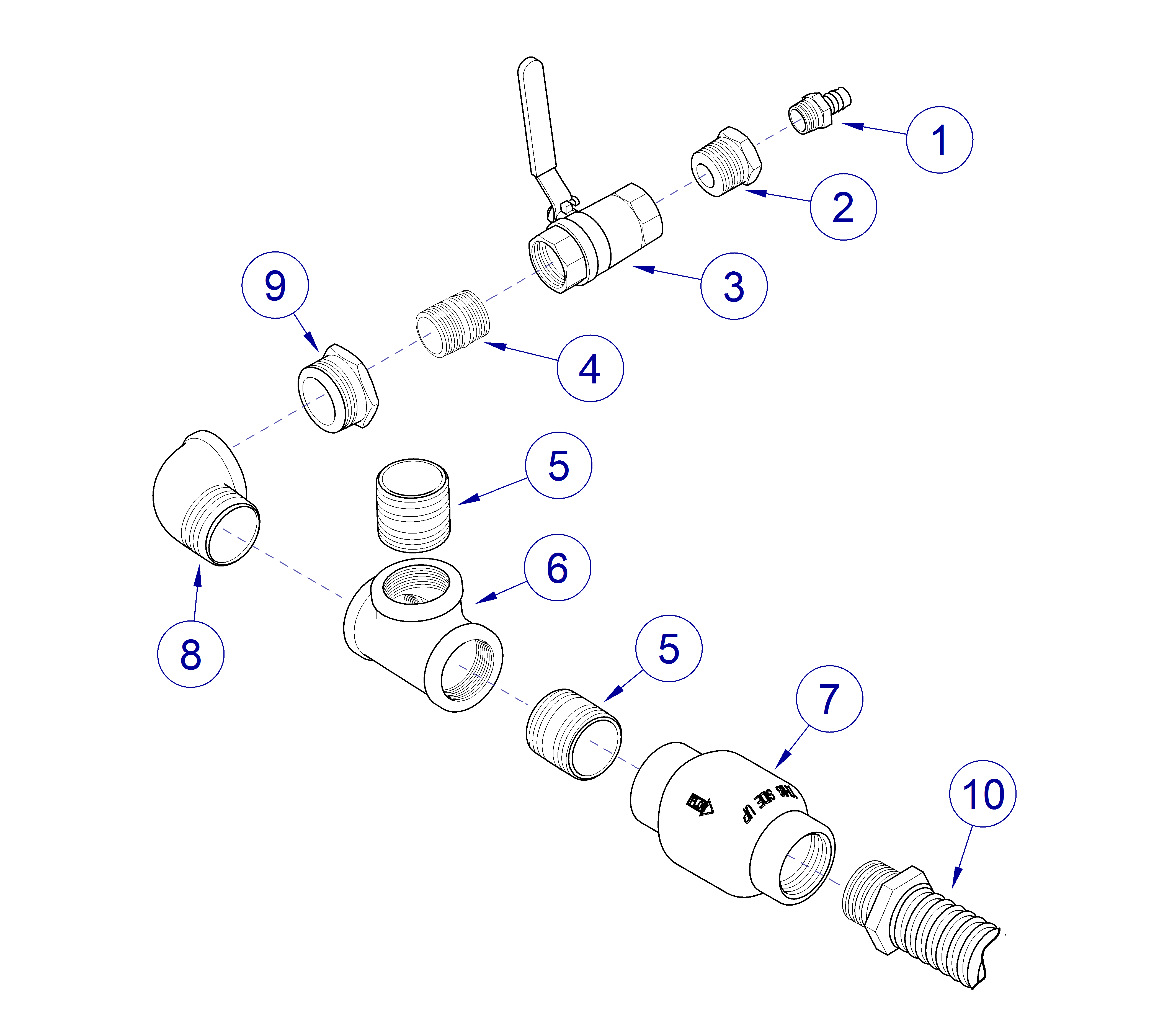

Serial Number Range: V317655 thru V784999, V317642 thru V784999, V317635 thru V784999, 0611P3P0000 thru 0804P3P0751, 0611P5P0000 thru 0804P5P0310, and 0611P7P0000 thru x0804P7P0134
| PowerVac® P Drain Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PMS50911 |
Barb Connector 1/2 MPT | NLA |
|
2 |
014-0532-00 |
Bushing 1 x 1/2 NPT | NLA |
|
3 |
014-0531-00 |
Ball Valve | NLA |
|
4 |
77002006 | Nipple 1" | 1 |
|
5 |
77002010 | Nipple 1 1/2" | 2 |
|
6 |
014-0518-00 | Tee 1 1/2" FPT | 1 |
|
7 |
014-0551-00 | Check Valve 1 1/2" | 1 |
|
8 |
014-0510-00 |
Elbow, ST, 1 1/2" NPT | NLA |
|
9 |
62903609 | Reducer 1 1/2 NPT x 1" NPT | 1 |
|
10 |
029-3773-01 | Drain Hose | 1 |
|
11 |
10566800 |
Loctite 542 Sealant - Not Shown |
NLA |
|
12 |
029-3839-00 | Drain Assembly - includes items 1 thru 10 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

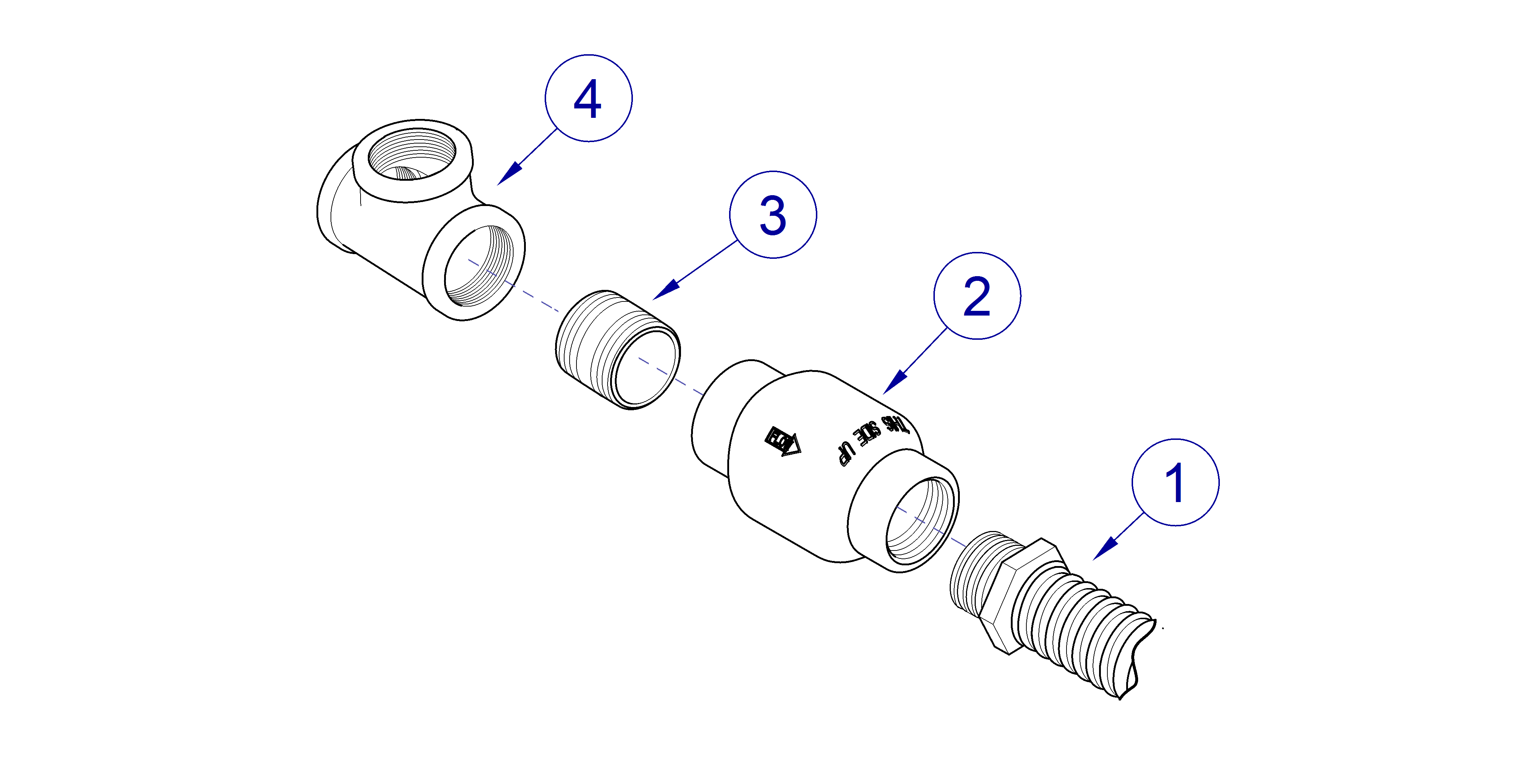

Serial Number Range: V785000 thru V1651590, 0804P3P00752 thru V1651590, 0804P5P0311 thru V1651590, and 0804P7P0135 thru V1651590
| PowerVac® P Drain Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3773-01 | Drain Hose | 1 |
|
2 |
014-0551-00 | Check Valve 1 1/2" | 1 |
|
3 |
77002010 | Nipple 1 1/2" | 1 |
|
4 |
014-0518-00 | Tee 1 1/2" FPT | 1 |
|
5 |
029-3839-00 | Drain Assembly - includes items 1 thru 4 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1651591 thru Present
| PowerVac® P Drain Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3773-01 | Drain Hose | 1 |
|
2 |
014-0551-00 | Check Valve 1 1/2" | 1 |
|
3 |
014-0512-00 | Nipple 1 1/2" | 1 |
|
4 |
014-0513-00 | Tee 1 1/2" FPT | 1 |
|
5 |
029-3839-00 | Drain Assembly - includes items 1 thru 4 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
