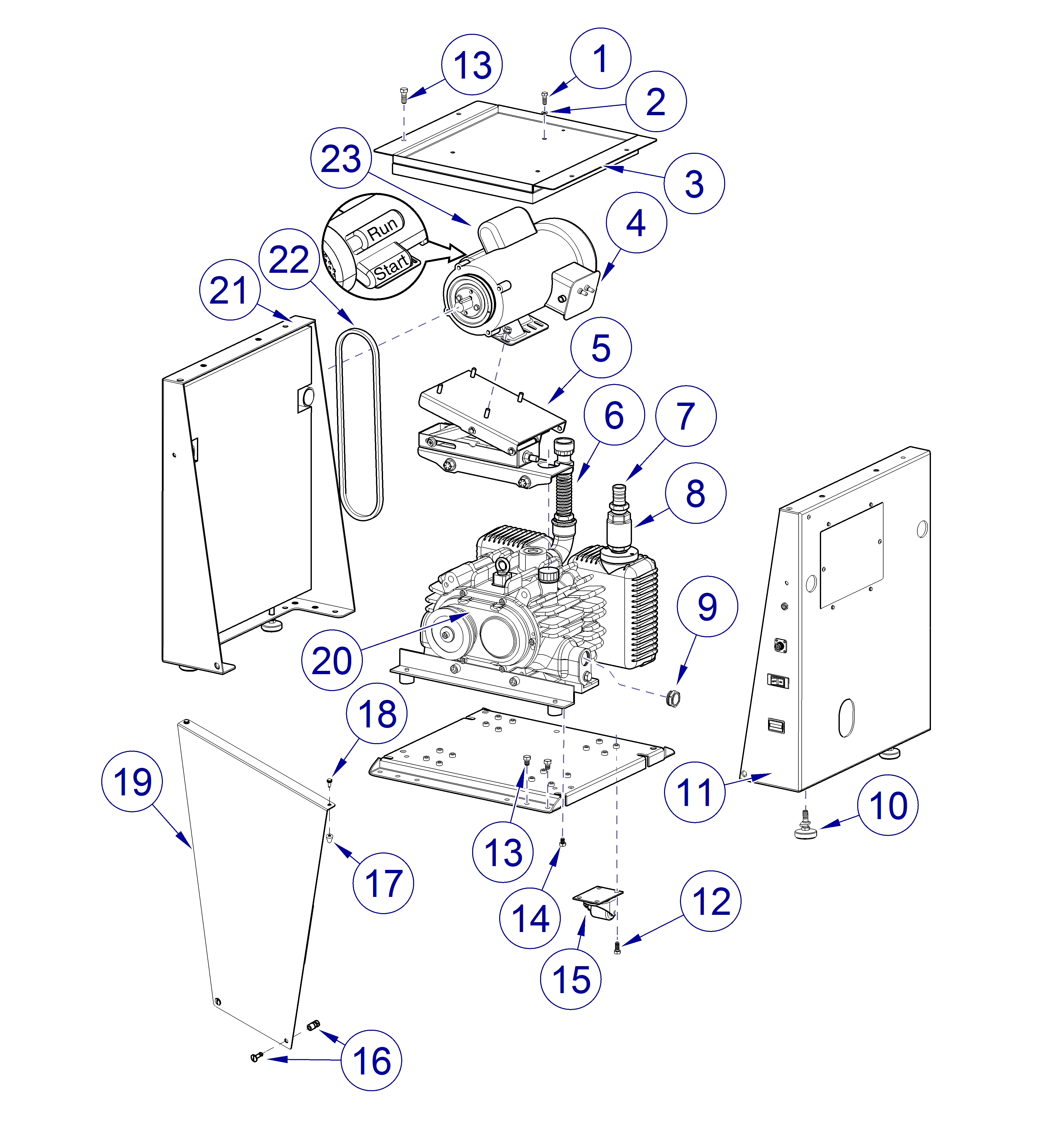

PowerVac® P Vacuum Base Unit
Serial Number Range: V245092 thru V317654, V245092 thru V317641 and V245092 thru V317634
|
Model |
P3 | P5 | P7 |
| Serial Number | V245092 thru V317654 | V245092 thru V317641 | V245092 thru V317634 |
| PowerVac® P Vacuum Base Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62700113 | 1/4" -20 Hex Head Bolt | 3 |
|
2 |
BWR20390 | 1/4" Lock Washer | 3 |
|
3 |
029-3828-00 | Top Cover Assembly | 1 |
|
4 |
002-10927-00 | Motor | 1 |
|
5 |
029-3711-00 |
Motor Mount Assembly | 1 |
|
6 |
002-1851-00 | 1" ID Hose Assembly | 1 |
|
7 |
1" Fitting x 1" NPT | 2 | |
|
8 |
014-0552-01 | Exhaust Check Valve | 1 |
|
9 |
002-2091-00 | Sight Glass - Torque to 132 in/lbs | 1 |
|
10 |
MMS72090 | Leveling Feet-Slide | 4 |
|
11 |
029-3826-00 |
Right Panel |
NSS |
|
12 |
BBT20106 | 5/16"-18 x 3/4" Hex Head Bolt | 16 |
|
13 |
040-0375-07 |
3/8"-16 x 1/2" Hex Head Bolt |
NLA |
|
14 |
042-0626-00 | M8 x 10MM Hex Head Bolt | 3 |
|
15 |
016-1059-00 | Casters | 4 |
|
16 |
62977901 | Fastener 1/4 turn | 2 |
|
17 |
65963800 | Tapered pin | 2 |
|
18 |
65959902 | Hex washer head screw #10 x 1/2" | 2 |
|
19 |
029-3751-00 | Front Cover Assembly | 1 |
|
20 |
002-2092-00 | Pump - includes items 7, 9, and bottom plate | 1 |
|
21 |
029-3825-00 |
Left Panel Assembly |
NSS |
|
22 |
Belt Options | ||
|
|
016-1055-00 | Belt Models - P3, P5, P6, P10 | 1 |
|
|
016-1056-00 | Belt Models - P7, P14 | 1 |
|
23 |
Capacitor Options | ||
|
|
10560900 | Run - 60uF +/-6%, 370VAC, 50/60Hz | 1 |
|
|
10560800 | Start - 295-355uF, 125VAC, 50/60Hz | 1 |
|
24 |
Gear Lube - Not Shown | 1 | |
|
25 |
016-1064-00 | Belt Tension Checker Tool - Not Shown | 1 |
|
26 |
067-0053-02-366 | Touch Up Paint - Brush - Not Shown | 1 |
|
27 |
002-10101-00 | Touch Up-Paint - Aerosol - Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: 0611P3P0000 thru 0801P3P0611, 0611P5P0000 thru 0801P5P0240, and 0611P7P0000 thru 0712P7P0104
|
Model |
P3 | P5 | P7 |
| Serial Number | 0611P3P0000 thru 0801P3P0611 | 0611P5P0000 thru 0801P5P0240 | 0611P7P0000 thru 0712P7P0104 |
| PowerVac® P Vacuum Base Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62700113 | 1/4" -20 Hex Head Bolt | 3 |
|
2 |
62600206 | 1/4" Lock Washer | 3 |
|
3 |
029-3828-00 | Top Cover Assembly | 1 |
|
4 |
002-10927-00 | Motor | 1 |
|
5 |
029-3711-00 |
Motor Mount Assembly | 1 |
|
6 |
002-1851-00 | 1" ID Hose Assembly | 1 |
|
7 |
1" Fitting x 1" NPT | 2 | |
|
8 |
014-0552-01 | Exhaust Check Valve | 1 |
|
9 |
002-2091-00 | Sight Glass - Torque to 132 in/lbs | 1 |
|
10 |
MMS72090 | Leveling Feet-Slide | 4 |
|
11 |
029-3826-00 |
Right Panel |
NSS |
|
12 |
BBT20106 | 5/16"-18 x 3/4" Hex Head Bolt | 16 |
|
13 |
3/8"-16 x 1/2" Hex Head Bolt | 12 | |
|
14 |
042-0626-00 | M8 x 10MM Hex Head Bolt | 3 |
|
15 |
016-1059-00 | Casters | 4 |
|
16 |
62977901 | Fastener 1/4 turn | 2 |
|
17 |
65963800 | Tapered pin | 2 |
|
18 |
65959902 | Hex washer head screw #10 x 1/2" | 2 |
|
19 |
029-3751-00 | Front Cover Assembly | 1 |
|
20 |
002-2092-00 | Pump - includes items 7, 9, and bottom plate | 1 |
|
21 |
029-3825-00 |
Left Panel Assembly |
NSS |
|
22 |
Belt Options | ||
|
|
016-1055-00 | Belt Models - P3, P5, P6, P10 | 1 |
|
|
016-1056-00 | Belt Models - P7, P14 | 1 |
|
23 |
Capacitor Options | ||
|
|
10560900 | Run - 60uF +/-6%, 370VAC, 50/60Hz | 1 |
|
|
10560800 | Start - 295-355uF, 125VAC, 50/60Hz | 1 |
|
24 |
Gear Lube - Not Shown | 1 | |
|
25 |
016-1064-00 | Belt Tension Checker Tool - Not Shown | 1 |
|
26 |
067-0053-02-366 | Touch Up Paint - Brush - Not Shown | 1 |
|
27 |
002-10101-00 | Touch Up-Paint - Aerosol - Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

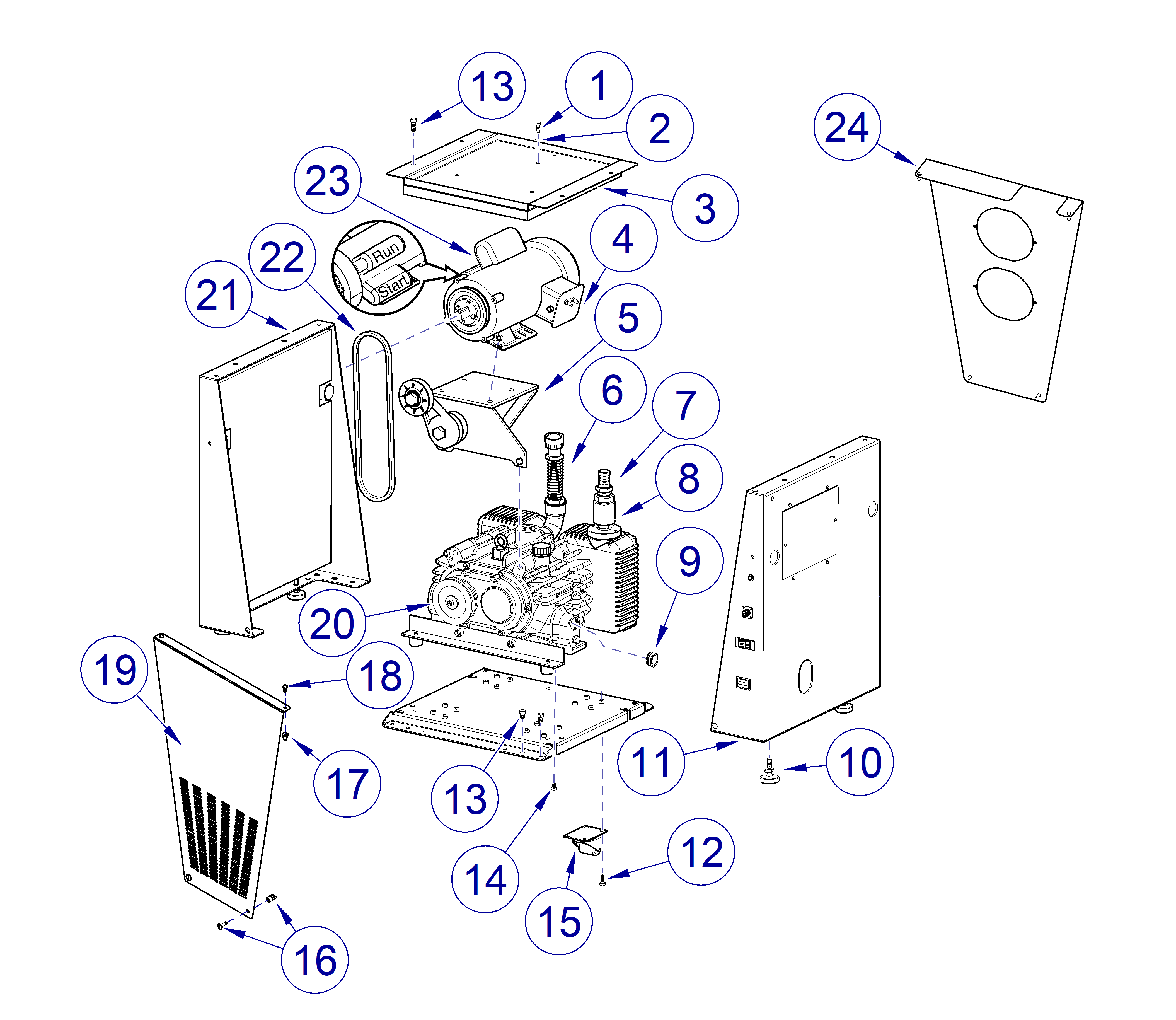

Serial Number Range: 0802P3P0612 thru 0905P3P1203, 0801P5P0241 thru 0902P5P0526 and 0712P7P0105 thru 0902P7P0232
|
Model |
P3 | P5 | P7 |
| Serial Number | 0802P3P0612 thru 0905P3P1203 | 0801P5P0241 thru 0902P5P0526 | 0712P7P0105 thru 0902P7P0232 |
| PowerVac® P Vacuum Base Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62700113 | 1/4" -20 Hex Head Bolt | 3 |
|
2 |
62600206 | 1/4" Lock Washer | 3 |
|
3 |
029-3828-00 | Top Cover Assembly | 1 |
|
4 |
002-10927-00 | Motor | 1 |
|
5 |
Motor Mount Assembly Options | ||
| 30193000 | P3 and P5 Motor Mount - Retro Kit | 1 | |
| 30193100 | P7 Motor Mount - Retro Kit | 1 | |
| 10593400 | Idler Pulley Assembly Only | 1 | |
| 002-10753-00 | Tensioner Replacement Kit - includes mounting hardware | 1 | |
|
6 |
002-1851-00 | 1" ID Hose Assembly | 1 |
|
7 |
1" Fitting x 1" NPT | 2 | |
|
8 |
014-0552-01 | Exhaust Check Valve - Twin Units Only | 1 |
|
9 |
Sight Glass - Torque to 132 in/lbs | 1 | |
|
10 |
MMS72090 | Leveling Feet-Slide | 4 |
|
11 |
029-3826-00 |
Right Panel |
NSS |
|
12 |
BBT20106 | 5/16"-18 x 3/4" Hex Head Bolt | 16 |
|
13 |
3/8"-16 x 1/2" Hex Head Bolt | 12 | |
|
14 |
042-0626-00 | M8 x 10MM Hex Head Bolt | 3 |
|
15 |
016-1059-00 | Casters | 4 |
|
16 |
62977901 | Fastener 1/4 turn | 2 |
|
17 |
65963800 | Tapered pin | 2 |
|
18 |
65959902 | Hex washer head screw #10 x 1/2" | 2 |
|
19 |
029-3751-00 | Front Cover Assembly | 1 |
|
20 |
002-2092-00 | Pump - includes items 7, 9, and bottom plate | 1 |
|
21 |
029-3825-00 |
Left Panel Assembly |
NSS |
|
22 |
Belt Options | ||
|
|
20211100 | Belt Models - P3, P5, P6, P10 | 1 |
|
|
016-1056-00 | Belt Models - P7, P14 | 1 |
|
23 |
Capacitor Options | ||
|
|
10560900 | Run - 60uF +/-6%, 370VAC, 50/60Hz | 1 |
|
|
10560800 | Start - 295-355uF, 125VAC, 50/60Hz | 1 |
|
24 |
40157300 | Rear Cover | 1 |
|
25 |
Gear Lube - Not Shown | 1 | |
|
26 |
067-0053-02-366 | Touch Up Paint - Brush - Not Shown | 1 |
|
27 |
002-10101-00 | Touch Up-Paint - Aerosol - Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V785000
thru V2162293, 0905P3P1204 thru V2162293, 0902P5P0527 thru V2162293, and 0902P7P0233 thru V2162293
|
Model |
P3 | P5 | P7 | All |
| Serial Number | 0905P3P1204 thru V2162293 | 0902P5P0527 thru V2162293 | 0902P7P0233 thru V2162293 | V785000 thru V2162293 |
| PowerVac® P Vacuum Base Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62700113 | 1/4" -20 Hex Head Bolt | 3 |
|
2 |
62600206 | 1/4" Lock Washer | 3 |
|
3 |
029-3828-00 | Top Cover Assembly | 1 |
|
4 |
002-10927-00 | Motor | 1 |
|
5 |
Motor Mount Assembly Options | ||
| 30193000 | P3 and P5 Motor Mount - Retro Kit | 1 | |
| 30193100 | P7 Motor Mount - Retro Kit | 1 | |
| 10593400 | Idler Pulley Assembly Only | 1 | |
| 002-10753-00 | Tensioner Replacement Kit - includes mounting hardware | 1 | |
|
6 |
002-1851-00 | 1" ID Hose Assembly | 1 |
|
7 |
1" Fitting x 1" NPT | 2 | |
|
8 |
014-0552-01 | Exhaust Check Valve - Twin Units Only | 1 |
|
9 |
002-2091-00 | Sight Glass - Torque to 132 in/lbs | 1 |
|
10 |
MMS72090 | Leveling Feet-Slide | 4 |
|
11 |
029-3826-00 |
Right Panel |
NSS |
|
12 |
BBT20106 | 5/16"-18 x 3/4" Hex Head Bolt | 16 |
|
13 |
3/8"-16 x 1/2" Hex Head Bolt | 12 | |
|
14 |
042-0626-00 | M8 x 10MM Hex Head Bolt | 3 |
|
15 |
016-1059-00 | Casters | 4 |
|
16 |
62977901 | Fastener 1/4 turn | 2 |
|
17 |
65963800 | Tapered pin | 2 |
|
18 |
65959902 | Hex washer head screw #10 x 1/2" | 2 |
|
19 |
029-3751-00 | Front Cover Assembly | 1 |
|
20 |
002-2092-00 | Pump - includes items 7, 9, and bottom plate | 1 |
|
21 |
029-3825-00 |
Left Panel Assembly |
NSS |
|
22 |
Belt Options | ||
|
|
20211100 | Belt Models - P3, P5, P6, P10 | 1 |
|
|
016-1056-00 | Belt Models - P7, P14 | 1 |
|
23 |
Capacitor Options | ||
|
|
10560900 | Run - 60uF +/-6%, 370VAC, 50/60Hz | 1 |
|
|
10560800 | Start - 295-355uF, 125VAC, 50/60Hz | 1 |
|
24 |
40157300 | Rear Cover | 1 |
|
25 |
Gear Lube - Not Shown | 1 | |
|
26 |
067-0053-02-366 | Touch Up Paint - Brush - Not Shown | 1 |
|
27 |
002-10101-00 | Touch Up-Paint - Aerosol -Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

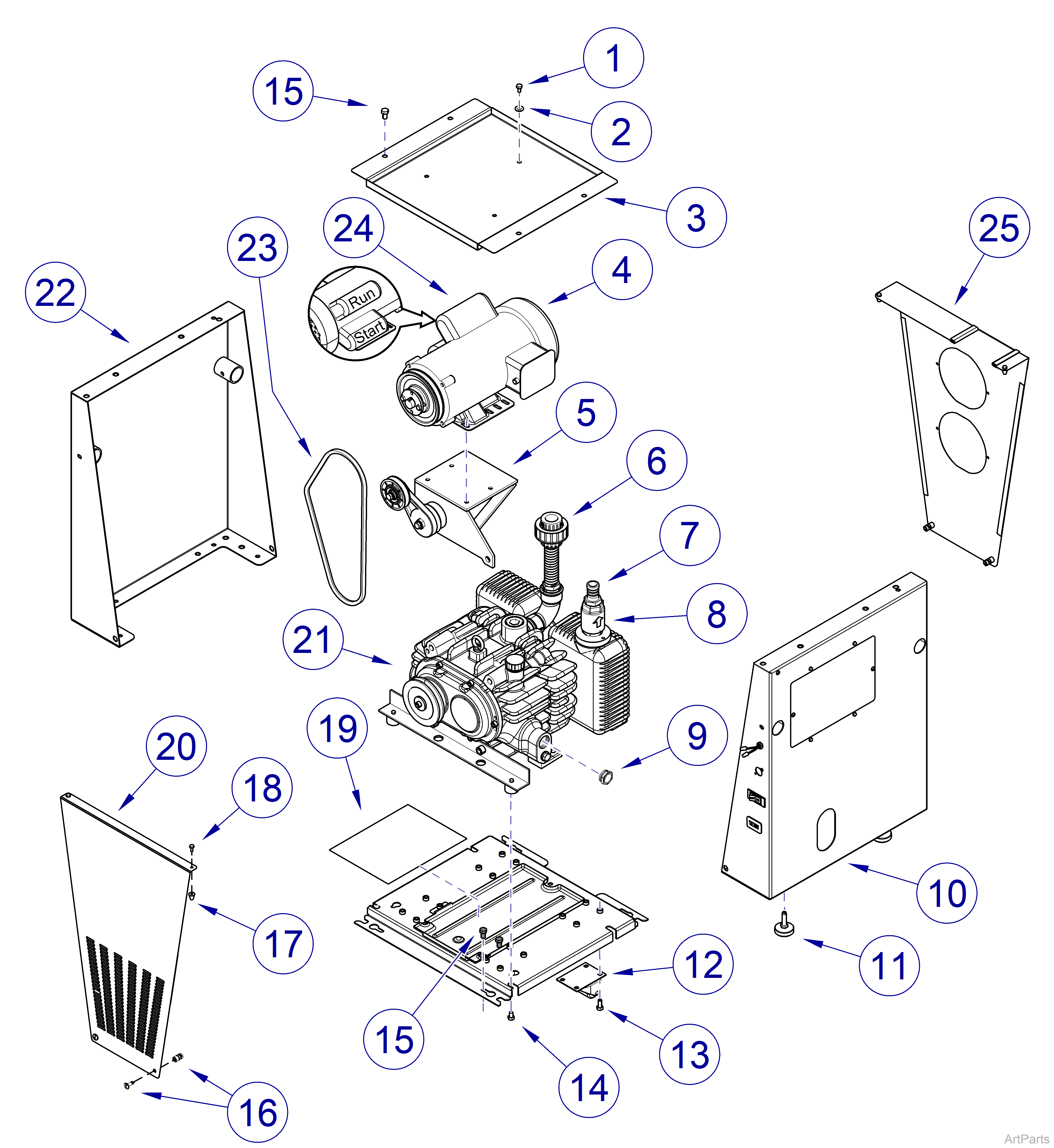

Serial Number Range: V2162294 thru V2604824
|
Model |
All |
| Serial Number | V2162294 thru V2604824 |
| PowerVac® P Vacuum Base Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62700113 | 1/4" -20 Hex Head Bolt | 3 |
|
2 |
62600206 | 1/4" Lock Washer | 3 |
|
3 |
029-3828-00 | Top Cover Assembly | 1 |
|
4 |
002-10927-00 | Motor | 1 |
|
5 |
Motor Mount Assembly Options | ||
| 30193000 | P3 and P5 Motor Mount - Retro Kit | 1 | |
| 30193100 | P7 Motor Mount - Retro Kit | 1 | |
| 10593400 | Idler Pulley Assembly Only | 1 | |
| 002-10753-00 | Tensioner Replacement Kit - includes mounting hardware | 1 | |
|
6 |
002-1851-00 | 1" ID Hose Assembly | 1 |
|
7 |
1" Fitting x 1" NPT | 2 | |
|
8 |
014-0552-01 | Exhaust Check Valve - Twin Units Only | 1 |
|
9 |
002-2091-00 | Sight Glass - Torque to 132 in/lbs | 1 |
|
10 |
029-3826-00 |
Right Panel |
NSS |
|
11 |
MMS72090 | Leveling Feet-Slide | 4 |
|
12 |
016-1059-00 | Casters | 4 |
|
13 |
BBT20106 | 5/16"-18 x 3/4" Hex Head Bolt | 1 |
|
14 |
042-0626-00 | M8 x 10MM Hex Head Bolt | 3 |
|
15 |
3/8"-16 x 1/2" Hex Head Bolt | 12 | |
|
16 |
62977901 | Fastener 1/4 turn | 2 |
|
17 |
65963800 | Tapered pin | 2 |
|
18 |
65959902 | Hex washer head screw #10 x 1/2" | 2 |
|
19 |
054-10049-00 | Adsorbent Pad | 1 |
|
20 |
029-3751-00 | Front Cover Assembly | 1 |
|
21 |
002-2092-00 | Pump - includes item 7, 9, and bottom plate | 1 |
|
22 |
029-3825-00 |
Left Panel Assembly |
NSS |
|
23 |
Belt Options | ||
|
|
20211100 | Belt Models - P3, P5, P6, P10 | 1 |
|
|
016-1056-00 | Belt Models - P7, P14 | 1 |
|
24 |
Capacitor Options | ||
|
|
10560900 | Run - 60uF +/-6%, 370VAC, 50/60Hz | 1 |
|
|
10560800 | Start - 295-355uF, 125VAC, 50/60Hz | 1 |
|
25 |
40157300 | Rear Cover | 1 |
|
26 |
Gear Lube | 1 | |
|
27 |
067-0053-02-366 | Touch Up Paint - Brush | 1 |
|
28 |
002-10101-00 | Touch Up-Paint - Aerosol | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

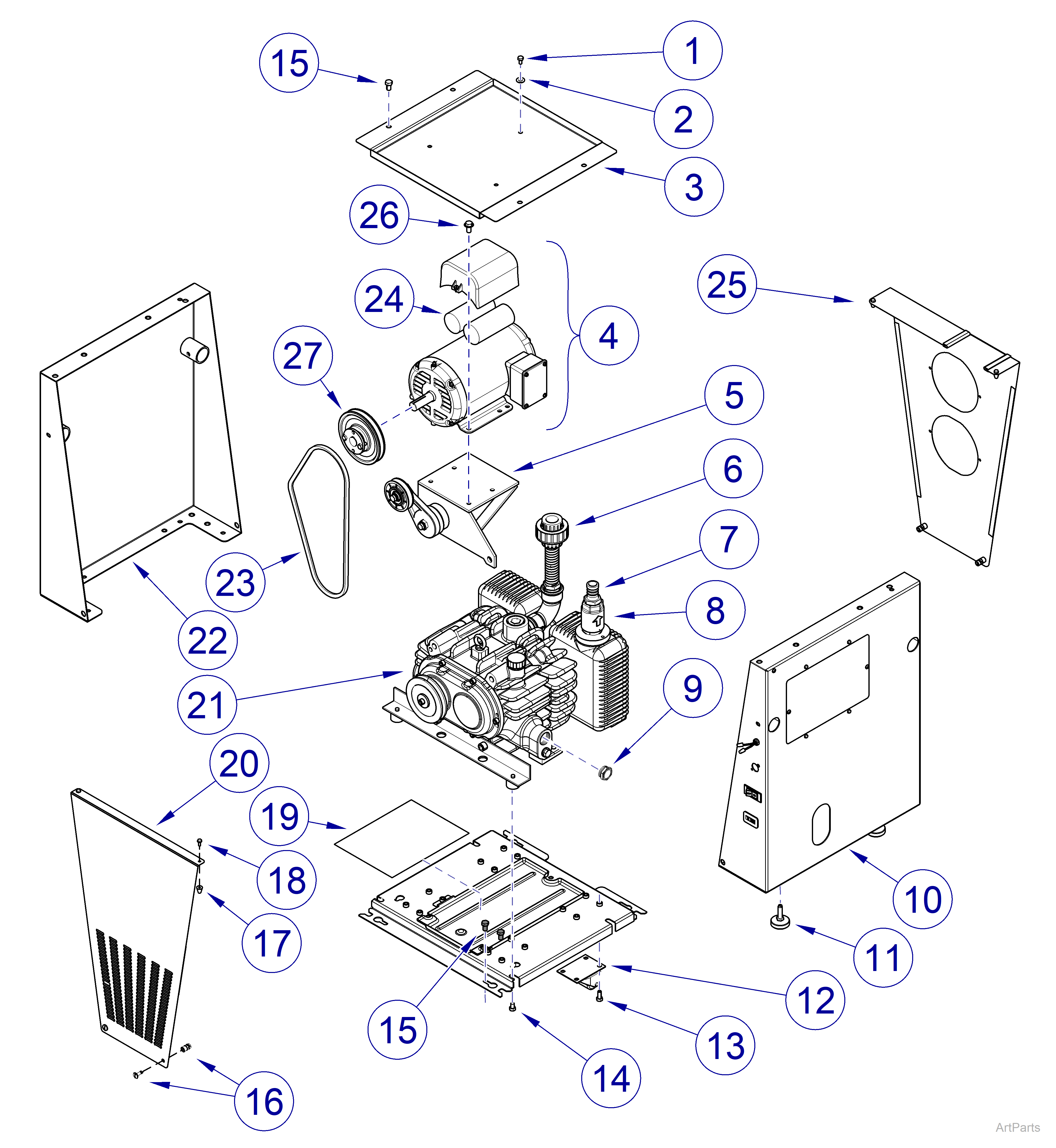

Serial Number Range: V2604825 thru Present
|
Model |
All |
| Serial Number | V2604825 thru Present |
| PowerVac® P Vacuum Base Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
62700113 | 1/4" -20 Hex Head Bolt | 3 |
|
2 |
62600206 | 1/4" Lock Washer | 3 |
|
3 |
029-3828-00 | Top Cover Assembly | 1 |
|
4 |
002-10928-00 | Motor Kit - Includes item 24 | 1 |
|
5 |
Motor Mount Assembly Options | ||
| 30193000 | P3 and P5 Motor Mount - Retro Kit | 1 | |
| 30193100 | P7 Motor Mount - Retro Kit | 1 | |
| 10593400 | Idler Pulley Assembly Only | 1 | |
| 002-10753-00 | Tensioner Replacement Kit - includes mounting hardware | 1 | |
|
6 |
002-1851-00 | 1" ID Hose Assembly | 1 |
|
7 |
1" Fitting x 1" NPT | 2 | |
|
8 |
014-0552-01 | Exhaust Check Valve - Twin Units Only | 1 |
|
9 |
002-2091-00 | Sight Glass - Torque to 132 in/lbs | 1 |
|
10 |
029-3826-00 |
Right Panel |
NSS |
|
11 |
MMS72090 | Leveling Feet-Slide | 4 |
|
12 |
016-1059-00 | Casters | 4 |
|
13 |
BBT20106 | 5/16"-18 x 3/4" Hex Head Bolt | 1 |
|
14 |
042-0626-00 | M8 x 10MM Hex Head Bolt | 3 |
|
15 |
3/8"-16 x 1/2" Hex Head Bolt | 12 | |
|
16 |
62977901 | Fastener 1/4 turn | 2 |
|
17 |
65963800 | Tapered pin | 2 |
|
18 |
65959902 | Hex washer head screw #10 x 1/2" | 2 |
|
19 |
054-10049-00 | Absorbent Pad | 1 |
|
20 |
029-3751-00 | Front Cover Assembly | 1 |
|
21 |
002-2092-00 | Pump - includes item 7, 9, and bottom plate | 1 |
|
22 |
029-3825-00 |
Left Panel Assembly |
NSS |
|
23 |
Belt Options | ||
|
|
20211100 | Belt Models - P3, P5, P6, P10 | 1 |
|
|
016-1056-00 | Belt Models - P7, P14 | 1 |
|
24 |
Capacitor Options | ||
|
|
015-11889-00 |
Run - 30 µF, 370 VAC, 50/60 Hz |
1 |
|
|
015-11888-00 |
Start - 216-259 µF, 250 VAC, 50/60 Hz |
1 |
|
25 |
40157300 | Rear Cover | 1 |
|
26 |
040-0312-86 | 5/16"-18 x 3/4" Hex Head Bolt | 4 |
|
27 |
Motor Pulley | NSS | |
|
28 |
002-10101-00 | Touch Up-Paint - Aerosol | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
