PowerVac® P Vacuum Loose Parts
|
Model |
P3 | P5 | P7 | All |
| Serial Number | 0611P3P0000 thru Present | 0611P5P0000 thru Present | 0611P7P0000 thru Present | V245092 thru V1219385 |

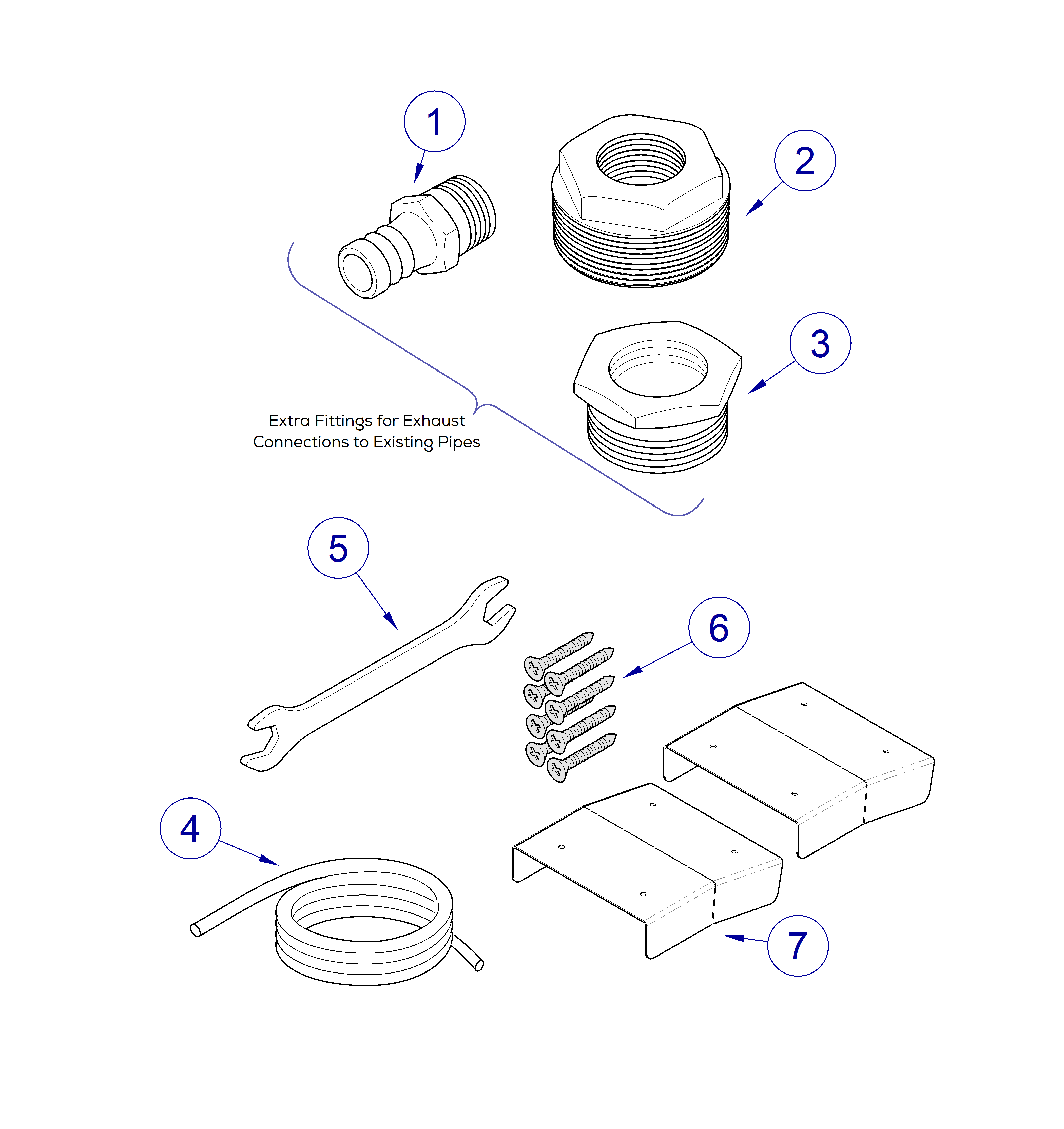

| PowerVac® P Vacuum Loose Parts | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
1" Fitting x 1" MPT | 1 | |
|
2 |
014-0533-00 |
Bushing 1" FPT x 2" MPT | NLA |
|
3 |
62903609 |
Bushing 1" FPT x 1 1/2" MPT | NLA |
|
4 |
20205401 | Hose 1" x 8' Low Pressure EPDM - Exhaust | 1 |
|
5 |
016-1070-00 | Wrench, Twin Open-End 1/2" | 1 |
|
6 |
040-0008-53 |
#8 x 1 1/2" Fl Head PHL Screw | NLA |
|
7 |
050-6730-00 |
Skid Removal Brackets | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
|
Model |
P3 | P5 | P7 |
| Serial Number | V1219386 thru V1648734 | V1219386 thru V1648734 | V1219386 thru V1648734 |
Parts 7 thru 9 no longer available. Order kit # 002-1910-05.

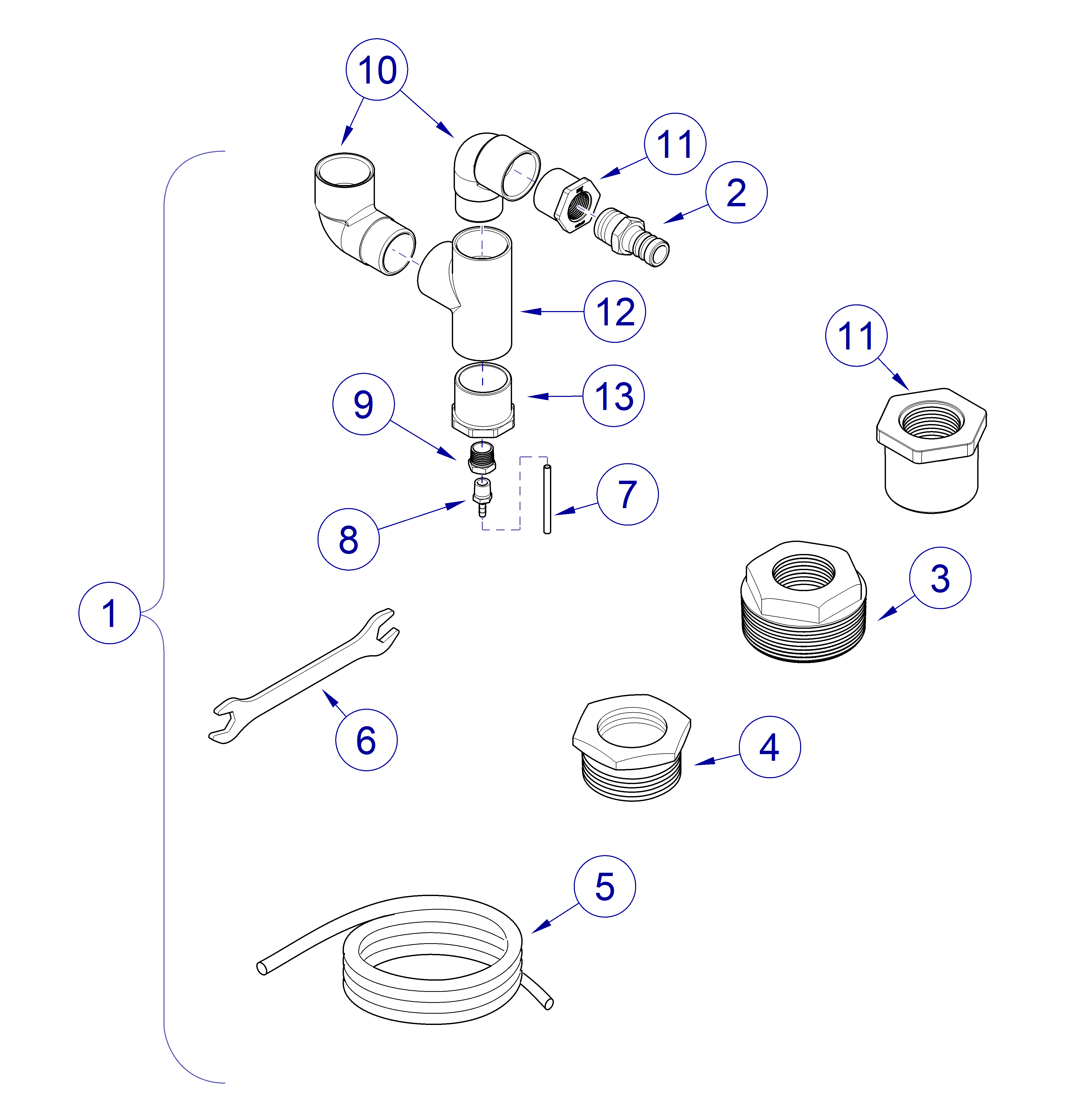

| PowerVac® P Vacuum Loose Parts | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1440-00 | Loose Parts - includes items 1 thru 13 | 1 |
|
2 |
1" Fitting x 1" MPT | 1 | |
|
3 |
014-0533-00 |
Bushing 1" FPT x 2" MPT | NLA |
|
4 |
62903609 |
Bushing 1" FPT x 1 1/2" MPT | NLA |
|
5 |
20205401 | Hose | 1 |
|
6 |
016-1070-00 | Wrench, Twin Open-End 1/2" | 1 |
|
7 |
77000092 |
Poly Flo Tubing | NLA |
|
8 |
014-0282-00 |
Barbed Fitting, Male | NLA |
|
9 |
10589900 |
Reducer, 1/2" NPT- 1/8" NPT | NLA |
|
10 |
014-0724-00 | Elbow, 1.5", PVC, Sch 40 | 2 |
|
11 |
014-0725-00 | Bushing, 1.5" x 1", PVC, Sch 40 | 1 |
|
12 |
014-0616-00 | Tee, 1.5", PVC, Sch 40 | 1 |
|
13 |
014-0549-01 | Bushing, 1.5" x .5", PVC, Sch 40 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
|
Model |
P3 | P5 | P7 |
| Serial Number | V1648735 thru V2162293 | V1648735 thru V2162293 | V1648735 thru V2162293 |
Single models require one vacuum assembly. Twin models require two vacuum assemblies.

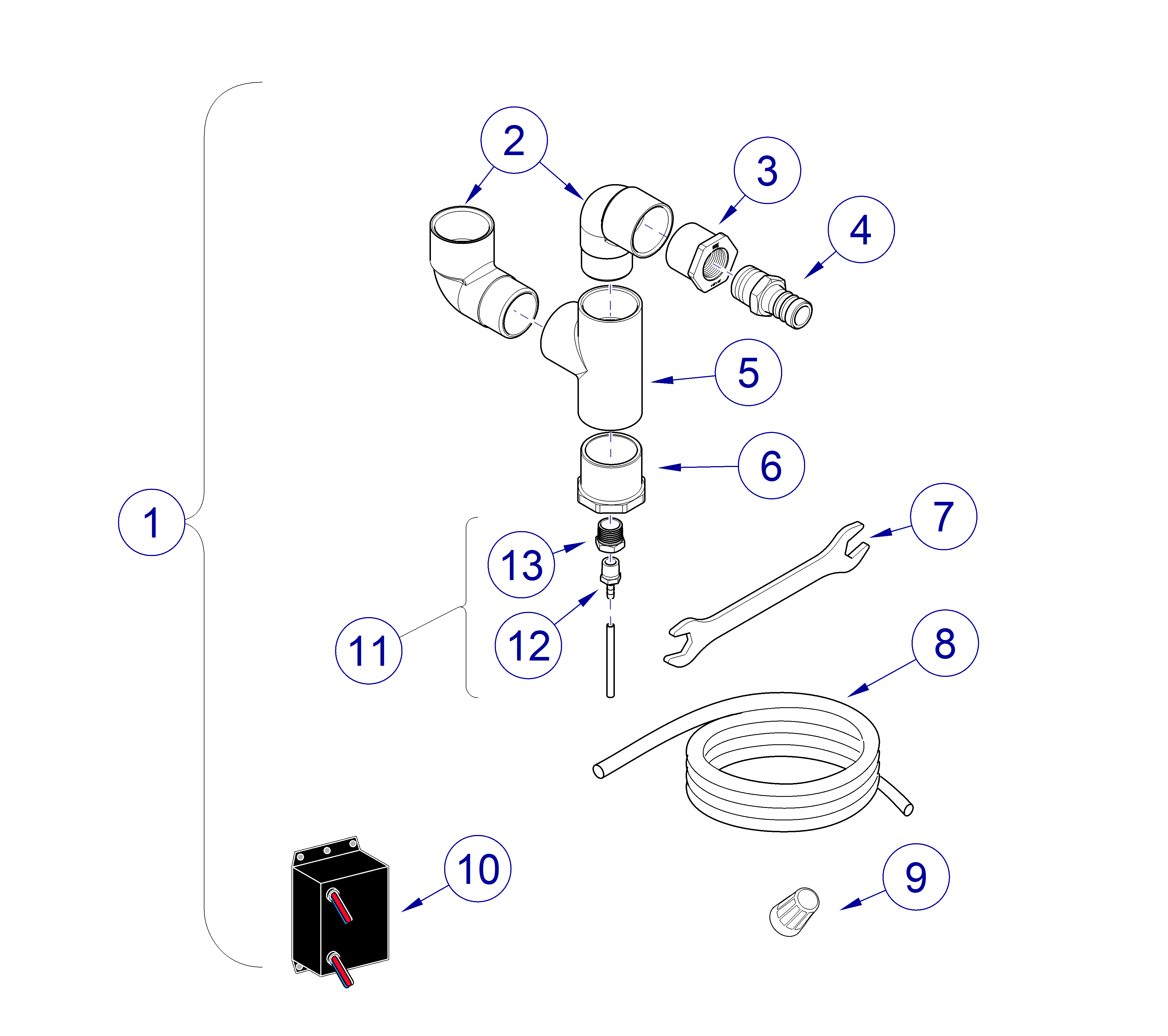

| PowerVac® P Vacuum Loose Parts | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1440-01 | Loose Parts - includes items 1 thru 13 | 1 |
|
2 |
014-0724-00 | Elbow, 1.5", PVC, Sch 40 | 2 |
|
3 |
014-0725-00 | Bushing, 1.5" x 1", PVC, Sch 40 | 1 |
|
4 |
1" Fitting x 1" MPT | 1 | |
|
5 |
014-0616-00 | Tee, 1.5", PVC, Sch 40 | 1 |
|
6 |
014-0549-01 | Bushing, 1.5" x .5", PVC, Sch 40 | 1 |
|
7 |
016-1070-00 | Wrench, Twin Open-End 1/2" | 1 |
|
8 |
20205401 | Hose, Exhaust | 1 |
|
9 |
61945200 | Connector, Wire - Blue | 4 |
|
10 |
Timer PCB Enclosure Kit |
1 | |
|
11 |
3/8" Drain Tube Kit - includes items 12 and 13 | 12 ft | |
|
12 |
Barbed Fitting, Male | 1 | |
|
13 |
Reducer, 1/2" NPT-1/8" NPT | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
|
Model |
P3 | P5 | P7 |
| Serial Number | V2162294 thru Present | V2162294 thru Present | V2162294 thru Present |

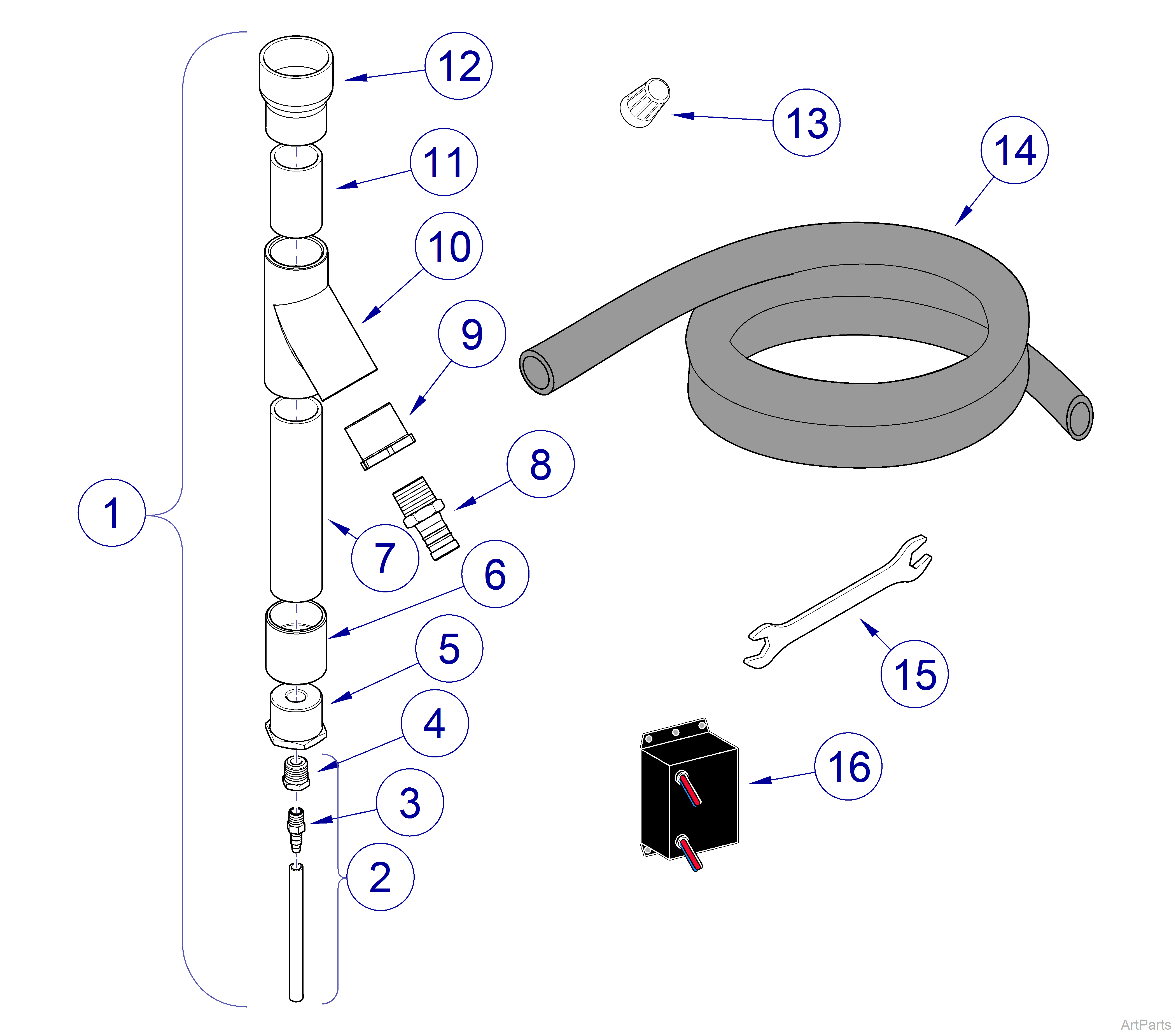

| PowerVac® P Vacuum Loose Parts | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10409-01 | Loose Parts - includes items 1 thru 16 | 1 |
|
2 |
3/8" Drain Tube Kit - includes items 3 and 4 | 12 ft | |
|
3 |
014-0347-00 | Barbed Fitting, 3/8" Male |
1 |
|
4 |
Bushing, 1/2" MNPT x 1/4" FNPT |
1 |
|
|
5 |
014-0549-01 | Reducer, 1 1/2" Pipe x 1/2", FPT, PVC | 1 |
|
6 |
PVC51035 | Coupler 1 1/2" SOC PVC | 1 |
|
7 |
1 1/2" PVC pipe - 8 inches | NLA | |
|
8 |
Adapter 1: HB x 1" MNPT | 1 | |
|
9 |
014-0725-00 | Bushing, 1.5" x 1", PVC, Sch 40 SPIGOT x FNPT | 1 |
|
10 |
014-0564-00 | Fitting 1 1/2" Y Female PVC | 1 |
|
11 |
STK10403 | 1 1/2' PVC Pipe - 3 inches | 1 |
|
12 |
014-0570-00 | Reducer, SOC 2" x 1 1/2" PVC | 1 |
|
13 |
61945200 | Connector, Wire - Blue | 4 |
|
14 |
20205401 | Hose, Exhaust | 1 |
|
15 |
016-1070-00 | Wrench, Twin Open-End 1/2" | 1 |
|
16 |
Timer PCB Enclosure Kit |
1 |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
