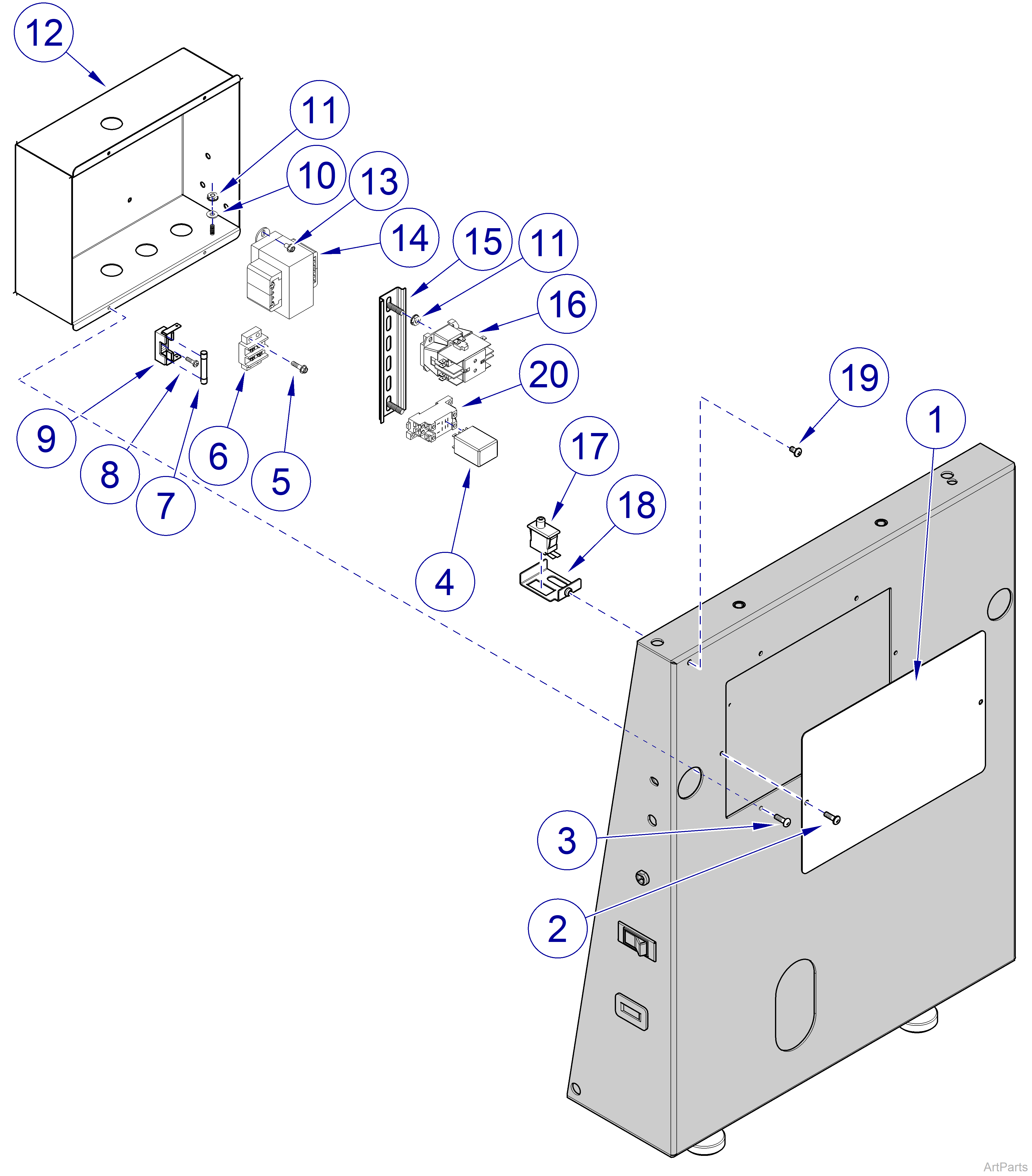

PowerVac® P Electrical Box Assembly
Serial Number Range: V245092 to V317654, V245092 to V317641 and V245092 to V317634
|
Model |
P3 | P5 | P7 |
| Serial Number | V245092 to V317654 | V245092 to V317641 | V245092 to V317634 |
Single models require one vacuum assembly. Twin models require two vacuum assemblies.
| PowerVac® P Electrical Box Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3802-00 | Electrical Cover | 1 |
|
2 |
62502424 | #10 -24 x 3/8 Pan Head Screw | 2 |
|
3 |
040-0010-109 | #8 x 3/8 Serrated Head Metal Screw | 4 |
|
4 |
015-2018-00 | Relay DPDT, General Purpose | 1 |
|
5 |
62503802 | Screw #8-32 x 5/8" | 2 |
|
6 |
ECC10251 | Terminal Block | 1 |
|
7 |
015-0346-36 | Fuse 1/8A, 1/4 X 1-1/4, Type T SLO-BLO | 1 |
|
8 |
040-0006-80 | Screw | 1 |
|
9 |
015-1534-00 | Fuseblock, 1/4in X 1-1/4in FUSE | 1 |
|
10 |
045-0001-31 | Lock washer | 1 |
|
11 |
122357 | Nut Keps 10/32 | 5 |
|
12 |
050-6564-00-312 |
Electrical Box |
NSS |
|
13 |
62503801 | Screw #8-32 x 5/16" | 2 |
|
14 |
Transformer, 240V, 50/60 HZ | 1 | |
|
15 |
Din-3 Rail, 5.8" | 1 | |
|
16 |
Contactor with Raised Electrical Cover |
1 |
|
|
17 |
015-1055-00 | Door Limit Switch | 1 |
|
18 |
050-6581-00-312 | Mounting Bracket - Limit Switch | 1 |
|
19 |
040-0010-159 | #10-24 x 5/8 Pan Head Type "TT" | 1 |
|
20 |
015-2020-00 | Track, Mount, DPDT Relay Socket | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V785000 thru V2106538, 0611P3P0000 thru V2106538, 0611P5P0000 thru V2106538, and 0611P7P0000 thru V2106538
|
Model |
P3 | P5 | P7 | All |
| Serial Number | 0611P3P0000 thru V2106538 | 0611P5P0000 thru V2106538 | 0611P7P0000 thru V2106538 | V785000 thru V2106538 |
Single models require one vacuum assembly. Twin models require two vacuum assemblies.
| PowerVac® P Electrical Box Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3802-00 | Electrical Cover | 1 |
|
2 |
62502424 | #10 -24 x 3/8 Pan Head Screw | 2 |
|
3 |
040-0010-109 | #8 x 3/8 Serrated Head Metal Screw | 4 |
|
4 |
015-2018-00 | Relay DPDT, General Purpose | 1 |
|
5 |
62503802 | Screw #8-32 x 5/8" | 2 |
|
6 |
ECC10251 | Terminal Block | 1 |
|
7 |
015-0346-36 | Fuse 1/8A, 1/4 X 1-1/4, Type T SLO-BLO | 1 |
|
8 |
62502416 | Screw | 1 |
|
9 |
015-1534-00 | Fuseblock, 1/4in X 1-1/4in FUSE | 1 |
|
10 |
045-0001-31 | Lock Washer | 1 |
|
11 |
122357 | Nut Keps 10/32 | 5 |
|
12 |
050-6564-00-312 |
Electrical Box |
NSS |
|
13 |
62503801 | Screw #8-32 x 5/16" | 2 |
|
14 |
Transformer, 240V, 50/60 HZ | 1 | |
|
15 |
62964303 | Din-3 Rail, 5.8" | 1 |
|
16 |
Contactor with Raised Electrical Cover |
1 |
|
|
17 |
015-1055-00 | Door Limit Switch | 1 |
|
18 |
050-6581-00-312 | Mounting Bracket - Limit Switch | 1 |
|
19 |
040-0010-159 | #10-24 x 5/8 Pan Head Type "TT" | 1 |
|
20 |
015-2020-00 | Track, Mount, DPDT Relay Socket | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

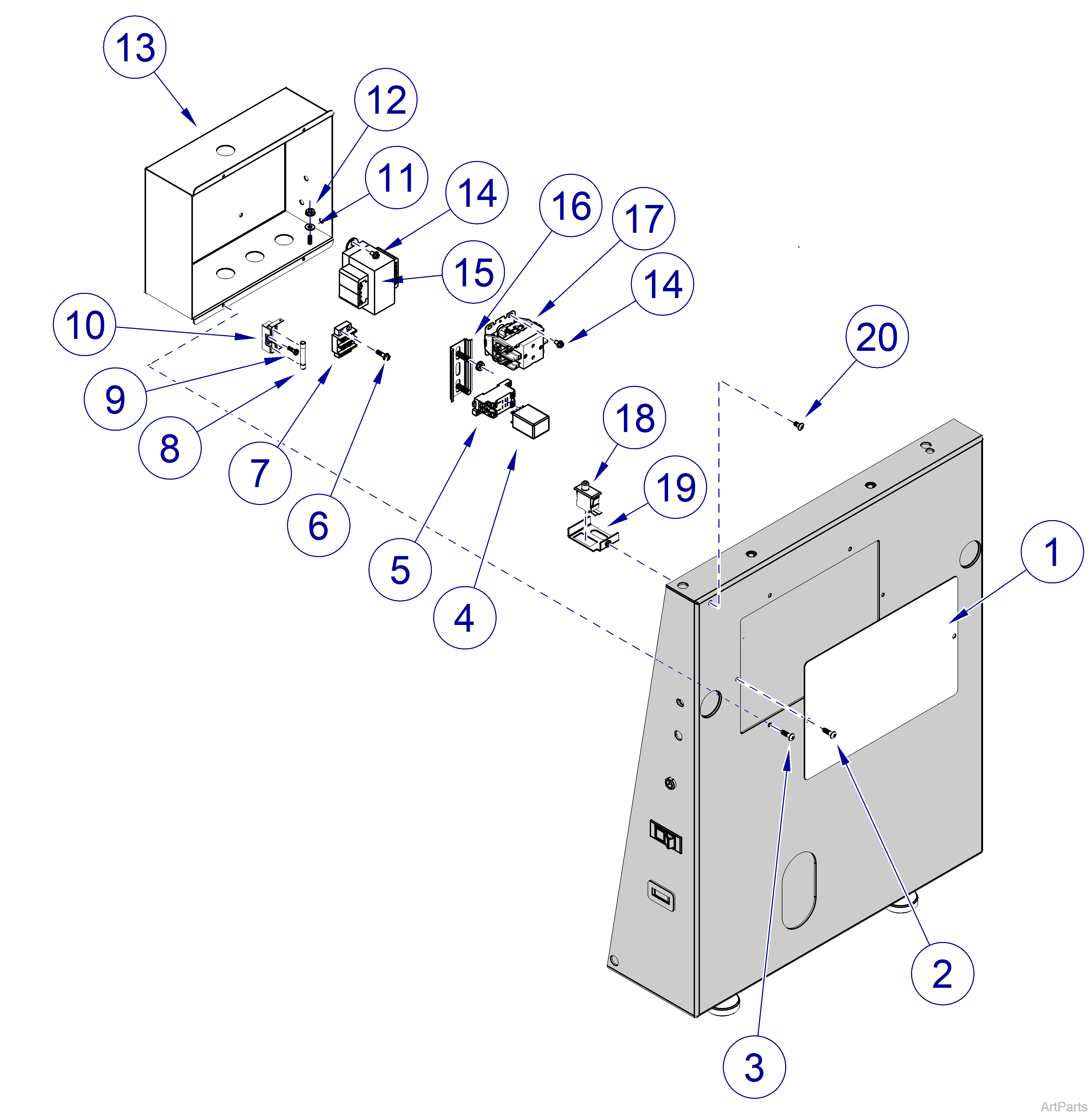

Serial Number Range: V2106539 thru V2708697
|
Model |
P3 | P5 | P7 |
| Serial Number | V2106539 thru V2708697 | V2106539 thru V2708697 | V2106539 thru V2708697 |
Single models require one vacuum assembly. Twin models require two vacuum assemblies.
| PowerVac® P Electrical Box Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3802-00 | Electrical Cover | 1 |
|
2 |
62502424 | #10 -24 x 3/8 Pan Head Screw | 2 |
|
3 |
040-0010-109 | #8 x 3/8 Serrated Head Metal Screw | 4 |
|
4 |
015-2018-00 | Relay DPDT, General Purpose | 1 |
|
5 |
015-2020-00 | Track, Mount, DPDT Relay Socket | 1 |
|
6 |
62503802 | Screw #8-32 x 5/8" | 2 |
|
7 |
ECC10251 | Terminal Block | 1 |
|
8 |
015-0346-36 | Fuse 1/8A, 1/4 X 1-1/4, Type T SLO-BLO | 1 |
|
9 |
62502416 | Screw | 1 |
|
10 |
015-1534-00 | Fuseblock, 1/4in X 1-1/4in FUSE | 1 |
|
11 |
045-0001-31 | Lock washer | 1 |
|
12 |
122357 | Nut Keps 10/32 | 5 |
|
13 |
050-6564-00-312 |
Electrical Box |
NSS |
|
14 |
62503801 | Screw #8-32 x 5/16" | 2 |
|
15 |
Transformer, 240V, 50/60 HZ | 1 | |
|
16 |
62964305 | Din-3 Rail | 1 |
|
17 |
002-10497-00 | Contactor | 1 |
|
18 |
015-1055-00 | Door Limit Switch | 1 |
|
19 |
050-6581-00-312 | Mounting Bracket - Limit Switch | 1 |
|
20 |
040-0010-159 | #10-24 x 5/8 Pan Head Type "TT" | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2708698 thru Present
|
Model |
P3 | P5 | P7 |
| Serial Number | V2708698 thru Present | V2708698 thru Present | V2708698 thru Present |
Single models require one vacuum assembly. Twin models require two vacuum assemblies.
| PowerVac® P Electrical Box Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3802-00 | Electrical Cover | 1 |
|
2 |
62502424 | #10 -24 x 3/8 Pan Head Screw | 2 |
|
3 |
040-0010-109 | #8 x 3/8 Serrated Head Metal Screw | 4 |
|
4 |
015-2018-00 | Relay DPDT, General Purpose | 1 |
|
5 |
015-2020-00 | Track, Mount, DPDT Relay Socket | 1 |
|
6 |
62503802 | Screw #8-32 x 5/8" | 2 |
|
7 |
ECC10251 | Terminal Block | 1 |
|
8 |
015-0346-36 | Fuse 1/8A, 1/4 X 1-1/4, Type T SLO-BLO | 1 |
|
9 |
62502416 | Screw | 1 |
|
10 |
015-1534-00 | Fuseblock, 1/4in X 1-1/4in FUSE | 1 |
|
11 |
045-0001-31 | Lock washer | 1 |
|
12 |
122357 | Nut Keps 10/32 | 5 |
|
13 |
050-6564-00-312 |
Electrical Box |
NSS |
|
14 |
62503801 | Screw #8-32 x 5/16" | 2 |
|
15 |
015-10531-01 | Transformer, 240V, 50/60 HZ | 1 |
|
16 |
62964305 | Din-3 Rail | 1 |
|
17 |
002-10497-00 | Contactor | 1 |
|
18 |
015-1055-00 | Door Limit Switch | 1 |
|
19 |
050-6581-00-312 | Mounting Bracket - Limit Switch | 1 |
|
20 |
040-0010-159 | #10-24 x 5/8 Pan Head Type "TT" | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
