PowerVac® P Lid Assembly

Single models require one separator assembly. Twin models require two separator assemblies.

Earlier versions had Three Reed Switch Floats. The Middle Float was for the Liquid Evac Pump Option. If you have a Liquid Evac Pump connected to the PowerVac you must replace float with a Three Reed Switch Float Assembly. If there is no Evac Pump connected to the PowerVac, you can replace the float with a Two Reed Switch Float Assembly.

Model

 P3 P5 P7
Serial Number V245092 thru V975824 and 0611P3P0000 thru Present V245092 thru V975824 and 0611P5P0000 thru Present V245092 thru V975824 and 0611P7P0000 thru Present

PowerVac® P Separator
Item Part Number Description Qty

1

 Vacuum Relief Valve Options - Twin Unit location is on Tee Assembly


002-10529-00

Valve with Filter Kit 1
  77007079 Filter Only 1

2

 014-0550-00 Gauge Vac 2" x 1/4" NPT 1

3

   Replace with 029-5144-00 NLA

4

 029-3860-00 Wash Down Fitting 1

5

 015-2067-00 Float Assembly 1

6

 029-3862-00 Bulkhead Assembly w/ 45 1

7

   Bracket NLA

8

 014-0512-00 Pipe Nipple 1-1/2" NPT 1

9

 014-0515-00 Elbow 90, 1-1/2" NPT 1

10

 014-0501-00 Bulkhead Fitting 1-1/2" 1

11

 029-3859-00 Tee Fitting 1

12

 014-0540-00 Cap - Twin Units Only 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

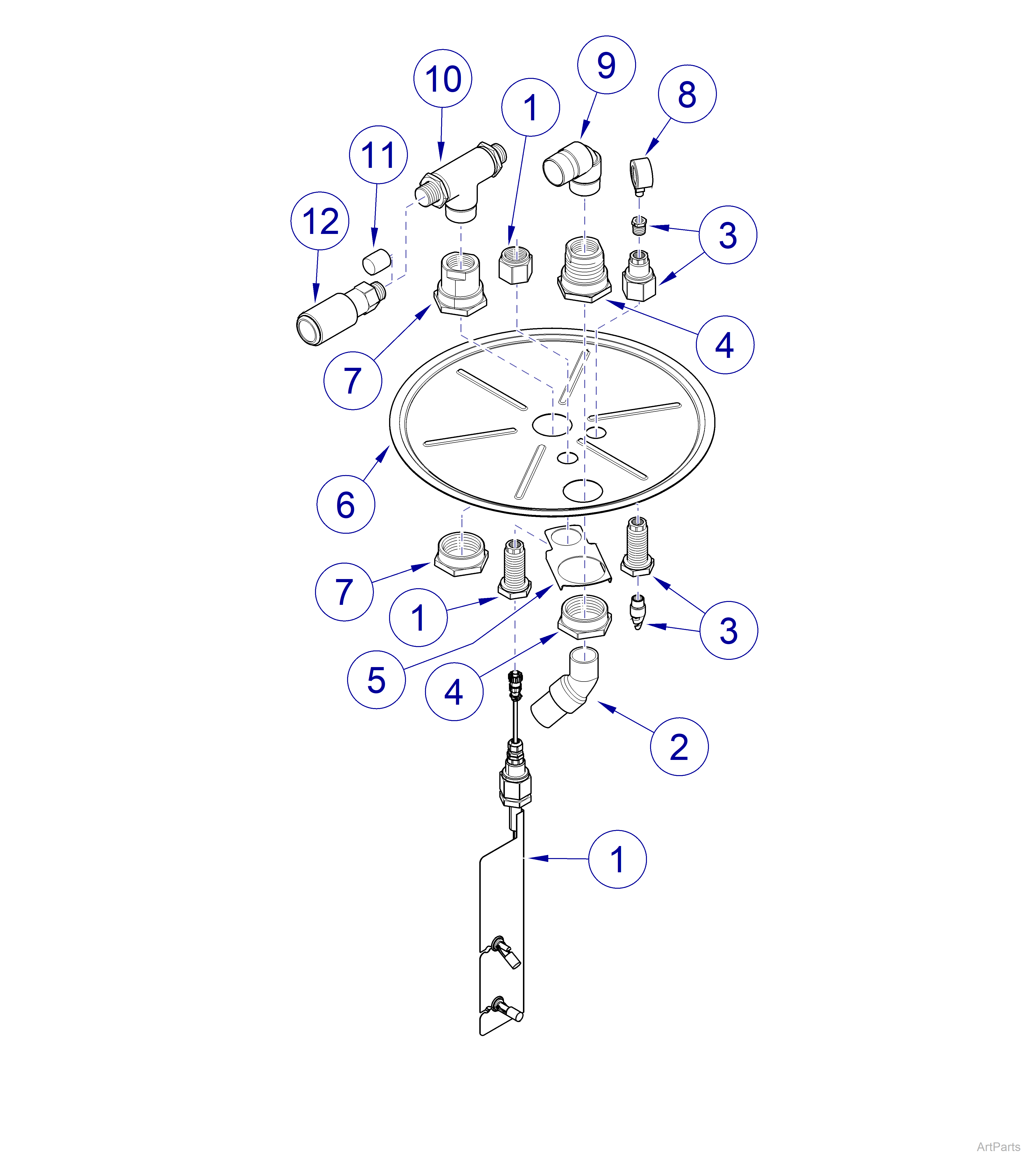

Model

 P3 P5 P7
Serial Number V975825 to V1465490 V975825 to V1465490 V975825 to V1465490

PowerVac® P Separator
Item Part Number Description Qty

1

 002-1448-00 Float Assembly 1

2

 029-3862-00 Bulkhead Assembly w/ 45 1

3

 029-3860-00 Wash Down Fitting 1

4

 014-0512-00 Pipe Nipple 1-1/2" NPT 1

5

 050-7984-00 Bracket 1

6

050-7981-00-312

 Separator Lid

NLA

7

 014-0501-00 Bulkhead Fitting 1-1/2" 1

8

 014-0550-00 Gauge Vac 2" x 1/4" NPT 1

9

 014-0515-00 Elbow 90, 1-1/2" NPT 1

10

 029-3859-00 Tee Fitting 1

11

 014-0540-00 Cap - Twin Units Only 1

12

 Vacuum Relief Valve Options - Twin Unit location is on Tee Assembly


002-10529-00

Valve Assembly with Filter Kit 1
  77007079 Filter Only 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

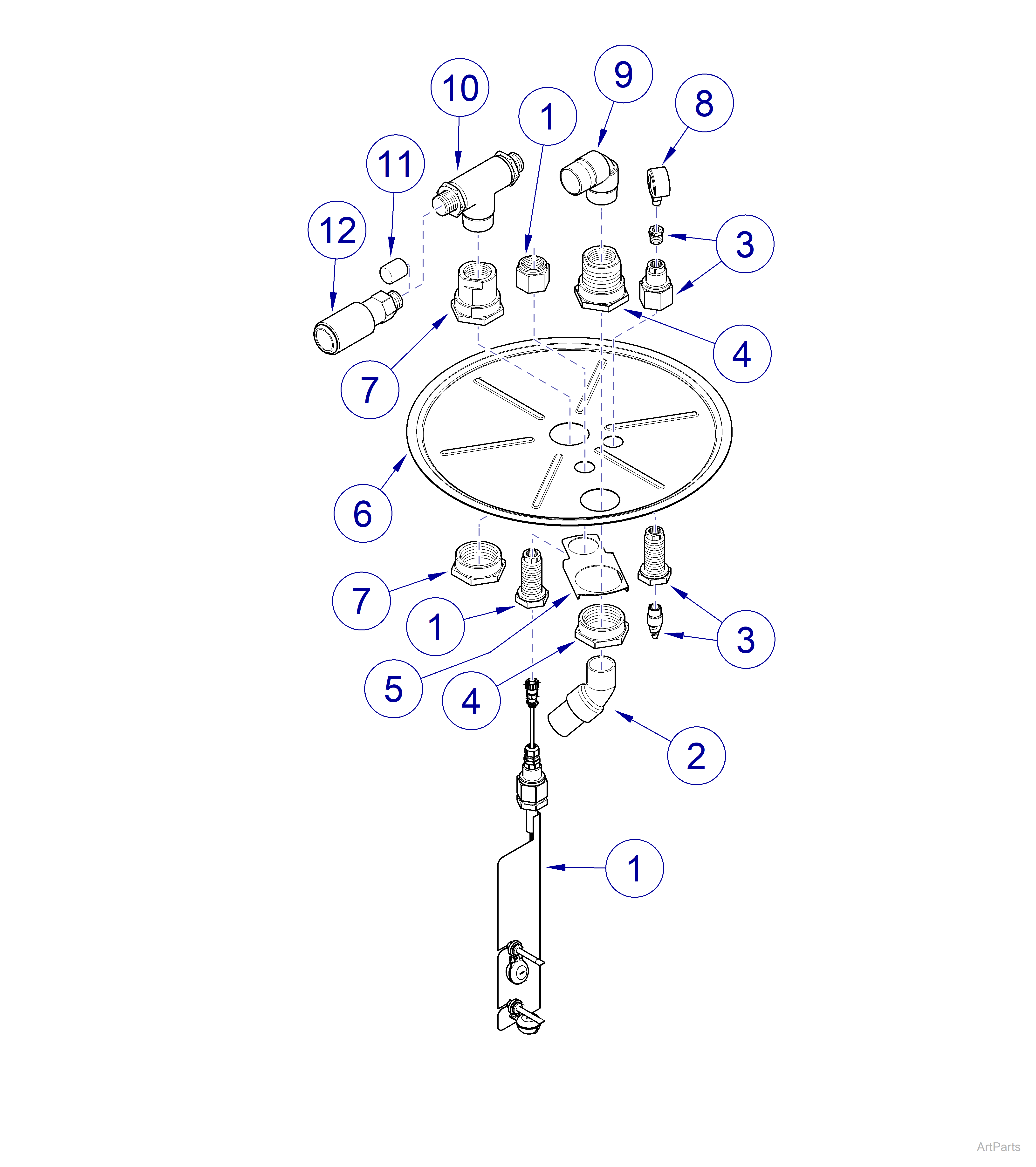

Model

 P3 P5 P7
Serial Number V1465491 to V2618432 V1465491 to V2618432 V1465491 to V2618432

Beginning Serial Number Label on Separator Tanks

PowerVac® P Separator
Item Part Number Description Qty

1

 002-1448-00 Float Assembly 1

2

 029-3862-00 Bulkhead Assembly w/ 45 1

3

 029-3860-00 Wash Down Fitting 1

4

 014-0512-00 Pipe Nipple 1-1/2" NPT 1

5

 050-7984-00 Bracket 1

6

050-7981-00-312

 Separator Lid

NLA

7

 014-0501-00 Bulkhead Fitting 1-1/2" 1

8

 014-0550-00 Gauge Vac 2" x 1/4" NPT 1

9

 014-0515-00 Elbow 90, 1-1/2" NPT 1

10

 029-3859-00 Tee Fitting 1

11

 014-0540-00 Cap - Twin Units Only 1

12

 Vacuum Relief Valve Options - Twin Unit location is on Tee Assembly


002-10529-00

Valve Assembly with Filter Kit 1
  77007079 Filter Only 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

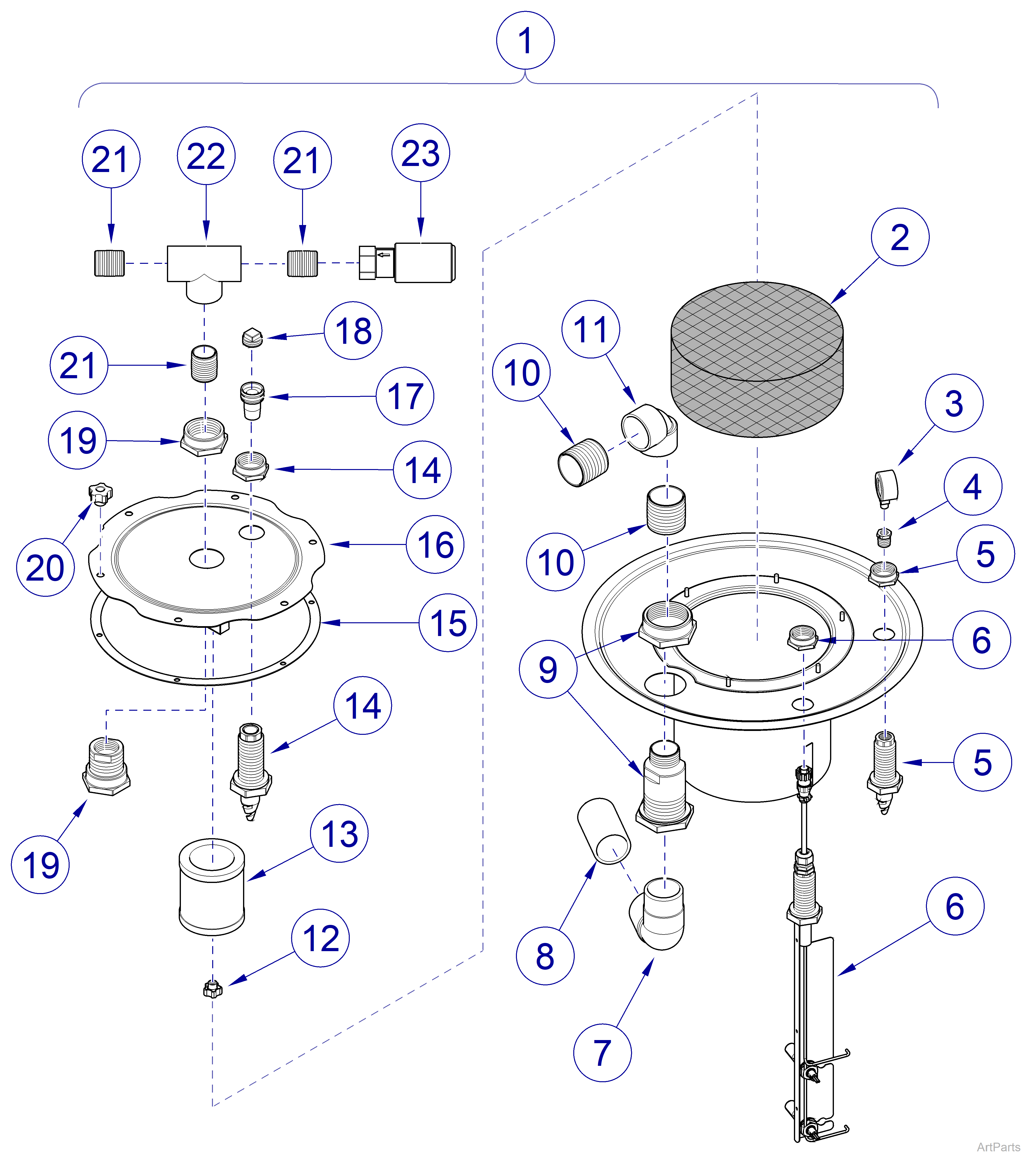

Model

 P3 P5 P7
Serial Number V2618433 toV2875785 V2618433 to V2875785 V2618433 to V2875785

Beginning Serial Number Label on Separator Tanks

Item 2 demister not required.

PowerVac® P Separator
Item Part Number Description Qty

1

002-10963-00

Separator Lid Kit - includes items 2 thru 22

 1
2

014-10253-00

 Demister

NLA

3 014-0550-00 Vacuum Gauge 1
4 014-0699-00 Reducer, 1/2 X 1/4 NPT, PVC 1
5 029-3860-00 Wash Down Fitting Assembly - includes item 4 1
6 002-1448-00 Float Assembly 1
7 014-0724-00 Elbow, 1.5", PVC, SCH40, SCKW 1
8 STK10403 PVC Pipe, 1-1/2" SCH 40, 3 L 1
9 014-0501-00 Bulkhead Fitting 1-1/2" 1
10 014-0512-00 Nipple, Close, PVC, SCH80, 1 1/2" NPT 2
11 014-0515-00 Elbow, 90, PVC, SCH80, 1 1/2" NPT 1
12 016-10445-00 Knob, Threaded Stud 1/4-20 MNPT 1
13 002-10972-00 Filter 1
14 029-5196-00 Wash Down Fitting Assembly 1
15 053-10639-00 Gasket, Separator Filter Lid 1
16 030-10473-00 Filter Lid 1
17 014-0530-00 Garden Hose Adapter 1
18 016-10239-00 Plug, 3/4" GHT Brass 1
19 014-10254-00 Bulkhead Fitting, PVC, 1" 1
20 016-10437-00 Knob, 1/4-20 FNPT Through Hole 6
21 014-0516-00 Nipple, Close, PVC, SCH80, 1" NPT 3
22 014-10255-00 Tee, PVC, SCH80, 1" NPT 1
23 002-10529-00 Vacuum Relief Valve Assembly 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

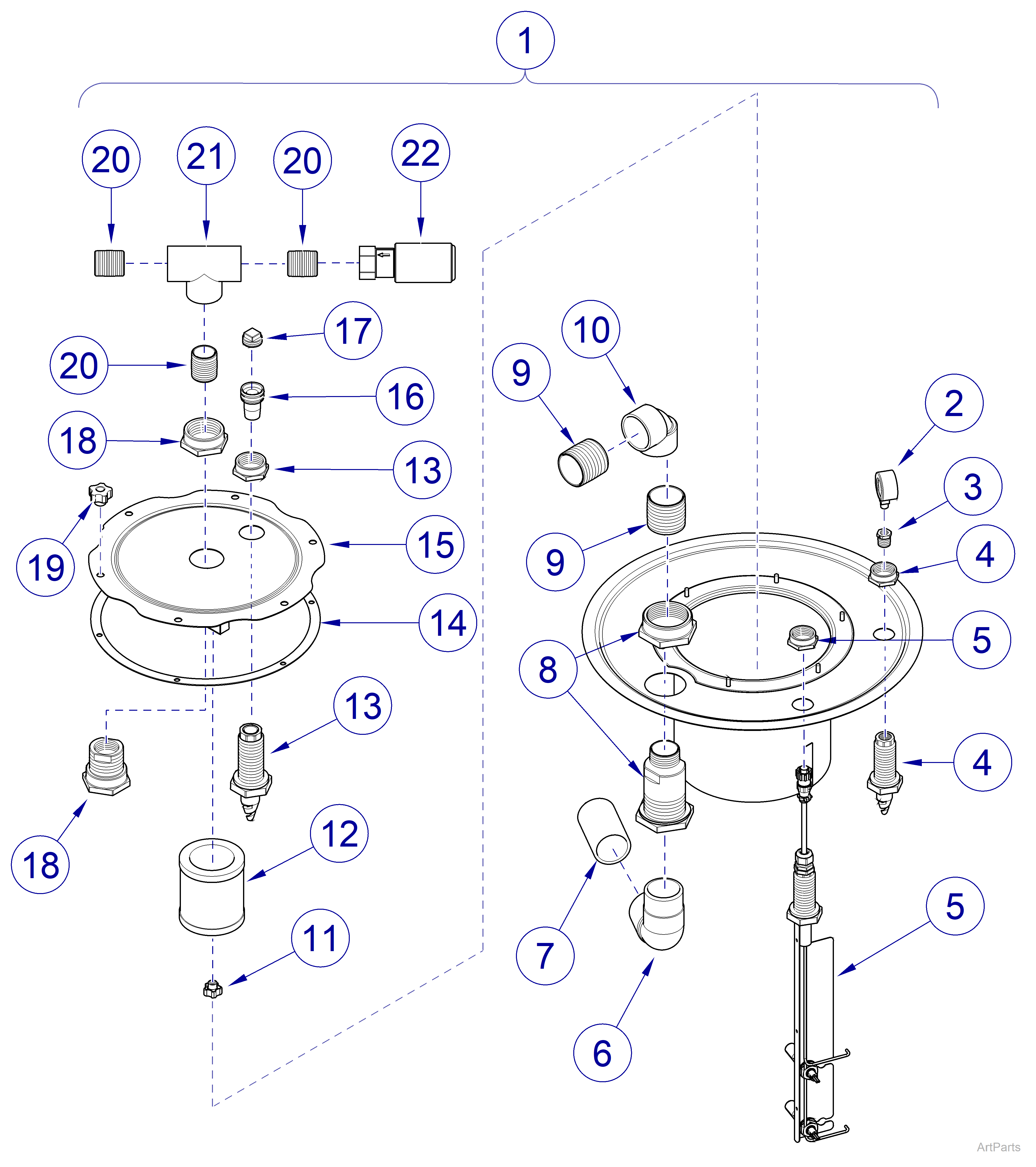

Model

 P3 P5 P7
Serial Number V2875786 to Present V2875786 to Present V2875786 to Present

Beginning Serial Number Label on Separator Tanks

PowerVac® P Separator
Item Part Number Description Qty

1

002-10963-00

Separator Lid Kit - includes items 2 thru 22

 1

2

 014-0550-00 Vacuum Gauge 1

3

 014-0699-00 Reducer, 1/2 X 1/4 NPT, PVC 1

4

 029-3860-00 Wash Down Fitting Assembly - includes item 4 1

5

 002-1448-00 Float Assembly 1

6

 014-0724-00 Elbow, 1.5", PVC, SCH40, SCKW 1

7

 STK10403 PVC Pipe, 1-1/2" SCH 40, 3 L 1

8

 014-0501-00 Bulkhead Fitting 1-1/2" 1

9

 014-0512-00 Nipple, Close, PVC, SCH80, 1 1/2" NPT 2

10

 014-0515-00 Elbow, 90, PVC, SCH80, 1 1/2" NPT 1

11

 016-10445-00 Knob, Threaded Stud 1/4-20 MNPT 1

12

 002-10972-00 Filter 1

13

 029-5196-00 Wash Down Fitting Assembly 1

14

 053-10639-00 Gasket, Separator Filter Lid 1

15

 030-10473-00 Filter Lid 1

16

 014-0530-00 Garden Hose Adapter 1

17

 016-10239-00 Plug, 3/4" GHT Brass 1

18

 014-10254-00 Bulkhead Fitting, PVC, 1" 1

19

 016-10437-00 Knob, 1/4-20 FNPT Through Hole 6

20

 014-0516-00 Nipple, Close, PVC, SCH80, 1" NPT 3

21

 014-10255-00 Tee, PVC, SCH80, 1" NPT 1

22

 002-10529-00 Vacuum Relief Valve Assembly 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
