Midmark® Smart Air Compressor Heads

Model

 P21-050 P22-050 P32-050
Serial Number V2200 thru Present V2200 thru Present V2200 thru Present

PowerAir Compressor Heads

Rebuild kit parts can not be ordered separately.

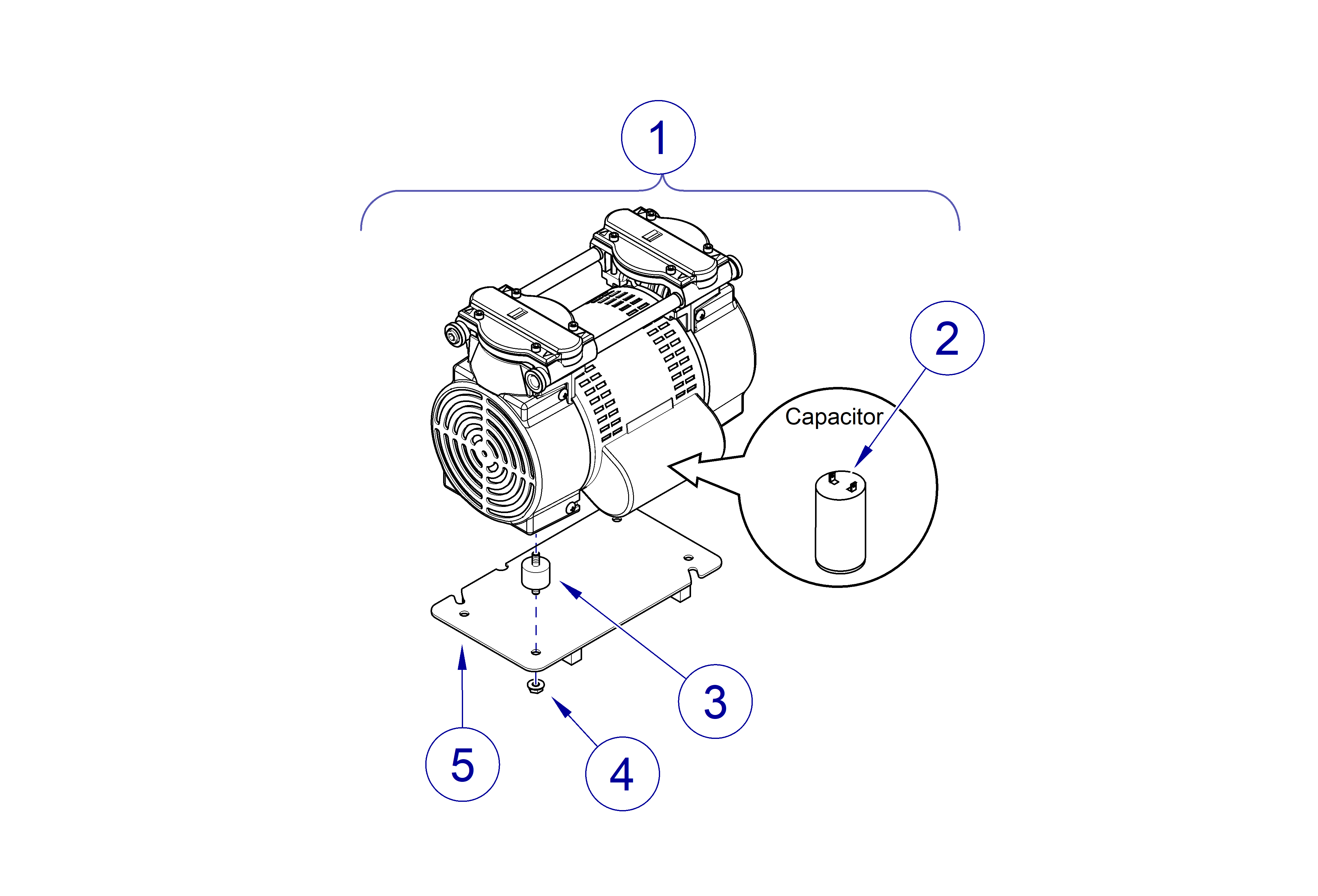

Midmark® Smart Air Compressor Compressor Heads
Item Part Number Description Qty

1

 Compressor Head Replacement Options - includes items 2 thru 4
  002-11044-00 P21, 115V 1
  002-11043-00 P22 and P32, 230V 1

2

 Capacitor Options
  015-10001-00 115 VAC Models 1
  015-10002-00 230 VAC Models 1

3

 77007027 Mounting Feet 4

4

 041-0250-13 1/4-20 Hex Flange Nut 4
5 050-12787-00-312 Mounting Plate 1
6 ACA86075 Compressor Head Rebuild Kit - Not shown 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 P52-050 P72-050
Serial Number V2200 thru Present V2200 thru Present

PowerAir Compressor Heads

Replacement parts are per Compressor Head.

Midmark® Smart Air Compressor Compressor Heads
Item Part Number Description Qty

1

 77001562 Circuit Breaker, 11 AMP 1

2

 62400302 Hex Nut M8 x 1 1/4 inch 3

3

 62600207 Lock Washer 5/16 inch 3

4

 62600117 Flat Washer 5/16 inch 3

5

 77001546 Mounts - pkg of 3 1

6

 Compressor Head Options
  77001544 P52 2
  77001544 P72 3

7

 002-10562-00 Fan and Cover Kit, Hardware Not Included 1

8

 002-10261-00 Hose Replacment Kit 1

9

 77001541 Intake Air Filter 2

10

 014-0736-00 Air Intake Nipple 2

11

 77001448 Start Capacitor 1

12

 77001450 Reed Valve Kit - Includes items 12 thru 16 1

13

   Thin Teflon Gasket NSS

14

   Valve Plate Assembly NSS

15

   Thick Teflon Gasket NSS

16

   Spacer Plate NSS

17

   Small O-Ring NSS

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
