Midmark® Smart Air Compressor Installation Kit
P21, P22, and P32
Serial Number Range: V2200 thru Present
|
Model |
P21-050 | P22-050 | P32-050 |
| Serial Number | V2200 thru Present | V2200 thru Present | V2200 thru Present |

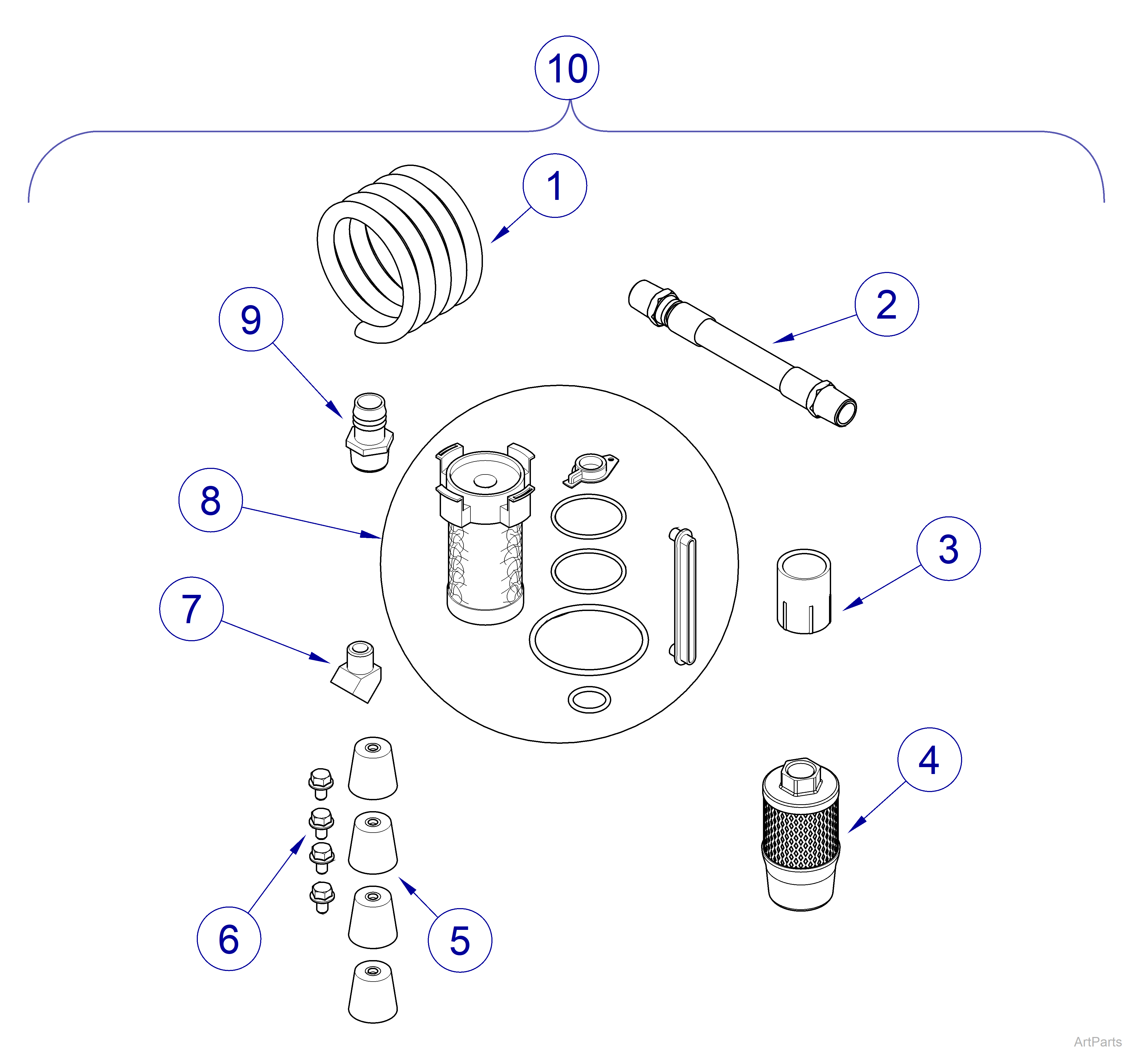

| Midmark® Smart Air Compressor Installation Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Flexible PVC Hose Options | ||
| 62963203 | 3/4 inch diameter per inch | AR | |
| 62963203-2 | 3/4 inch diameter x 120 inch | NSS | |
|
2 |
Operatory High Pressure Hose Assembly | 1 | |
|
3 |
62945400 | Female Adapter 1 inch ID x 1 inch NPT | 1 |
|
4 |
62983300 | Exhaust Silencer | 1 |
|
5 |
Rubber Foot | 4 | |
|
6 |
040-0312-00 | Bolt 5/16-18 x 1/2 inch | 4 |
|
7 |
62900106 | Elbow, 45 Deg Street 1/2 inch NPT | 1 |
|
8 |
014-10235-00 | Coalescing Filter Maintenance Kit | 1 |
|
9 |
61900912 | Connector 3/4 inch Hose x 1 inch MPT | 1 |
|
10 |
Installation Kit - includes items 1 thru 9 | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
P52 and P72
Serial Number Range: V2200 thru Present
|
Model |
P52-050 | P72-050 |
| Serial Number | V2200 thru Present | V2200 thru Present |
| Midmark® Smart Air Compressor Installation Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Flexible PVC Hose Options | ||
| 62963202 | 1 inch diameter per inch | AR | |
|
62963202-1 |
1 inch diameter x 120 inch |
NSS |
|
|
2 |
Operatory High Pressure Hose Assembly | 1 | |
|
3 |
62945400 | Female Adapter 1 inch ID x 1 inch NPT | 1 |
|
4 |
62983300 | Exhaust Silencer | 1 |
|
5 |
MRP70967 | Rubber Foot | 4 |
|
6 |
040-0312-00 | Bolt 5/16-18 x 1/2 inch | 4 |
|
7 |
62900106 | Elbow, 45 Deg Street 1/2 inch NPT | 1 |
|
8 |
014-10235-00 | Coalescing Filter Maintenance Kit | 1 |
|
9 |
62945200 | Male Adapter 1 inch Hose x 1 inch NPT | 1 |
|
10 |
Installation Kit - includes items 1 thru 9 | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
