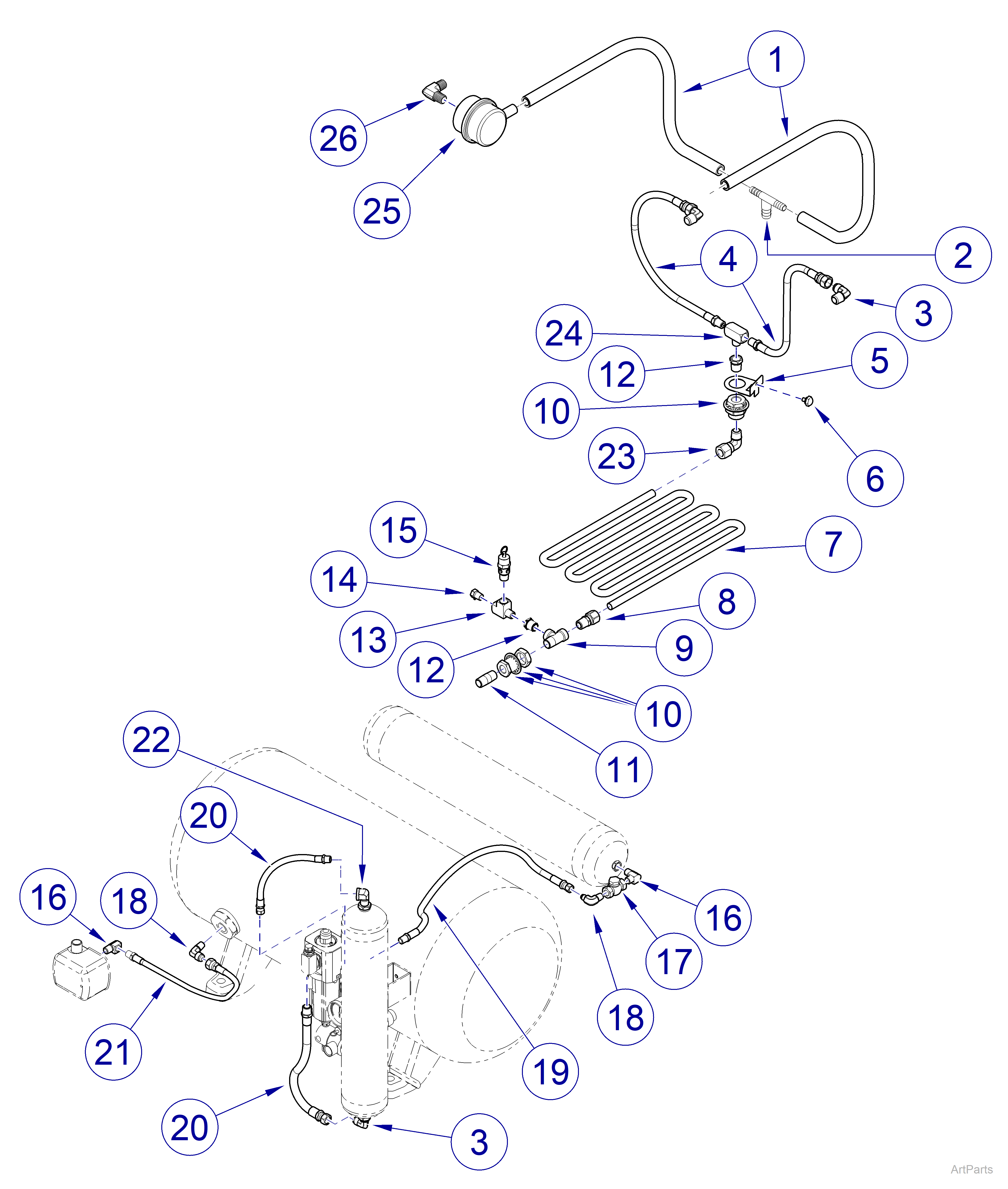

Midmark® Smart Air Compressor Pneumatic Tubes and Hoses

Model

 P21-050 P22-050
Serial Number V2200 thru Present V2200 thru Present

PowerAir Pneumatic Tubes and Hoses

Midmark® Smart Air Compressor Pneumatic Tubes and Hoses
Item Part Number Description Qty

1

 PCT80450-00 Hose 1/2 inch x 26 inch L 2

2

 20218601 Hose Connector 1/2 inch x 1/2 inch x 3/4 inch 1
3 PCB50125 Elbow 5/8-18 x 1/4 inch MPT 3

4

 PCH50207 Air Hose 2
5 050-12778-00-312 Thermal Switch Bracket 1
6 015-11811-00 Harness, Thermal Switch 1
7 014-10205-00 Pre-Cooler 1
8 PCB50437 MPT ST 1/2 inch CA X 3/8 inch 1
9 014-10233-00 Street Tee, 3/8 inch MPT X 3/8 inch FPT NSS
10 PCB50605 Anchor Bulkhead 1/4 inch 2
11 65970200 Nipple 3/8 inch NPT X 1 1/2 inch Brass J 1
12 PCB50620 Bushing 3/8 inch x 1/4 inch 2
13 62900905 Tee, Pipe -1/4MX1/4FX1/4F SEAL K 1
14 014-10231-00 Pipe Fitting, Elbow, 1/4 inch NPT, 3/32 inch Barb 1
15 77005020 Pressure Relief Valve 1/4 inch NPT, 125 PSI 1

16

 62900712 Street Elbow 1/4 inch NPT with Sealant 2

17

 77005032 Purge Valve 1

18

 65971300 Elbow 7/16-20 x 1/4 inch MPT 2

19

 65970506 Hose Assembly 1/4 inch NPT, 21 inch L 1

20

 65970702 Hose Assembly 3/8 inch NPT, 16 inch L 2

21

 65970505 Hose Assembly 1/4 inch NPT, 16 inch L 1

22

 PCB50640 Street Elbow 3/8 inch 1
23 PCB50435 MPT EL 1/2 inch CA x 3/8 inch 1

24

 PCB50647 Tee run 1/4 inch 1

25

 014-10229-00 Filter Assembly 2

26

 10589800 Street Elbow 1/4 inch 2

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

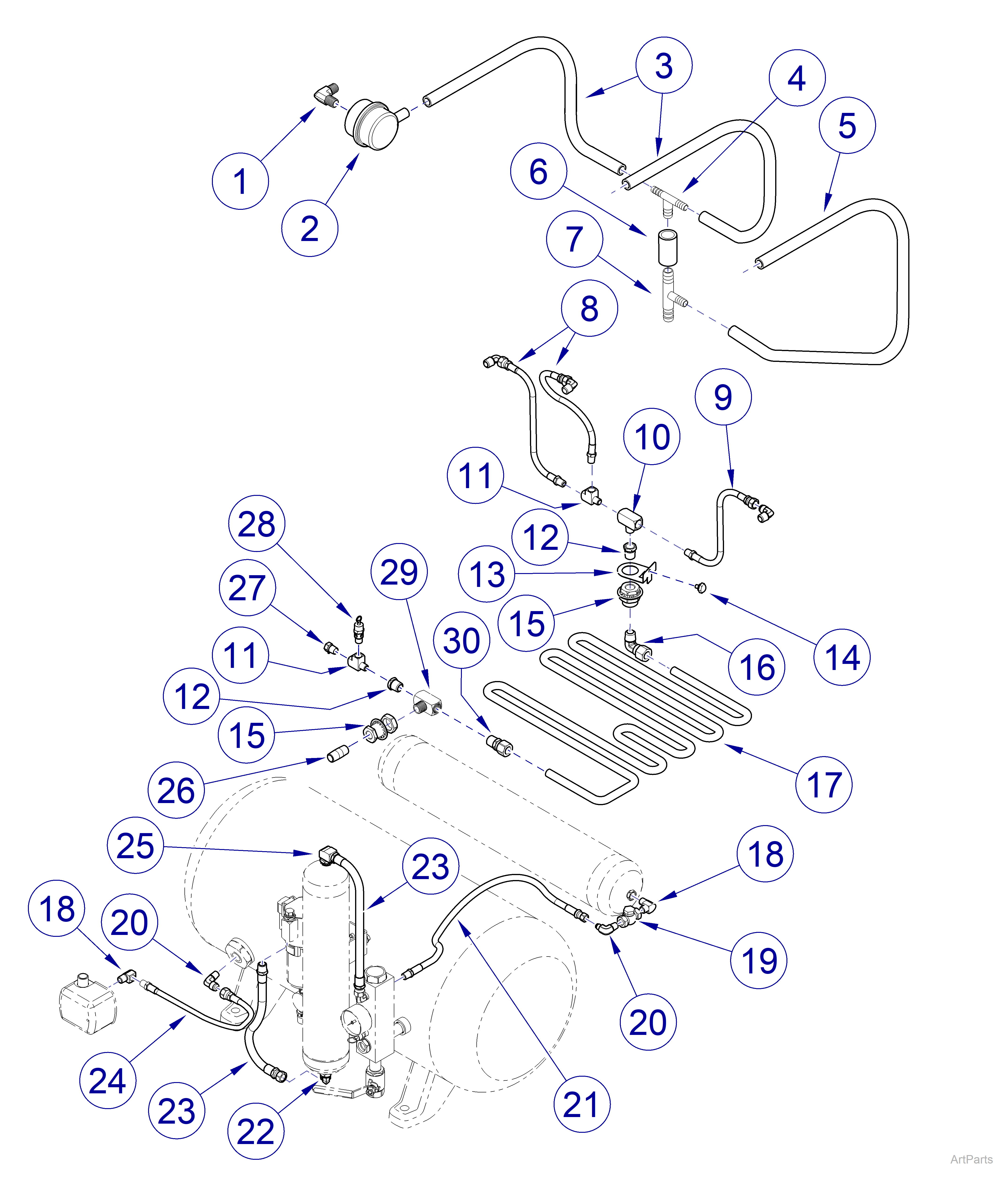

Model

 P32-050
Serial Number V2200 thru Present

PowerAir Pneumatic Tubes and Hoses

Midmark® Smart Air Compressor Pneumatic Tubes and Hoses
Item Part Number Description Qty
1 10589800 Street Elbow 1/4 inch 3
2 014-10229-00 Filter Assembly 3
3 PCT80450-18 1/2 inch Clear Hose Nylon Braid 2
4 20218601 Tee, Hose 3/4 inch X 1/2 inch X 1/2 inch HB 1
5 PCT80450-19 1/2 inch Clear Hose Nylon Braid 1
6 62963203 Hose, Flexible PVC, 3/4 inch AR
7 20218602 Tee, Hose 1/2 inch X 3/4 inch X 3/4 inch HB 1
8 PCH50207 16 inch PFTE SST Braided Hose 1/4 inch 2
9 PCH50208 21 inch PFTE SST Braided Hose 1/4 inch 1
10 PCB50647 Tee Run 1/4 inch 1
11 62900905 Tee, Pipe - 1/4M X 1/4F X 1/4F (SEAL) 2
12 PCB50620 Bushing 3/8 inch X 1/4 inch 2
13 050-12778-00-312 Bracket, Thermal Switch 1
14 015-11811-00 Harness, Thermal Switch 1
15 PCB50605 Anchor Bulkhead 3/8 inch 2
16 PCB50435 MPT EL 1/2 inch CA X 3/8 inch 1
17 014-10213-00 Pre-Cooler, 20 Gallon Tank 1
18 62900712 Elbow,Street-1/4 inch NPT w/Seal 2
19 77005032 Purge Valve 1
20 65971300 Elbow 7/16- 20 x 1/4 inch MPT 2
21 65970506 Hose Assembly 1/4 inch NPT, 21 inch L 1
22 PCB50126 Elbow, 5/8- 18 THD X 3/8 inch MPT 90DG 1
23 65970702 Hose Assembly 3/8 inch NPT, 16 inch L 2
24 65970505 Hose Assembly 1/4 inch NPT, 16 inch L 1
25 PCB50640 Street Elbow 3/8 inch 1
26 65970200 Nipple 3/8 inch NPT X 1 1/2 inch Brass J 1
27 014-10231-00 Pipe Fitting, Elbow, 1/4 inch NPT, 3/ 32 inch Barb 1
28 77005020 Pressure Relief Valve 1/4 inch NPT, 125 PSI 1
29 014-10216-00 3/8 inch NPT Inline Tee Adapter 1
30 PCB50437 MPT ST 1/2 inch CA X 3/8 inch 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 P52-050
Serial Number V2200 thru Present

PowerAir Pneumatic Tubes and Hoses

Midmark® Smart Air Compressor Pneumatic Tubes and Hoses
Item Part Number Description Qty
1 002-1735-00 Hose Assembly 3/8 inch T x 1/4 inch MNPT, 15 inch L 2
2 PCB50325 Nipple 1/4 x 20 1
3 PCB50655 Coupling 1/4 inch 1
4 62900905 Pipe Tee 1/4 inch M x 1/4 inch F 2
5 PCB50620 Bushing 3/8 inch x 1/4 inch 2
6 050-12778-00-312 Thermal Swit ch Bracket 1
7 015-11811-00 Harness, Thermal Switch 1
8 PCB50605 Anchor Bulkhead 2
9 PCB50435 MPT Elbow 1/2 inch CA x 3/8 inch 1
10 014-10213-00 Pre-Cooler, 20 Gallon Tank 1
11 PCB50437 MPT ST 1/2 inch CA X 3/8 inch 1
12 65970200 Nipple 3/8 inch NPT X 1 1/2 inch Brass J 1
13 62900712

Elbow,

Street - 1/4 inch NPT w/ Seal

 2
14 77005032 Purge Valve 1
15 65971300 Elbow 7/16- 20 x 1/4 inch MPT 2
16 65970506 Hose Assembly 1/4 inch NPT, 21 inch L 1
17 65970702 Hose Assembly 3/8 inch NPT, 16 inch L 2
18 PCB50126 Elbow, 5/8-18 THD X 3/8 inch MPT 90DG 1
19 65970505 Hose Assembly 1/4 inch NPT, 16 inch L 1
20 PCB50640 Street Elbow 3/8 inch 1
21 014-10231-00 Pipe Fitting, Elbow, 1/4 inch NPT, 3/32 inch Barb 1
22 014-10216-00 3/8 inch NPT Inline Tee Adapter 1
23 014-10199-00 Pressure Relief Valve 1/4 inch NPT, 135 PSI 1
24 002-2087-00 Fresh Air Intake Manifold Kit - Includes items 25 thru 29 1
25 62900505 Hex Nipple 1/2 inch NPT X 1/2 inch NPT 4
26 62945100 Elbow Male 1 inch hose X 1 inch NPT 1
27 62503802 Screw Hex Washer 8-32 x 5/8 inch 1
28 62988001 Pipe Clamp 1 1/4 inch locking 1
29 77009189 Lock Nut 1
30   Corrugated Tubing 3/4 inch
  65962201 3/4 inch diameter per inch AR
  65962201-1 3/4 inch diameter x 35 inch 2
  65962201-3 3/4 inch diameter x 40 inch 1
  65962201-4 3/4 inch diameter x 46 inch 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

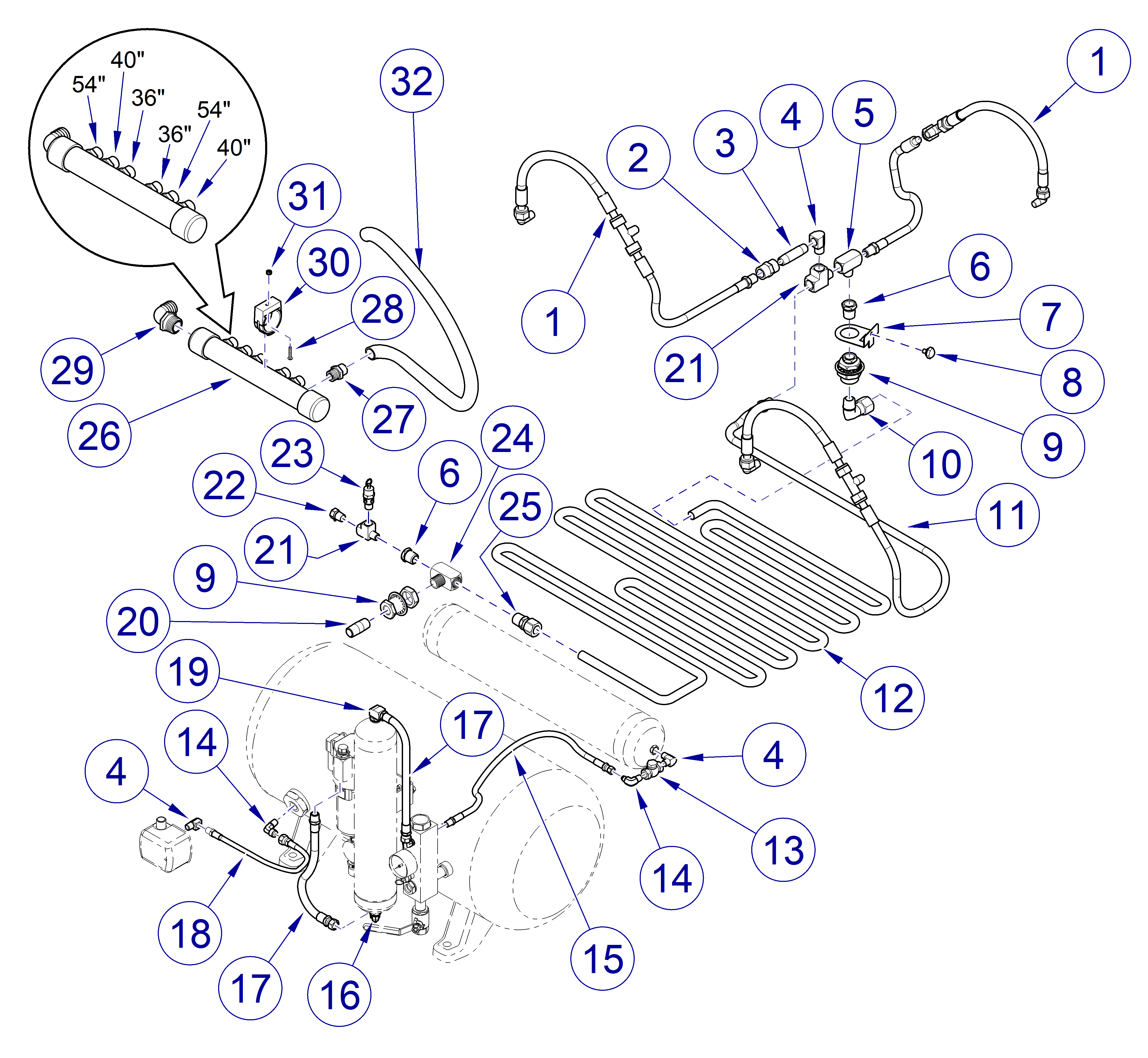

Model

 P72-050
Serial Number V2200 thru Present

PowerAir Pneumatic Tubes and Hoses

Midmark® Smart Air Compressor Pneumatic Tubes and Hoses
Item Part Number Description Qty

1

 002-1735-00 Hose Assembly 3/8 inch x 1/4 inch MNPT, 15 inch L 2
2 PCB50655 Coupling 1/4 inch 1
3 PCB50325 Nipple 1/4 x 20 1
4 62900712 Street Elbow 1/4 inch 3

5

 PCB50647 Tee Run 1/4 inch 1
6 PCB50620 Bushing 3/8 inch X 1/4 inch 2
7 050-12778-00-312 Thermal Switch Bracket 1
8 015-11811-00 Thermal Switch 1

9

 PCB50605 Anchor Bulkhead 2
10 PCB50435 MPT Elbow 1/2 inch CA x 3/8 inch 1

11

 002-1735-01 Hose Assembly 3/8 inch T x 1/4 inch MNPT, 36 inch L 1
12 014-10214-00 Pre-Cooler, 32 Gallon Tank 1
13 77005032 Purge Valve

14

 65971300 Elbow 7/16-20 x 1/4 inch MPT 2

15

 65970501 Hose 1/4 inch NPT, 26 inch L 1
16 PCB50126 Elbow, 5/8-18 THD X 3/8 inch MPT 90DG 1

17

 65970702 Hose Assembly 3/8 inch NPT, 16 inch L 2

18

 65970505 Hose Assembly 1/4 inch NPT, 16 inch L 1

19

 PCB50640 Street Elbow 3/8 inch 1
20 65970200 Nipple 3/8 inch NPT X 1 1/2 inch Brass J 1
21 62900905 Pipe Tee 1/4 inch M x 1/4 inch F 2
22 014-10231-00 Pipe Fitting, Elbow, 1/4 inch NPT, 3/32 inch Barb 1
23 014-10199-00 Pressure Relief Valve 1/4 inch NPT, 135 PSI 1
24 014-10216-00 3/8 inch NPT Inline Tee Adapter 1
25 PCB50437 MPT ST 1/ 2 inch CA X 3/ 8 inch 1
26 002-2088-00 Fresh Air Intake Manifold Kit - Includes items 25 thru 29 1
27 62900505 Hex Nipple 1/2 inch NPT X 1/2 inch NPT 6
28 62503802 Screw Hex Washer 8-32 x 5/8 inch 1
29 62945100 Elbow Male 1 inch hose X 1 inch NPT 1
30 62988001 Pipe Clamp 1 1/4 inch locking 1
31 77009189 Lock Nut 1

32

 Corrugated Tubing 3/4 inch
  65962201 3/4 inch diameter per inch AR
  65962201-2 3/4 inch diameter x 36 inch 2
  65962201-5 3/4 inch diameter x 40 inch 2
  65962201-3 3/4 inch diameter x 54 inch 2

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
