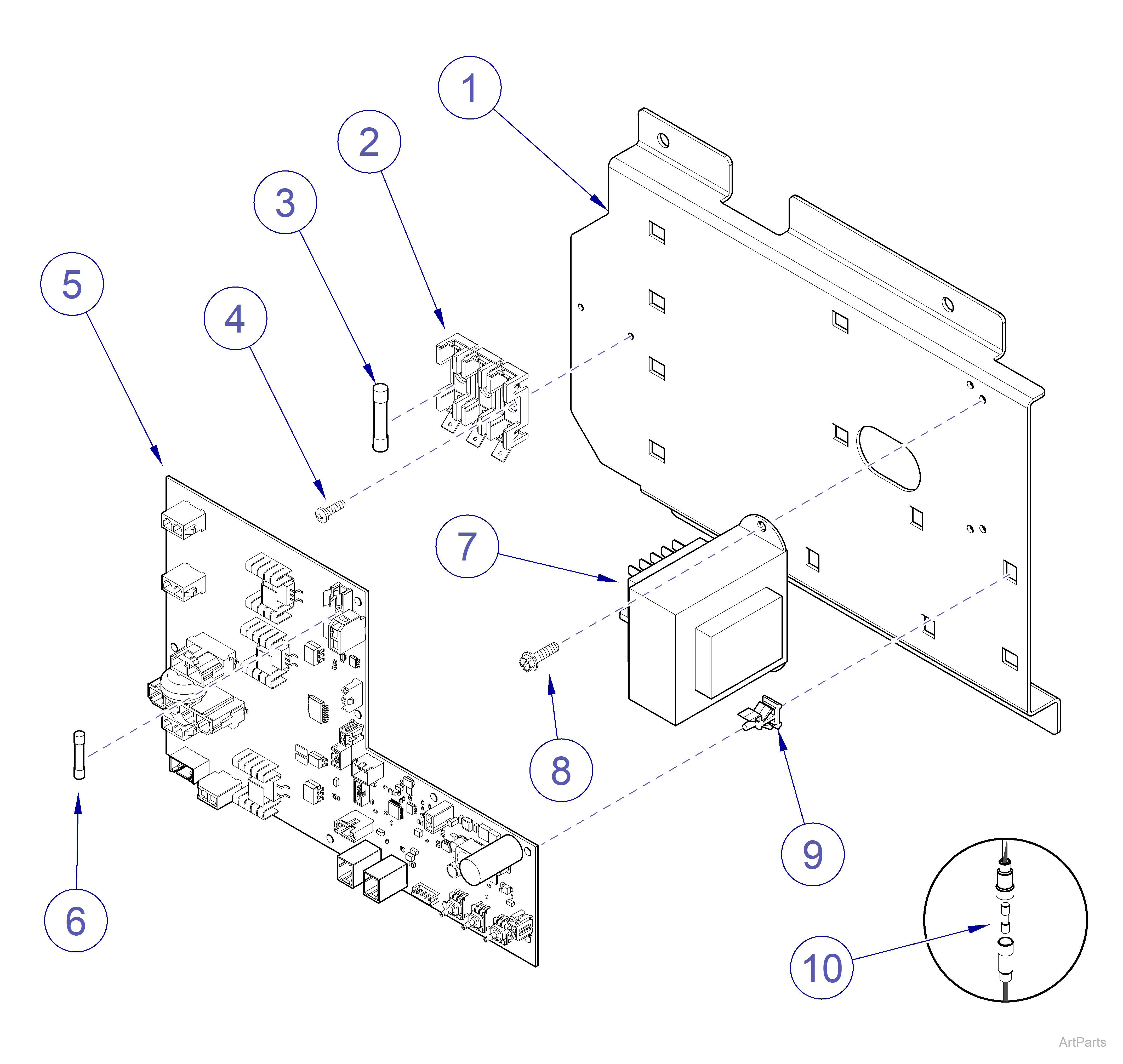

Midmark® Smart Air Compressor Electrical Panel Assy
Serial Number Range: V2200 thru Present
|
Model |
All |
| Serial Number | V2200 thru Present |
| Electrical Panel Assy | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 1 | 050-12978-00-813 | Electric Panel, Compressor | 1 |
| 2 | 015-11998-00 | Fuse Block Chassis | 1 |
| 3 | 015-0346-71 | Fuse, 15A 250V, 3AB, 3AG, SLO-BLO | - |
| - | - | P21, P22, P52 | 2 |
| - | - | P32, P72 | 3 |
| 4 | 040-0006-99 | Screw, #6-32 X 1/2 inch Pan HD PHL | 2 |
| 5 | 002-11054-00 | PC Board | 1 |
| 6 | 015-0346-72 | Fuse, Glass 0.5A 250VAC, SLO-BLO | 1 |
| 7 | Harness, Transformer Options | ||
| 015-12185-01 | P21 (115V) - Includes item 10 | 1 | |
| 015-12185-00 | P22, P32, P52, P72 (230V) - Includes item 11 | 1 | |
| 8 | 62503802 | Screw, Hex Washer HD 8-32 x 5/8 inch | 2 |
| 9 | 053-1664-00-000 | Standoff | 11 |
| 10 | 015-0346-73 | Fuse, Ceramic 200mA 250VAC, SLO-BLO (Transformer Harness) | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
