Serial Number Range: V2200 thru Present

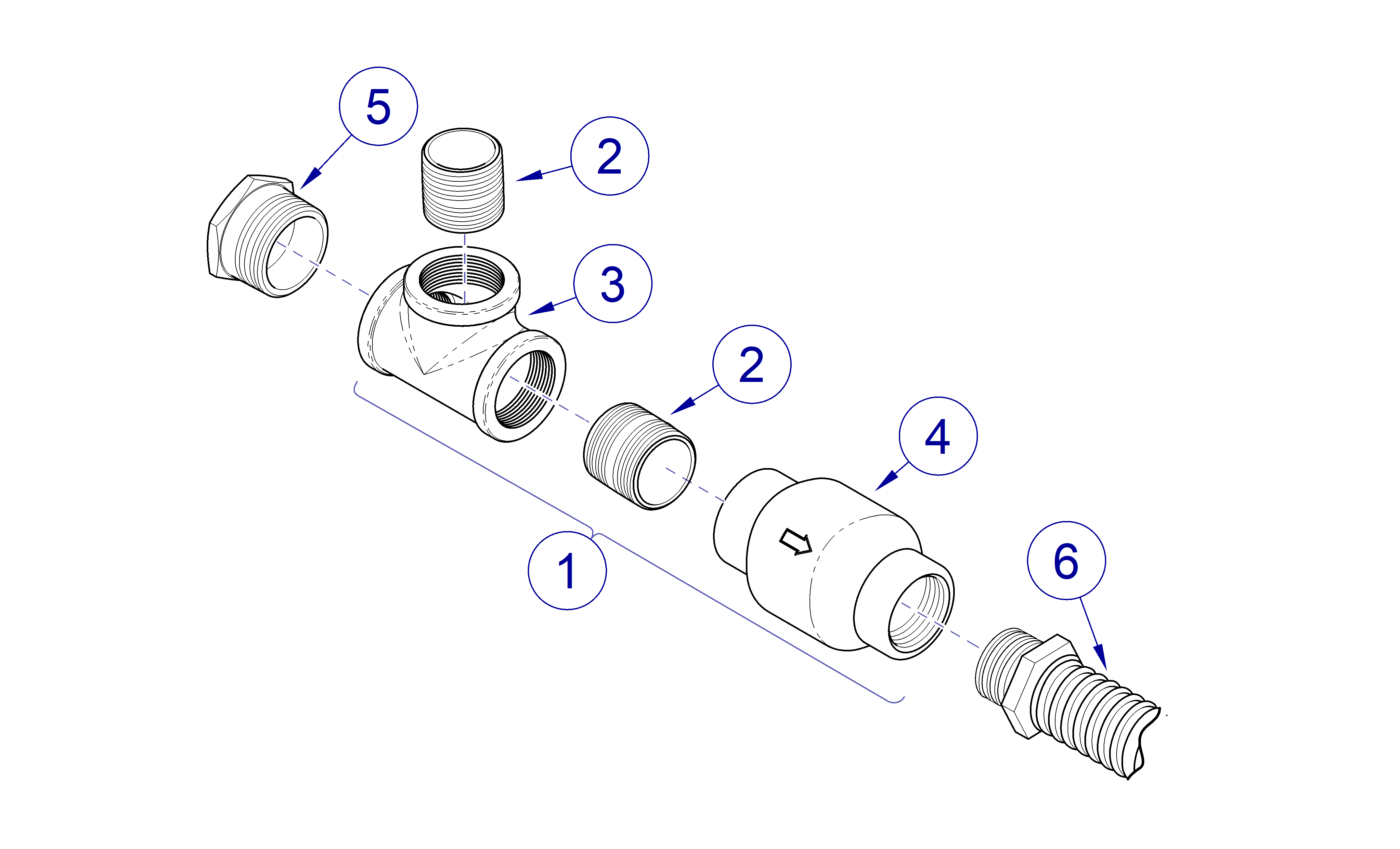

PowerVac G Drain Assembly
1	029-3839-00	Drain Assembly - includes Items 2 thru 5	1
2	014-0512-00	Nipple 1 1/2 inch	2
3	014-0513-00	Tee 1 1/2 FPT - apply included thread locking adhesive	1
4	014-0551-00	Check Valve 1 1/2 inch	1
5	10577800	Plug 1 1/2 inch NPT	1
6	029-3773-01	Drain Hose	1
NSS = Not Sold Separately \| AR = As Required \| NLA = No Longer Available \| CFN = Call for Number Always Specify Model and Serial Number

PowerVac G Drain Assembly
Item	Part Number	Description	Qty
1	029-3839-00	Drain Assembly - includes Items 2 thru 5	1
2	014-0512-00	Nipple 1 1/2 inch	2
3	014-0513-00	Tee 1 1/2 FPT - apply included thread locking adhesive	1
4	014-0551-00	Check Valve 1 1/2 inch	1
5	10577800	Plug 1 1/2 inch NPT	1
6	029-3773-01	Drain Hose	1
NSS = Not Sold Separately \| AR = As Required \| NLA = No Longer Available \| CFN = Call for Number Always Specify Model and Serial Number
