Midmark® Smart G-Vacuum Electrical Box
Single models require one vacuum assembly. Twin models require two vacuum assemblies.
Serial Number Range:V2200 thru Present
|
Model |
All |
| Serial Number | V2200 thru Present |
| Electrical Box | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |

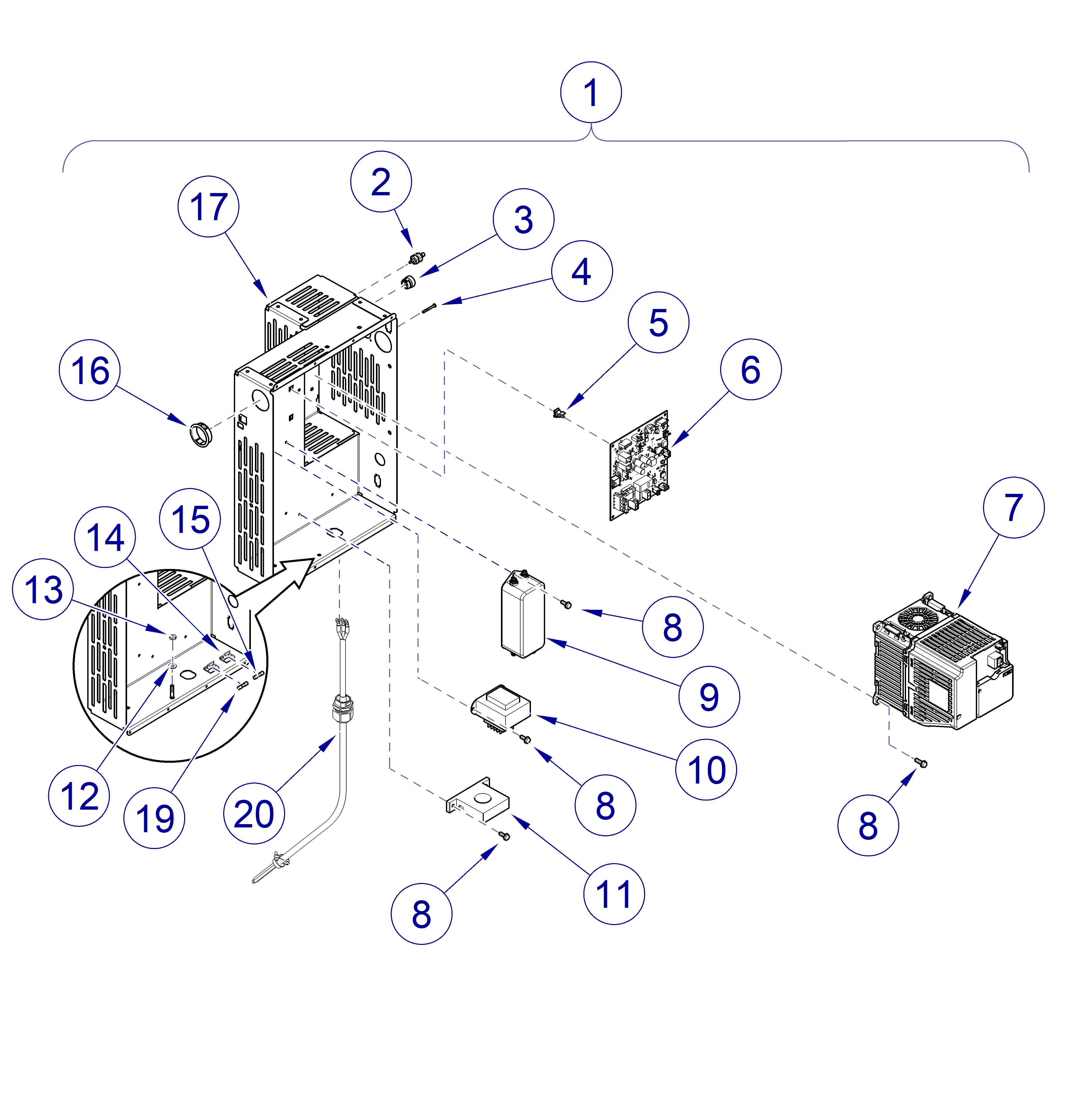

| 1 | 029-11643-00 | Electrical Box Assembly - includes items 2 thru 19 | - |
| 2 | 014-10265-00 | Reducer, Brass, 5/32 inch to 5/64 inch BARB | NSS |
| 3 | 015-0002-13 | Strain Relief Bushing | 1 |
| 4 | 040-0004-22 | Screw #4-40 x 5/16 inch Pan Head | 4 |
| 5 | 053-1664-00-000 | Standoff | 8 |
| 6 | 002-11052-00 | PC Board | 1 |
| 7 | 002-11053-00 | Drive, Variable Speed | 1 |
| 8 | 62503802 | Screw #8-32 x 5/8 inch | 10 |
| 9 | 015-12167-00 | Filter, 25A Multi-Stage EMI Line | 1 |
| 10 | 015-12185-00 | Harness, Transformer Tabbed | 1 |
| 11 | 015-11418-02 | Assembly, RMS AC Current Transducer, 25A | 1 |
| 12 | 045-0001-31 | #10 Ext Tooth Lock Washer | 1 |
| 13 | BNT20210 | Nut, #10-32 KEPS/External Tooth Lock | 5 |
| 14 | 015-12092-00 | Clip, Cable | 2 |
| 15 | 015-0346-65 | Fuse, Ceramic 2.5A 250VAC, 5X20MM, 125C (PC Board) | 2 |
| 16 | 053-0068-17 | Snap Bushing | 2 |
| 17 | 029-11854-00 | Electrical Box | NSS |
| 18 | 015-0013-00 | Cable Tie - Not Showm | AR |
| 19 | 015-0346-73 | Fuse, Ceramic 200mA 250VAC, 5X20MM (Transformer Harness) | 1 |
| 20 | 015-12249-00 | Harness, Power Cord | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
