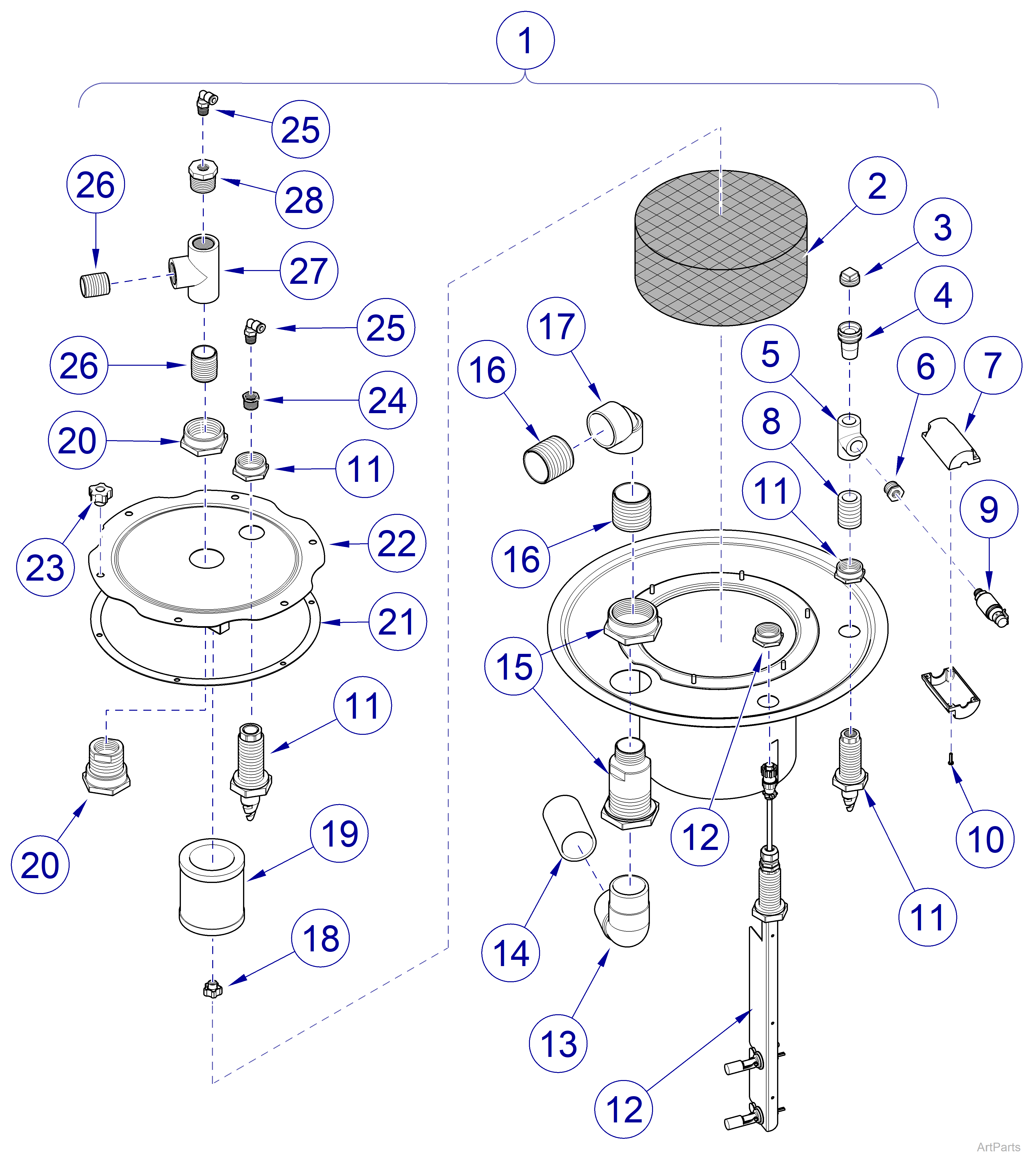

Midmark® Smart G-Vacuum Separator Lid Assembly
Serial Number Range: V2200 thru V2844885
|
Model |
All |
| Serial Number |
V2200 thru V2844885 |
Single models require one separator assembly. Twin models require two separator assemblies.
Item 2 demister not required.
| Separator Lid Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 1 | Lid, Separator - includes items 2 thru 28 |
- | |
| 2 |
014-10253-00 |
Filter, Demister, 15 Micron |
NLA |
| 3 | 016-10239-00 | Plug, 3/4 inch GHT Brass | 1 |
| 4 | 014-0530-00 | 3/4 F. Garden Hose X 1/2 MPT Adapter | 1 |
| 5 | 014-0704-00 | Tee, 1/2 inch NPT, PVC | 1 |
| 6 | 014-0699-00 | Reducer, 1/2 inch X 1/4 inch NPT, PVC | 2 |
| 7 | 053-2187-00-312 | Cover, Pressure Transducer | 2 |
| 8 | 014-0705-00 | Nipple, 1/2 inch NPT, PVC | 1 |
| 9 | 015-2723-00 | Harness, Pressure Sensor | 1 |
| 10 | 040-0006-93 | #6-32 X 5/8 inch Pan HD PHL | 4 |
| 11 | 029-5196-00 | Wash Down Fitting Assembly | 2 |
| 12 | 029-11579-00 | Float Assembly | 1 |
| 13 | 014-0724-00 | Elbow, 1-1/2 inch, PVC | 1 |
| 14 | STK10403 | PVC PIPE, 1-1/2 inch | 1 |
| 15 | 014-0501-00 | Bulkhead Fitting 1-1/2 inch | 1 |
| 16 | 014-0512-00 | Nipple, Close, PVC,SCH80,1 1/2 inch NPT | 2 |
| 17 | 014-0515-00 | Elbow, 90, PVC,SCH80, 1 1/2 inch NPT | 1 |
| 18 | 016-10445-00 | Knob, Threaded Stud 1/4-20 MNPT | 1 |
| 19 | 002-10972-00 | FILTER, 5 MICRON | 1 |
| 20 | 014-10254-00 | BULKHEAD FITTING, PVC, 1 inch | 1 |
| 21 | 053-10639-00 | Gasket, Separator Filter Lid | 1 |
| 22 | 030-10473-00-312 | Filter Lid | NSS |
| 23 | 016-10437-00 | Knob, 1/4-20 FNPT | 6 |
| 24 | 014-0699-00 | Reducer, 1/2 inch X 1/4 inch NPT, PVC | 2 |
| 25 | 62982201 | QC Fitting, 90, 1/4QC X 1/4 inch MNPT | 2 |
| 26 | 014-0516-00 | Nipple,Close, PVC, SCH80, 1 inch NPT | 2 |
| 27 | 014-10255-00 | Tee, PVC, SCH80, 1 inch NPT | 1 |
| 28 | 014-10256-00 | Reducer, Adapter, 1 inch to 1/4 inch | NSS |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

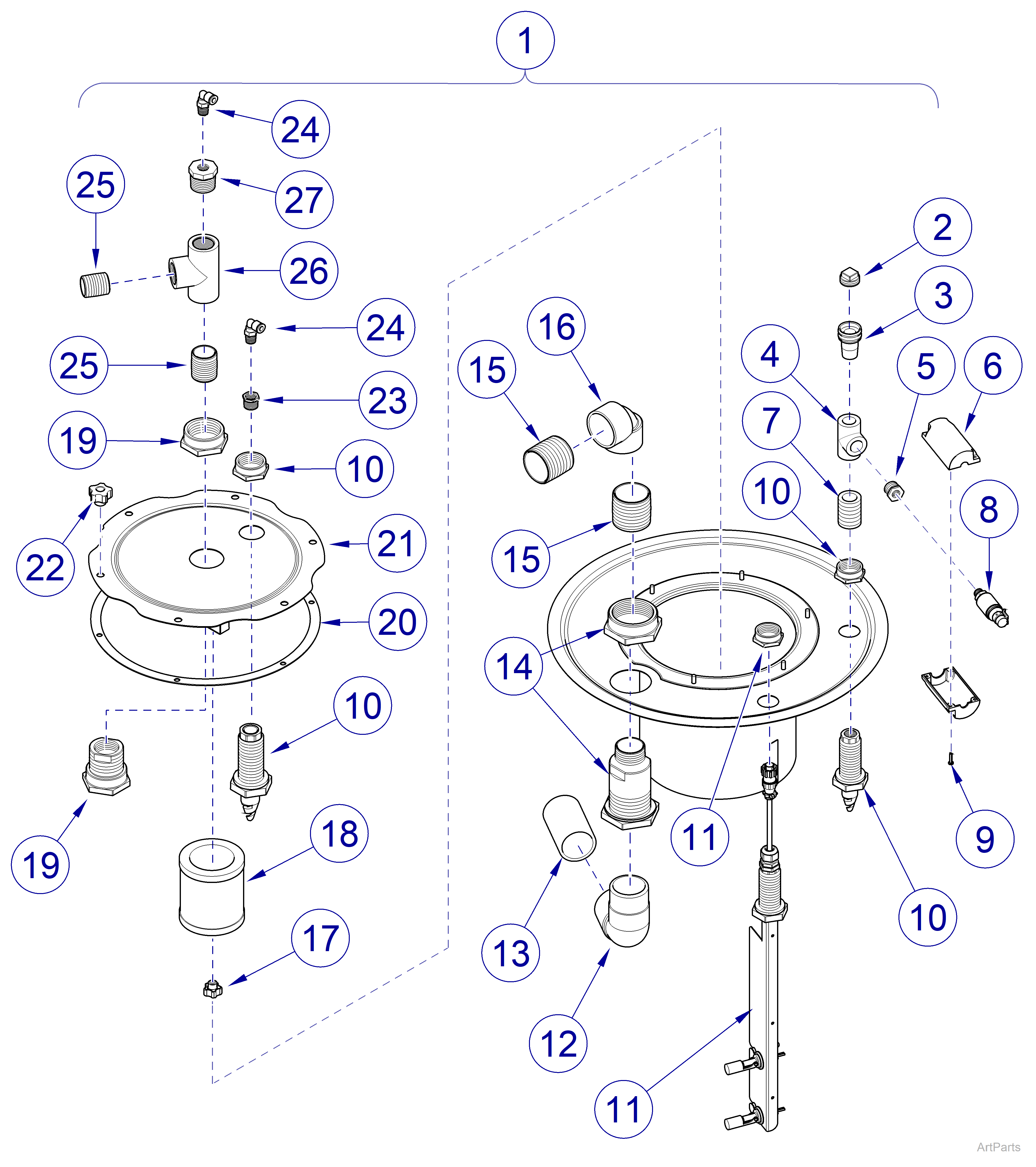

Serial Number Range: V2844886 thru Present
|
Model |
All |
| Serial Number |
V2844886 thru Present |
Single models require one separator assembly. Twin models require two separator assemblies.
| Separator Lid Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Lid, Separator - includes items 2 thru 27 |
- | |
|
2 |
016-10239-00 | Plug, 3/4 inch GHT Brass | 1 |
|
3 |
014-0530-00 | 3/4 F. Garden Hose X 1/2 MPT Adapter | 1 |
|
4 |
014-0704-00 | Tee, 1/2 inch NPT, PVC | 1 |
|
5 |
014-0699-00 | Reducer, 1/2 inch X 1/4 inch NPT, PVC | 2 |
|
6 |
053-2187-00-312 | Cover, Pressure Transducer | 2 |
|
7 |
014-0705-00 | Nipple, 1/2 inch NPT, PVC | 1 |
|
8 |
015-2723-00 | Harness, Pressure Sensor | 1 |
|
9 |
040-0006-93 | #6-32 X 5/8 inch Pan HD PHL | 4 |
|
10 |
029-5196-00 | Wash Down Fitting Assembly | 2 |
|
11 |
029-11579-00 | Float Assembly | 1 |
|
12 |
014-0724-00 | Elbow, 1-1/2 inch, PVC | 1 |
|
13 |
STK10403 | PVC PIPE, 1-1/2 inch | 1 |
|
14 |
014-0501-00 | Bulkhead Fitting 1-1/2 inch | 1 |
|
15 |
014-0512-00 | Nipple, Close, PVC,SCH80,1 1/2 inch NPT | 2 |
|
16 |
014-0515-00 | Elbow, 90, PVC,SCH80, 1 1/2 inch NPT | 1 |
|
17 |
016-10445-00 | Knob, Threaded Stud 1/4-20 MNPT | 1 |
|
18 |
002-10972-00 | FILTER, 5 MICRON | 1 |
|
19 |
014-10254-00 | BULKHEAD FITTING, PVC, 1 inch | 1 |
|
20 |
053-10639-00 | Gasket, Separator Filter Lid | 1 |
|
21 |
030-10473-00-312 | Filter Lid | NSS |
|
22 |
016-10437-00 | Knob, 1/4-20 FNPT | 6 |
|
23 |
014-0699-00 | Reducer, 1/2 inch X 1/4 inch NPT, PVC | 2 |
|
24 |
62982201 | QC Fitting, 90, 1/4QC X 1/4 inch MNPT | 2 |
|
25 |
014-0516-00 | Nipple,Close, PVC, SCH80, 1 inch NPT | 2 |
|
26 |
014-10255-00 | Tee, PVC, SCH80, 1 inch NPT | 1 |
|
27 |
014-10256-00 | Reducer, Adapter, 1 inch to 1/4 inch | NSS |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
