Midmark® Smart G-Vacuum Shipping Bolt Assembly
Only use when moving base unit.
Serial Number Range: V2200 thru Present
|
Model |
All |
| Serial Number | V2200 thru Present |

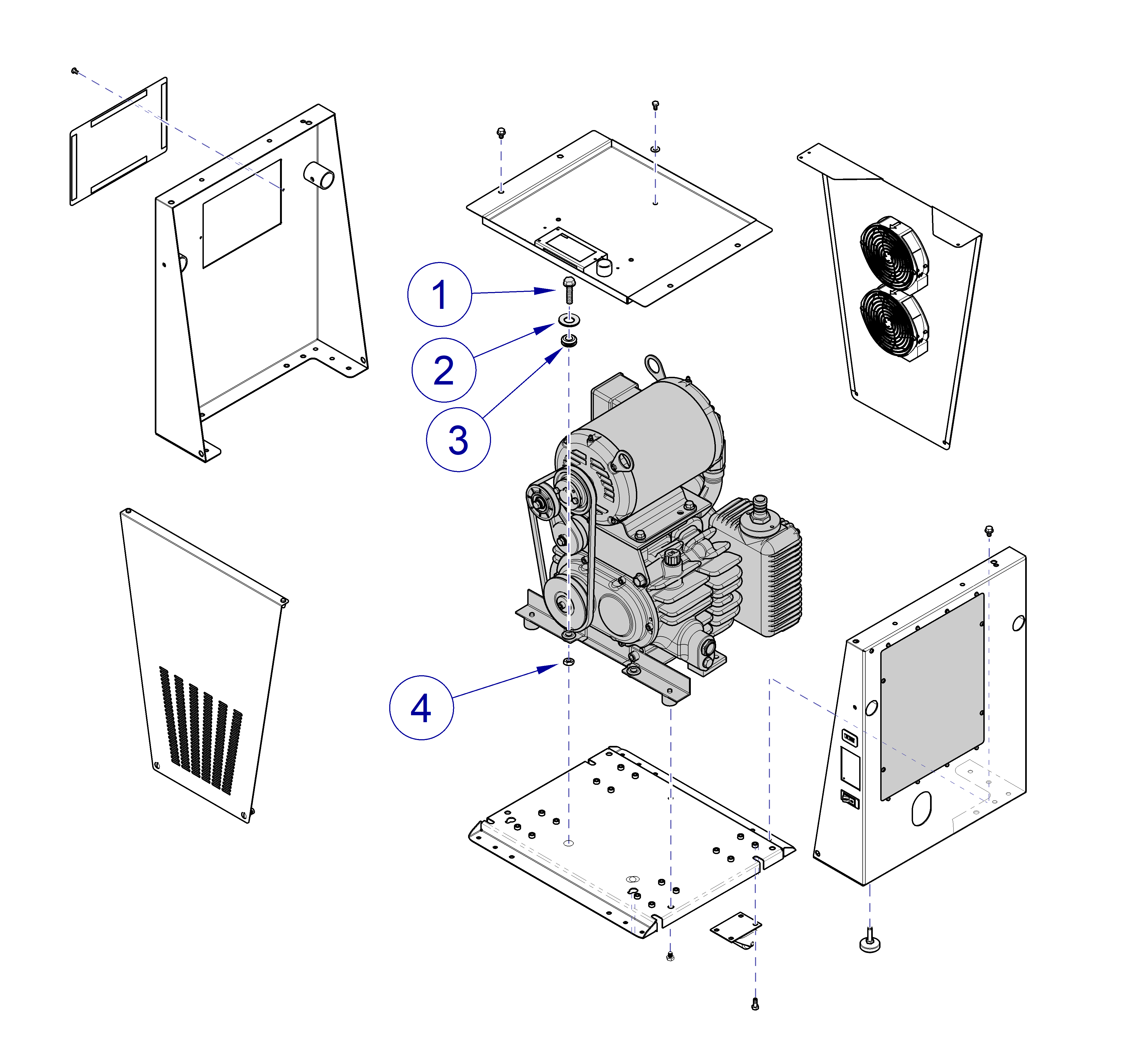

| Shipping Bolt Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0312-96 | Screw .312-18 x 1/2 inch | 2 |
| 2 | 62600117 | Washer 5/16 inch | 2 |
|
3 |
053-2309-00 | Grommet 1/2 inch, 3/16 inch | 2 |
|
4 |
Hex Jam Nut .312-18 | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
