Midmark® Smart G-Vacuum Base Unit Loose Parts
Serial Number Range: V2200 thru Present
|
Model |
All |
| Serial Number | V2200 thru Present |

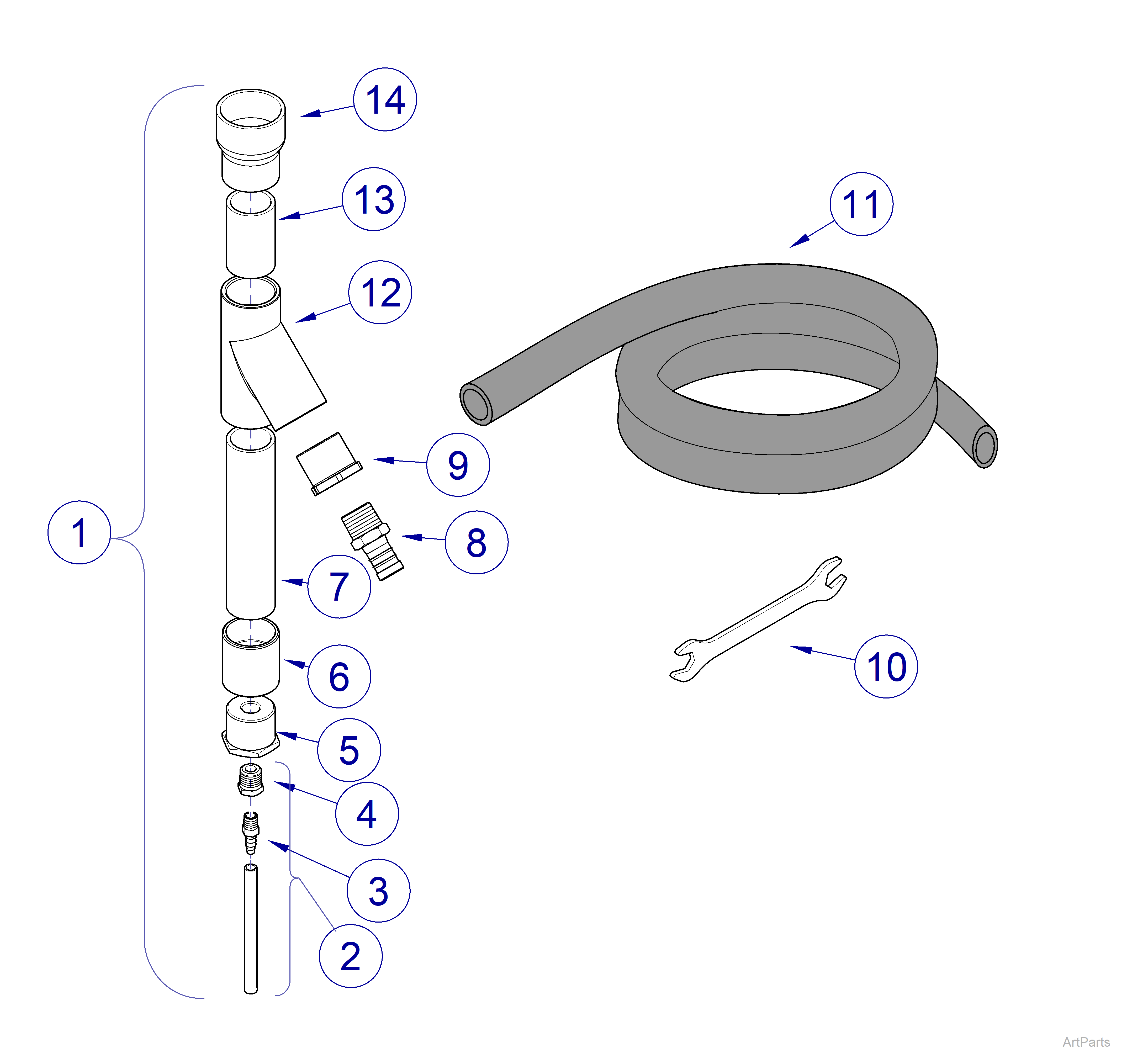

| Vacuum Base Unit Loose Parts | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10409-00 | Loose Parts Kit - includes items 2 thru 14 | 1 |
|
2 |
002-1910-05 | 3/8 inch Drain Tube Kit, 12 ft - includes items 3 and 4 | 1 |
|
3 |
014-0347-00 | Barb Fitting, Male | 1 |
|
4 |
62903606 | Reducer, 1/2 inch MNPT x 1/4 inch FNPT Seal | 3 |
|
5 |
014-0549-01 | Reducer, 1 1/2 inch Pipe x 1/2 inch FNPT PVC | 1 |
|
6 |
PVC51035 | Coupler 1 1/2 inch SOC PVC | 1 |
| 7 | 014-10071-00 | 1 1/2 inch PVC pipe - 8 inches | 1 |
|
8 |
Adapter 1 inch HB x 1 inch MNPT | 1 | |
|
9 |
014-0725-00 | Bushing, 1 1/2 inch x 1/2 inch PVC, Sch 40 SPIGOT x NPTF | 1 |
|
10 |
016-1070-00 | Wrench, Thin Open-End 1/2 inch | 1 |
|
11 |
20205401 | Hose, Exhaust | 1 |
|
12 |
014-0564-00 | Fitting 1 1/2 inch Y Female PVC | 1 |
|
13 |
STK10403 | 1 1/2 inch PVC pipe - 3 inches | 1 |
|
14 |
014-0570-00 | Reducer SOC 2 inch x 1 1/2 inch PVC | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
