Midmark® Smart G-Vacuum Base Unit Pump Assembly/Motor
Serial Number Range: V2200 thru Present
|
Model |
All |
| Serial Number | V2200 thru Present |
Single models require one vacuum assembly. Twin models require two vacuum assemblies.

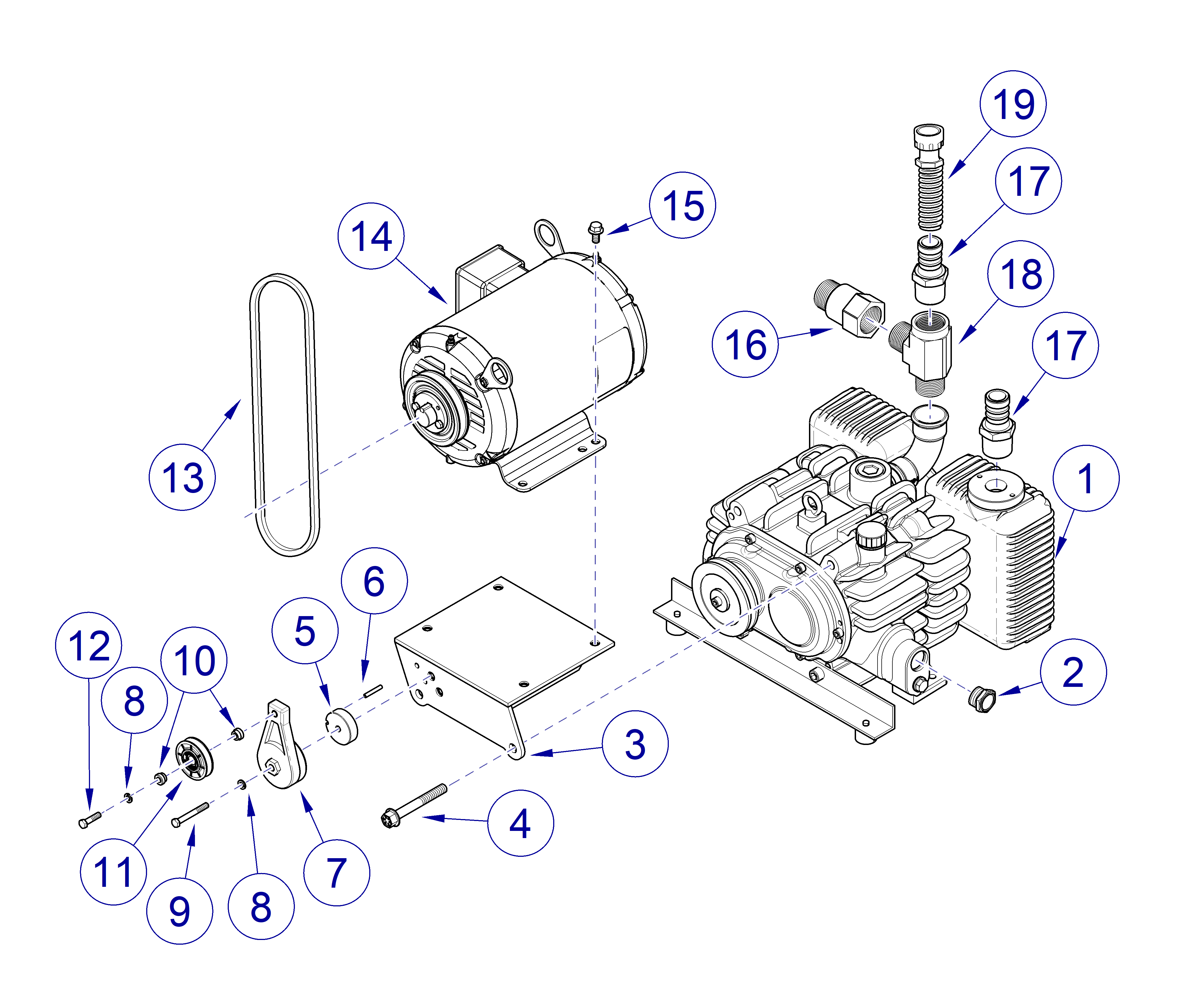

| Vacuum Base Unit Pump Assembly/Motor | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-2093-00 | Pump Assembly - includes items 2, 17, and 18 | 1 |
|
2 |
002-2091-00 | Sight Glass - Torque to 132 in/lbs | 1 |
|
3 |
030-1920-00-312 | Motor Mount Assembly | 1 |
|
4 |
040-0500-31 | Screw 1/2 inch-13 x 4 inch Hex Head Flange | 2 |
|
5 |
10562900 | Spacer | 1 |
|
6 |
10567300 | Spring Pin 1/4 inch x 1 5/8 inch | 1 |
|
7 |
002-10753-00 | Tensioner Replacement Kit – Includes items 6, 8 and 9 | 1 |
|
8 |
62600208 | Washer 3/8 inch Spring Lock | 2 |
|
9 |
62700111 | Bolt 3/8-16 x 3 inch Hex Head | 1 |
|
10 |
Clevis Adapter - included with item 11 | NSS | |
|
11 |
10593400 | Pulley assembly | 1 |
|
12 |
62700101 | Bolt 3/8-16 x 1 1/2 inch Hex Head | 1 |
|
13 |
Belt Options | ||
| 20211100 | G3-050, G5-050, G6-050, G10-050 | 1 | |
| 016-1056-00 | G7-050, G14-050 | 1 | |
|
14 |
002-1435-00 | Motor, 3 HP, 3 Phase | 1 |
|
15 |
040-0375-00 | Screw 3/8-16 x 3/4 inch | 4 |
|
16 |
014-0495-00 | Vacuum Relief Valve (VRV), 1 inch | 1 |
|
17 |
Adapter, 1 inch x 1 inch MPT | 2 | |
|
18 |
014-0708-00 | Tee, 1 inch | 1 |
|
19 |
002-1851-00 | 1 inch ID Hose Assembly | 1 |
|
20 |
064-0028-01 | Gear Lube - Not Shown | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
