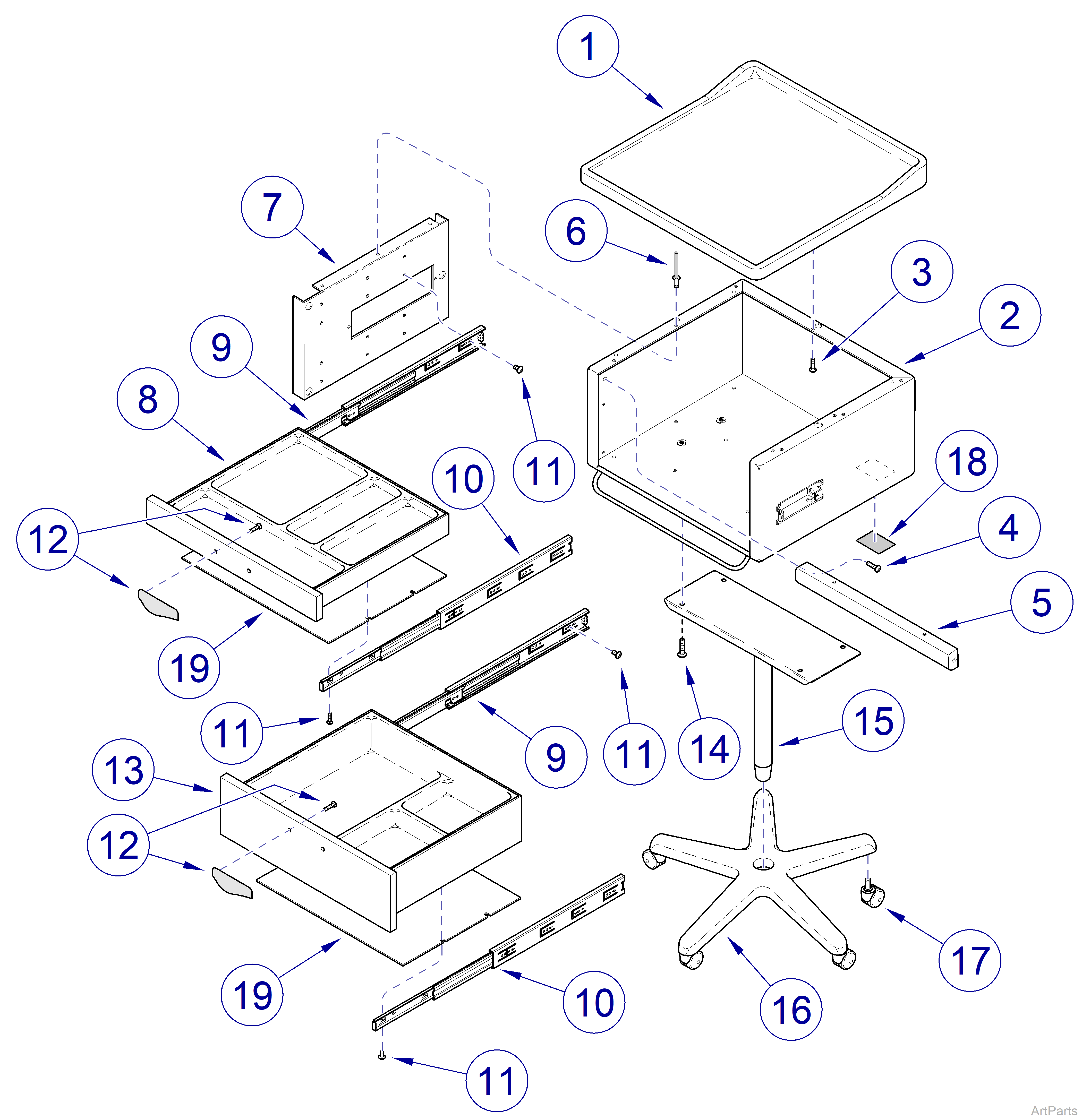

265 Cart Fixed Height Cabinet Assembly
Refer to: the Cabinet Color Options for the order number extension of your desired color.
Serial Number Range: V2200 thru V410243
|
Model |
265 |
| Serial Number | V2200 thru V410243 |
| 265 Cart Fixed Height Cabinet Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
063-9832-02 | Treatment Top | 1 |
|
2 |
Outer Shell Options | ||
|
030-1096-01-216 |
Outer Shell Units without electrical component | NLA | |
|
030-1096-02-216 |
Outer Shell Units with electrical components |
NLA |
|
|
3 |
040-0010-48 | Screw #10-13 x 5/8" | 9 |
|
4 |
040-0010-100 | Wood Screw #10-13 x 1/2" | 2 |
|
5 |
Mullion Options | ||
| 050-3984-00-216 | Mullion Units without heater | 1 | |
| 050-3834-00-216 | Mullion Units with heater | 1 | |
|
6 |
042-0010-04 | Pop Rivet 3/32" x .240" x 1/8" | 12 |
|
7 |
050-3835-01-215 | Inner Wall | 2 |
|
8 |
029-3656-00-xxx | Top Drawer Assembly | 1 |
|
9 |
016-0719-00 | LH Slide Assembly | 2 |
|
10 |
016-0719-01 | RH Slide Assembly | 2 |
|
11 |
040-0008-45 | Screw #8-32 x 5/16" | 20 |
|
12 |
029-2335-01 | Handle Assembly - includes screws | 2 |
|
13 |
029-3655-00-xxx | Bottom Drawer Assembly | 1 |
|
14 |
040-0250-88 | Screw 1/4-20 x 1/2" | 4 |
|
15 |
030-1098-00 |
Column Weldment | NLA |
|
16 |
016-0681-00 | Base | 1 |
|
17 |
016-0683-00 | Caster | 5 |
|
18 |
Serial Number Label | NSS | |
|
19 |
050-4923-00-216 | Drawer Heat Sink Plate - units equipped with heater | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

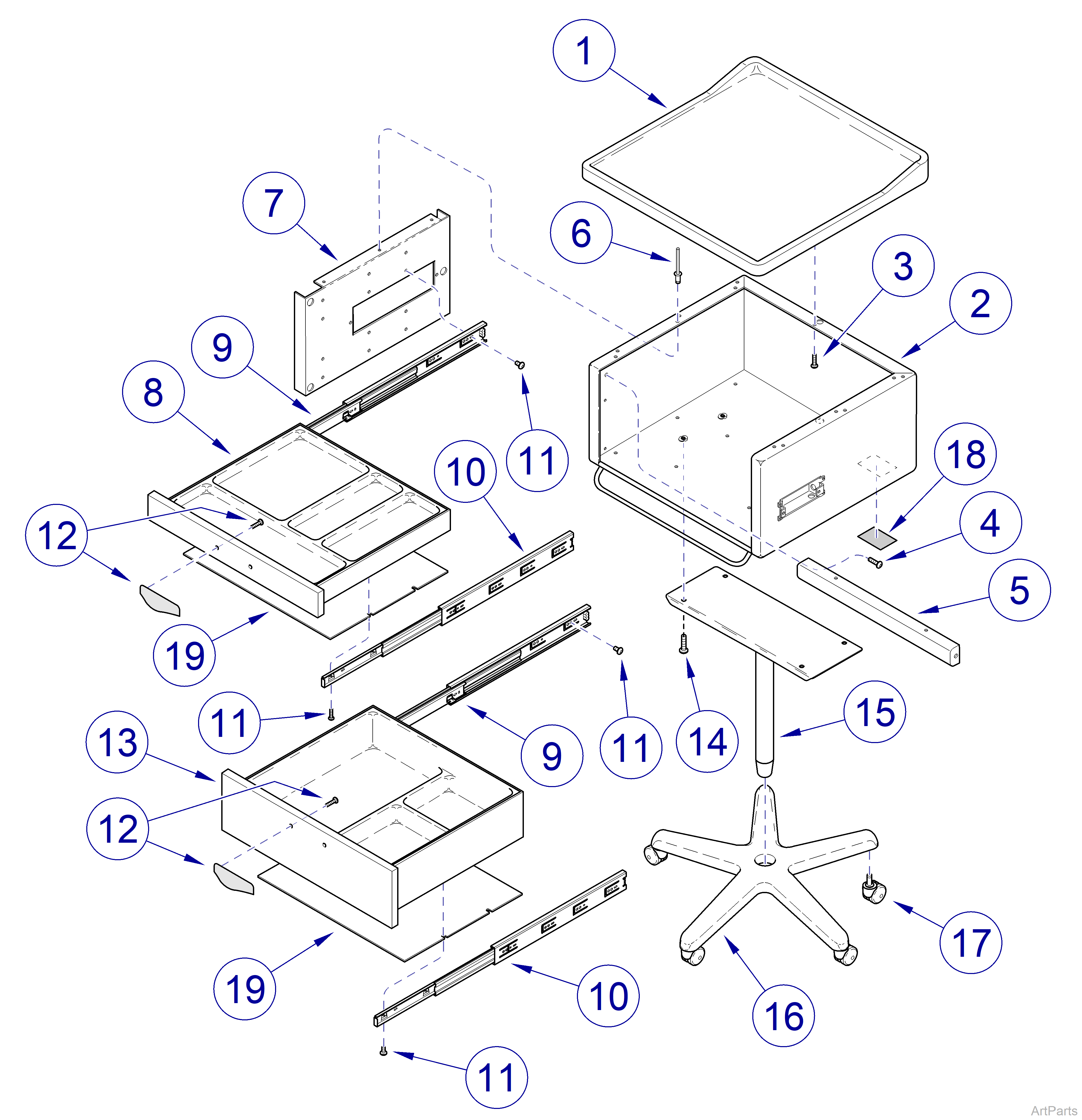

Serial Number Range: V410244 thru Present
|
Model |
265 |
| Serial Number | V410244 thru Present |
| 265 Cart Fixed Height Cabinet Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
063-9832-02 | Treatment Top | 1 |
|
2 |
Outer Shell Options | ||
| 029-4801-00-216 | Outer Shell Units without electrical components | 1 | |
| 029-4801-01-216 | Outer Shell Units with electrical components | 1 | |
|
3 |
040-0010-48 | Screw #10-13 x 5/8" | 9 |
|
4 |
040-0010-100 | Wood Screw #10-13 x 1/2" | 2 |
|
5 |
Mullion Options | ||
| 050-3984-00-216 | Mullion Units without heater | 1 | |
| 050-3834-00-216 | Mullion Units with heater | 1 | |
|
6 |
042-0010-04 | Pop Rivet 3/32" x .240" x 1/8" | 12 |
|
7 |
050-3835-01-215 | Inner Wall | 2 |
|
8 |
029-3656-00-xxx | Top Drawer Assembly | 1 |
|
9 |
016-0719-00 | LH Slide Assembly | 2 |
|
10 |
016-0719-01 | RH Slide Assembly | 2 |
|
11 |
040-0008-45 | Screw #8-32 x 5/16" | 20 |
|
12 |
029-2335-01 | Handle Assembly - includes screws | 2 |
|
13 |
029-3655-00-xxx | Bottom Drawer Assembly | 1 |
|
14 |
040-0250-88 | Screw 1/4-20 x 1/2" | 4 |
|
15 |
030-1688-00 | Column Weldment | 1 |
|
16 |
002-1028-00 | Base | 1 |
|
17 |
016-0683-00 | Caster | 5 |
|
18 |
Serial Number Label | NSS | |
|
19 |
050-4923-00-216 | Drawer Heat Sink Plate - units equipped with heater | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
