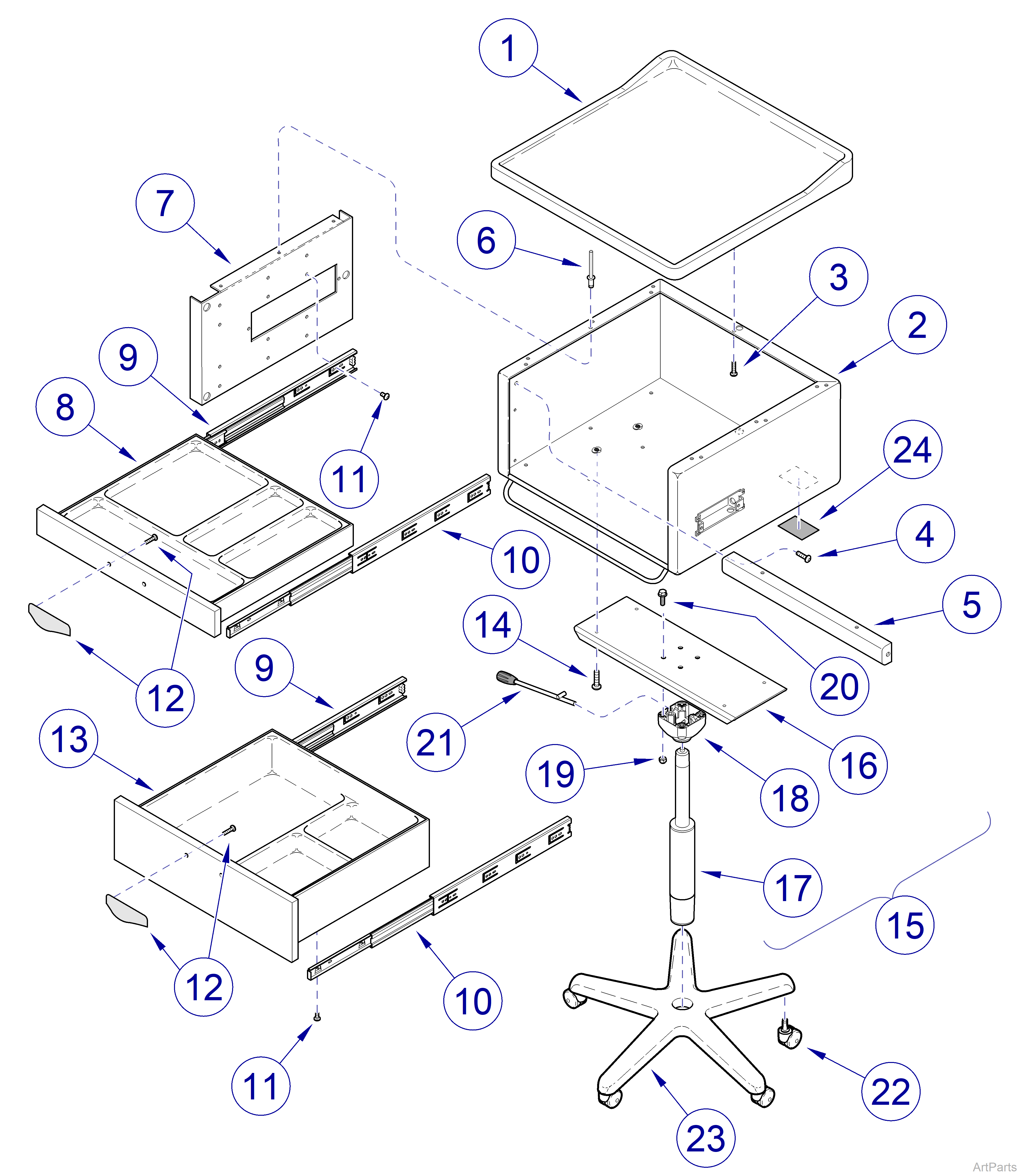

265 Cart Adjustable Height Cabinet Assembly
|
Model |
265 |
| Serial Number | All |
Refer to: the Cabinet Color Options for the order number extension of your desired color.
| 265 Cart Adjustable Height Cabinet Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
063-9832-02 | Treatment Top | 1 |
|
2 |
029-4801-01-216 | Outer Shell - units with gas lift | 1 |
|
3 |
040-0010-48 | Screw #10-13 x 5/8" | 9 |
|
4 |
040-0010-100 | Wood Screw #10-13 x 1/2" | 2 |
|
5 |
050-3984-00-216 | Mullion | 1 |
|
6 |
042-0010-04 | Pop Rivet 3/32" x .240" x 1/8" | 14 |
|
7 |
050-3835-00-216 | Inner Wall | 2 |
|
8 |
029-3656-00-xxx | Top Drawer Assembly | 1 |
|
9 |
016-0719-00 | LH Slide Assembly | 2 |
|
10 |
016-0719-01 | RH Slide Assembly | 2 |
|
11 |
040-0010-45 | Screw #8-32 x 5/8" | 20 |
|
12 |
029-2335-01 | Handle Assembly - includes screws | 2 |
|
13 |
029-3655-00-xxx | Bottom Drawer Assembly | 1 |
|
14 |
040-0250-88 | Screw 1/4-20 x 1/2" | 4 |
|
15 |
029-3689-00 | Support Plate Assembly - includes items 16 thru 22 | 1 |
|
16 |
050-6557-00-216 | Support Plate | 1 |
|
17 |
016-1083-00 | Gas Cylinder | 1 |
|
18 |
151792-50 | Cylinder Mount | 1 |
|
19 |
041-0312-01 | Hex Nut | 4 |
|
20 |
040-0312-59 | Hex Bolt | 4 |
|
21 |
016-0090-05 | Release Handle Lever | 1 |
|
22 |
016-0683-00 | Caster | 5 |
|
23 |
016-0681-01 | Base | 1 |
|
24 |
Serial Number Label | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
