Integra™ Center Console Sink Component Options
Refer to: the Cabinet Color Options for the order number extension of your desired color.

Model |
FCC |
Serial Number | All |

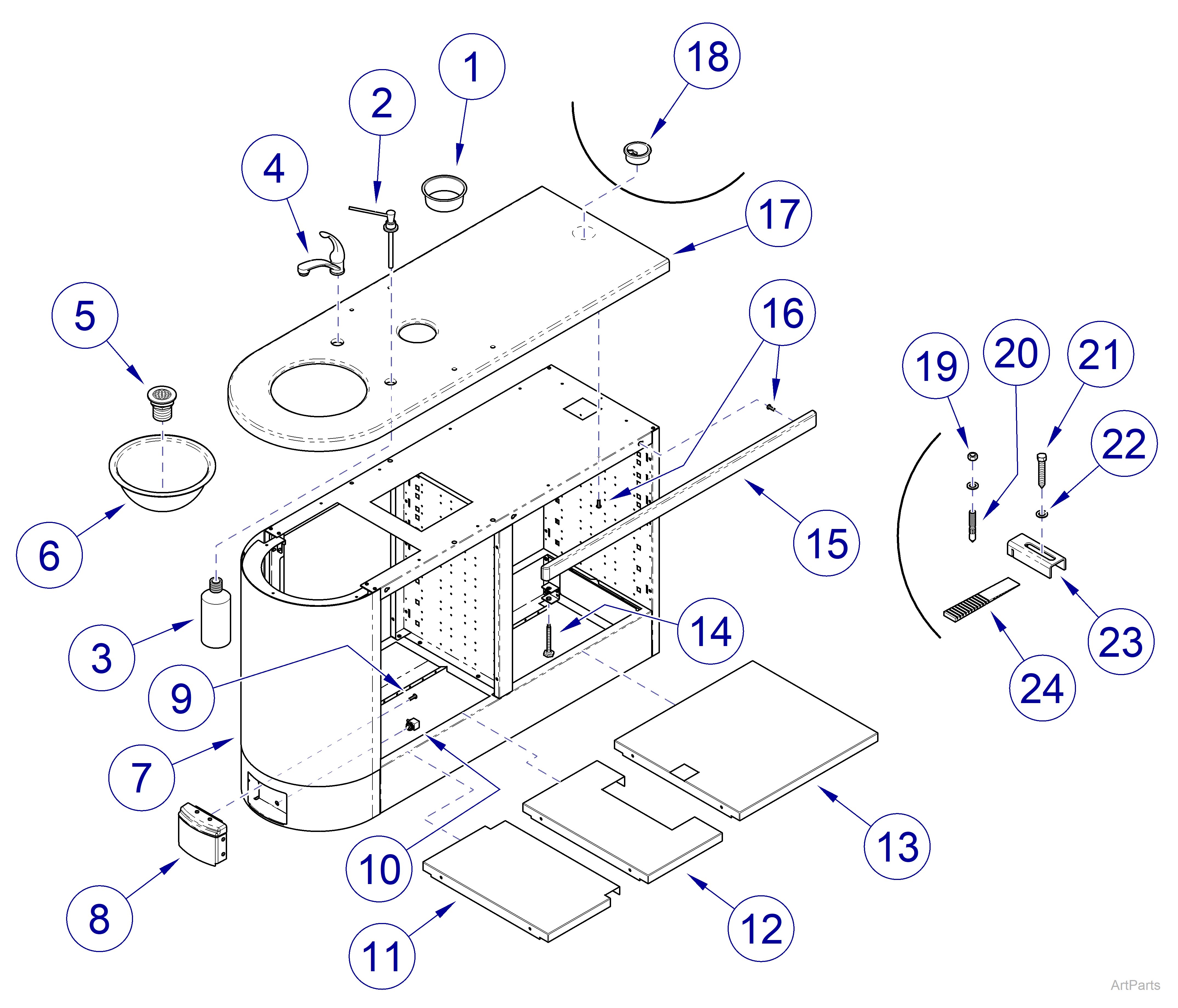

Integra™ Center Console Sink Component Options | |||
---|---|---|---|
Item | Part Number | Description | Qty |
1 |
016-0925-00 | Waste Ring - Laminate Only | 1 |
2 |
Pump Dispenser Options - includes item 3 | ||
CPA-PMPDSP-1 | Chrome Pump Dispenser | 1 | |
CPA-PMPDSPW-1 |
White Pump Dispenser |
NLA |
|
CPA-PMPDSPS-1 | Stainless Steel Pump Dispenser | 1 | |
3 |
016-0446-00 | Soap Bottle | 1 |
4 |
Faucet Options | ||
CFT-9ST4LVC-1 | Chrome Faucet | 1 | |
CFT-9ST4LVW-1 | White Faucet | 1 | |
CFT-9ST4LVS-1 | Stainless Steel Faucet | 1 | |
5 |
Drain Strainer Options | ||
CPA-1STRAIN | 1.25” Grid Drain - White | 1 | |
CPA-2STRAIN | 2” Duplex Strainer - Chrome | 1 | |
CPA-3STRAIN | 2” Grid Drain - Stainless Steel | 1 | |
6 |
029-2960-00 |
Top Mount Sink - Laminate Only | NLA |
7 |
Console Front Panel Options | ||
029-2954-00 |
Console Front Panel w/o Foot Pedal | NSS | |
029-2891-00 | Console Front Panel w/ Foot Pedal - includes items 7 thru 9 | 1 | |
8 |
029-3262-00 |
Foot Pedal Assembly |
NLA |
9 |
040-0010-109 | Screw #10-24 x 3/8” | AR |
10 |
016-0767-00 | Faucet Controller | 1 |
11 |
050-5436-50 | Bottom Panel | 1 |
12 |
050-5437-50 | Bottom Panel | 1 |
13 |
050-5435-51 | 21.7” Bottom Panel | 1 |
14 |
016-0557-00 | Leveling Screw | 1 |
15 |
44.6” Mullion Assembly Options - includes item 16 | ||
029-4462-00 | Laminate Top and Solid Surface Top Mullion Assembly | 1 | |
029-4462-01 | Quartz Top Mullion Assembly | 1 | |
16 |
040-0010-48 | Screw #10 x 5/8” | 1 |
17 |
54.6” Worksurface Options | ||
063-6100-01-xxx | Laminate Worksurface | 1 | |
029-2946-00-xxx | Solid Surface Worksurface | 1 | |
068-0356-00-xxx | Quartz Worksurface | 1 | |
029-3991-00-xxx | Corian Worksurface w/ SS Sink | 1 | |
18 |
053-1160-00 | Wire Grommet - Optional | 1 |
19 |
041-0375-01 | Nut | 1 |
20 |
042-0208-00 | Concrete Anchor | 1 |
21 |
042-0209-00 | Lag Screw | 1 |
22 |
045-0001-49 | Washer | 1 |
23 |
050-5812-50 | Hold-Down Clip | 1 |
24 |
053-1242-00 | Shim | 1 |
25 |
053-0409-00 | Waste Receptacle - Not Shown | 1 |
26 |
002-0651-00 |
Corian Care Kit - Not Shown | NLA |
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |

Model |
FCC |
Serial Number | All |

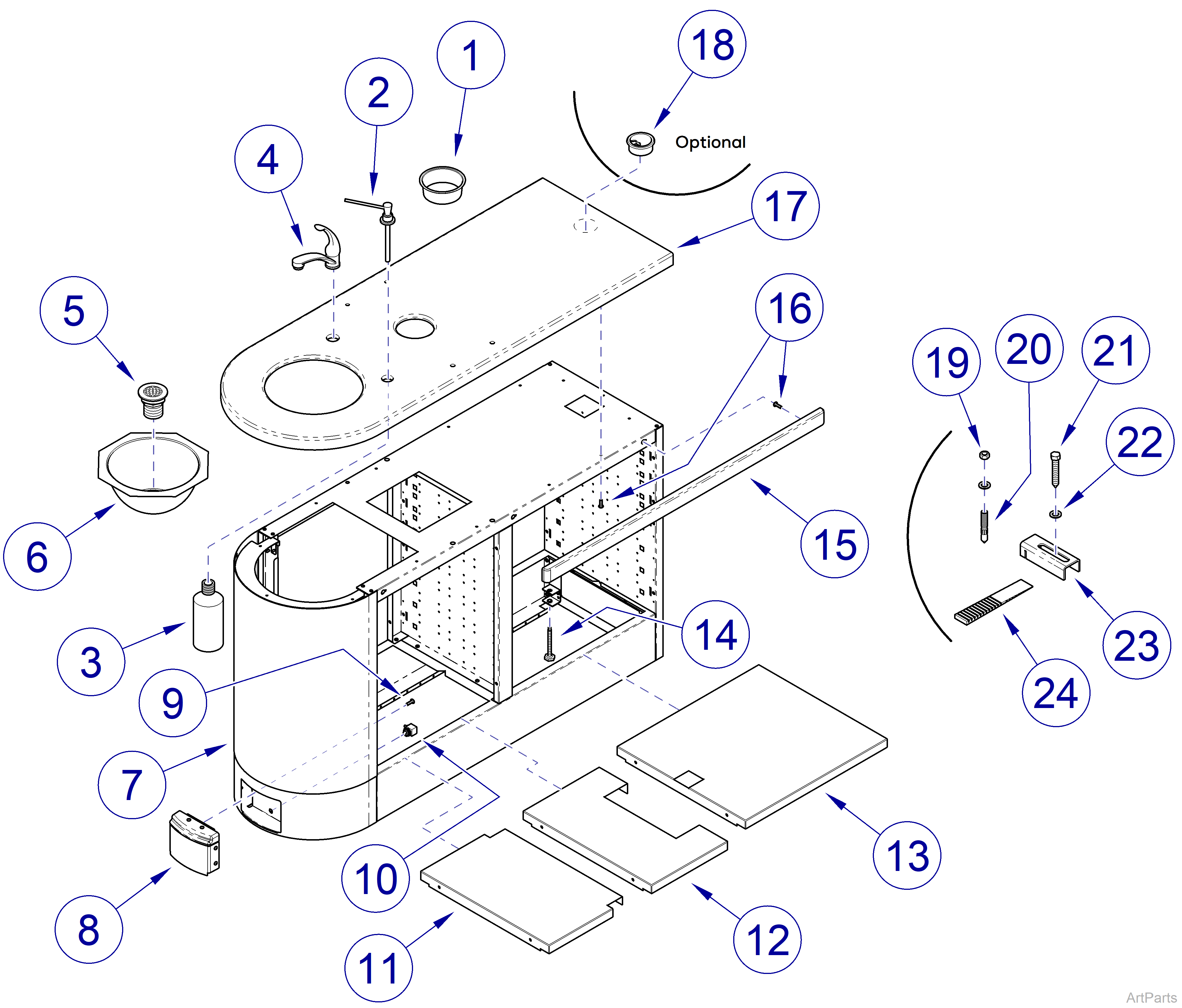

Integra™ Center Console Sink Component Options | |||
---|---|---|---|
Item | Part Number | Description | Qty |
1 |
016-0925-00 | Waste Ring - Laminate Only | 1 |
2 |
Pump Dispenser Options - includes item 3 | ||
CPA-PMPDSP-1 | Chrome Pump Dispenser | 1 | |
CPA-PMPDSPW-1 |
White Pump Dispenser |
NLA |
|
CPA-PMPDSPS-1 | Stainless Steel Pump Dispenser | 1 | |
3 |
016-0446-00 | Soap Bottle | 1 |
4 |
Faucet Options | ||
CFT-9ST4LVC-1 | Chrome Faucet | 1 | |
CFT-9ST4LVW-1 | White Faucet | 1 | |
CFT-9ST4LVS-1 | Stainless Steel Faucet | 1 | |
5 |
Drain Strainer Options | ||
CPA-1STRAIN | 1.25” Grid Drain - White | 1 | |
CPA-2STRAIN | 2” Duplex Strainer - Chrome | 1 | |
CPA-3STRAIN | 2” Grid Drain - Stainless Steel | 1 | |
6 |
Sink - Solid Top Only |
||
016-1634-00 | 12” Under Mount - Shown | 1 | |
029-2960-00 |
10” Top Mount | NLA | |
7 |
Console Front Panel Options | ||
029-6848-00 | Console Front Panel w/o Foot Pedal | 1 | |
029-6847-00 | Console Front Panel w/ Foot Pedal - includes items 7 thru 9 | 1 | |
8 |
029-3262-01 | Foot Pedal Assembly | 1 |
9 |
040-0010-109 | Screw #10-24 x 3/8” | AR |
10 |
016-0767-00 | Faucet Controller | 1 |
11 |
050-5436-00-791 |
Bottom Panel | NSS |
12 |
050-5437-00-791 |
Bottom Panel | NSS |
13 |
050-5435-01-791 |
21.7” Bottom Panel | NSS |
14 |
016-0557-00 | Leveling Screw | 1 |
15 |
44.6” Mullion Assembly Options - includes item 16 | ||
029-6363-00 | Laminate Top and Solid Surface Top Mullion Assembly | 1 | |
029-6363-01 | Quartz Top Mullion Assembly | 1 | |
16 |
040-0010-48 | Screw #10 x 5/8” | 1 |
17 |
54.6” Worksurface Options | ||
063-6100-01-xxx | Laminate Worksurface | 1 | |
029-2946-00-xxx | Solid Surface Worksurface | 1 | |
068-1150-00-xxx | Quartz Worksurface | 1 | |
029-6412-00-xxx | Corian Worksurface w/ SS Sink | 1 | |
18 |
053-1160-00 | Wire Grommet - Optional | 1 |
19 |
041-0375-01 | Nut | 1 |
20 |
042-0208-00 | Concrete Anchor | 1 |
21 |
042-0209-00 | Lag Screw | 1 |
22 |
045-0001-49 | Washer | 1 |
23 |
050-5812-00-791 |
Hold-Down Clip | NSS |
24 |
053-1242-00 | Shim | 1 |
25 |
053-0409-00 | Waste Receptacle - Not Shown | 1 |
26 |
002-0651-00 |
Corian Care Kit - Not Shown | NLA |
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
