Integra™ Center Console Sink Base Storage Interior Options
Pebble Grey
Date Range: Prior to 12/31/2011
|
Model |
FCC |
| Date | Prior to 12/31/2011 |

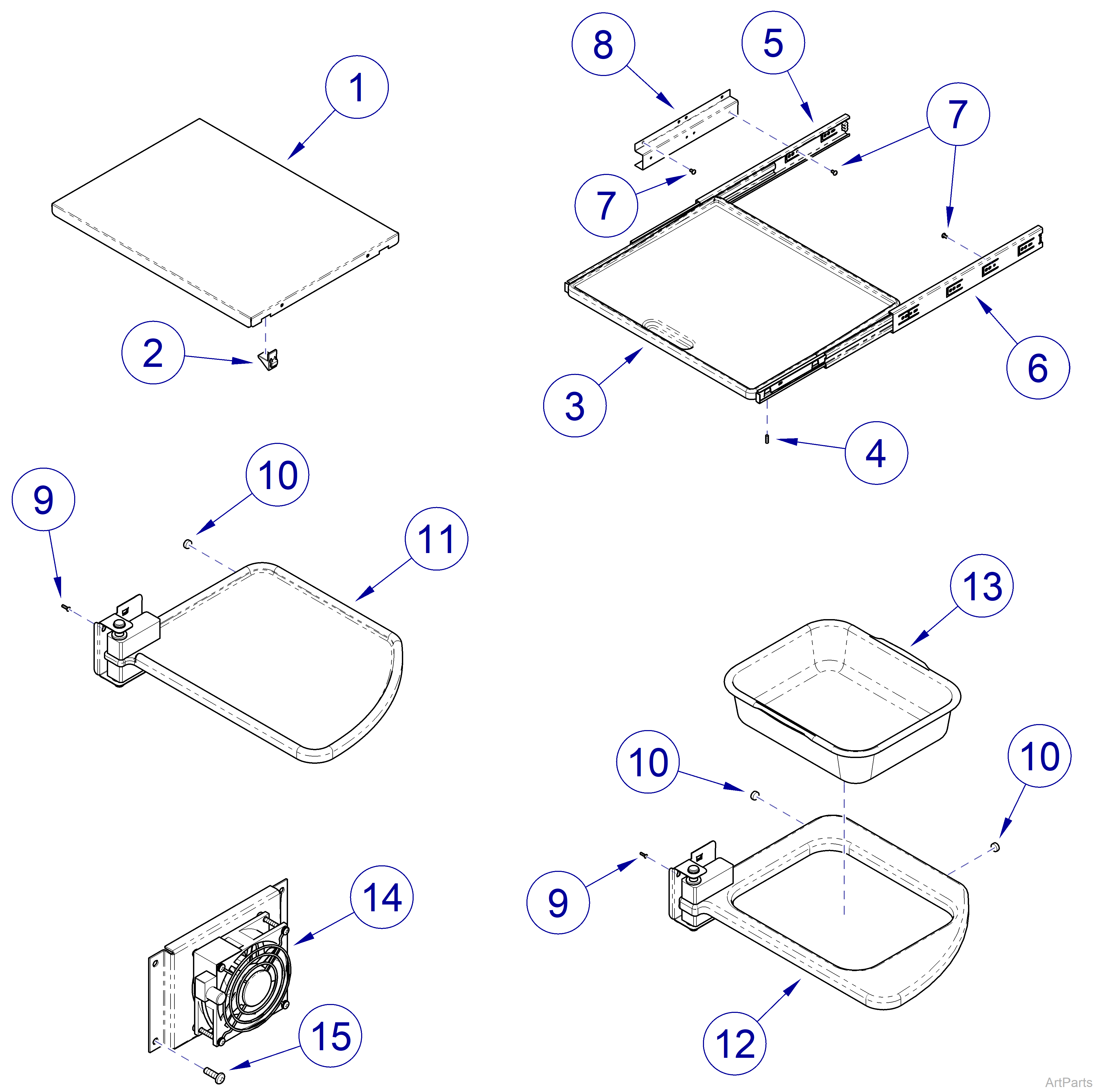

| Integra™ Center Console Sink Base Storage Interior Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-5438-51 | Adjustable Shelf | 1 |
|
2 |
029-1761-02 | Shelf Clips | 4 |
|
3 |
068-0502-03-216 | 24” Pull-out Shelf | 1 |
|
4 |
040-0008-98 | Set Screw #8 x 7/16” | 4 |
|
5 |
016-0719-00 | 16” LH Slide | 1 |
|
6 |
016-0719-01 | 16” RH Slide | 1 |
|
7 |
040-0008-45 | Screw #8-32 x 5/16” | 6 |
|
8 |
050-7794-00-216 | Slide Spacer Bracket | 1 |
|
9 |
040-0006-26 | Screw #6 x 1/2” | 1 |
|
10 |
053-0716-00 | Bumper | AR |
|
11 |
Swing-Out Shelf Assembly Options | ||
| 029-2994-00 | RH Swing-Out Shelf Assembly | 1 | |
| 029-2994-01 | LH Swing-Out Shelf Assembly | 1 | |
|
12 |
Swing-Out Tub Assembly Options | ||
| 029-4361-00 | RH Swing-Out Tub Assembly | 1 | |
| 029-4361-01 | LH Swing-Out Tub Assembly | 1 | |
|
13 |
053-0220-00-271 | Tub | 1 |
|
14 |
015-2651-00 |
USB Fan Assembly | NLA |
|
15 |
040-0010-48 | Screw #10 x 5/8” | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Date Range: 1/1/2012 thru Present
|
Model |
FCC |
| Date | 1/1/2012 thru Present |
| Integra™ Center Console Sink Base Storage Interior Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-5438-51 | Adjustable Shelf | 1 |
|
2 |
029-1761-02 | Shelf Clips | 4 |
|
3 |
068-0502-03-216 | 24” Pull-Out Shelf | 1 |
|
4 |
040-0008-98 | Set Screw #8 x 7/16” | 4 |
|
5 |
016-0719-00 | 16” LH Slide | 1 |
|
6 |
016-0719-01 | 16” RH Slide | 1 |
|
7 |
040-0008-45 | Screw #8-32 x 516” | 6 |
|
8 |
050-7794-00-216 | Slide Spacer Bracket | 1 |
|
9 |
040-0006-26 | Screw #6 x 1/2” | 2 |
|
10 |
053-0716-00 | Bumper | AR |
|
11 |
029-5532-00 | Swing-Out Shelf Assembly | 1 |
|
12 |
029-5533-00 | Swing-Out Tub Assembly | 1 |
|
13 |
053-0220-00-271 | Tub | 1 |
|
14 |
USB Fan Assembly Options - Supply Dependent | ||
| USB Fan Assembly | 1 | ||
|
|
USB Fan Assembly | 1 | |
|
15 |
040-0010-48 | Screw #10 x 5/8” | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
|
Model |
FCC |
| Date | 1/1/2012 thru Present |
| Integra™ Center Console Sink Base Storage Interior Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
30500-00261-FW | Adjustable Shelf | 1 |
|
2 |
029-1761-02 | Shelf Clips | 4 |
|
3 |
068-1108-03-791 |
24” Pull-out Shelf | NSS |
|
4 |
040-0008-98 | Set Screw #8 x 7/16” | 4 |
|
5 |
016-0719-00 | 16” LH Slide | 1 |
|
6 |
016-0719-01 | 16” RH Slide | 1 |
|
7 |
040-0008-45 | Screw #8-32 x 516” | 6 |
|
8 |
050-7794-00-791 |
Slide Spacer Bracket | NSS |
|
9 |
040-0006-26 | Screw #6 x 1/2” | 2 |
|
10 |
053-0716-00 | Bumper | AR |
|
11 |
029-6392-00 | Swing-Out Shelf Assembly | 1 |
|
12 |
029-6393-00 | Swing-Out Tub Assembly | 1 |
|
13 |
053-0220-00-271 | Tub | 1 |
|
14 |
USB Fan Assembly Options - Supply Dependent | ||
| USB Fan Assembly | 1 | ||
| USB Fan Assembly | 1 | ||
|
15 |
040-0010-48 | Screw #10 x 5/8” | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
